Custom 1.44inch LCD display HAT for Raspberry Pi 2B/3B/3B+/Zero/Zero W,128x128 pixels,SPI interface,ST7735S driver Manufacturer

Custom 1.44inch LCD display HAT for Raspberry Pi 2B/3B/3B+/Zero/Zero W,128x128 pixels,SPI interface,ST7735S driver Manufacturer

$13.99 USD
$13.99 USD $13.99 USD
Sale Sold out

The price is only for Bundle(optiona)1, provide electronic component ,welcome OEM ,ODM,for more please contact.


DESCRIPTION
1.44inch LCD display HAT for Raspberry Pi, 128x128 pixels, SPI interface

Overview

This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface.

Trying to add a control interface for your Pi? Even making the Pi into a handheld game console? This compact display would be the ideal choice.

Features

  • Standard Raspberry Pi 40PIN extension header, supports Raspberry Pi series boards
  • 1x joystick (5-position), 3x pushbuttons, handy and useful
  • Comes with development resources and manual (examples for Raspberry Pi//STM32)

Specifications

  • Driver: ST7735S
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 128x128
  • Backlight: LED
  • Operating voltage: 3.3V

Photos

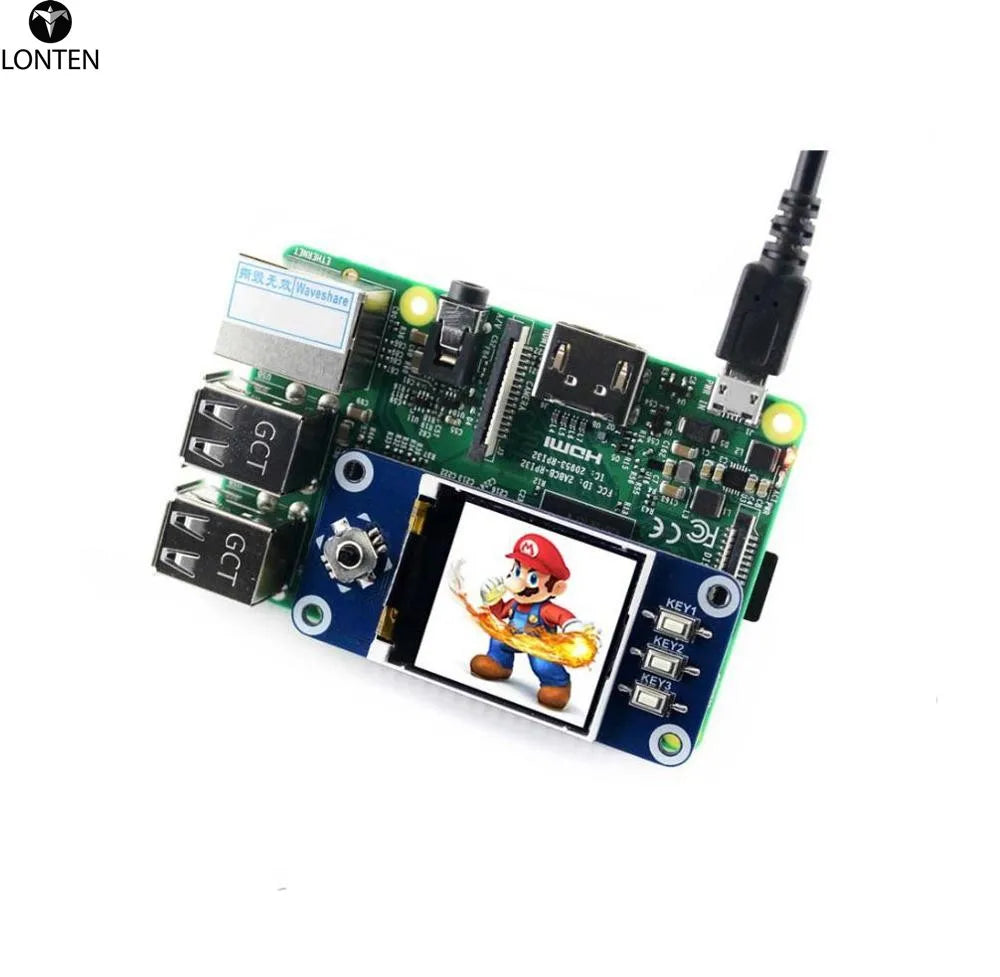

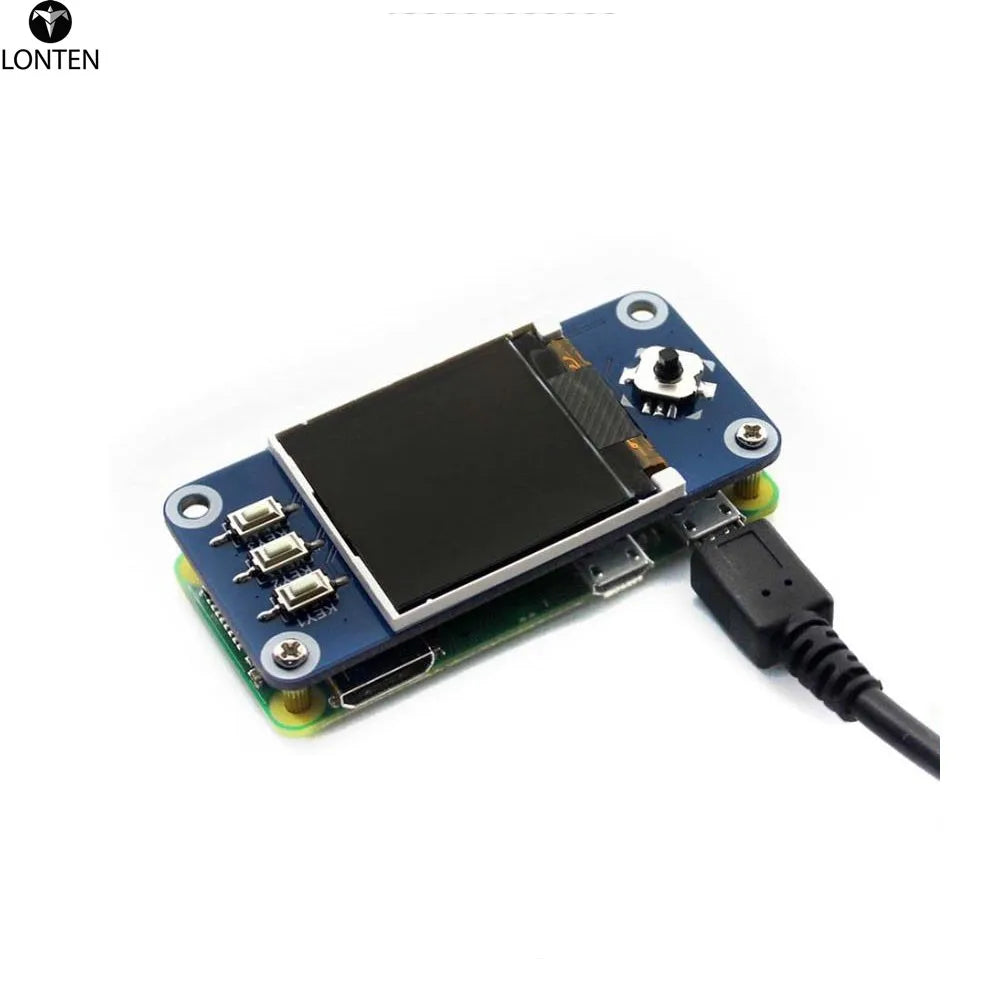

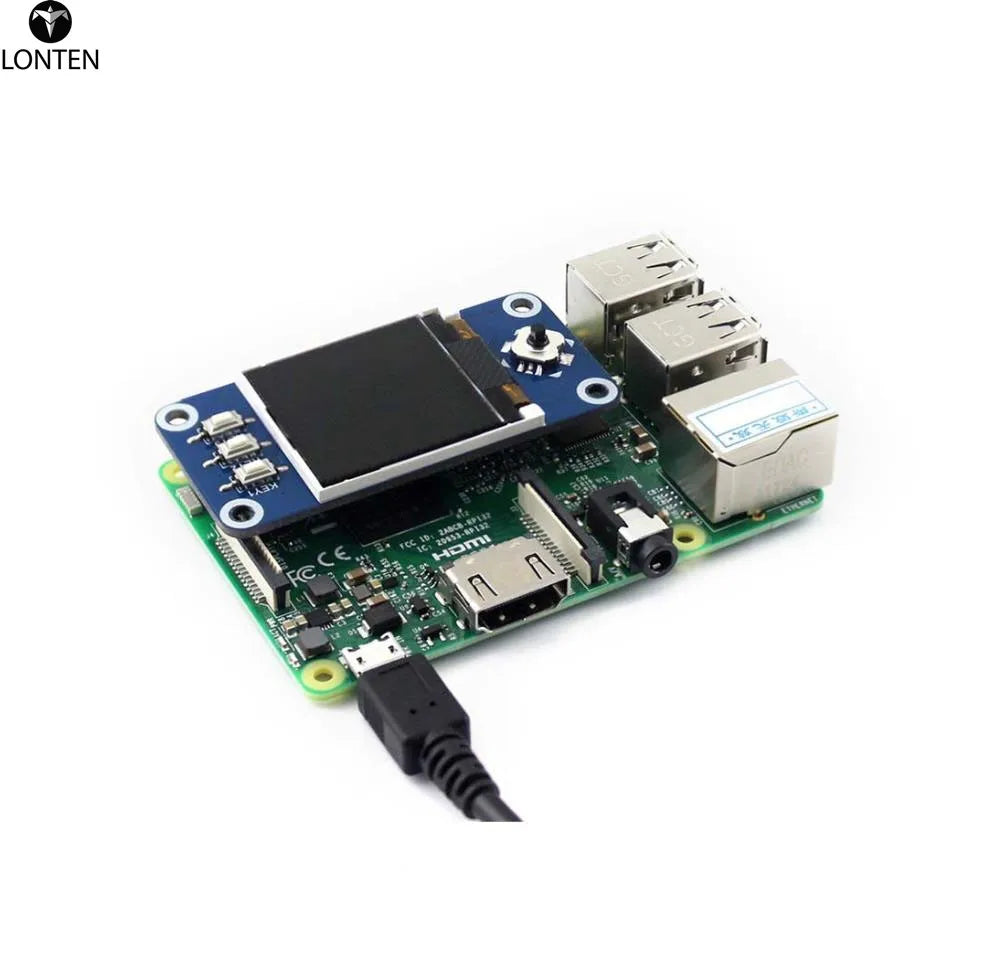

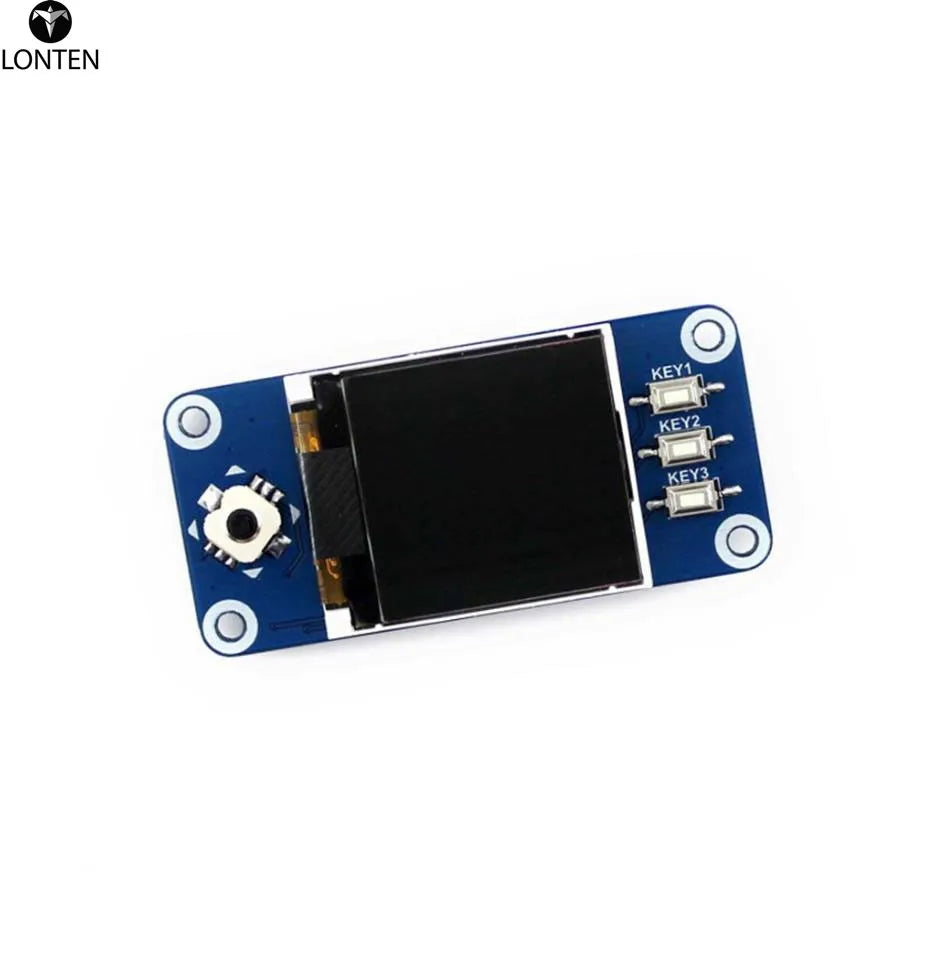

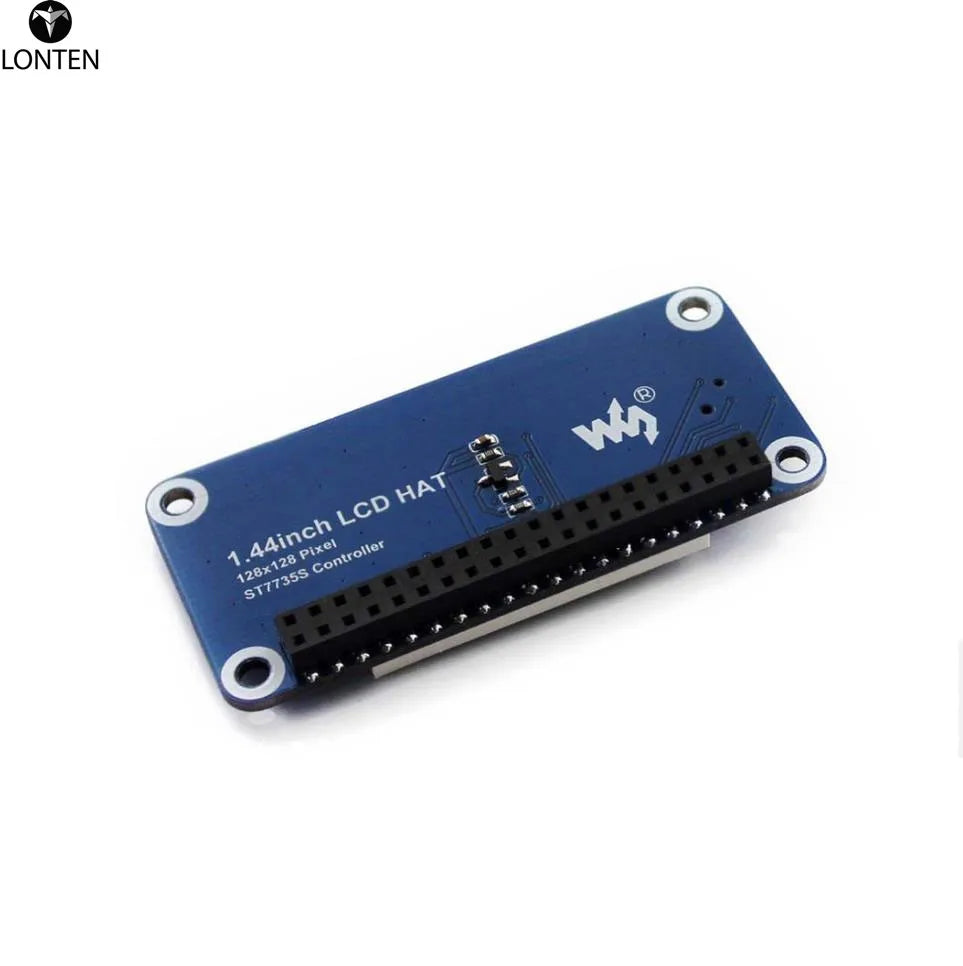

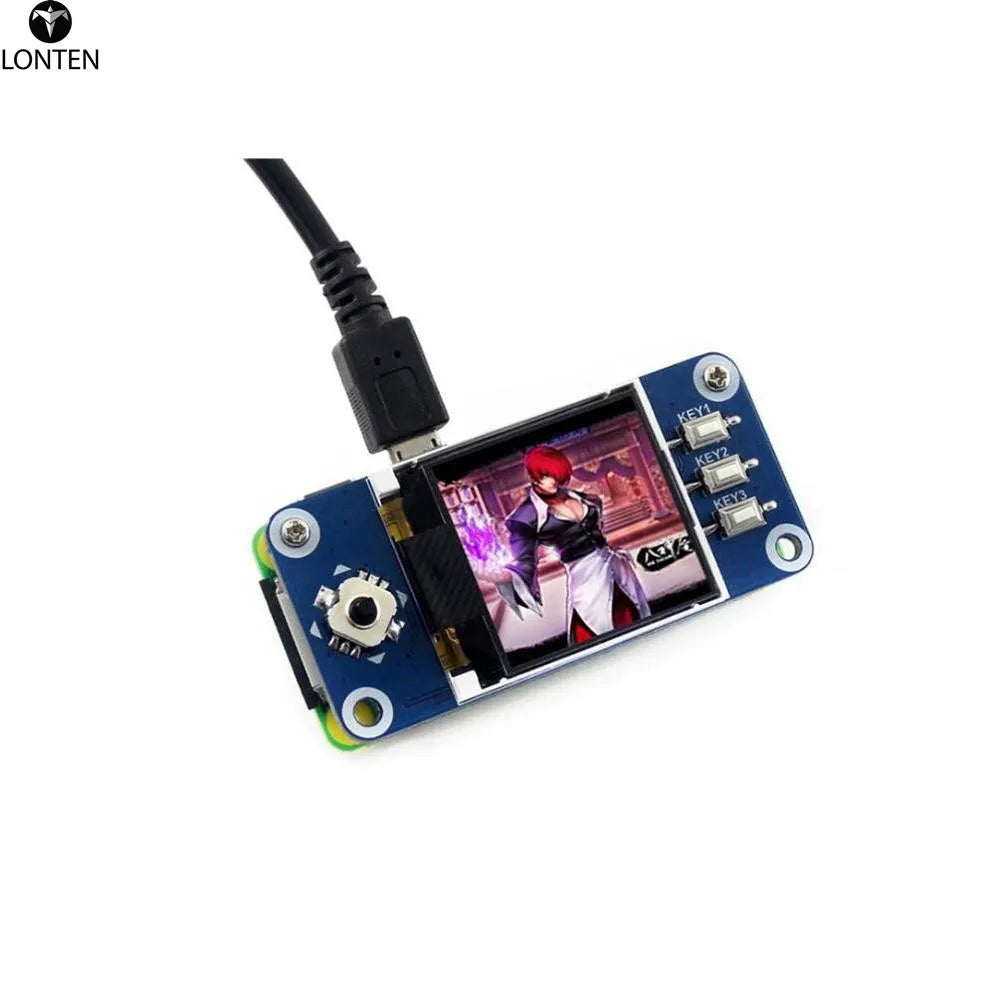

1.44inch-LCD-HAT-21.44inch-LCD-HAT-31.44inch-LCD-HAT-41.44inch-LCD-HAT-51.44inch-LCD-HAT-6

Interface

SYMBOL RASPBERRY PI PIN (BCM) DESCRIPTION
KEY1 P21 Button 1/
KEY2 P20 Button 2/
KEY3 P16 Button 3/
Joystick Up P6 Joystick Up
Joystick Down P19 Joystick Down
Joystick Left P5 Joystick Left
Joystick Right P26 Joystick Right
Joystick Press P13 Joystick Press
SCLK P11/SCLK SPI clock input
MOSI P10/MOSI SPI data input
DC P25 Data/Command selection (high for data, low for command)
CS P8/CE0 Chip selection, low active
RST P27 Reset, low active
BL P24 Backlight

Dimensions

1.44inch-LCD-HAT-size

Development Resources

Wiki : www..com/wiki/1.44inch_LCD_HAT

PACKAGE CONTENT

Weight: 0.013 kg

  1. 1.44inch LCD HAT x1
  2. RPi screws pack (2pcs) x1

1




 Welcome Customize Order!
View full details
