DESCRIPTION
1.44inch LCD display HAT for Raspberry Pi, 128x128 pixels, SPI interface

Overview

This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface.

Trying to add a control interface for your Pi? Even making the Pi into a handheld game console? This compact display would be the ideal choice.

Features

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • 1x joystick (5-position), 3x pushbuttons, handy and useful
  • Comes with development resources and manual (examples for Raspberry Pi)

Specifications

  • Driver: ST7735S
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 128x128
  • Backlight: LED
  • Operating voltage: 3.3V

Photos

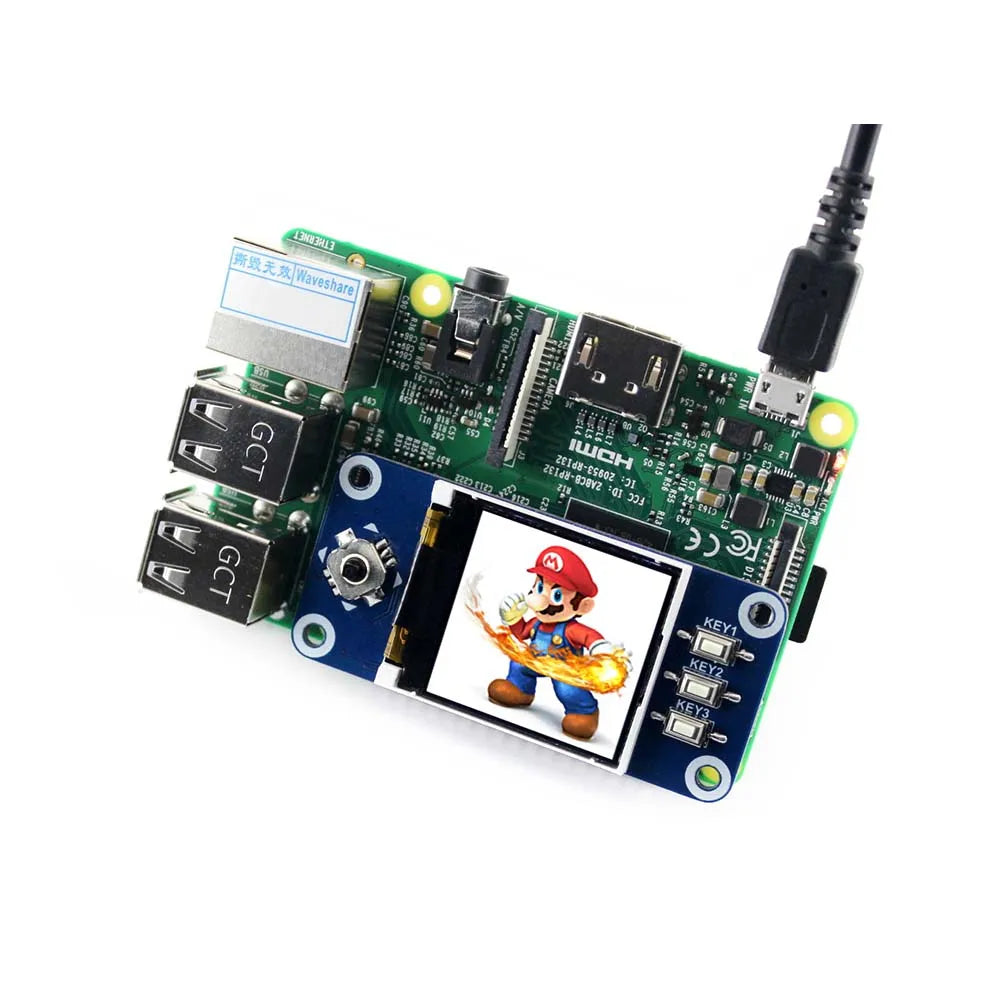

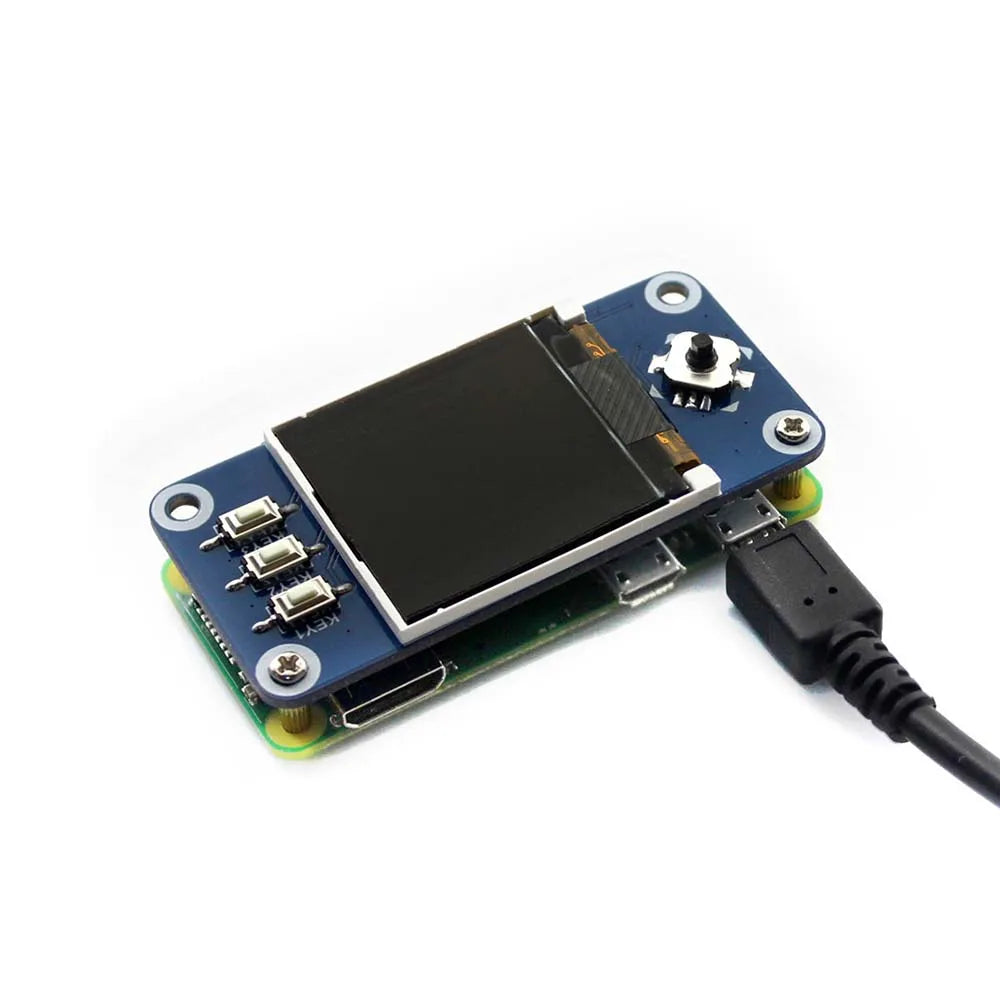

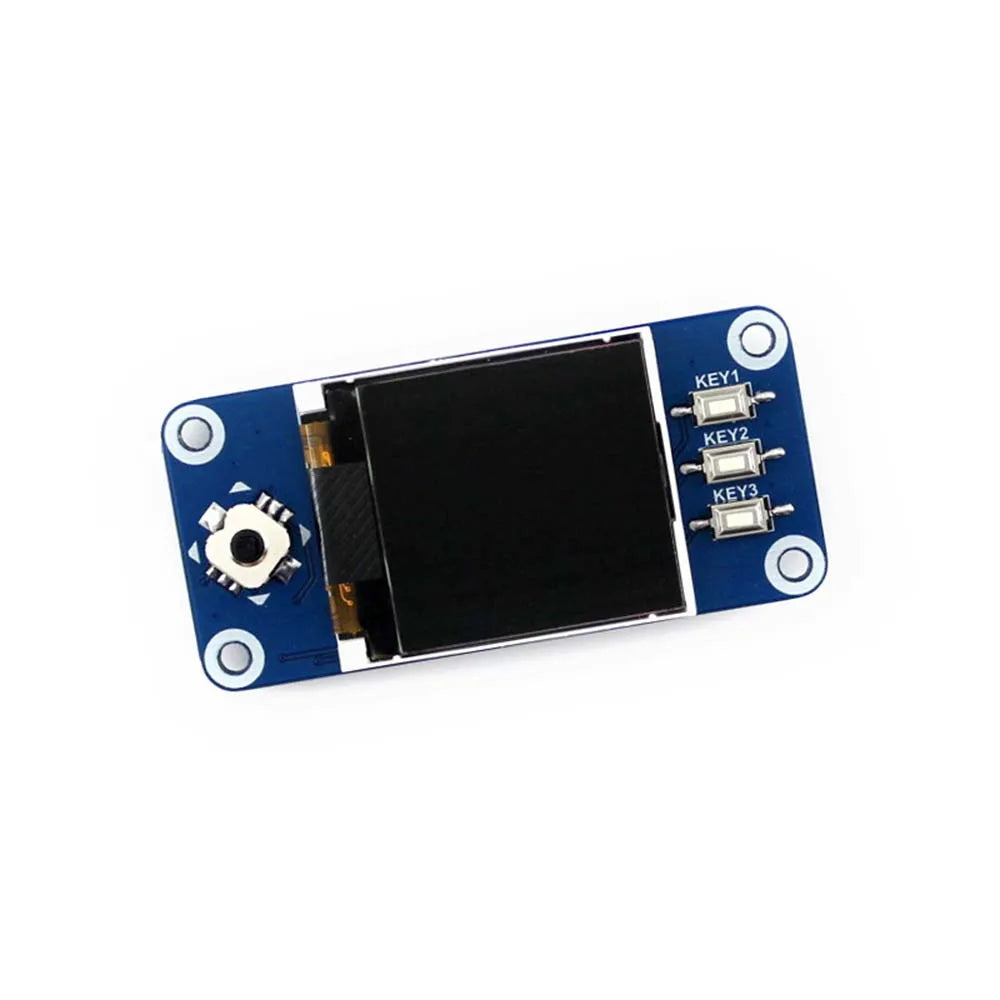

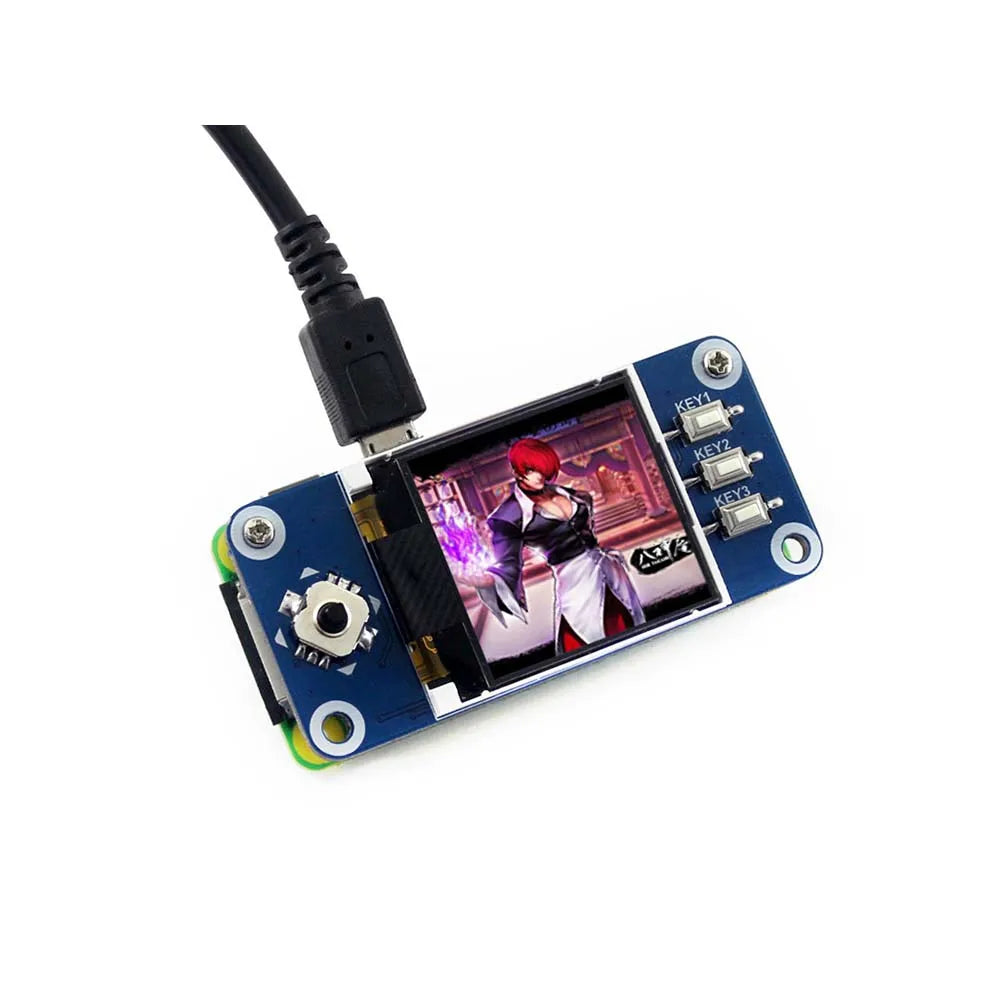

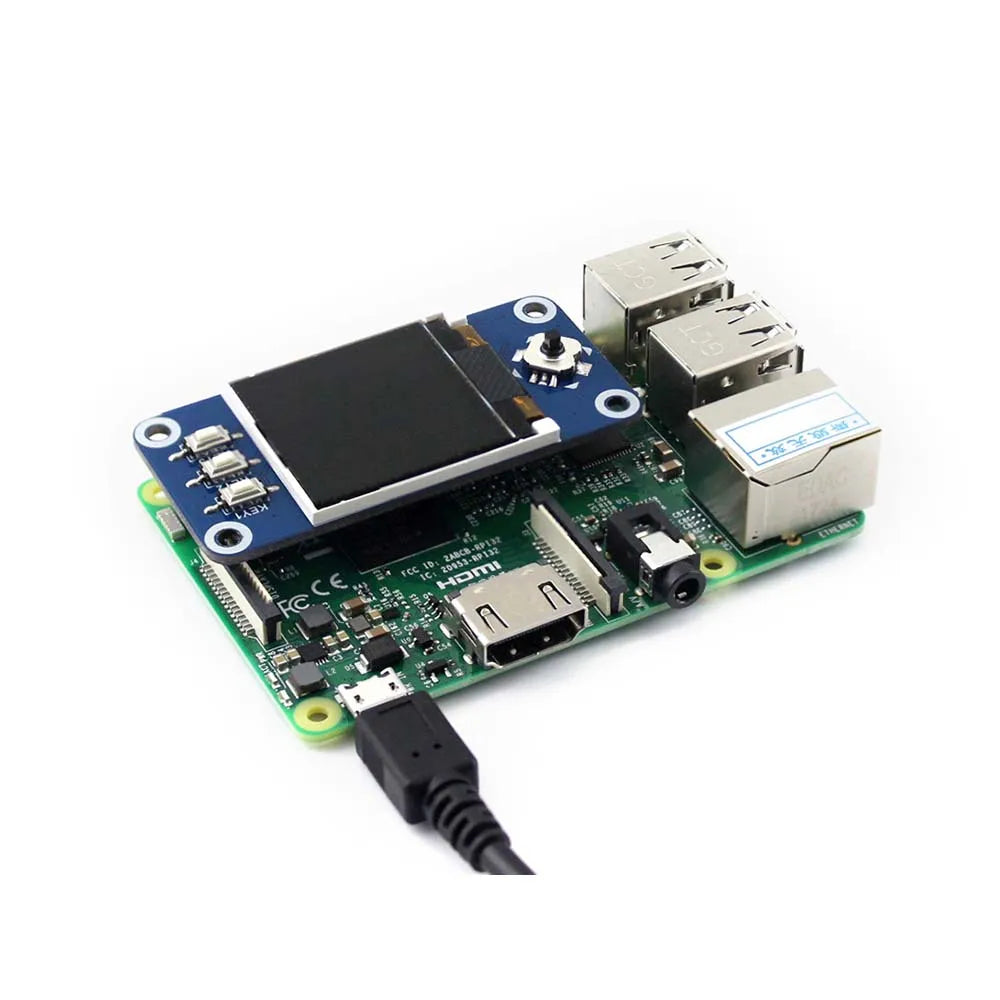

1.44inch-LCD-HAT-21.44inch-LCD-HAT-31.44inch-LCD-HAT-41.44inch-LCD-HAT-51.44inch-LCD-HAT-6

Interface

SYMBOL RASPBERRY PI PIN (BCM) DESCRIPTION
KEY1 P21 Button 1/GPIO
KEY2 P20 Button 2/GPIO
KEY3 P16 Button 3/GPIO
Joystick Up P6 Joystick Up
Joystick Down P19 Joystick Down
Joystick Left P5 Joystick Left
Joystick Right P26 Joystick Right
Joystick Press P13 Joystick Press
SCLK P11/SCLK SPI clock input
MOSI P10/MOSI SPI data input
DC P25 Data/Command selection (high for data, low for command)
CS P8/CE0 Chip selection, low active
RST P27 Reset, low active
BL P24 Backlight

Certificate



Dimensions

1.44inch-LCD-HAT-size
