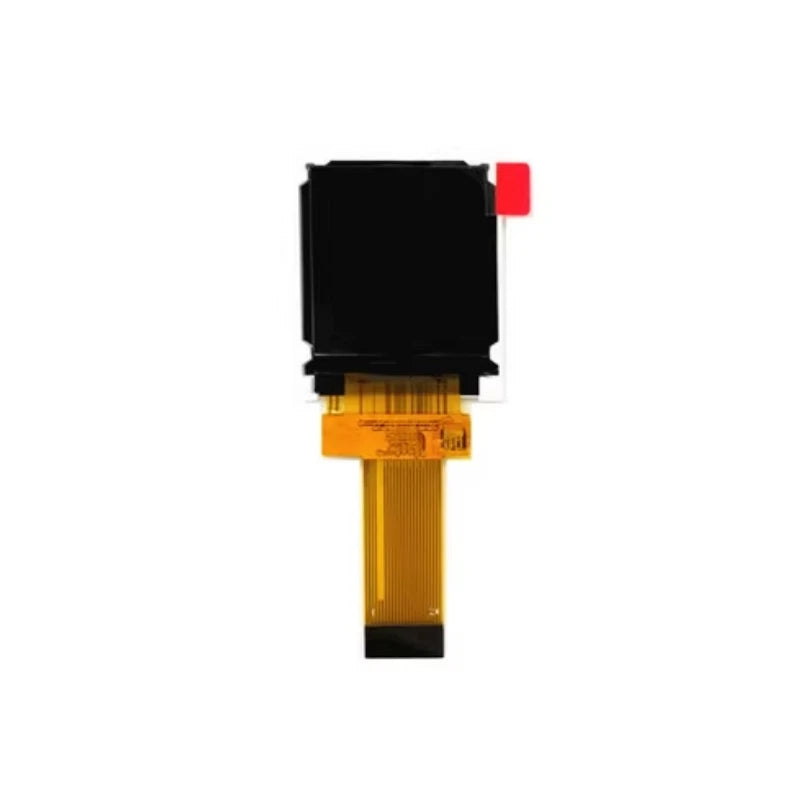

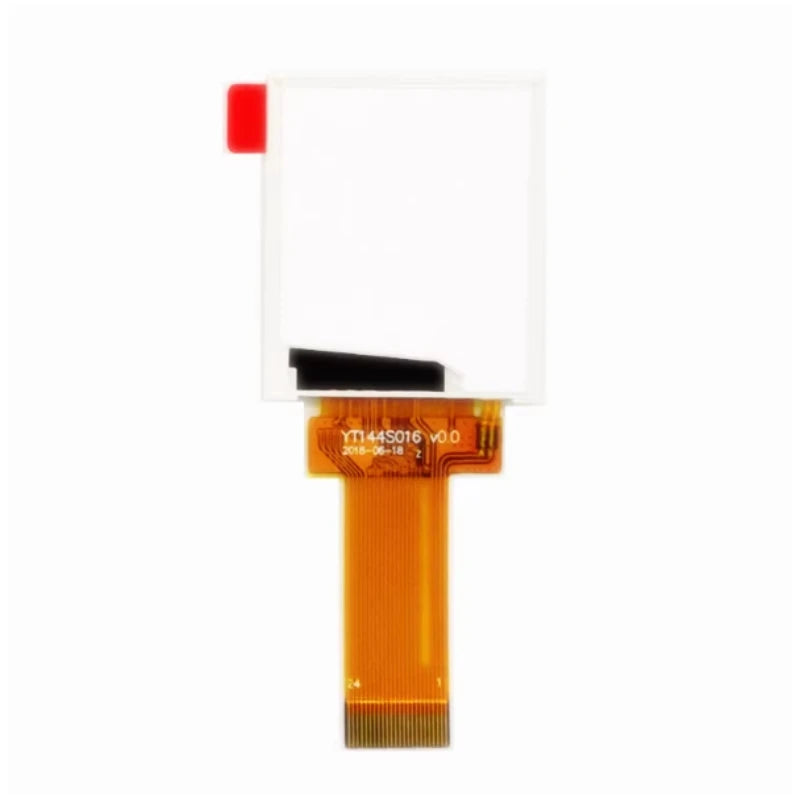

Custom 1.44 inch TFT LCD screen display screen LCD resistance touch screen 24Pin 8-port parallel port color screen ST7735S

Product parameters

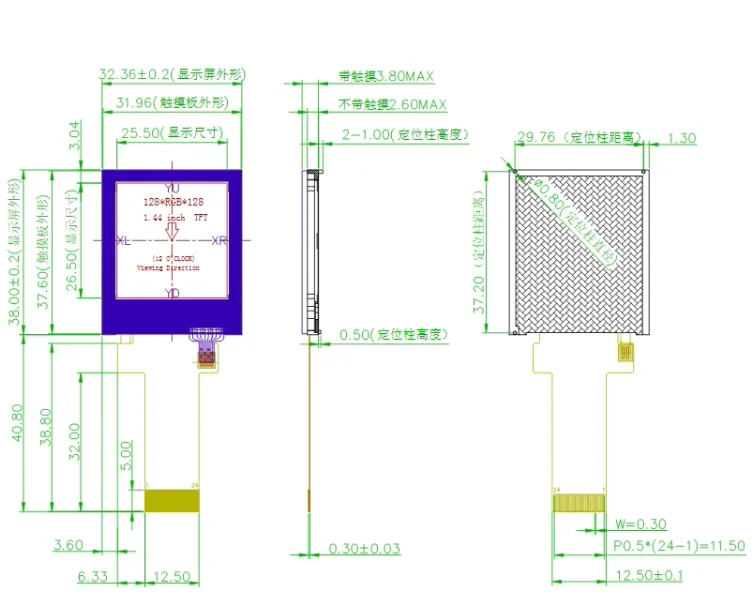

Display screen peripheral size (without touch): 32.36 x 38.00 x2.60 MAX (mm)

Driver chip: ST7735S

Resolution: 128 x 128

Display color: 65K/262K

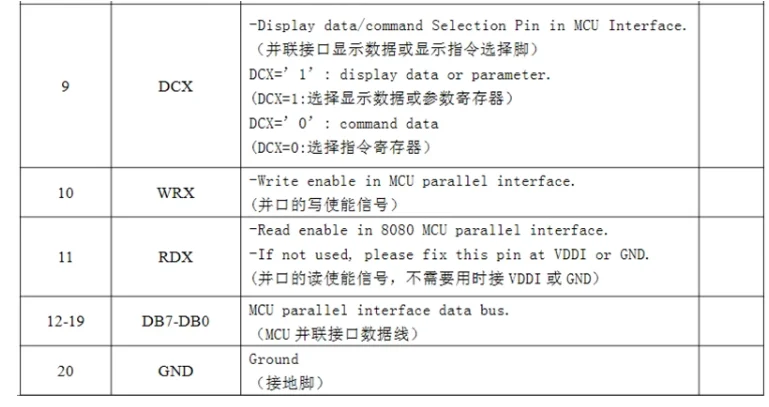

Display interface: 8-bit parallel port

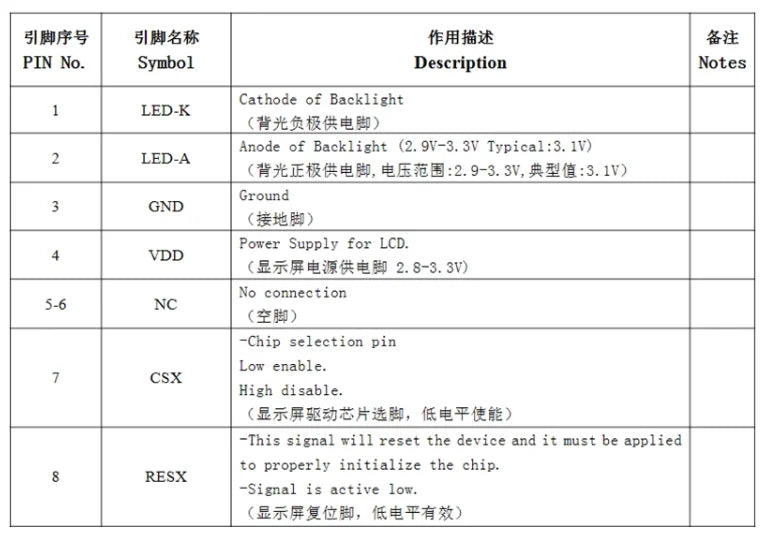

Number of pins: 24Pin (standard interface)

Connection type: plug-in

Foot spacing: 0.5MM

Whether with touch: optional with or without touch

Display angle: Wide angle

Brightness: 250 cd/m2 (BM-7 measured value at room temperature conditions of I=15mA, V=3.3V, and 25 ° C)

Total power consumption (display screen+backlight): 0.06W (measured value at a brightness of 250 cd/m2)

Working temperature: -20~70 ° C

Storage temperature: -30~80 ° C
