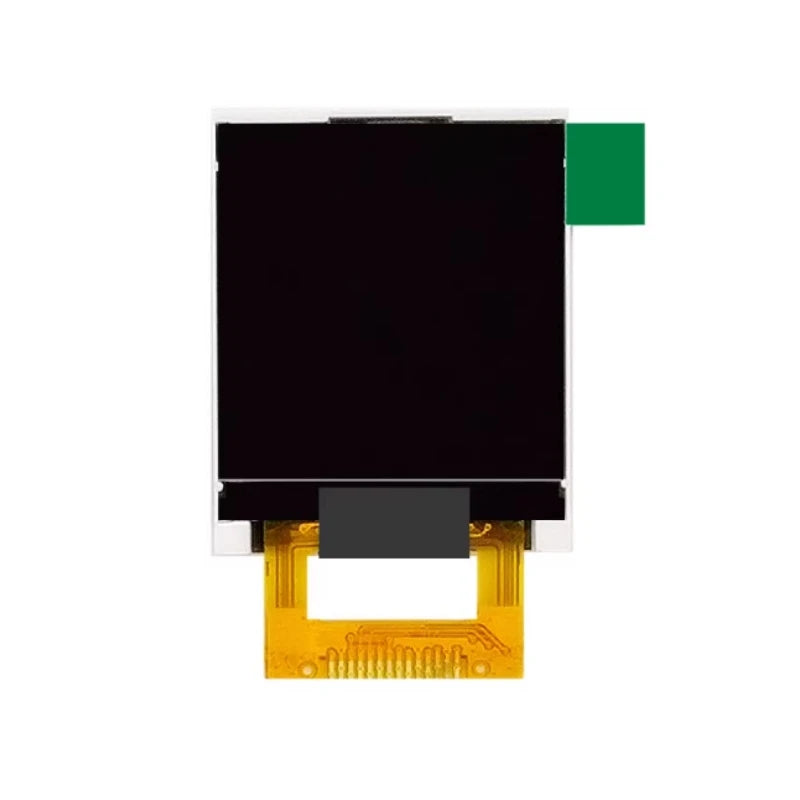

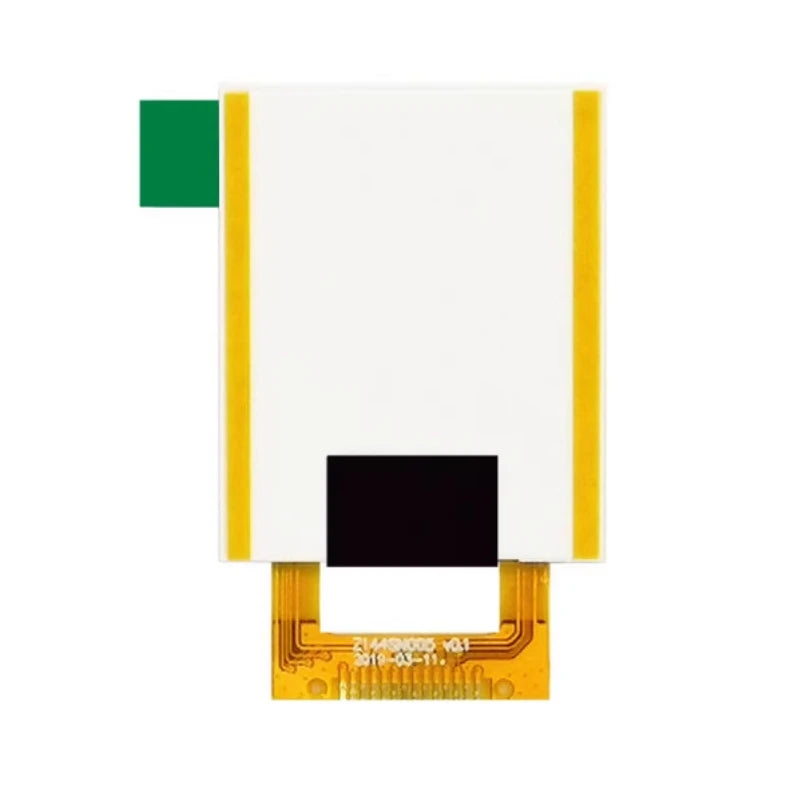

Custom 1.44 inch TFT LCD display screen LCD module 14pin SPI serial port TFT color screen 51/ARM/arduino

Product parameters

Glass panel: GP1.44 inches (Lingju, Taiwan, China)

Resolution: 128 X RGB X 128

Driver chip: ST7735S (created in Taiwan, China)

Interface type: 4-wire SPI serial port

PIN pin spacing: 0.8mm (welding version) 0.5mm (plug-in version)

External dimensions: 29.5 (width) X 36.5 (length) X 2.3 (thickness) mm

Display size: 25.5 (width) X26.5 (length) mm

Backlight type: Samsung LED * 1 Current: 15mA

Voltage: Working voltage IOVCC=VCC=2.8V~3.3V

Total power consumption: 0.06W

Working temperature: -20C~+70C

Storage temperature: -30C~+80C

Perspective: 12:00 O'clock (wide view display)

Touch: without touch

Connection type: two types available: welding type/plug-in type

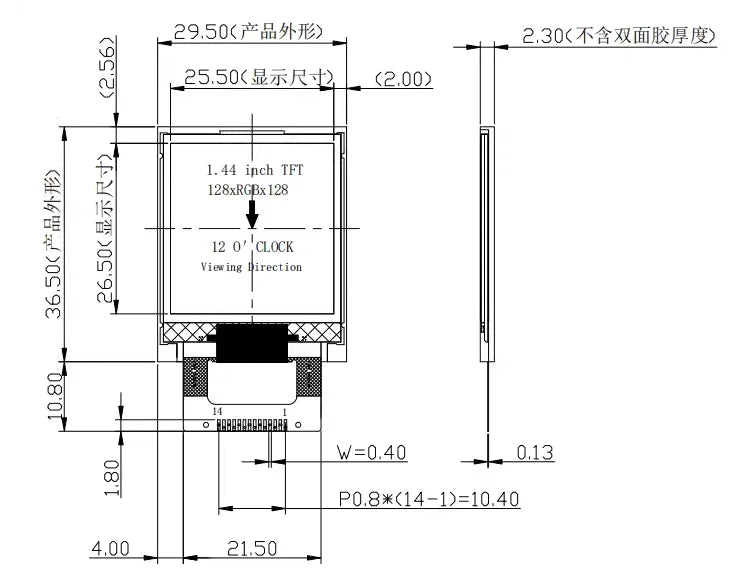

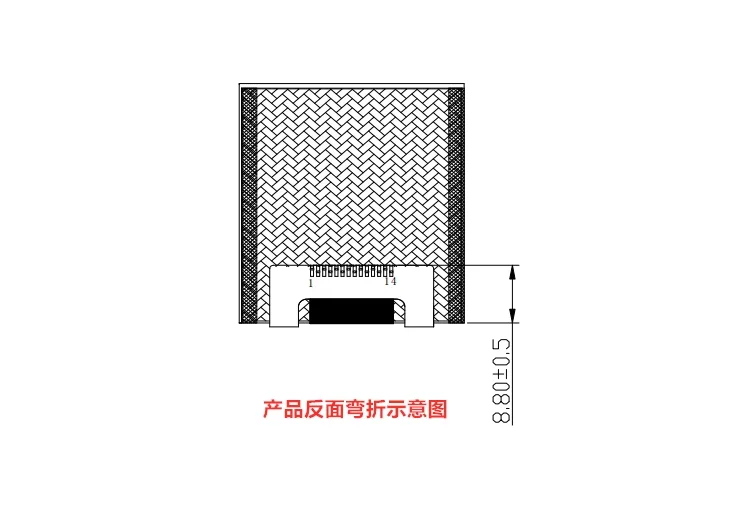

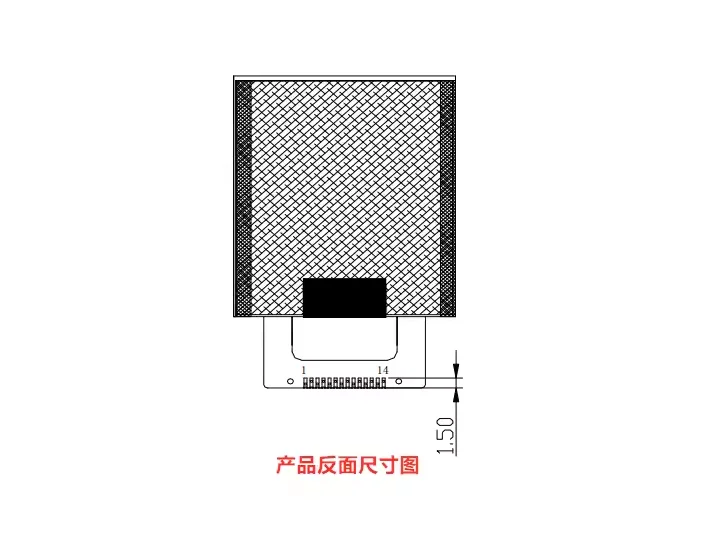

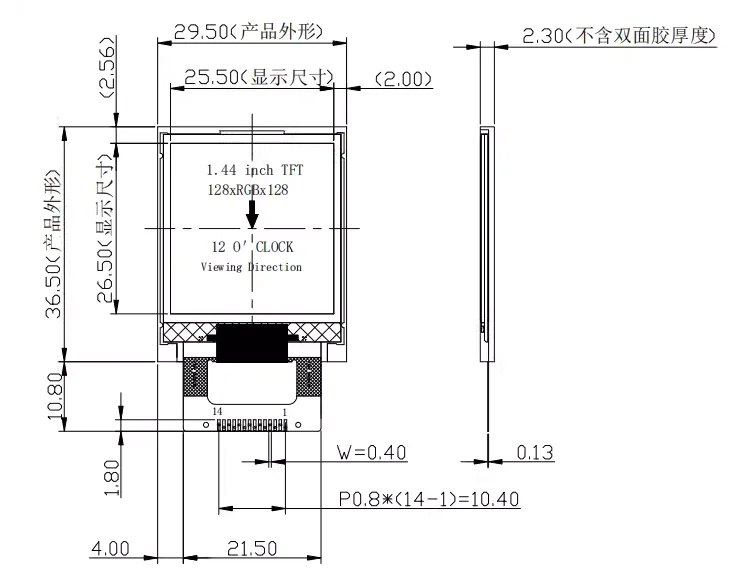

1. Welding drawings

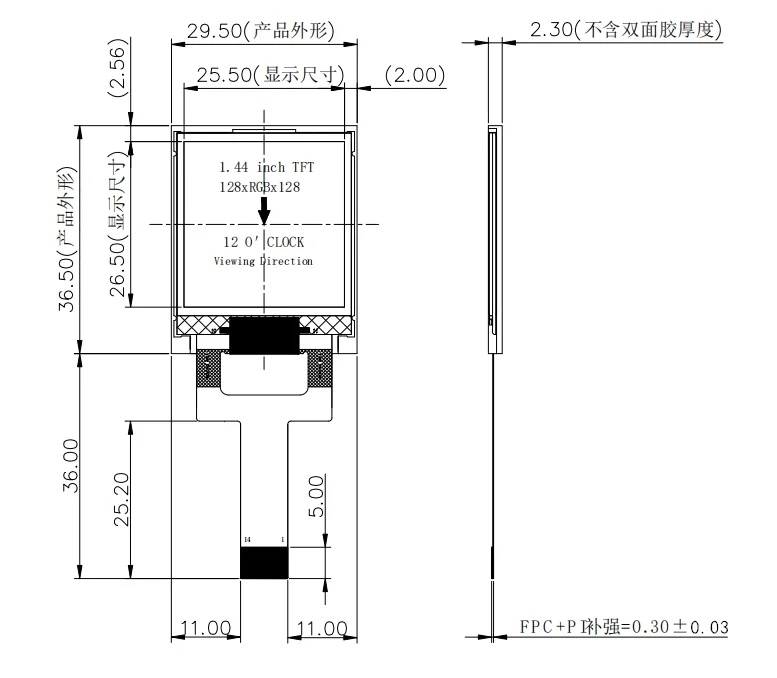

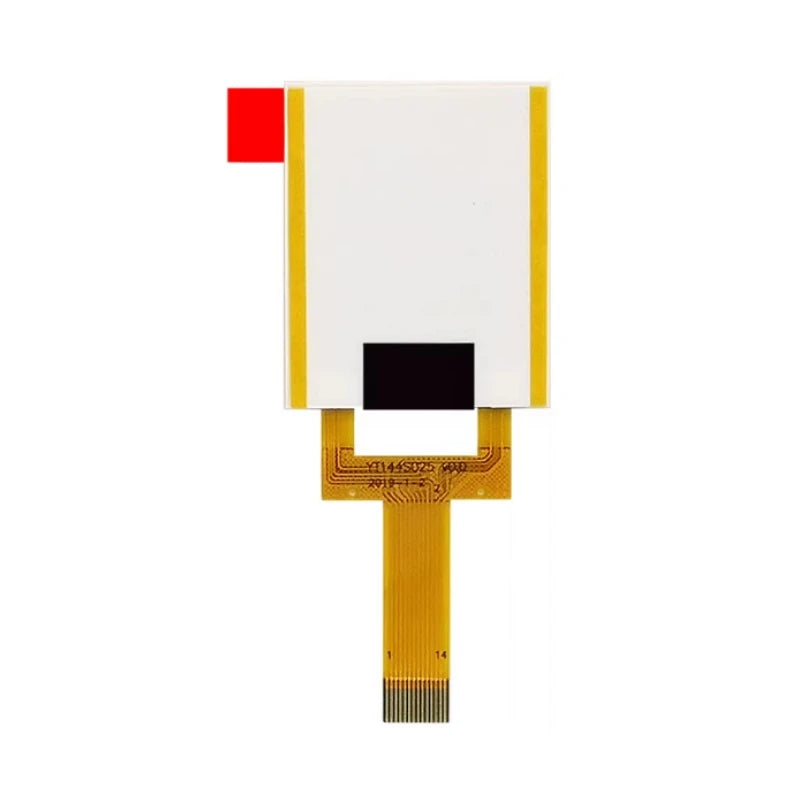

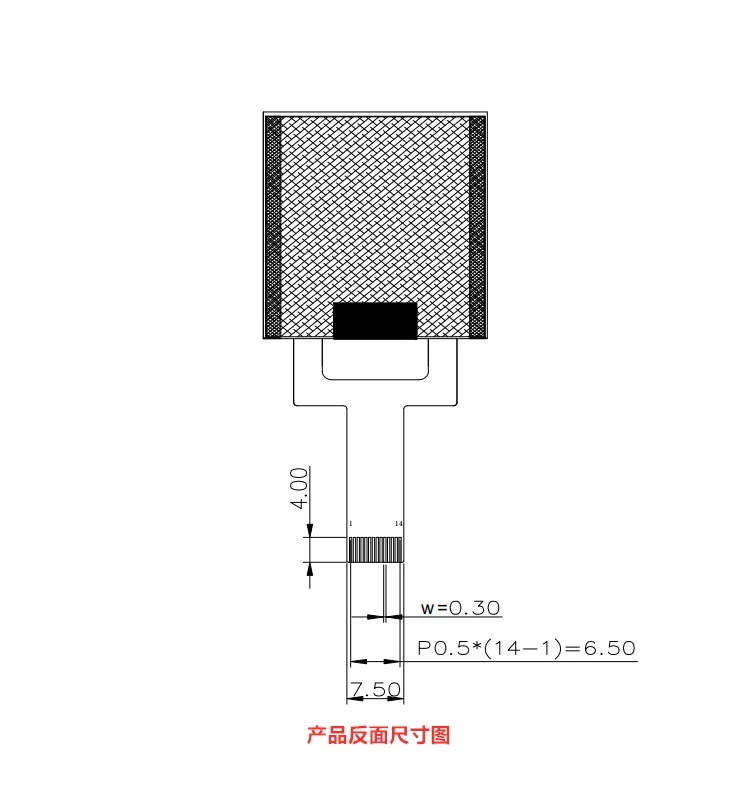

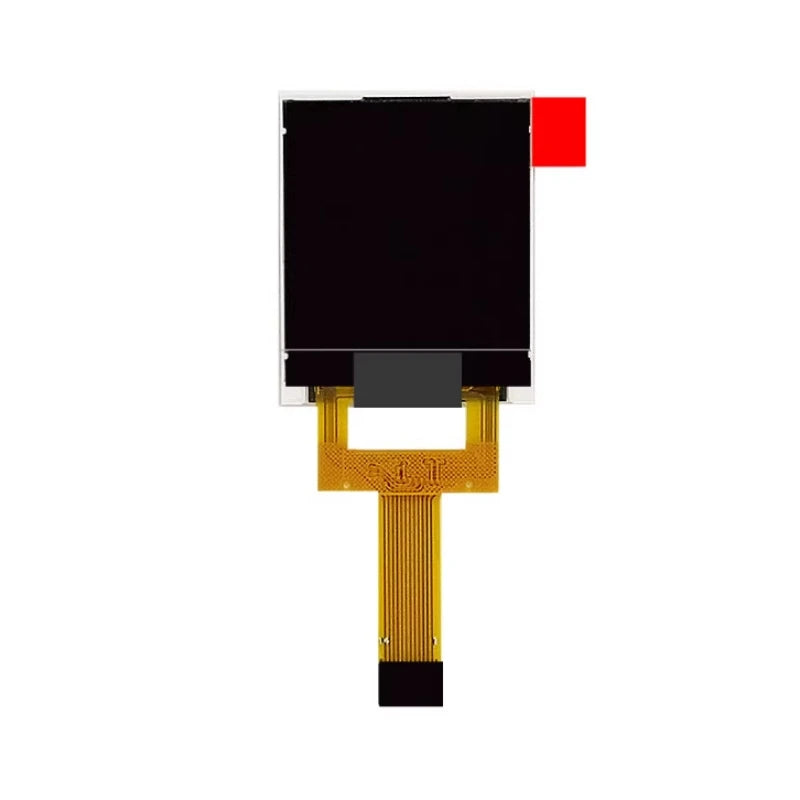

2. Drawing of plug-in model
