Custom 1.3MP Global Shutter MIPI CSI-2 Camera, CS-TX2-XAVIER-nCAM-SC132 for Jetson TX2 Devkit and Xavier Manufacturer

Lens chosen

If you want YT3.5-2M,YT1.8-2.1M,YTC1.8-2.8M, please order YT3.5-2M and leave a message. The price is the same. If you want YT1.6-4M,YT1.6-6M,YT1.6-8M,YT1.6-12M,YT1.6-16M, please orderYT1.6-12M,and leave a message. The price is the same.

Brief

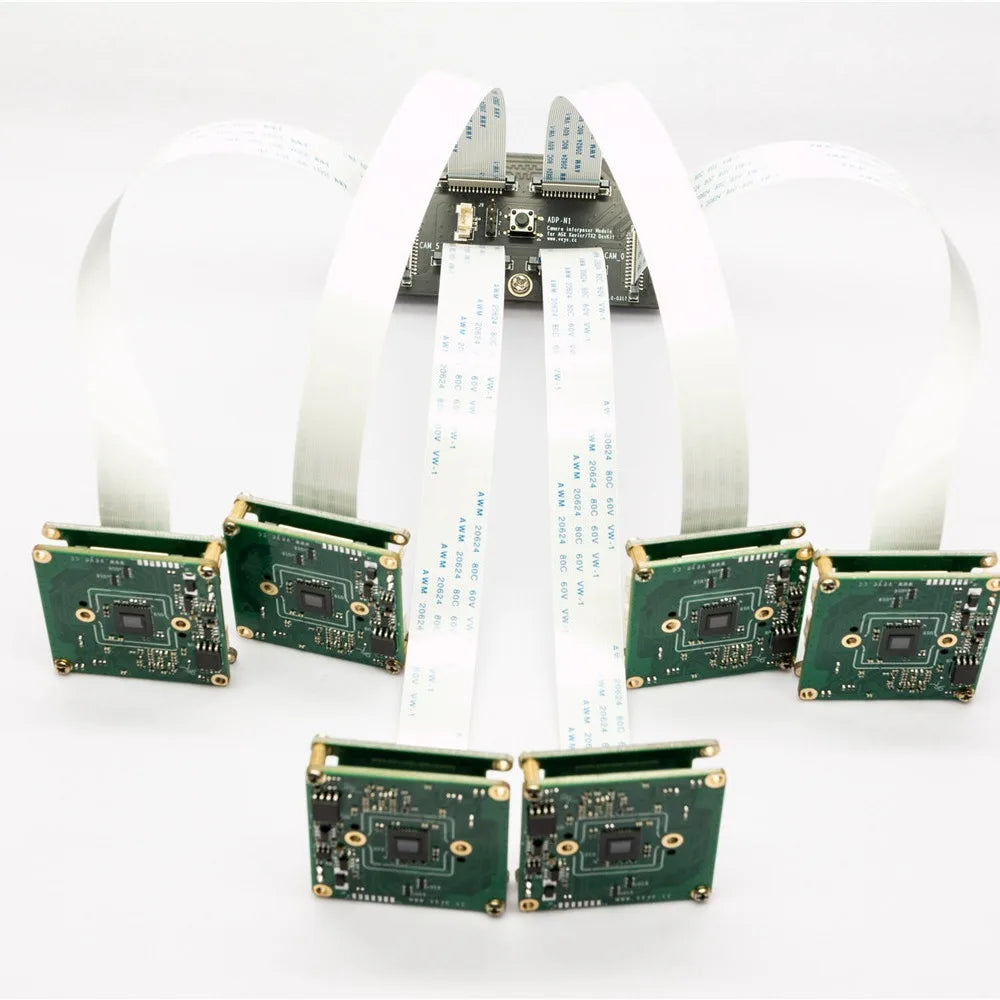

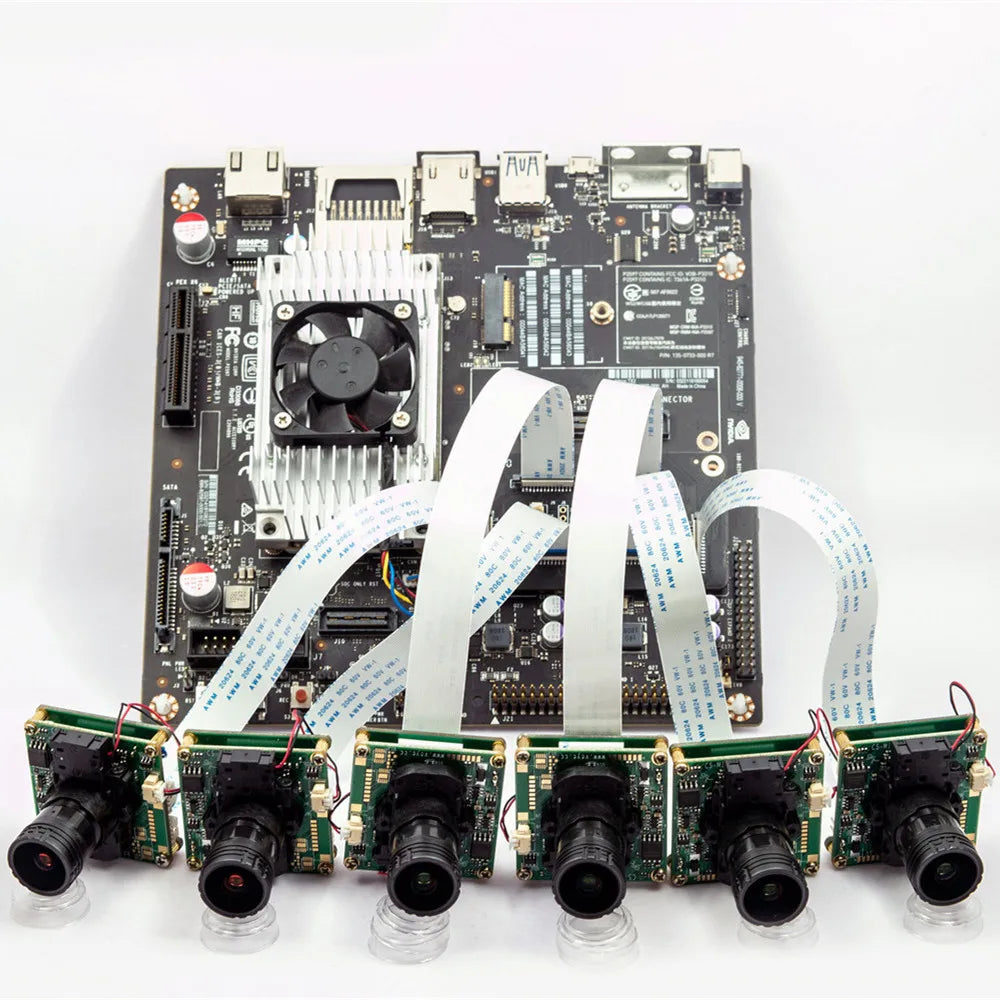

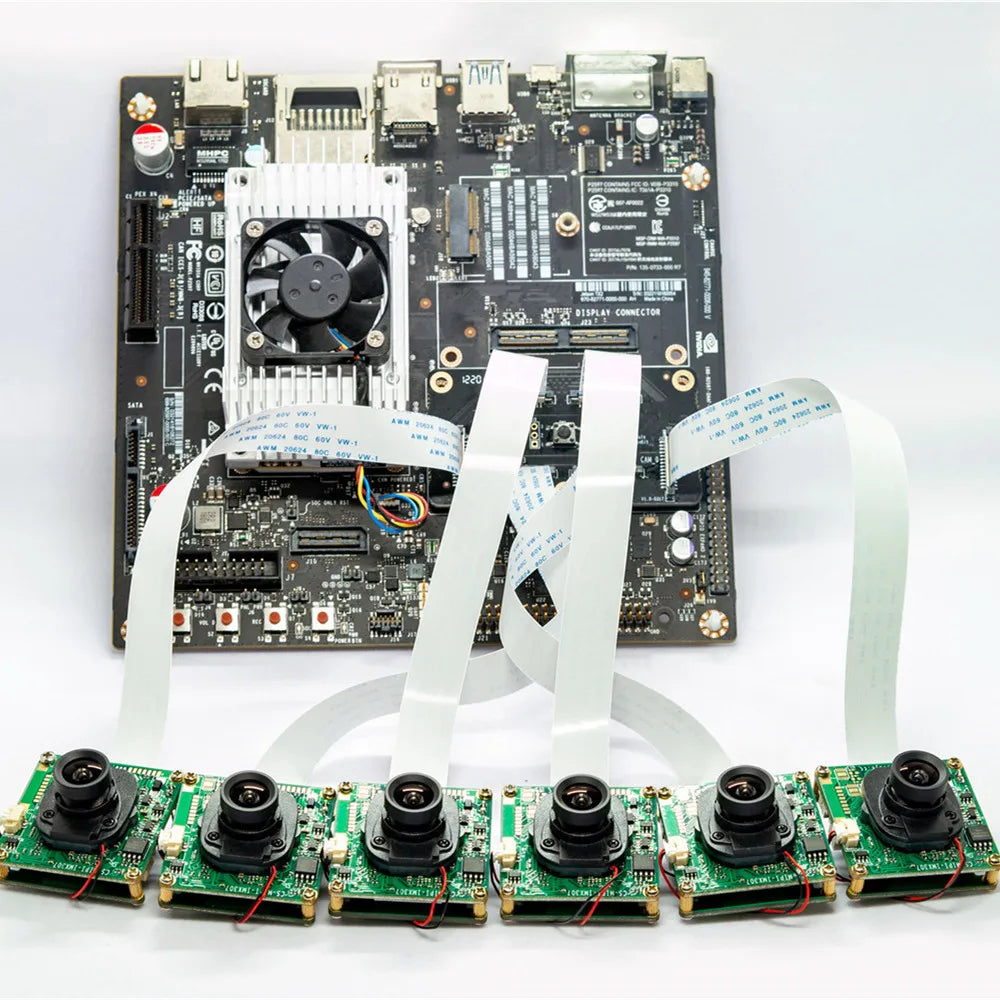

This package is compatible with Jetson TX2 DevKit and AGX-Xavier.

Features

CS-MIPI-SC132 is a cost-effective CSI-2 (MIPI) interface camera module that uses the SC132GS global shutter MONO CMOS sensor whice is SmartSens Technology's SmartGS™ series. CS-MIPI-SC132 supports trigger mode and video stream mode. + 1/4 inch 1.3m pixel SmartGS™ CMOS sensor + Only mono mode is supported + Global shutter + Built-in ISP image processing + CSI-2 data interface + Uncompressed UYVY data format, YUV422-8bit data type + Standard lens interface + Brightness and contrast can be adjusted + Support video stream mode + Support trigger mode + Firmware upgrade via USB flash drive + Support Raspberry PI Platform,RK3399, NVIDIA JETSON Platform

Thechnical Details

CAD drawing

Lens select

http://wiki.veye.cc/index.php/Lens_select

Camera Caputure File in different scenes

Full Resolution Video and Capture file: https://www.mediafire.com/folder/zziqnrhhvyyss/VEYE_Camera_modules_Videos
