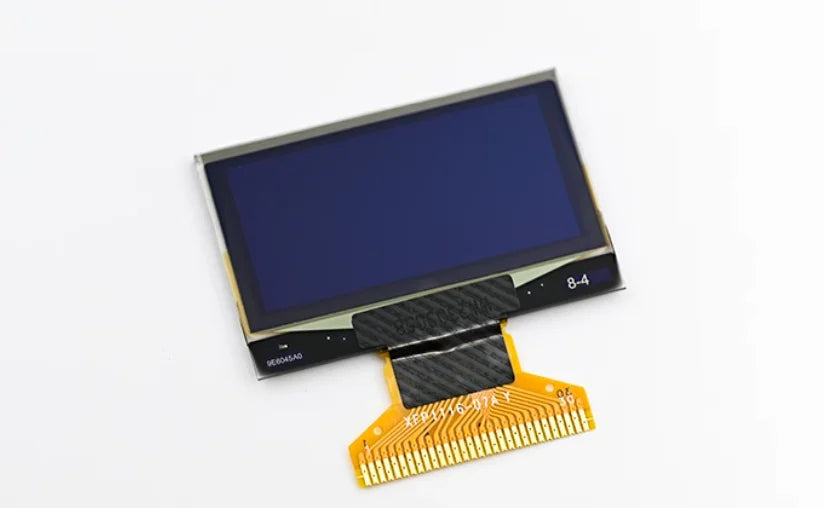

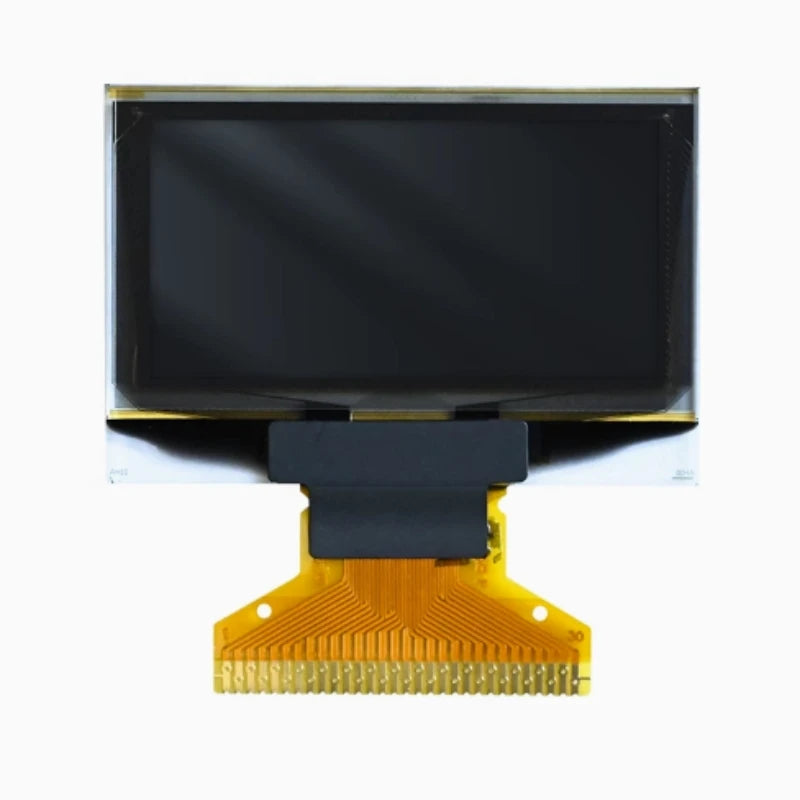

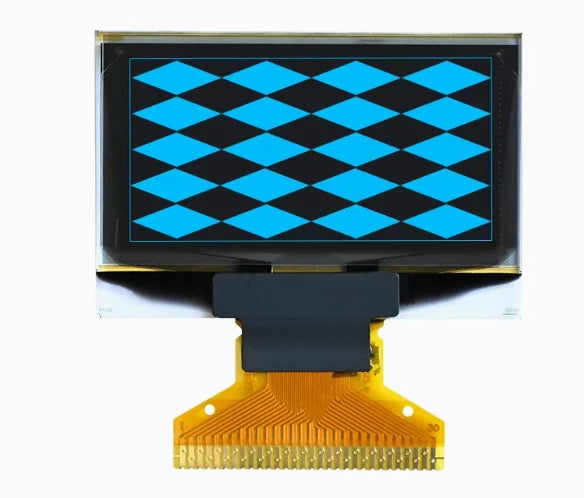

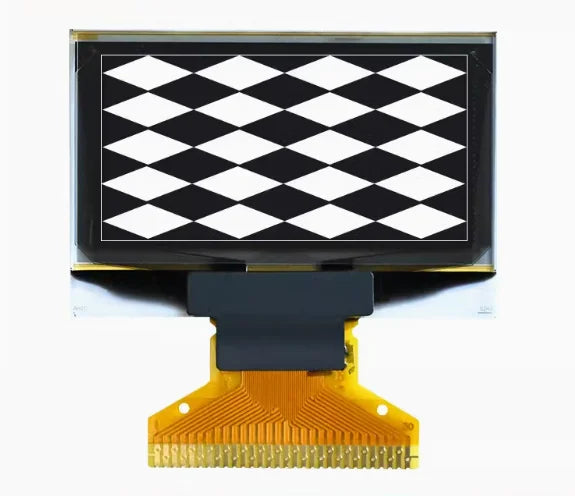

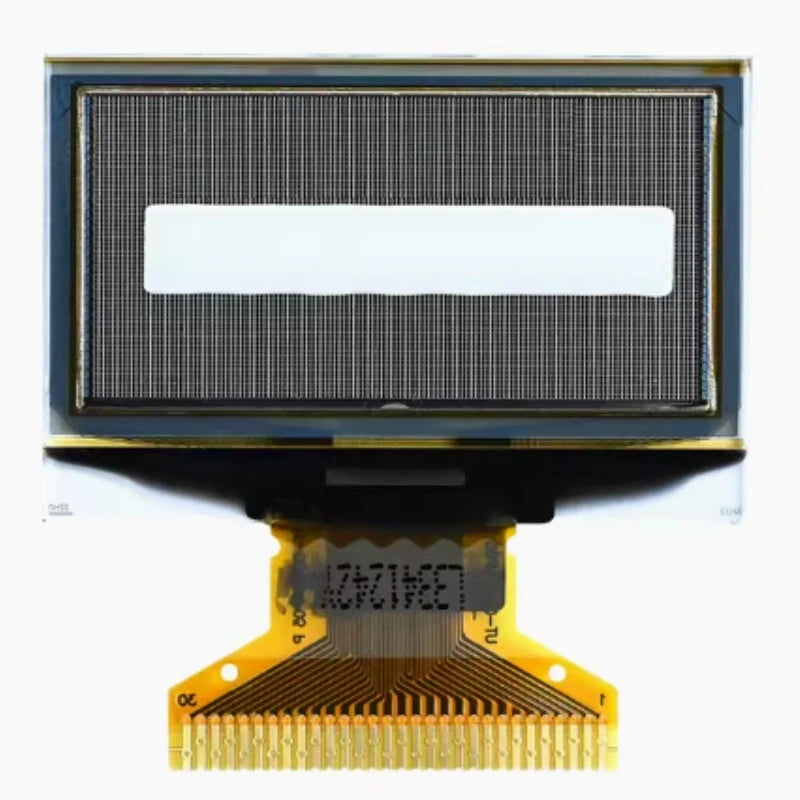

Custom 1.3-inch OLED display screen 30PIN 12864 LCD sh1106 ssd1306 driver

Size: 1.3 inches

Resolution: 128 * 64

Interface type: SPI/IC/8-bit parallel port

Control chip: SSD1306/SH1106 (choose as needed)

Display color: white/blue

Display area: 29.42 x14.7 (mm)

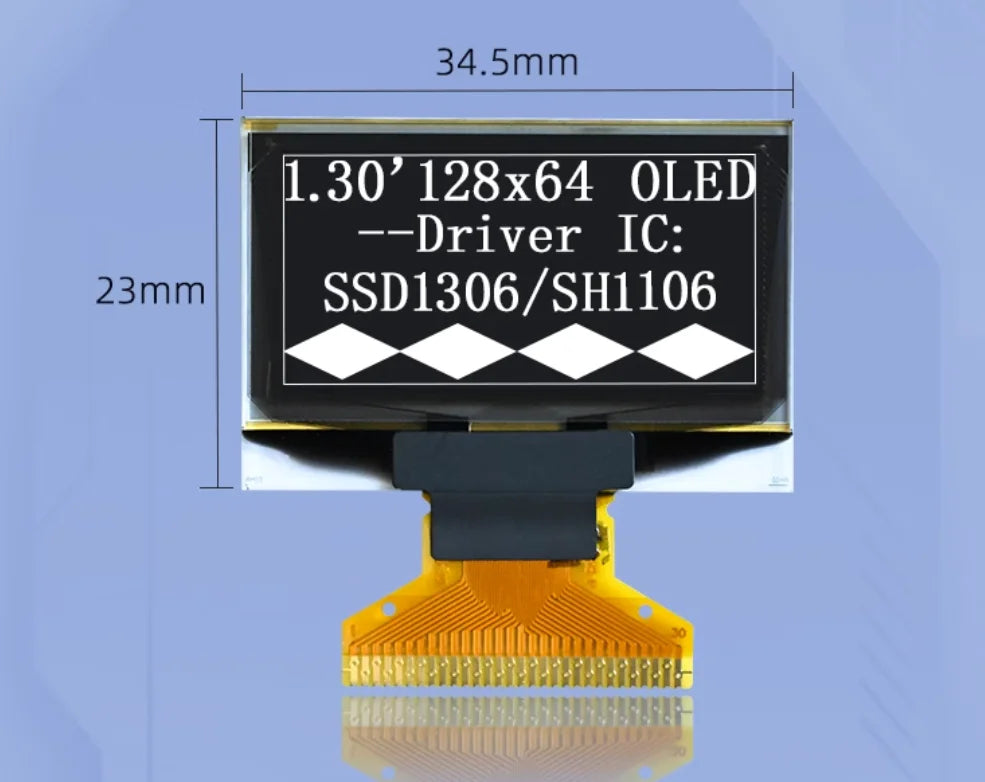

Panel size: 34.5 x23 x1.4 (mm)

Pixel spacing: 0.23 x0.23 (mm)

Pixel size: 0.21 x0.21 (mm)

Cable length: 12 (mm)

Pin quantity: 30pin (0.7mm spacing)

Perspective direction: full view angle

Working temperature: -40~70 ° C
