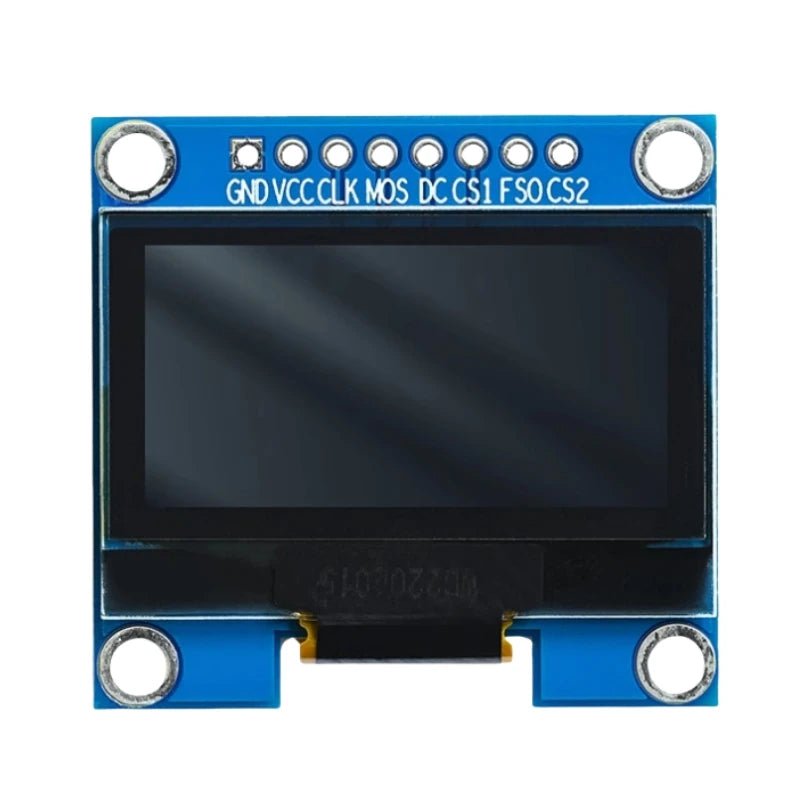

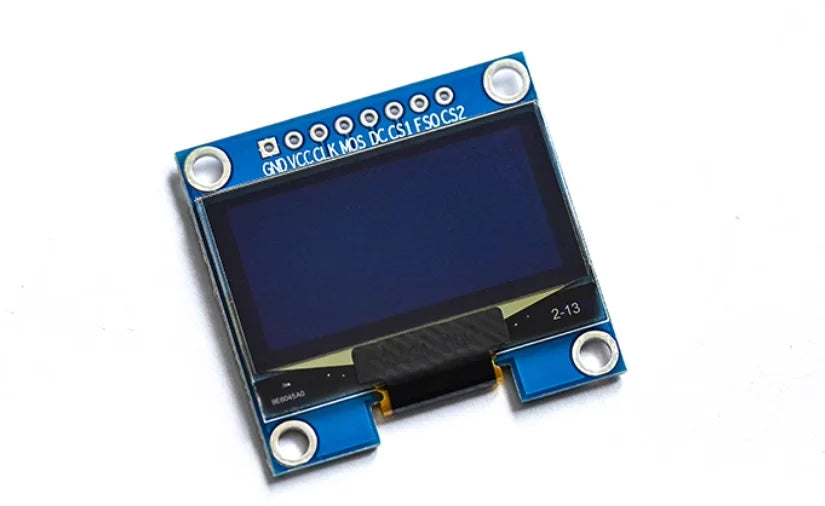

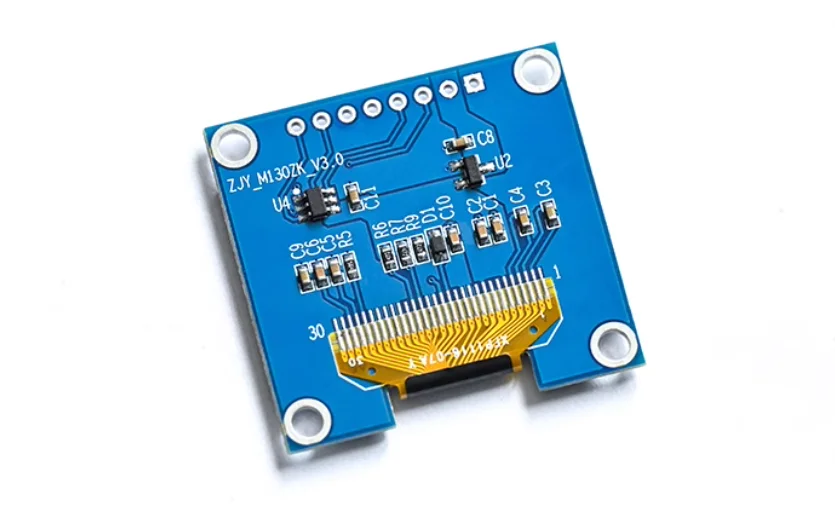

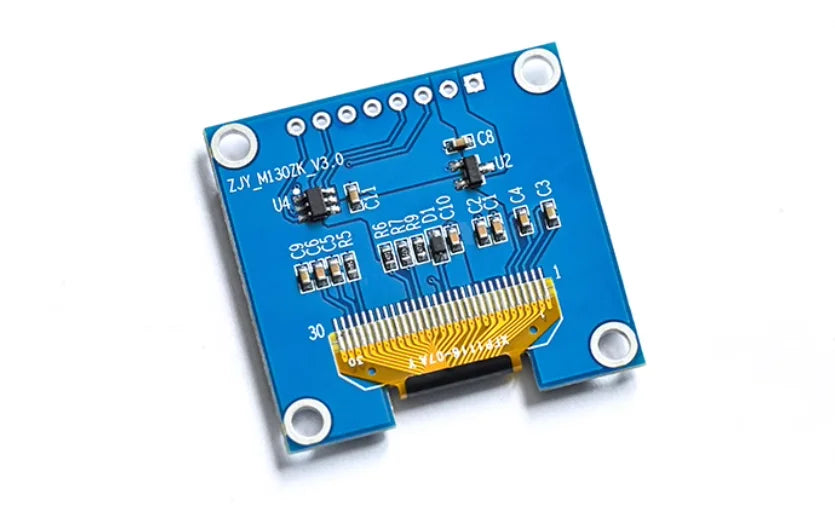

Custom 1.3 inch 8PIN OLED display 12864 sh1106 sd1306 with Chinese character library

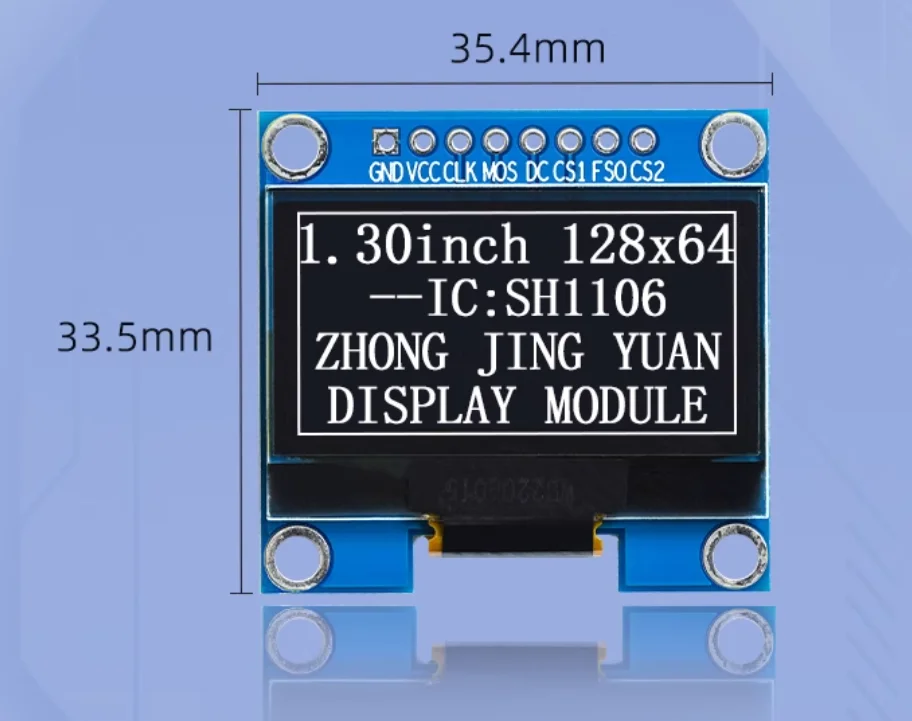

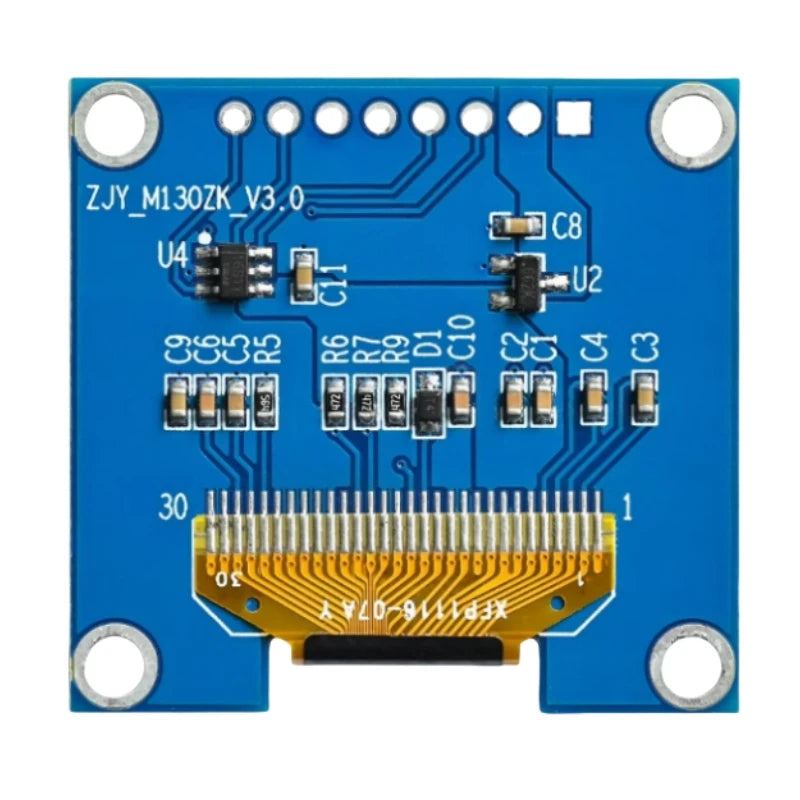

Size: 1.3 inches with Chinese and English font library

Material: PM OLED

Resolution: 128 * 64

Control chip: SH1106 (if customers need SSD1306, please contact customer service)

Font chip: Font chip GT20L16S1Y

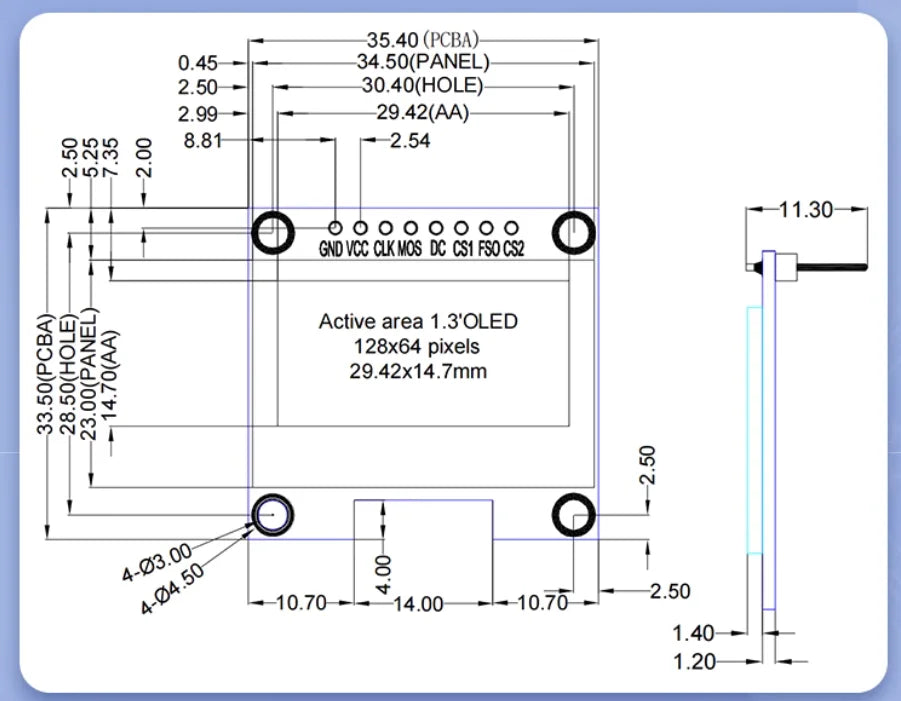

Display area: 29.42 x14.7 (mm)

PCB size: 35.4x33.5 (mm)

Interface type: SPI interface

Display color: white, blue, two colors to choose from, please specify the color when placing an order

Working voltage: 3.3V

Pixel size: 0.21 x0.21 (mm)

Pixel spacing: 0.23 x0.23 (mm)

Working current: During normal operation, the current is around 20ma, and during sleep, it is at the UA level

Pin quantity: 8pin, 2.54mm spacing pin arrangement

Perspective direction: full view angle

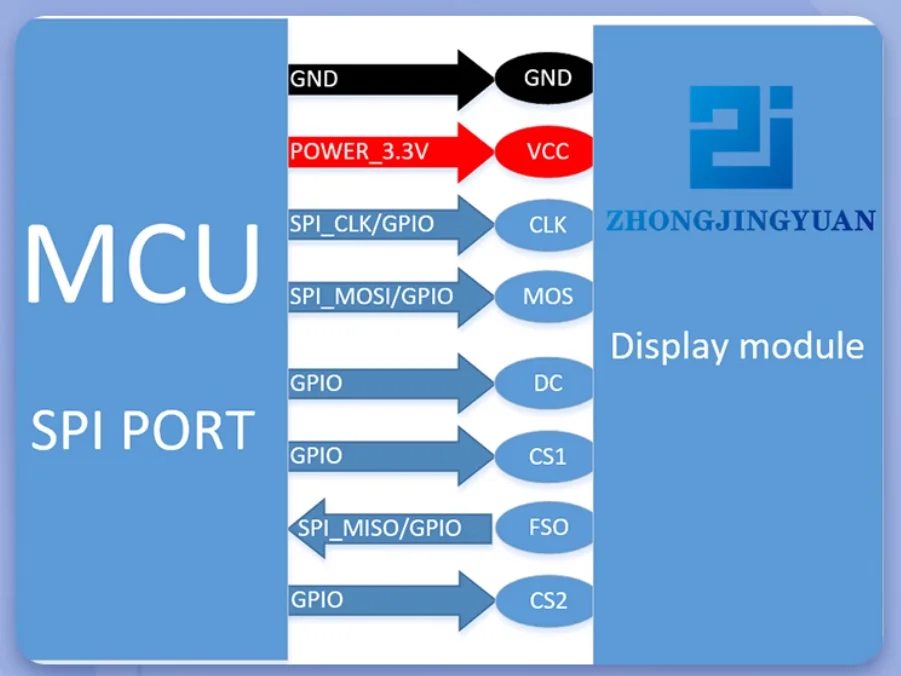

GND     power supply ground

VCC      power supply positive 3.3V

CLK      SPI clock line

MOSI    SPI data cable

DC        Data/Command Selection Foot

CS1      OLED screen selection signal, low level effective

FSO      Font library data output pin

CS2      Font library chip selection signal, low level effective
