Custom 1.28 inch round TFT LCD screen display 128*128 RGB screen SPI interface GC9A01 driver 32.4mm 8Pin Manufacturer

Size: 1.28 inches

Material: HD IPS LCD

Resolution: 240(H)RGB x 240(V)

Driver chip: GC9A01

Communication interface: 4 Line SPI

Display color: full color

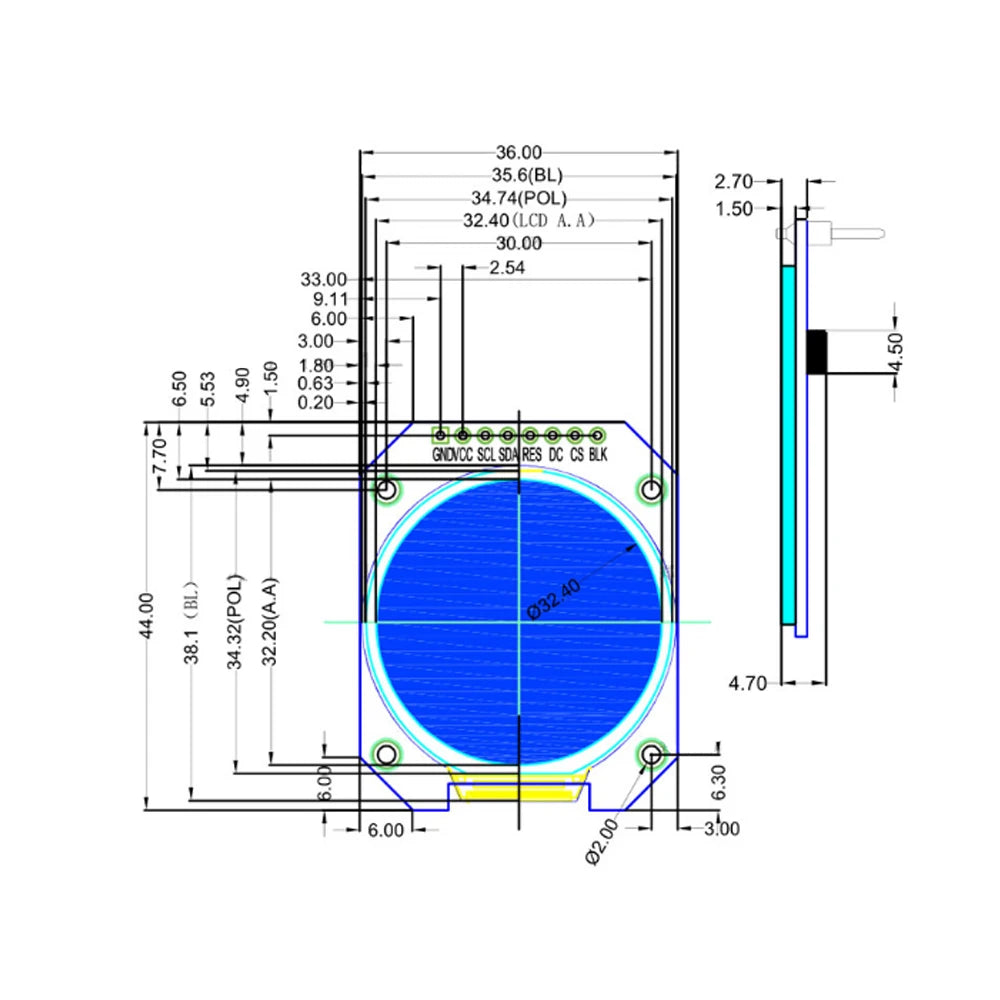

Display area: 32.4mm

Panel size: 44(H)x 36(V)x2.8(D)

Pixel pitch: 0.135(H) x 0.135(V)

Number of pins: 8Pin (2.54mm pitch single row pin header, default not soldered)

Viewing direction: All View

Working voltage: 3.3V

Working current: 20ma

Backlight type: 2 white LED Parallel

Working temperature: -20~70 degrees
