Custom 1/1.5/2M Length Heating Tube 6*20mm12V/24V 50W Ceramic Cartridge Heater For 3D Printer SP-3 SP-5 Plus V6 J-head Hotend Head Manufacturer
Custom 1/1.5/2M Length Heating Tube 6*20mm12V/24V 50W Ceramic Cartridge Heater For 3D Printer SP-3 SP-5 Plus V6 J-head Hotend Head Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Welcome to our store, Have a nice day!
Packing List:
-
1pcsCartridge Heater 1M
Dear buyer:
If you choose the "China Post Ordinary Small Packet Plus" mode of transportation, , some countries will delay receiving packages for a while. If you cannot accept the delay, then please choose another way to shipping, faster transportation and protection.
If you need more other electronic products, You can contact me.
Buying Tip: When you receive the product, the product appears subtle scratches, broken, bent pins, in the case of no effect on the use, I will not accept your controversy, if you do not agree, please do not purchase in my store.

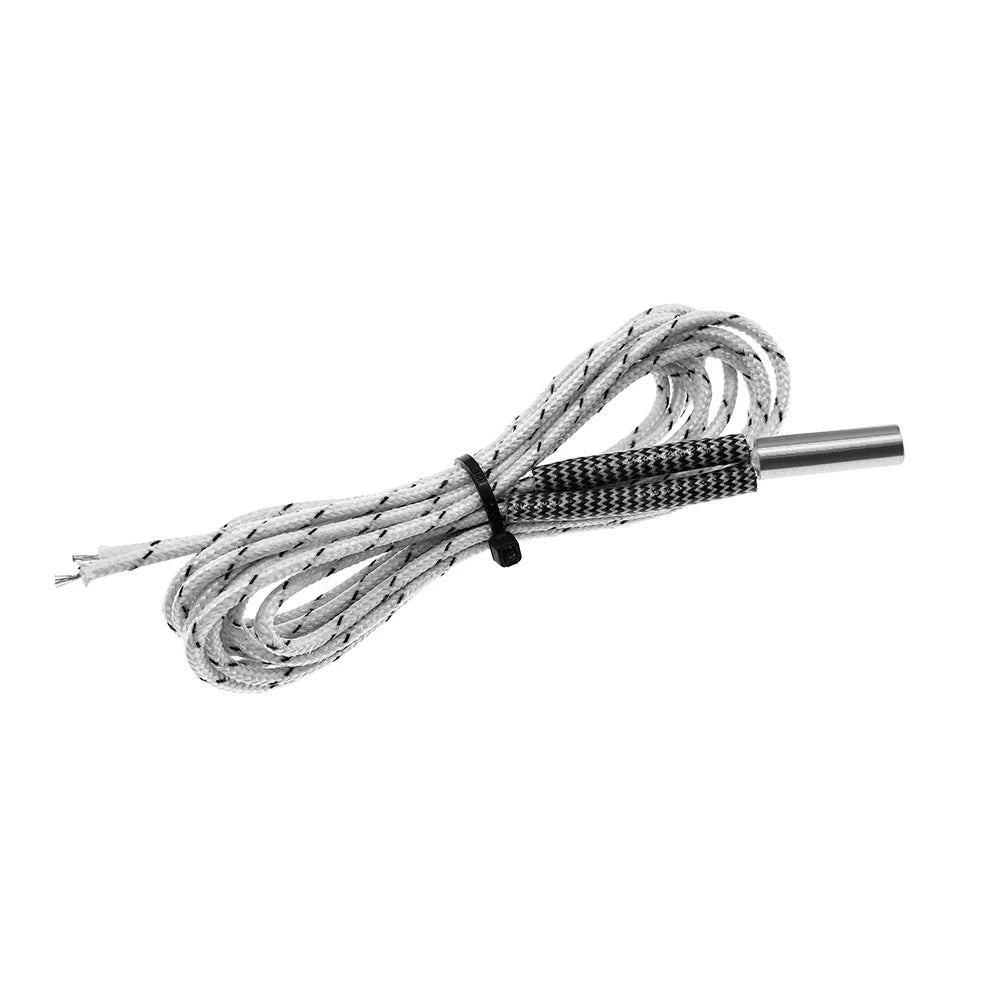

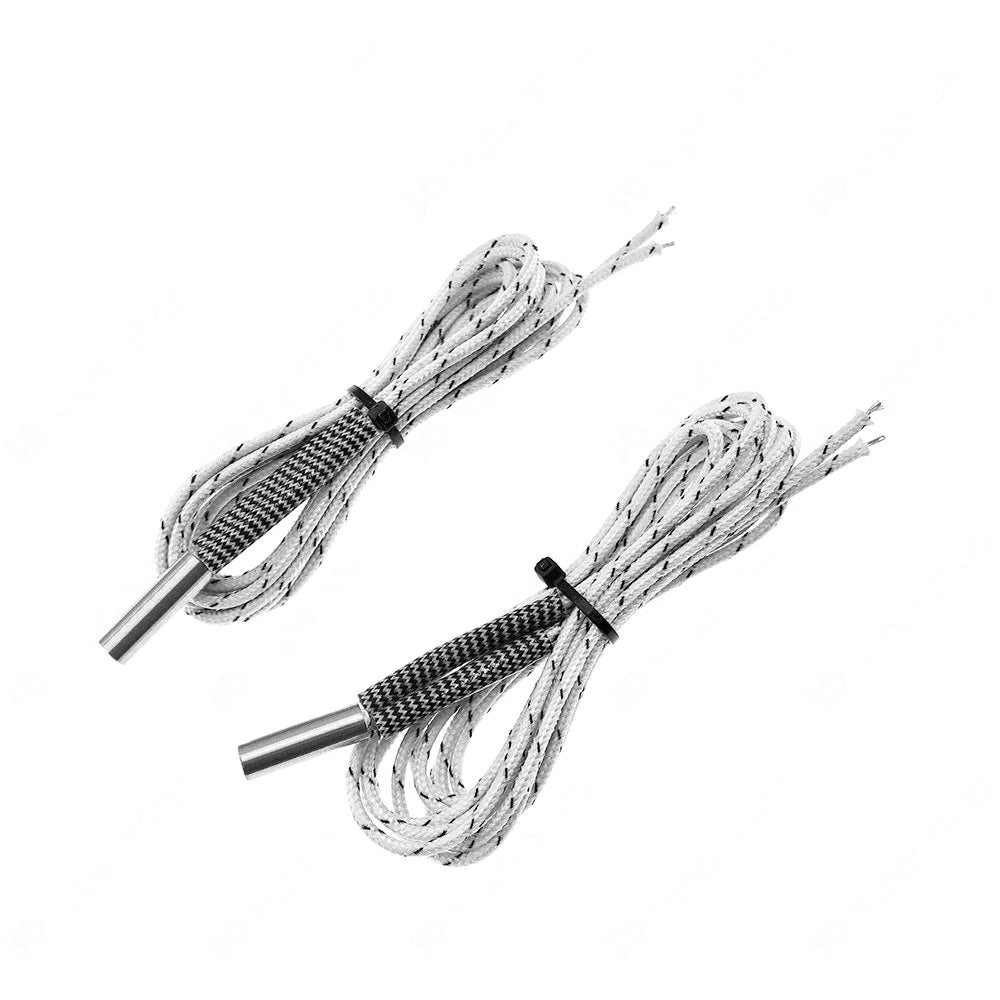

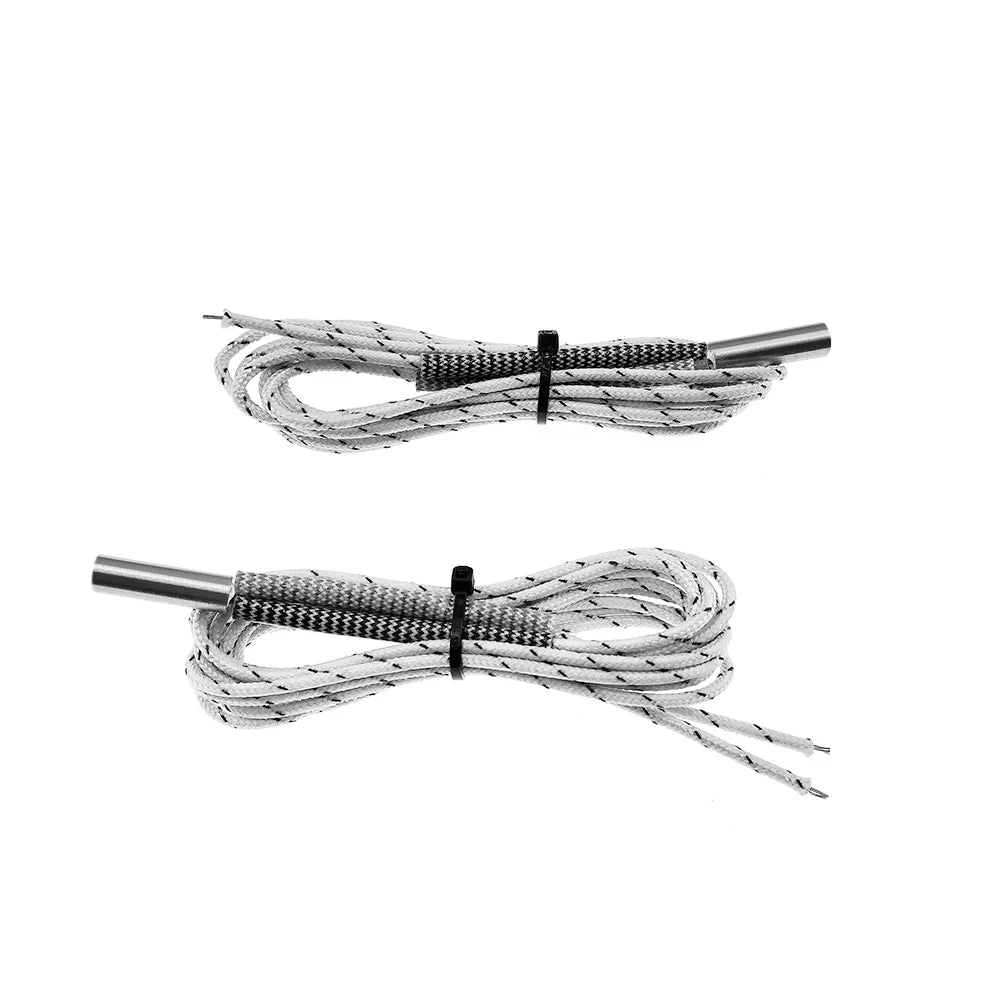

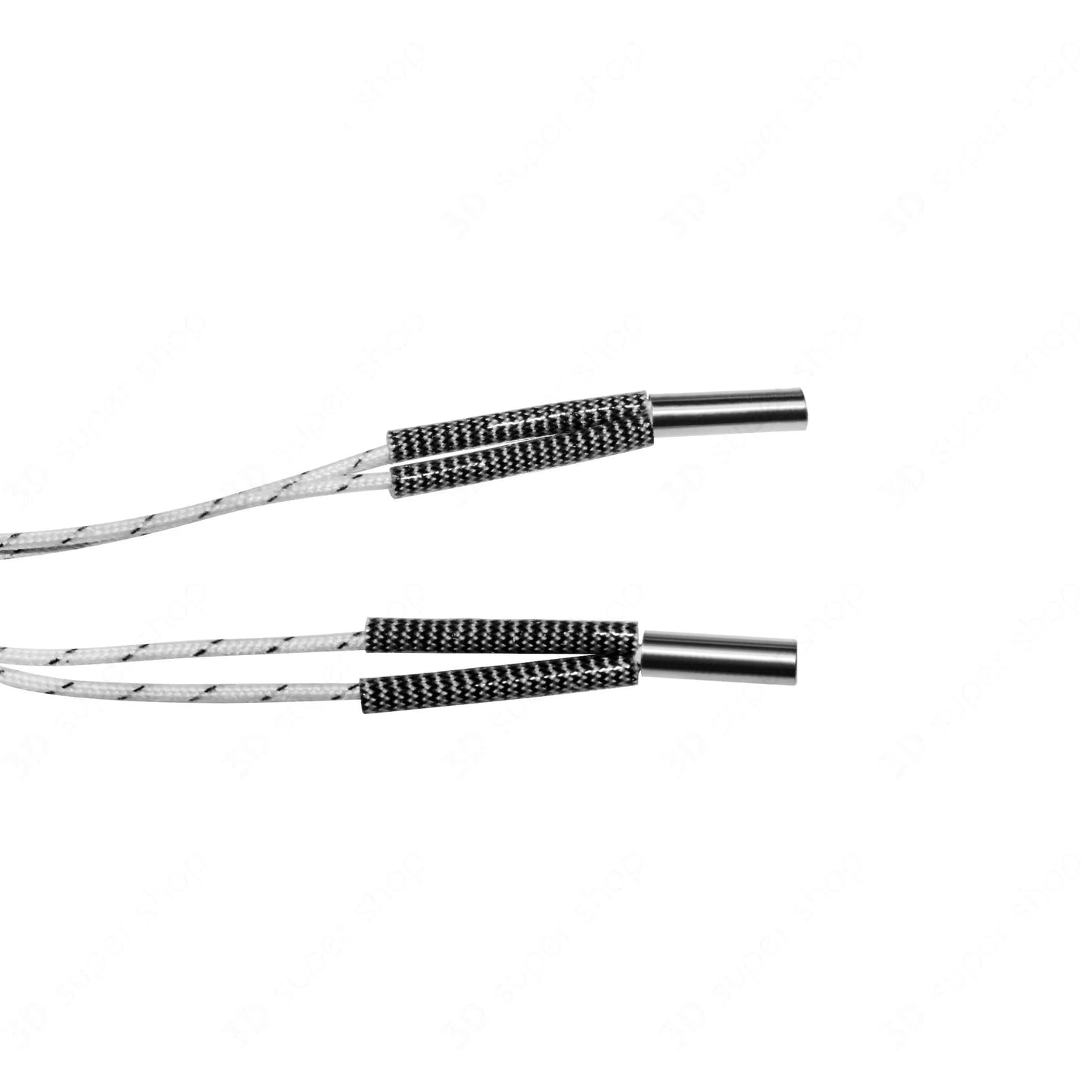

Specification:
Material: Stainless steel
Core: Ceramic

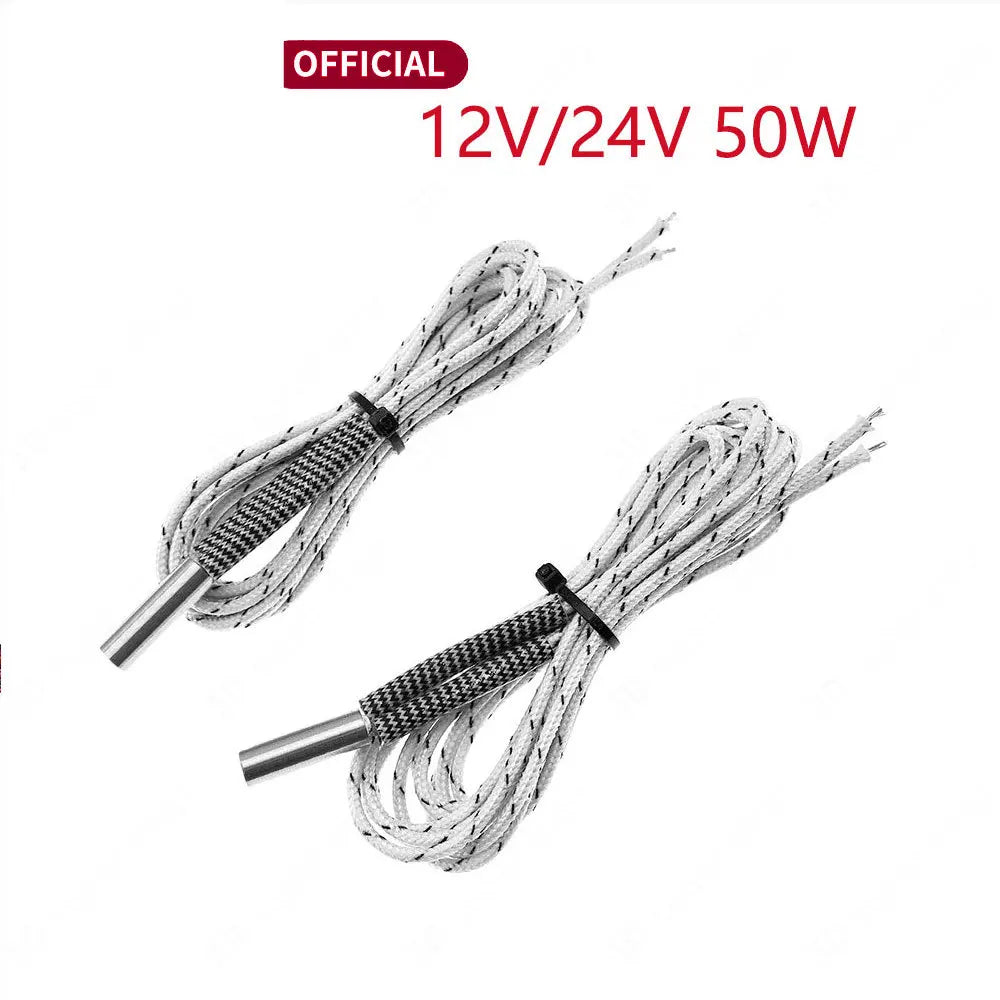

Voltage: 12V/24V
Power: 50W

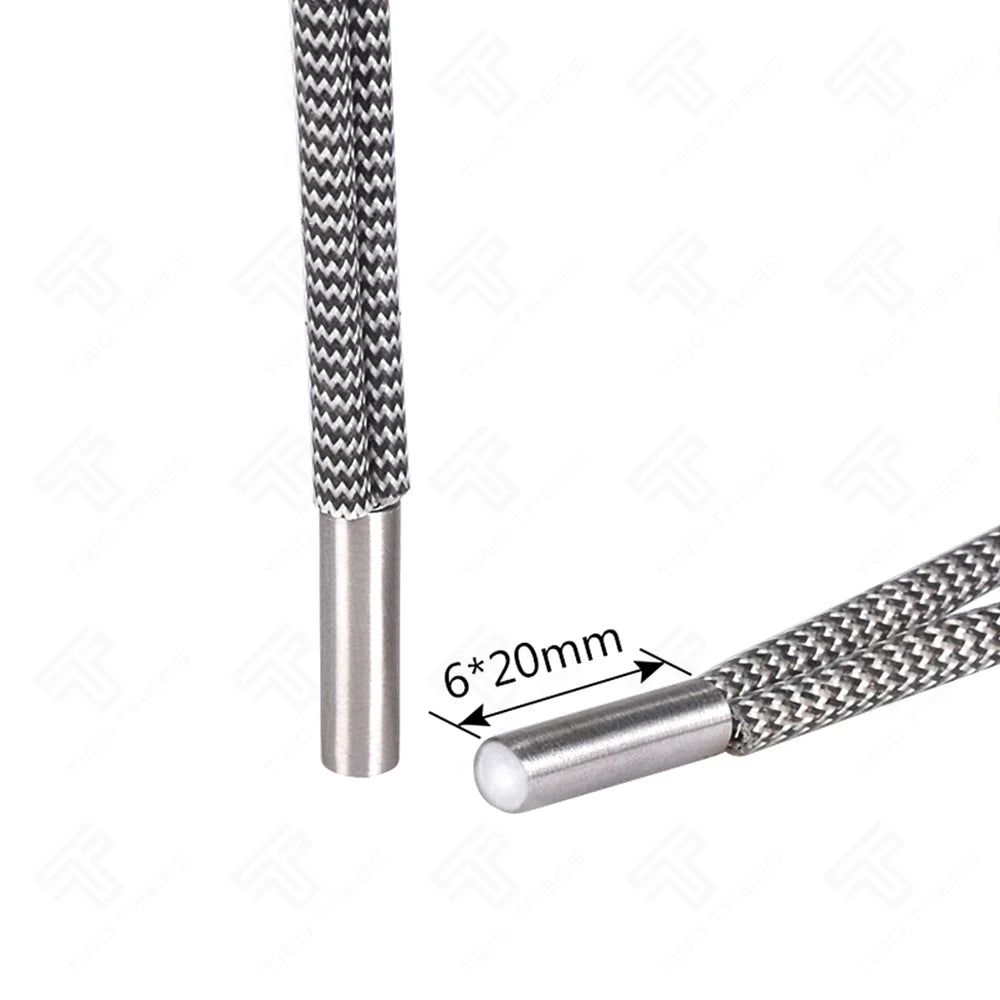

Diameter: 6mm
Length: 20mm
Wire Length: 1M
Heating head material: 304 stainless steel
Line length: 1M and 2M for option
Line thick: 0.5 mm⊃2; (The cross section of the copper wire inside the heater is 0.5mm⊃2;
Heating temperature: up to 350 degrees
The improvement compared to ordinary red heater
1. From the original ordinary 0.3-line high-temperature line to 0.5-line thick white high-temperature line, can bear higher temperature, and looks more beautiful.
2. From the original 40W power to 50W, therefore, the maximum temperature increases from 300-31° to 340-350° or so.
3. The new version heater used in all imported skills, the use of 304 stainless steel, with the internal use of 2080 nickel chrome wire to achieve maximum service life.
4. Support the customization of different specifications, length, resistance of the heater.
5. Can be used with the new HT-NTC100K temperature thermistor (Temperature measurement can be up to 350 degrees).
Notice:
1. The effective heating part of the heater must keep dry.
2. The electrical connector of the single-ended heater should be placed out of the insulation layer and heating room, and the working voltage shall not exceed its rated value of 10%. The shell should be effectively grounded.
3. Electric components working environment, the temperature should not be greater than 95 degrees, no explosive or corrosive gases.
4. Electric components should be stored in a dry place.
Picture Shows:
