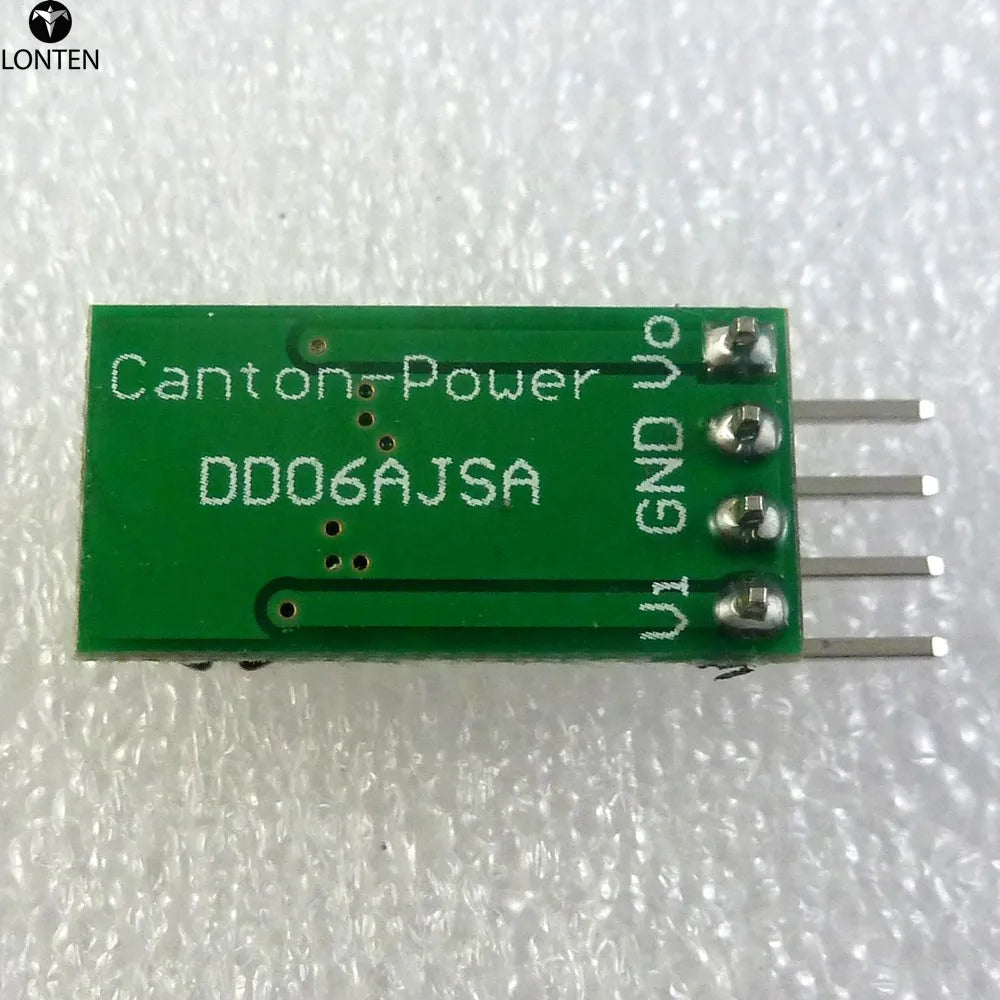

Product Name:  06AJSA DC 2.6-6V to 3-15V Adjustable Output Board DC DC Boost Step up Converter Voltage Regulator Module

Packing list:

1 PCS 2.6V-6V TO 3-15V adjustable Step-up Boost Module
aeProduct.getSubject()
Description:

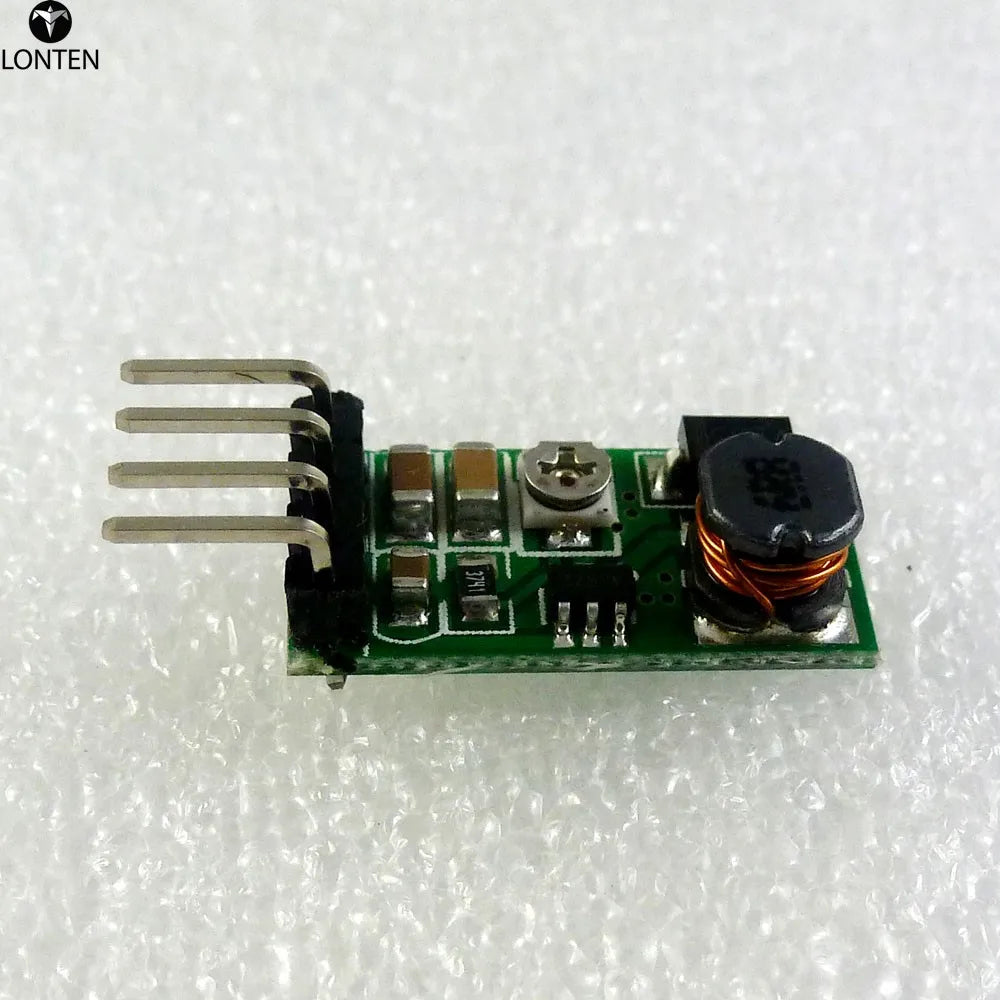

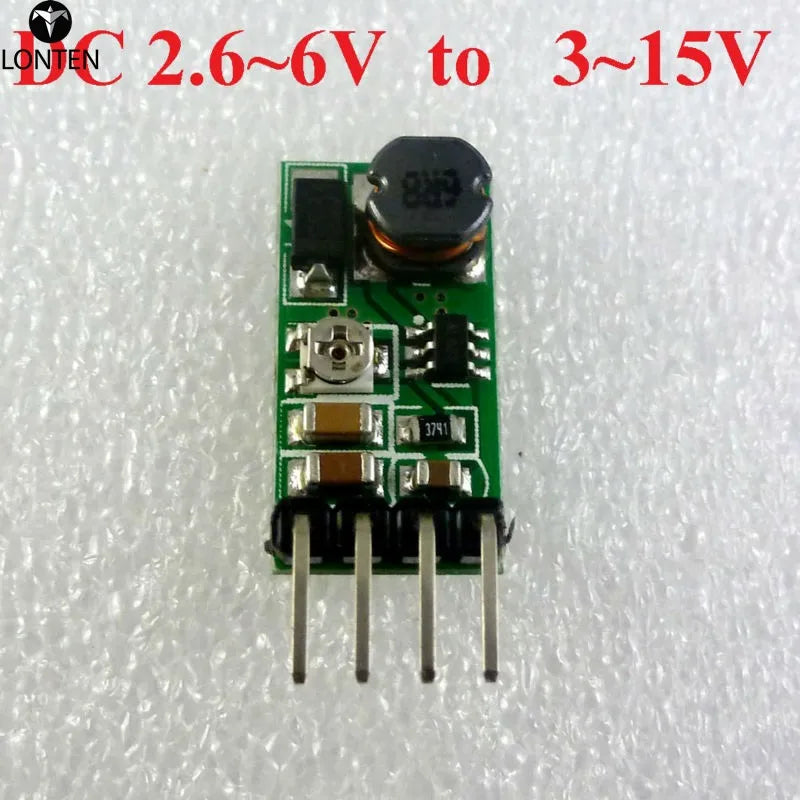

Input voltage 2.6~6V,output 3~15V adjustable
Maximum input current :  1.4A
Long-term work Current : 1.2A
Conversion efficiency : 80-90%

DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO MEGA2560 DUE Breadboard XILINX ALTERA LATTICE FPGA/CPLD AVR  Development Board friendly.

Excluding Pin Size 20mm x 10.16mm x 5.6mm(Very small)
Weight : about 1.3g(Very light)


Start Voltage 2.6V, Output Current 10MA

Input  Voltage

Input  Current

Output  Voltage

Output  Curren

2.8V

0.94A

3V

0.7A

2.8V

1.05A

3.3V

0.7A

3V

0.93A

3.26V

0.7A

2.8V

1A

3.72V

0.63A

3V

1.16A

3.7V

0.77A

3.3V

1A

3.7V

0.74A

2.8V

1A

4.5V

0.52A

3V

1.15A

4.52V

0.62A

3.3V

1.2A

4.5V

0.72A

3.7V

1.2A

4.49V

0.83A

2.8V

1A

5.07V

0.46A

3V

1.13A

5.06V

0.55A

3.3V

1.2A

5.04V

0.66A

3.7V

1.23A

5.02V

0.76A

4.5V

1A

5V

0.79A





2.8V

1A

6.09V

0.38A

3V

1.12A

6.10V

0.46A

3.3V

1.22A

6.08V

0.54A

3.7V

1.22A

6.06V

0.63A

4.5V

1.2A

6.03V

0.78A

5V

1.3A

6.00V

0.95A

2.8V

0.64A

9.11V

0.17A

3V

0.78A

9.12V

0.22A

3.3V

0.98A

9.14V

0.3A

3.7V

1.20A

9.15V

0.41A

4.5V

1.32A

9.16V

0.56A

5V

1.3A

9.15V

0.63A

6V

1.2A

9.11V

0.71A

3V

0.15A

12.15V

0.03A

3.3V

0.51A

12.18V

0.12A

3.7V

0.87A

12.23V

0.23A

4.5V

1.33A

12.16V

0.42A

5V

1.4A

12.16V

0.5A

6V

1.2A

12.17V

0.53A



Applications

MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
PLC  RS485 Modbus RTU
Network equipment/Router
Temperature and humidity sensor
LED Lighting
Instruments and meters
5V 6V 9V 12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Q & A:



Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low


how to use:

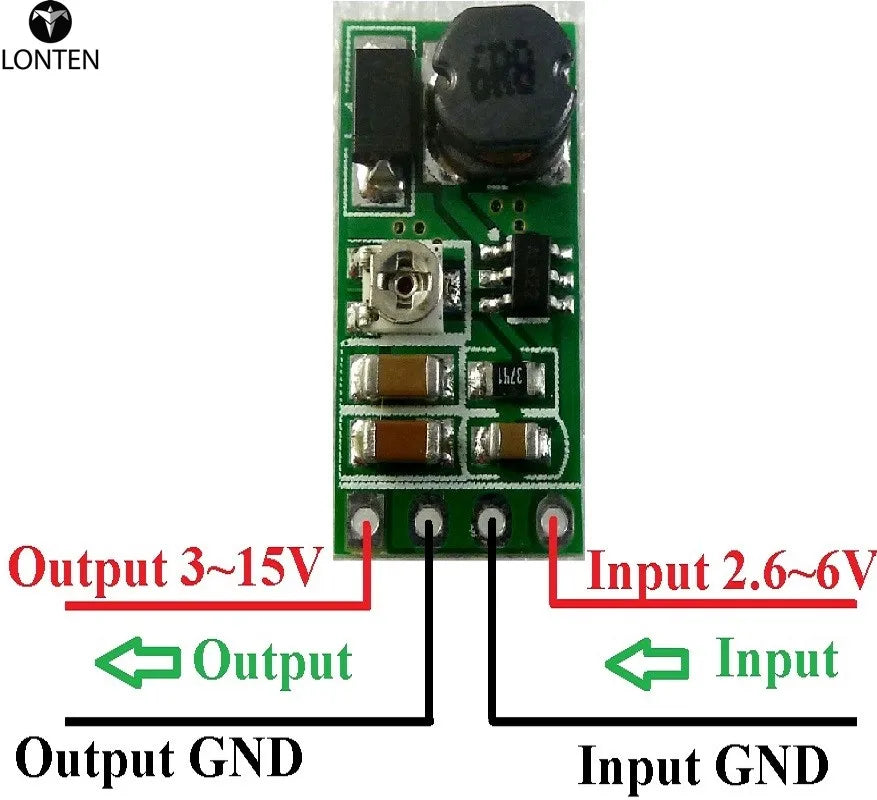

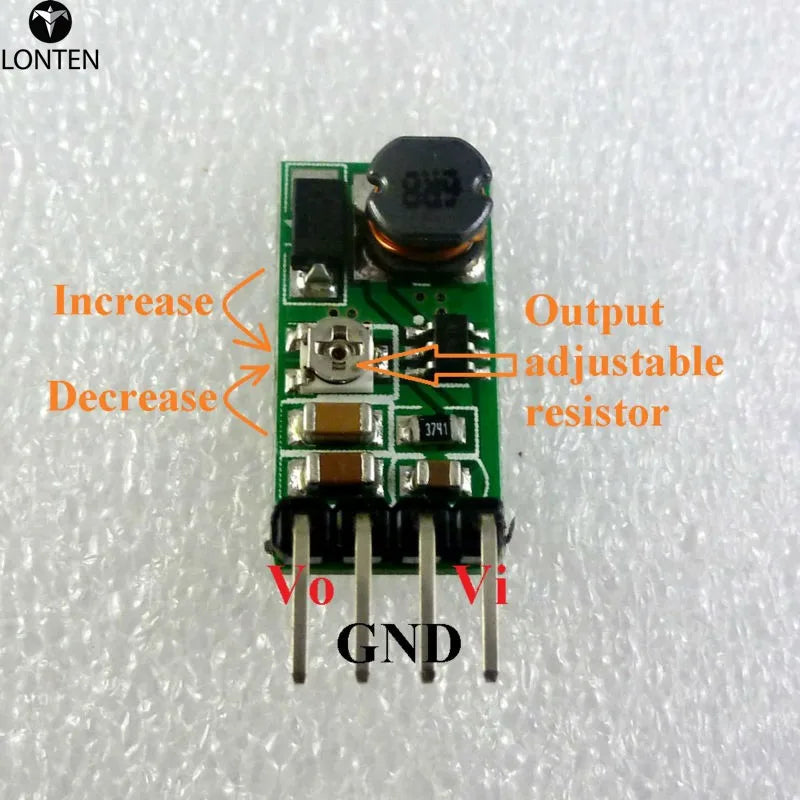

With a suitable screwdriver, slowly rotating adjustable resistance
