Custom 0606SA_3V7 " Input 1-3.7V Output 3.7V " DC-DC Converter Step up Boost Module for 18650 battery Toy Diy Manufacturer
Custom 0606SA_3V7 " Input 1-3.7V Output 3.7V " DC-DC Converter Step up Boost Module for 18650 battery Toy Diy Manufacturer
Regular price
$1.89 USD
Regular price
$1.89 USD
Sale price
$1.89 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
Below item is .

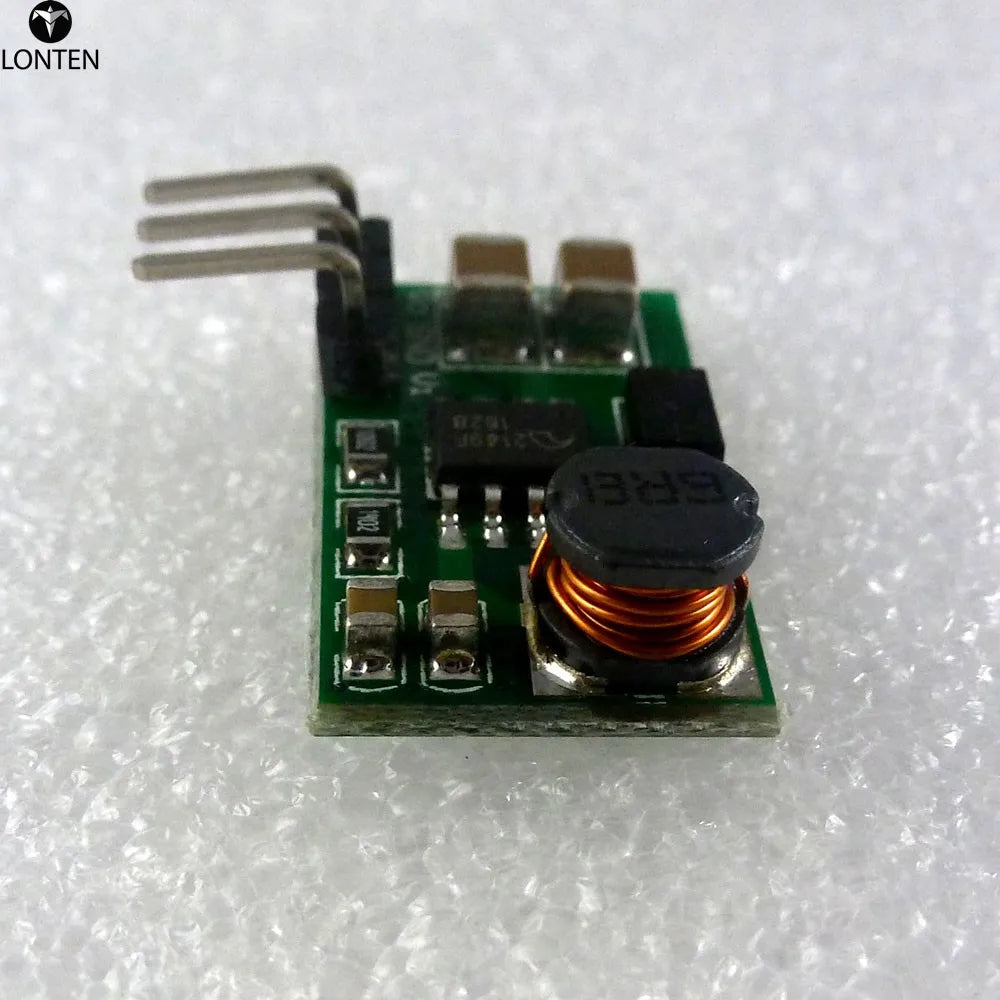

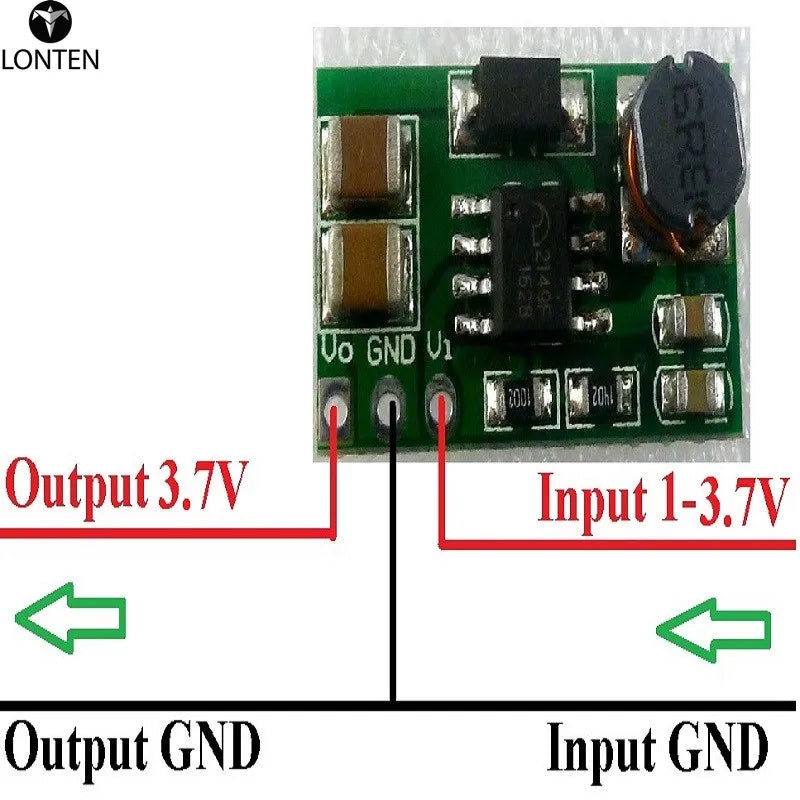

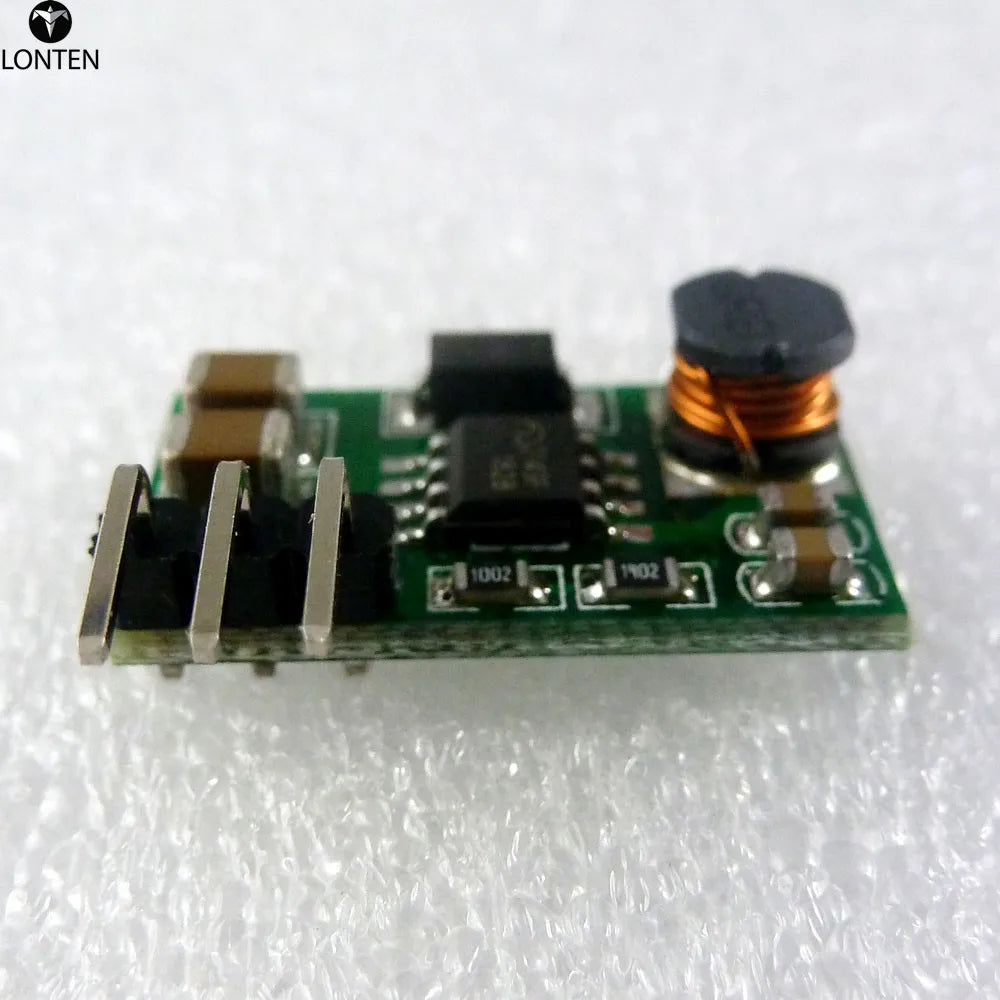

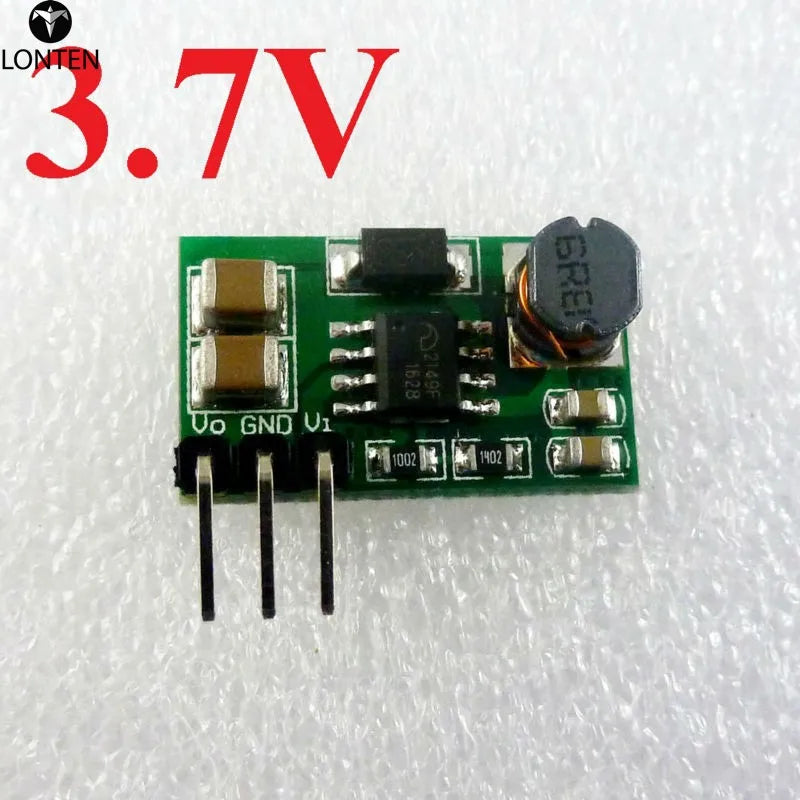

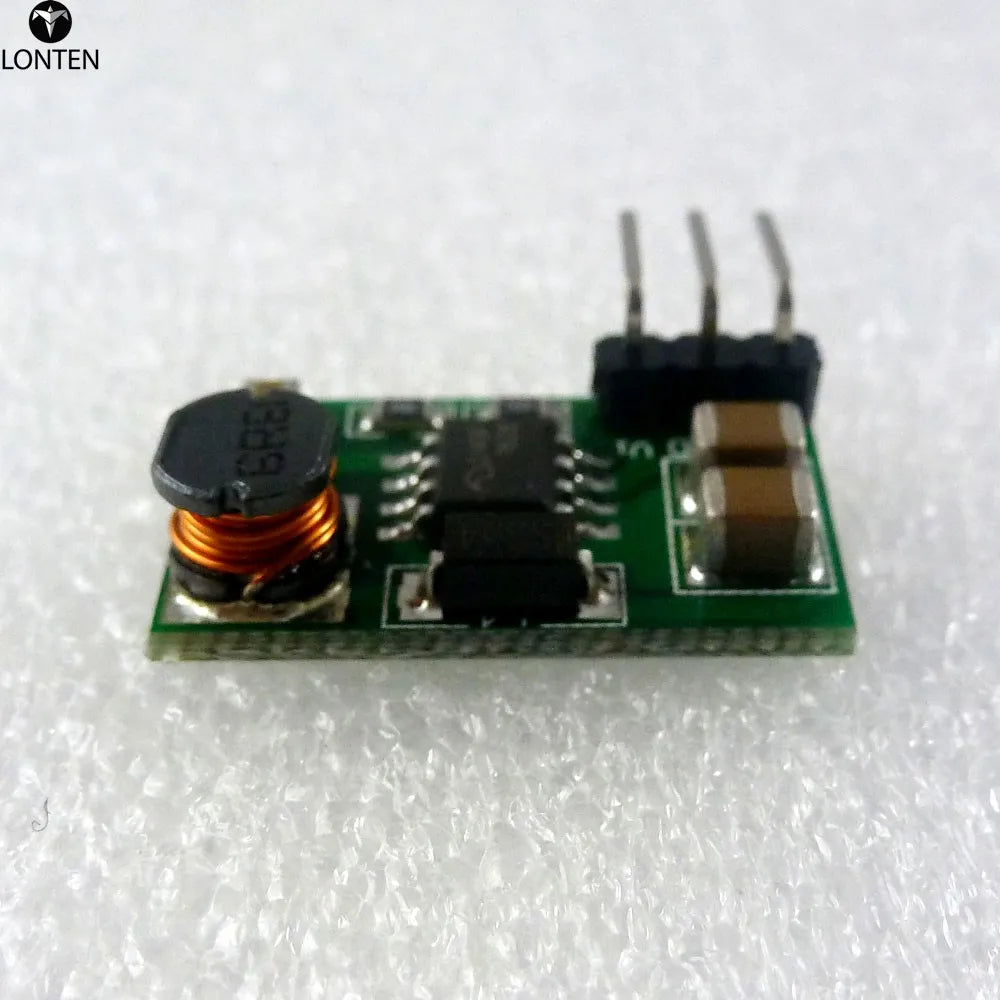

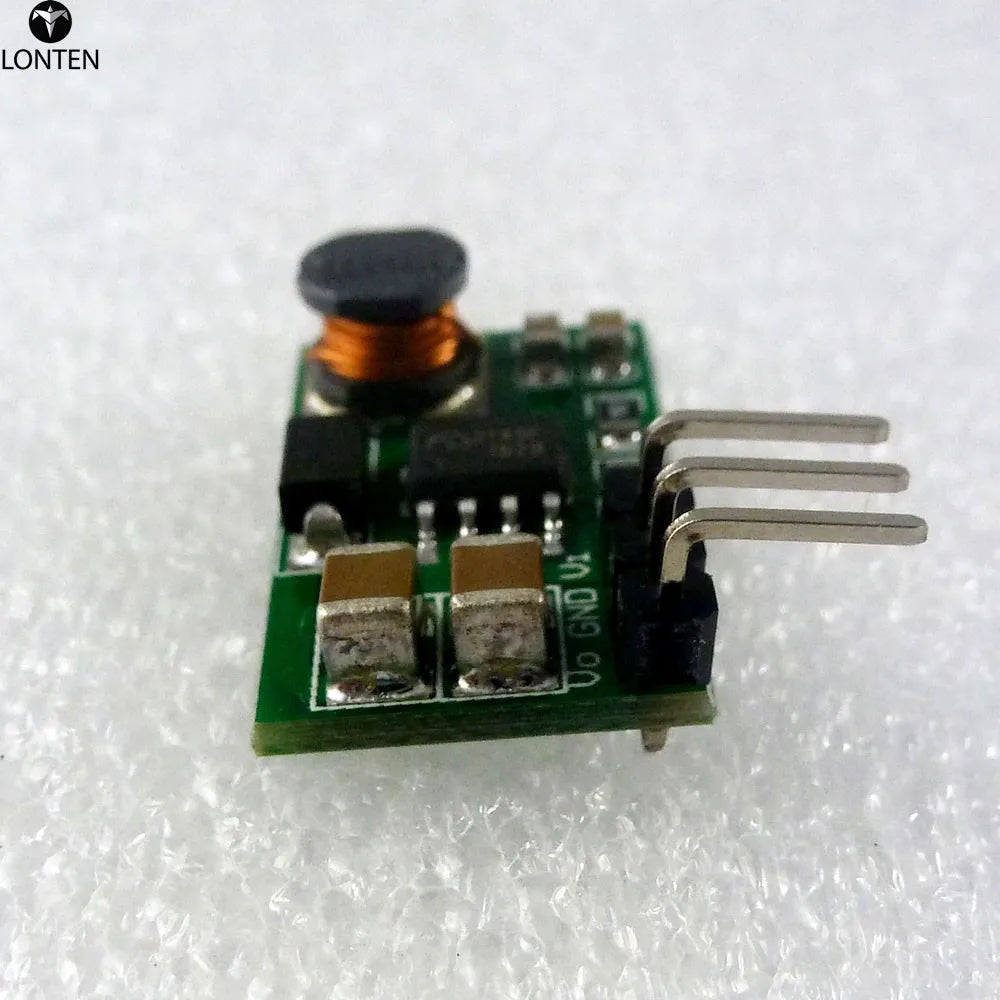

Product Name: 0606SA_3V7 " Input 1-3.7V Output 3.7V " DC-DC Converter Step up Boost Module for 18650 battery
Packing list:
1 PCS 1V-3.7V TO 3.7V Step-up Boost Module
Description:
Input voltage DC 1 ~ 3.7V, output DC 3.7V(+-5%)
DC DC Boost Converter Module working frequency 1MHZ.efficiency 66%-88% .
Operating temperature range : -25~+85 Degrees Celsius
Storage temperature range : -45~+125 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.
Excluding Pin Size : 21.3mm x 12.5mm x 5.7mm(Very small)
Weight : 1.85g(Very light)
Applications
Battery equipment
Breadboard Power Supply
Breadboard Power Supply
ARM STM32 FPGA CPLD Board
Wireles s Module, esp8266 nrf24l01 rtl8710 GSM etc
3.3V Small power motors
Camera, Video camera
3.3V Toy car
PDA
LED Lighting
Wireless communication equipment
o equipment
Camera, Video camera
3.3V Toy car
PDA
LED Lighting
Wireless communication equipment
o equipment
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
