Custom 0603SA_5V 2 in 1 0.9-6V to 5V Auto Step-UP & Step-Down DC DC Converter 0603SA_5V Manufacturer
Custom 0603SA_5V 2 in 1 0.9-6V to 5V Auto Step-UP & Step-Down DC DC Converter 0603SA_5V Manufacturer
Regular price
$1.98 USD
Regular price
$1.98 USD
Sale price
$1.98 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
Below item is .

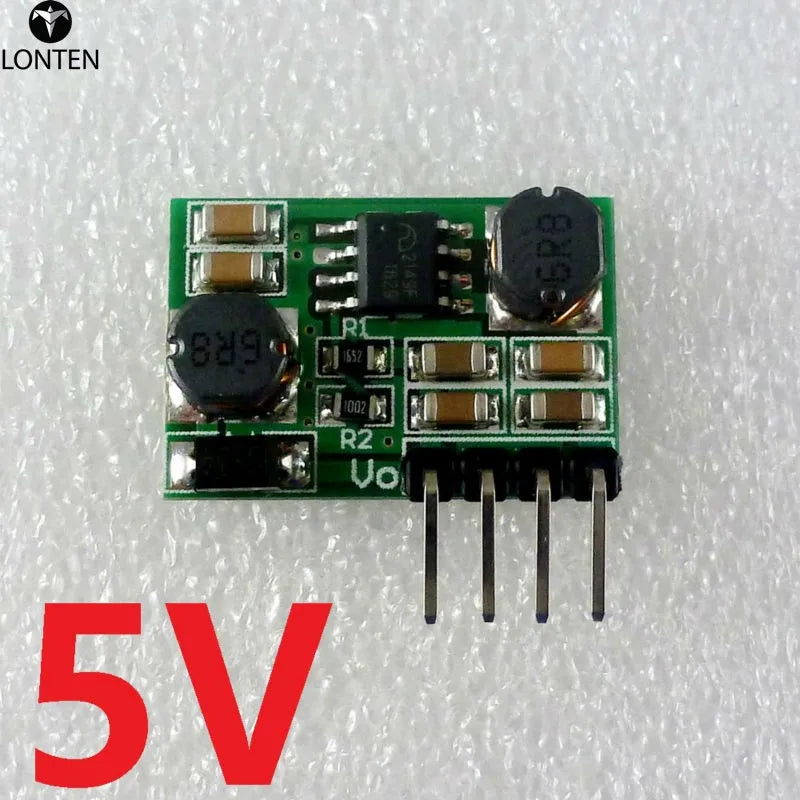

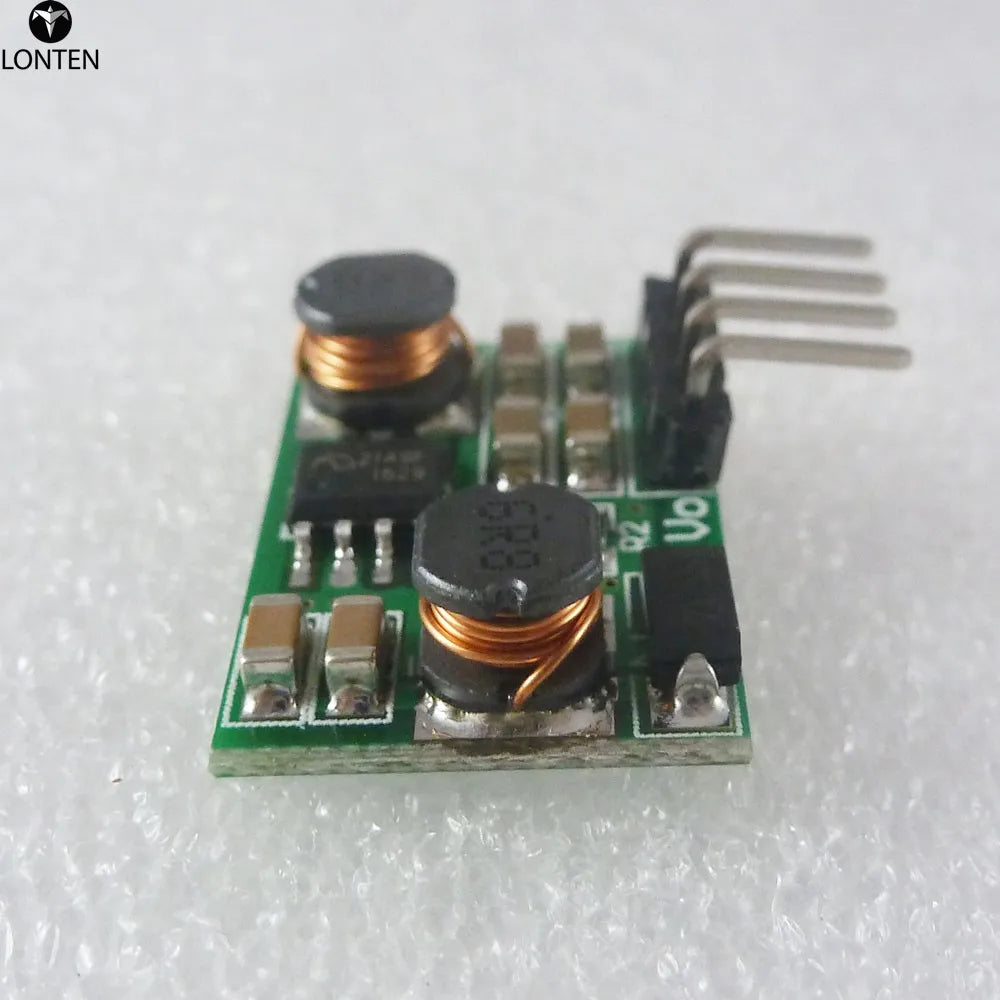

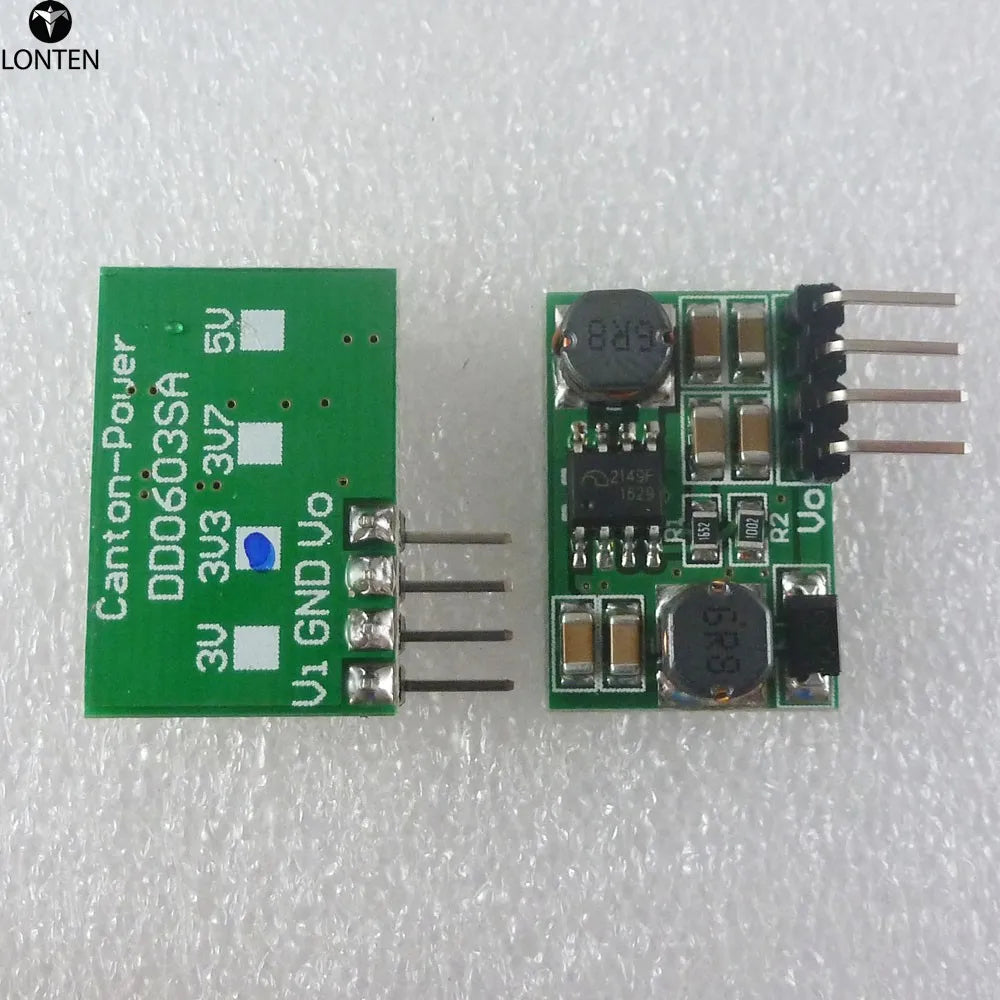

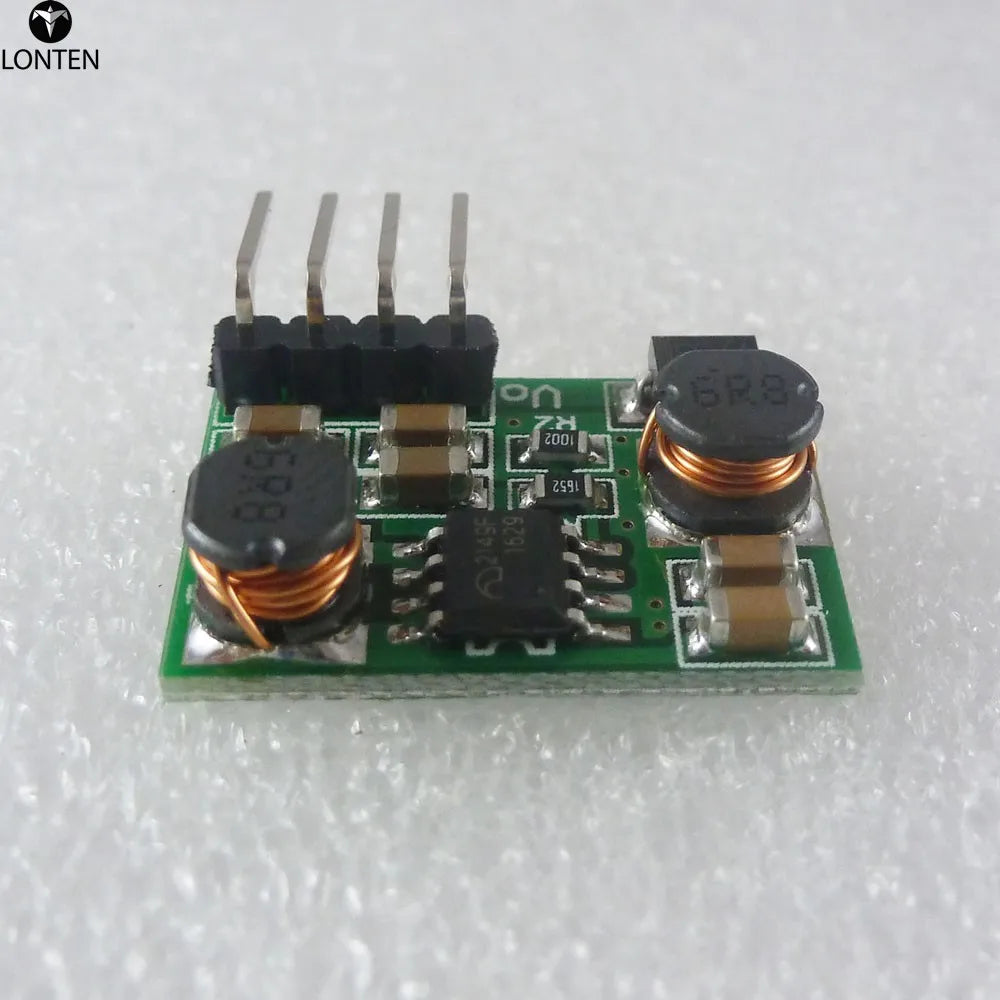

Product Name: 2 in 1 0.9-6V to 5V Auto Step-UP & Step-Down DC DC Converter 0603SA_5V
Packing list:
1 PCS 0603SA_5V 0.9-6V TO 5V DC DC Boost-Buck Converter Board
Description:

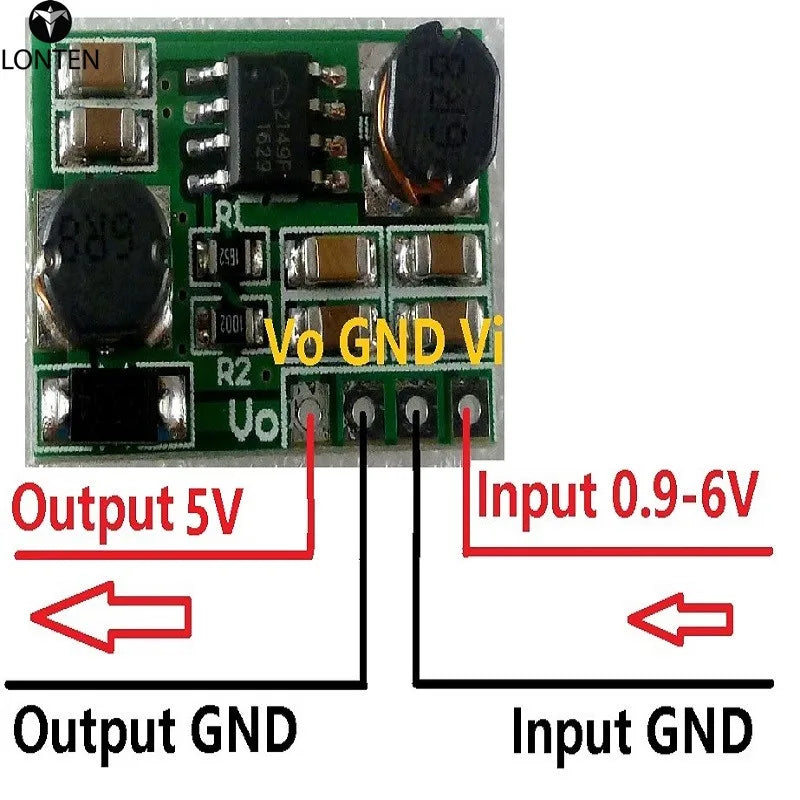

Input voltage DC 0.9 ~ 6V, output DC 5V(+-5%)
The maximum input voltage can not exceed 6.5V
Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% .
Operating temperature range : -25~+85 Degrees Celsius
Storage temperature range : -45~+125 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.

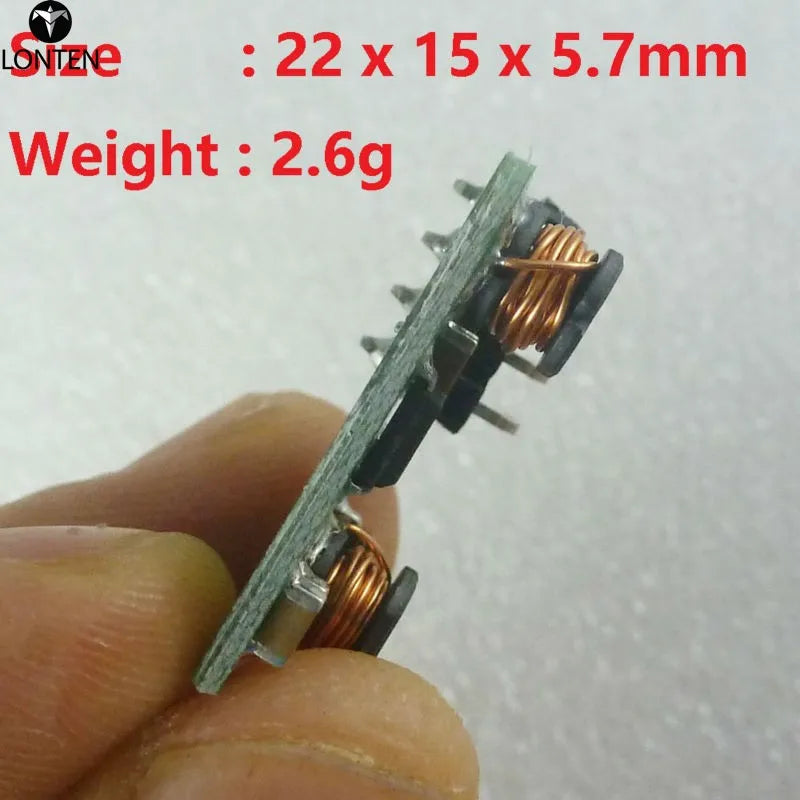

Size : 22mm x 15mm x 5.7mm(Very small)
Weight : 2.6g(Very light)
Applications
Battery equipment
UNO MEGA2560 Breadboard Power Supply
PAD Phone power supply
electrical tools
Solar battery
Small power motors
Camera, Video camera
Toy car
power bank
LED Lighting
Wireless communication equipment
o equipment
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
