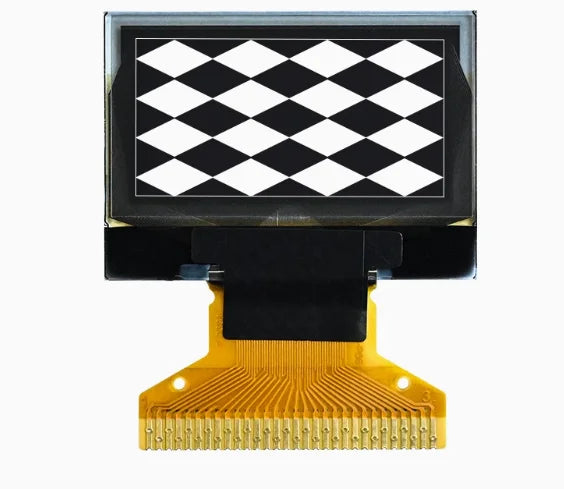

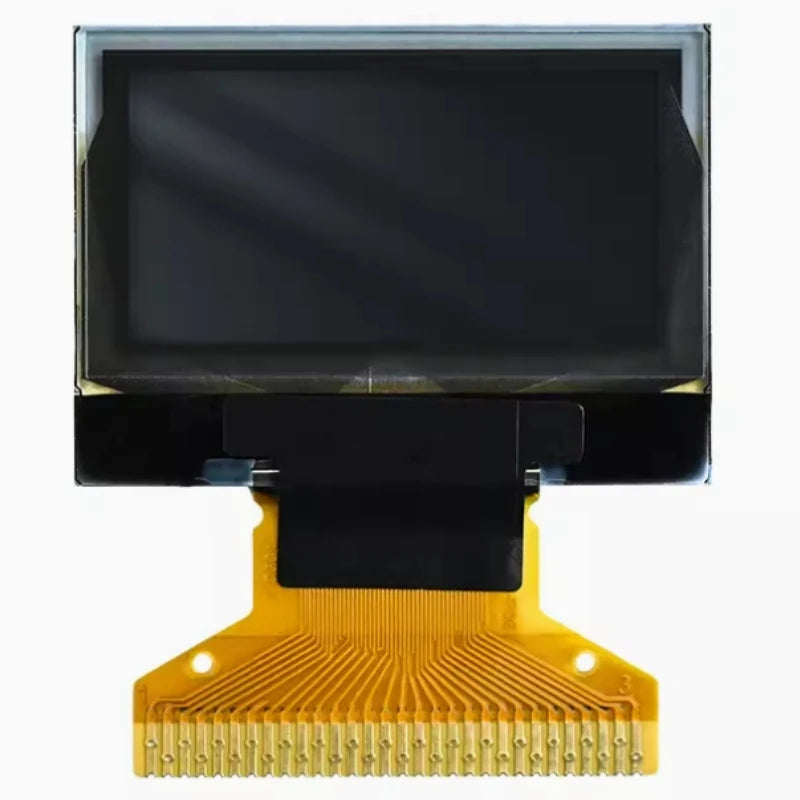

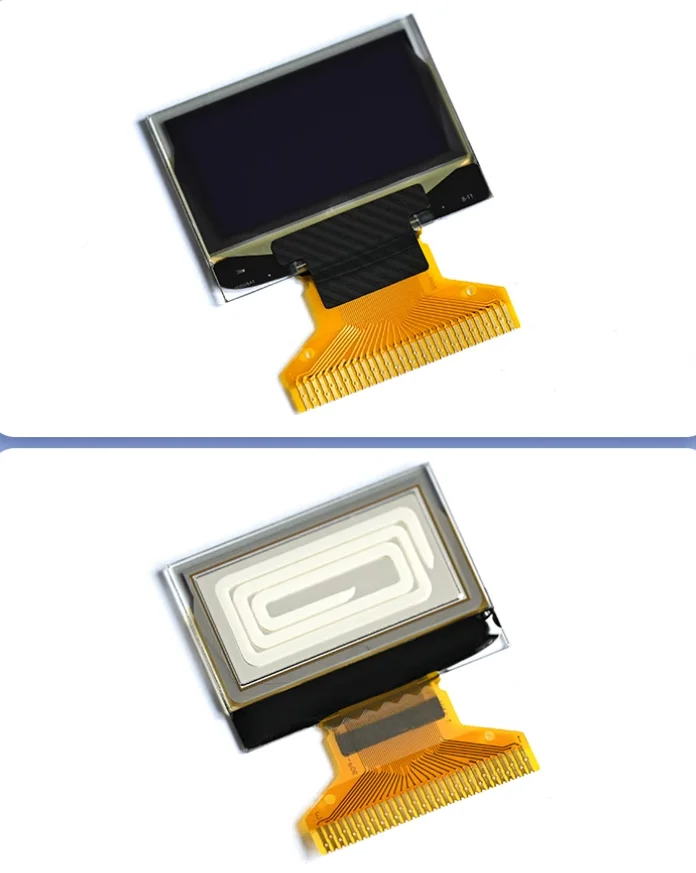

Custom 0.96 inch OLED display screen 30PIN 12864 ssd1306 SSD1315

Special note: The SSD1306 and SSD1315 driver chips are basically compatible, and most customers can directly replace them during use; The SSD1306 driver is relatively old and expensive; SSD1315 is a newly released IC in recent years, which has a cost advantage. Welcome to taste it.

Size: 0.96-inch OLED screen

Resolution: 128 * 64

Interface type: SPI, IIC, 8-bit parallel port

Control chip: SSD1306/SSD1315 (choose as needed)

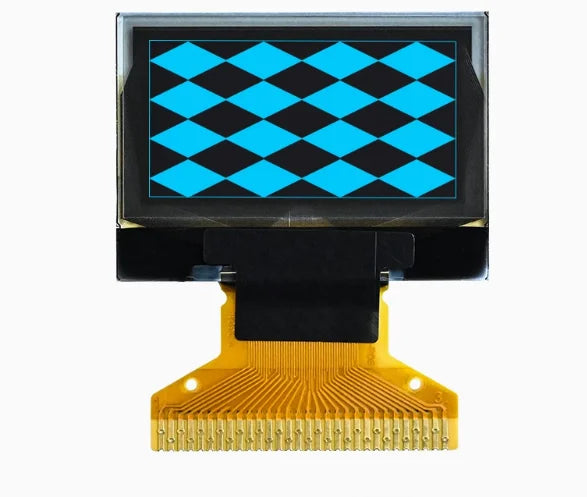

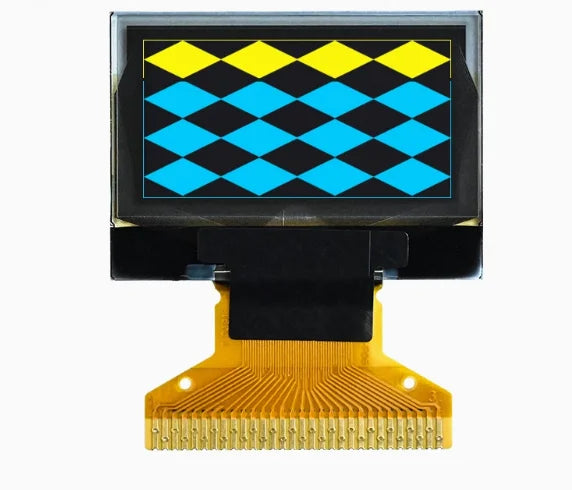

Display color: white, blue, yellow blue dual color (choose as needed)

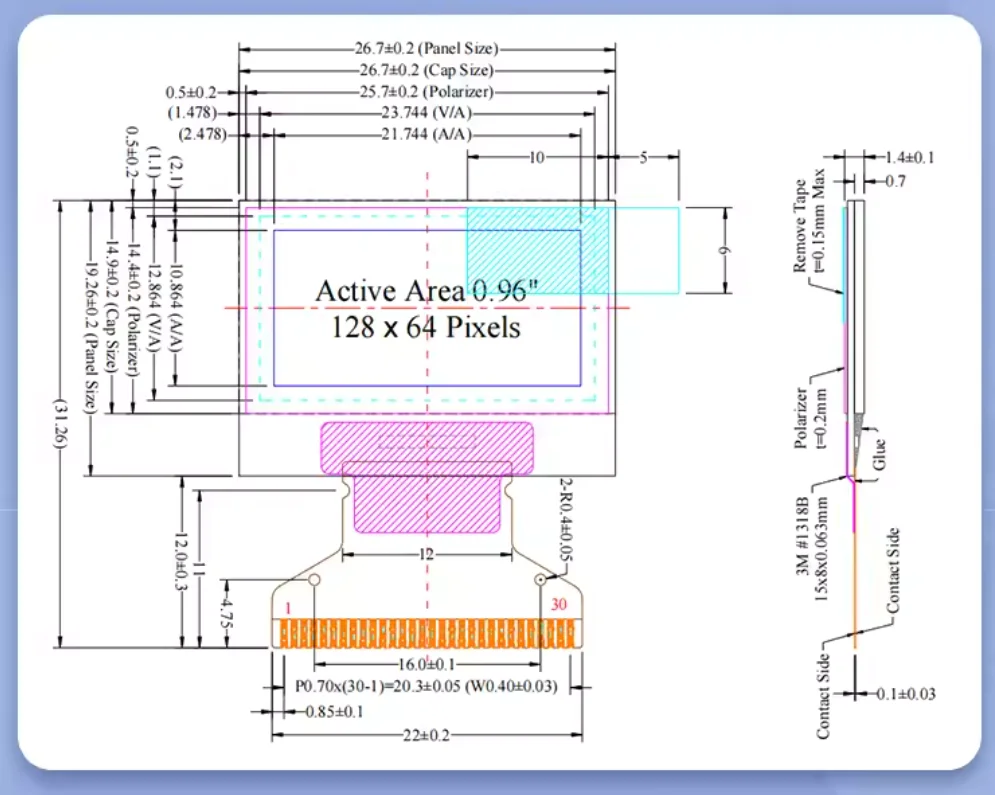

Display area: 21.744 x10.864 (mm)

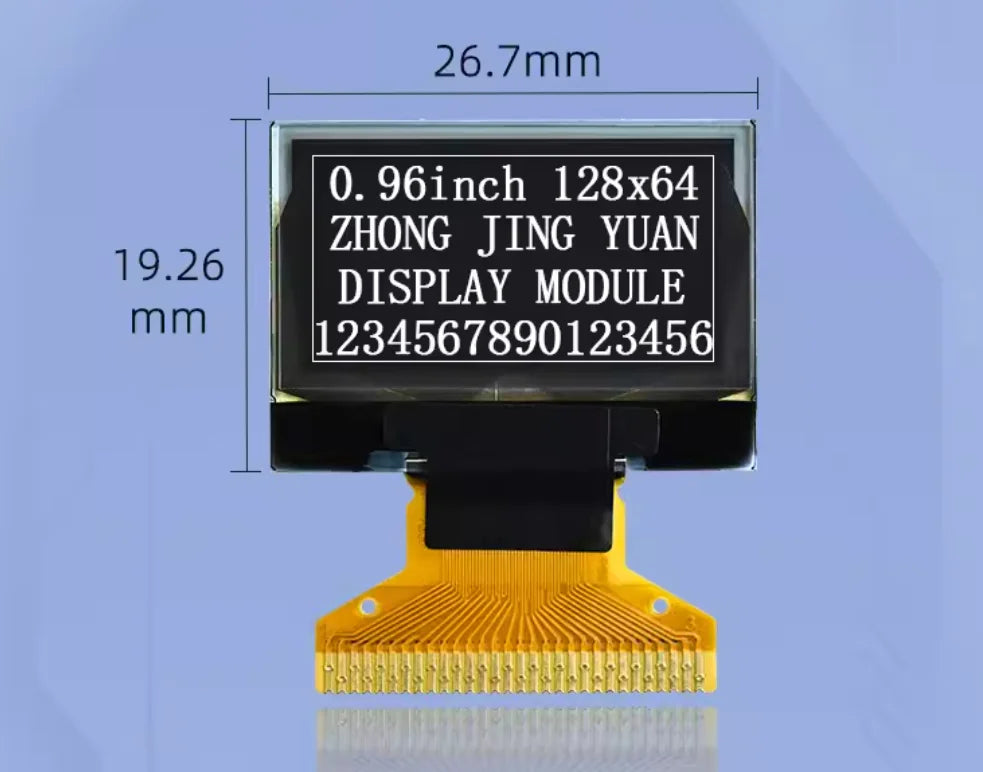

Panel size: 26.70 x19.26x1.4 (mm)

Pixel spacing: 0.17 x 0.17 (mm)

Pixel size: 0.154 x0.154 (mm)

Cable length: 12.0 (mm)

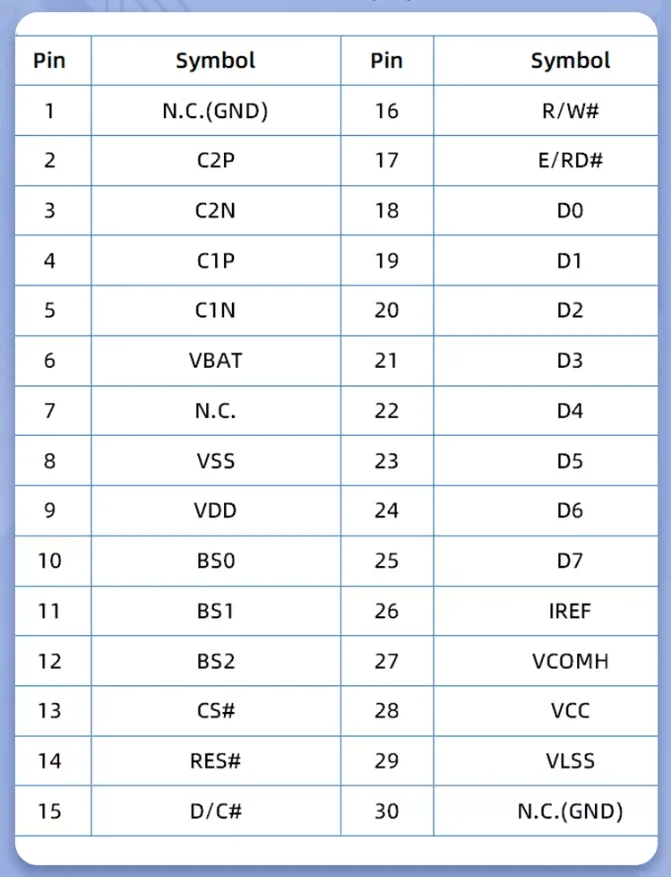

Pin quantity: 30pin (0.7mm welded type)

Perspective direction: full view angle

Working temperature: -40~70 ° C
