Custom 0.96-inch OLED display module 12864 LCD screen ssd1306

Size: 0.96-inch OLED

Material: PM OLED

Resolution: 128 * 64

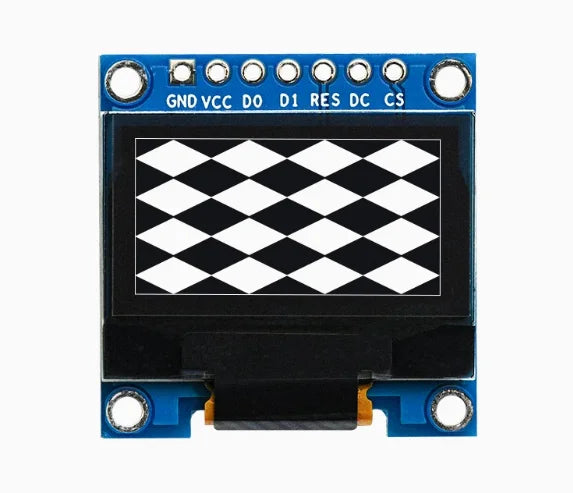

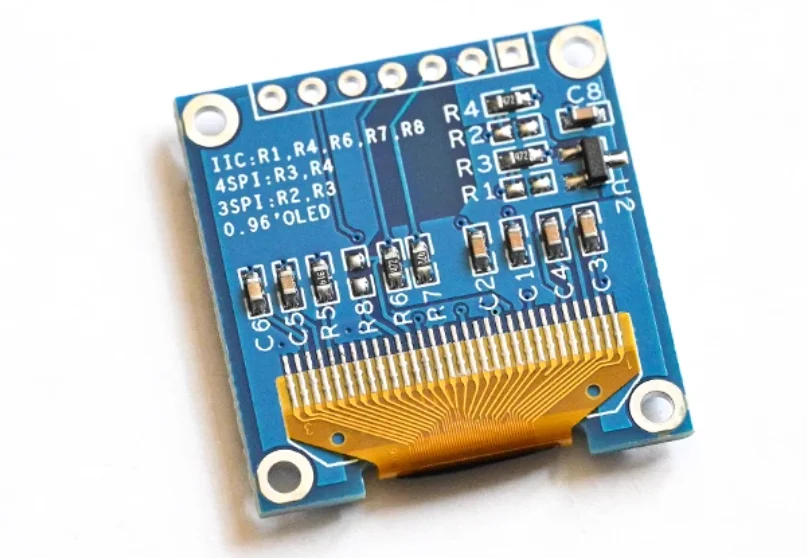

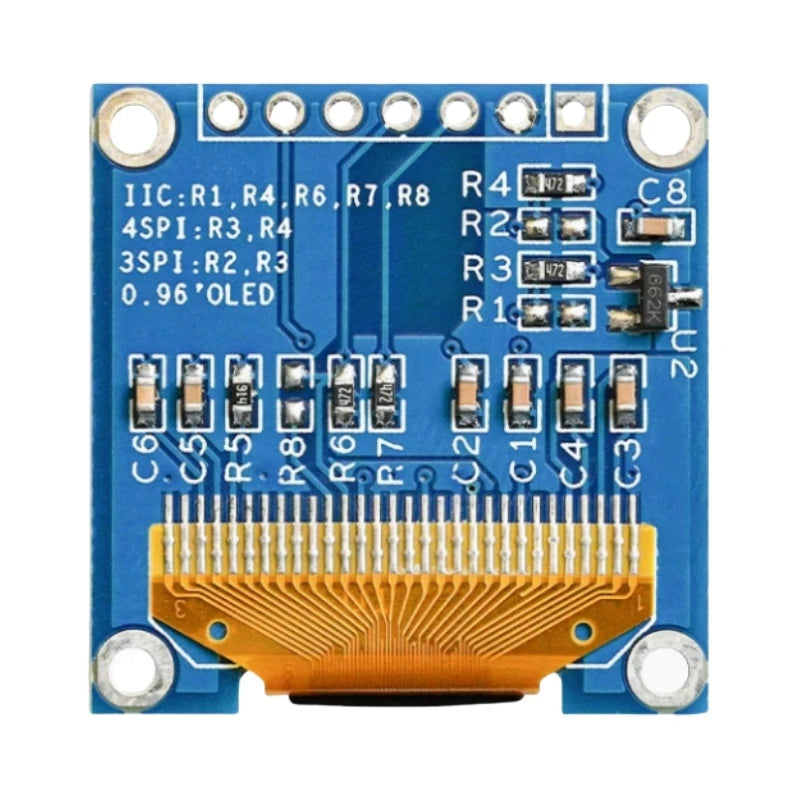

Interface type: SPI, IIC interface (default is SPI interface, if you need an IC interface, you can switch the resistance position by yourself to adjust, and you need to use a soldering iron by hand)

Working voltage: 3.3V

Control chip: SSD1306

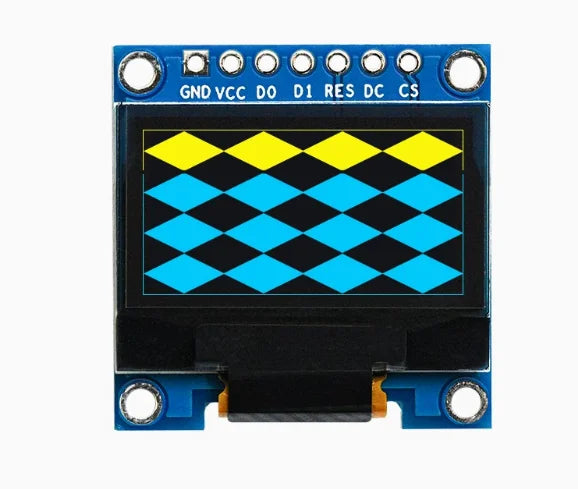

Display colors: white, blue, yellow blue dual color, choose according to your needs

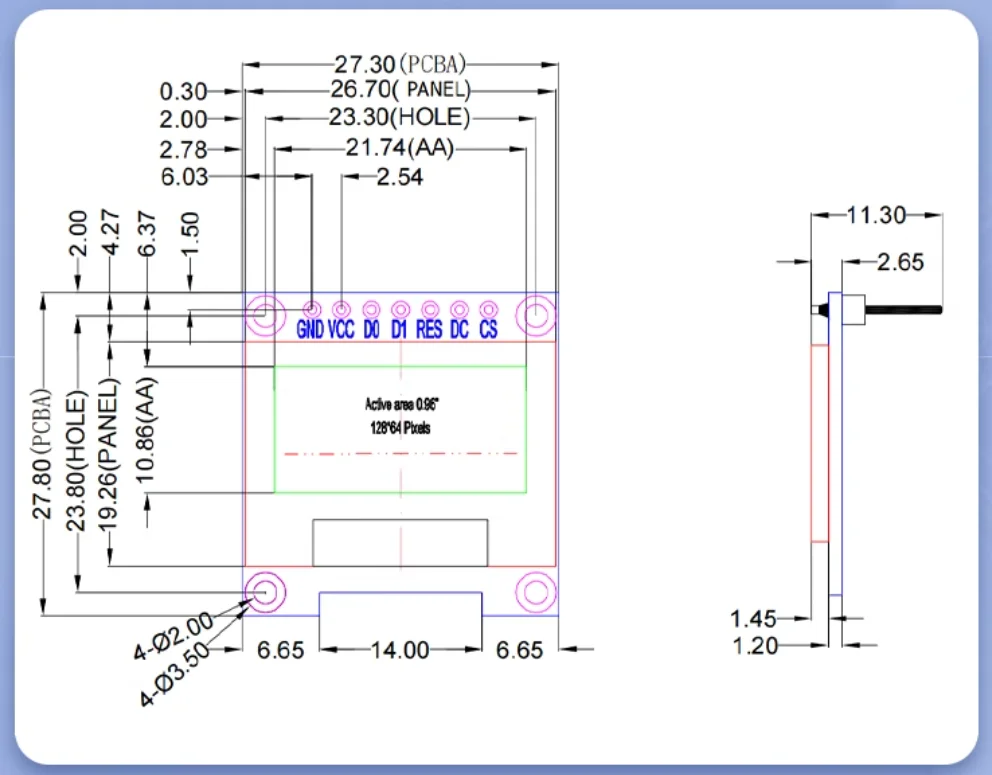

Display area: 21.744x10.864 (mm)

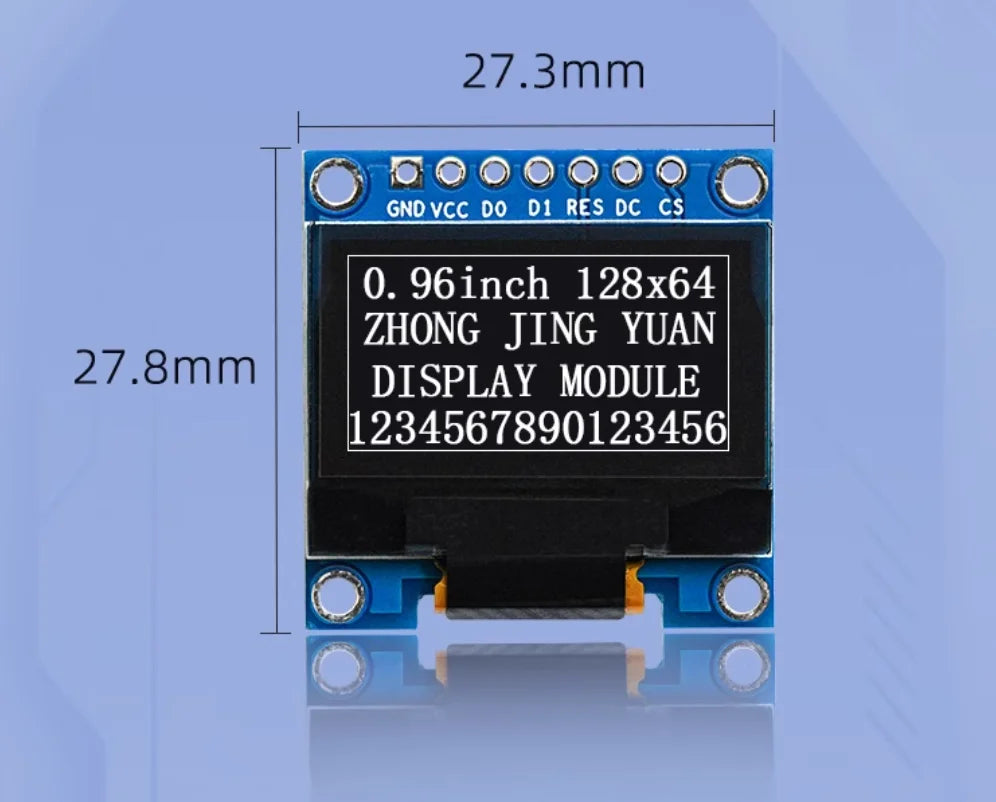

Module size: 27.3x27.8 (mm)

Pixel spacing: 0.17x0.17 (mm)

Pixel size: 0.154x0.154 (mm)

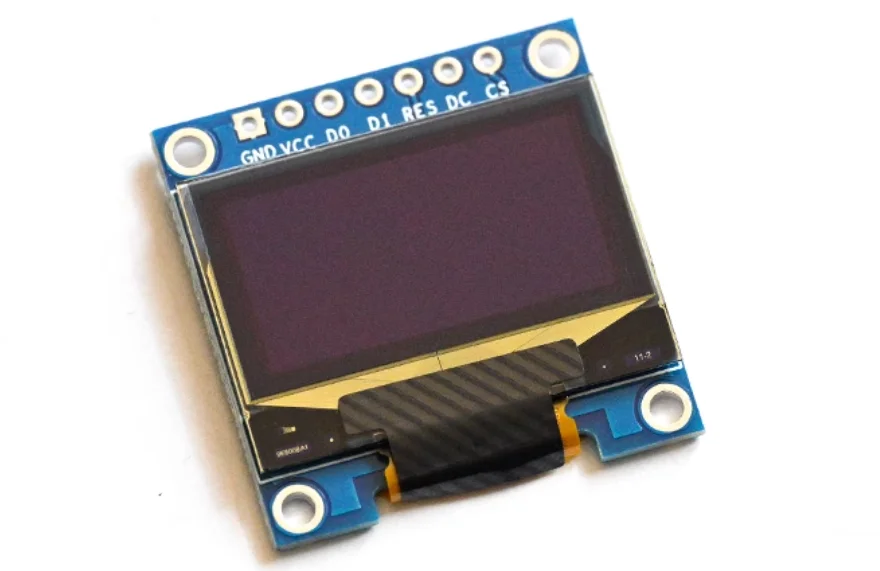

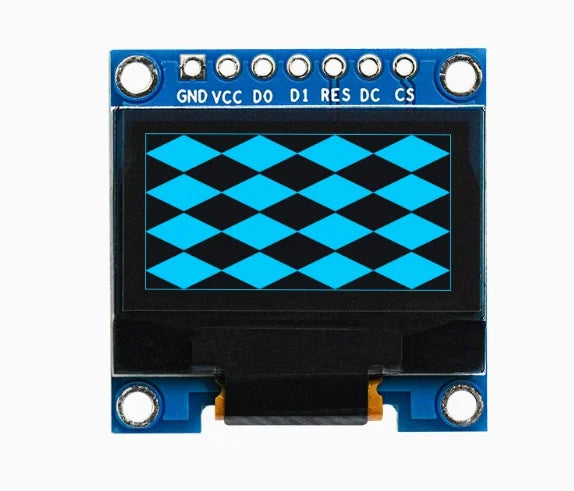

Pin quantity: 7pin (2.54mm spacing single row needle arrangement)

Perspective direction: full view angle

Working temperature: -40~70 ° C

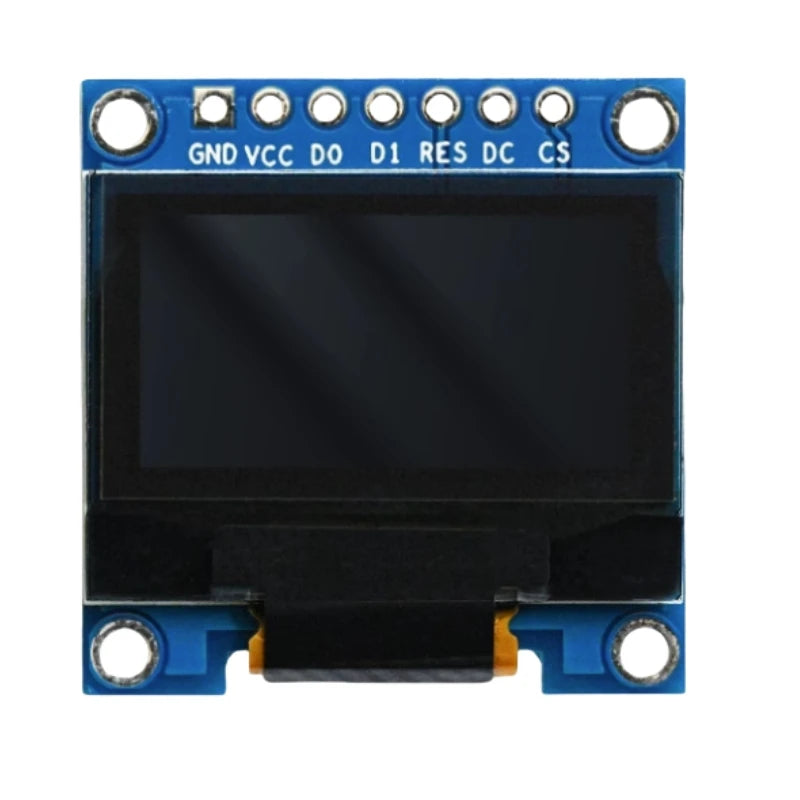

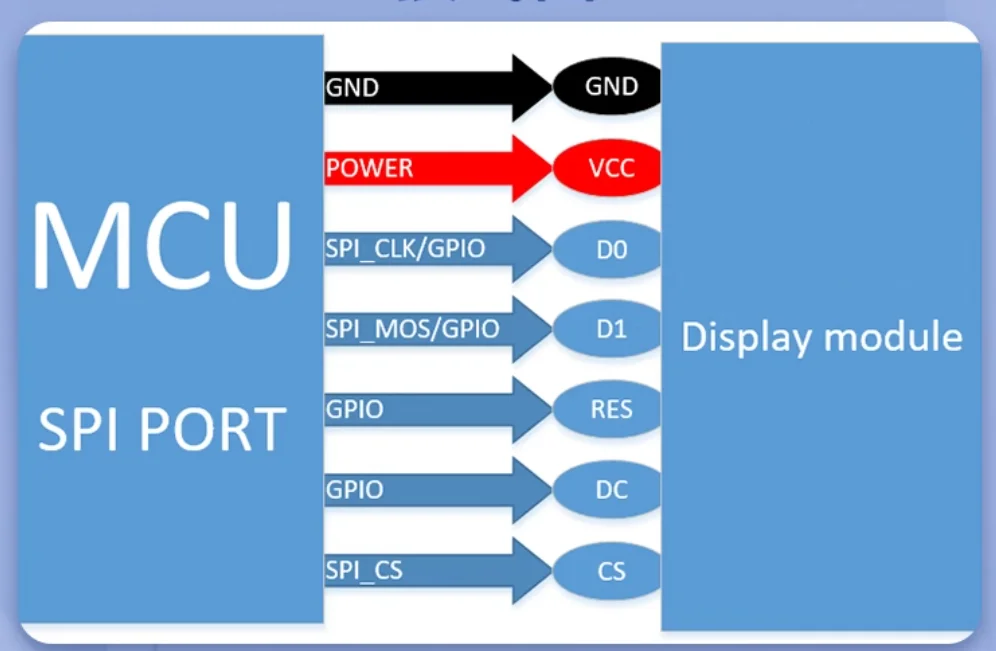

GND        Power Ground

VCC         Power supply positive 3.3~5V

DO          SPI clock cable

D1           SPI data cable

RES          reset

DC           Data/Command Selection Foot

CS            Chip selection signal, low level effective, CS pin cannot be suspended
