CS-TX2-XAVIER-nCAM-IMX327 for Jetson TX2 Devkit and Xavier, IMX327 MIPI CSI-2 2MP Star Light ISP Camera Module

Lens chosen

If you want YT1.8-2.1I or YTC1.8-2.8I, please order YT0.95-4I and leave a message. The price is the same. If you want YT1.0-4, YT1.0-4I, YT1.0-6I, YT2.4-4I or YT1.8-2.8I please order YT2.0-3.5I and leave a message. The price is the same.

Brief

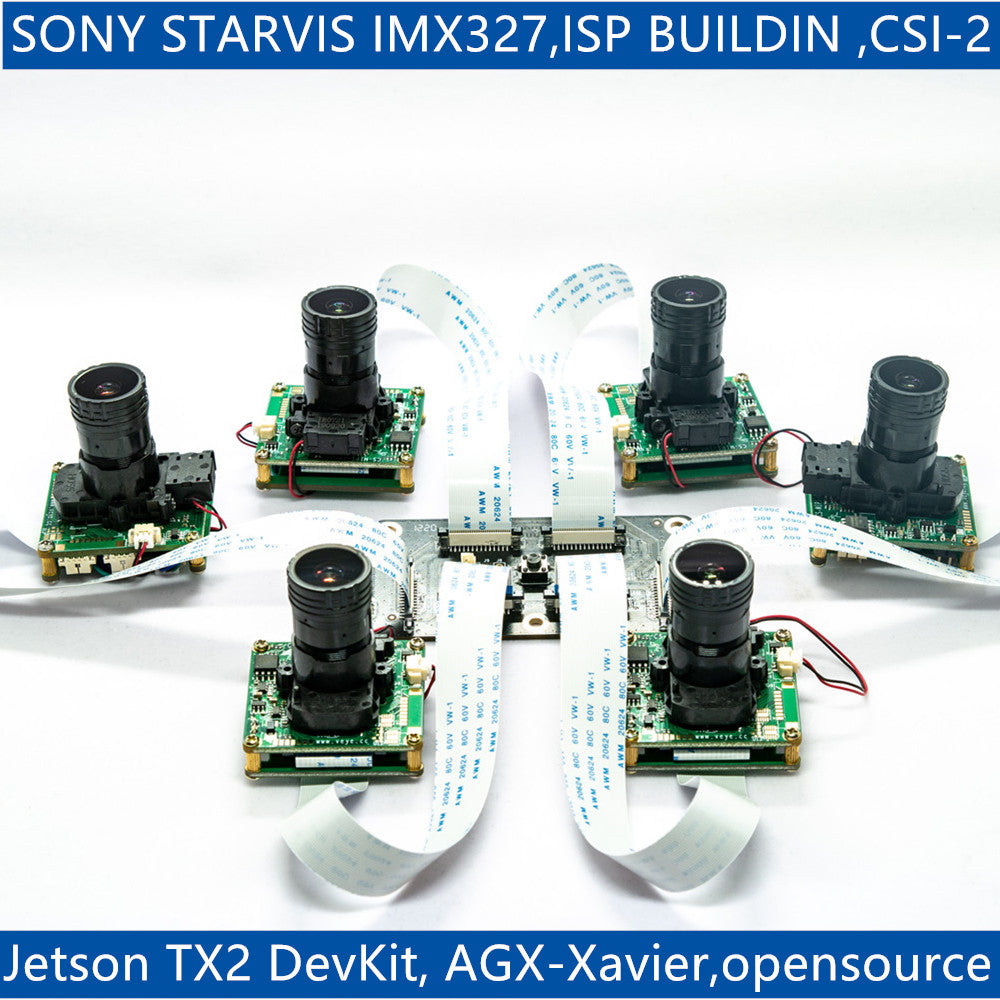

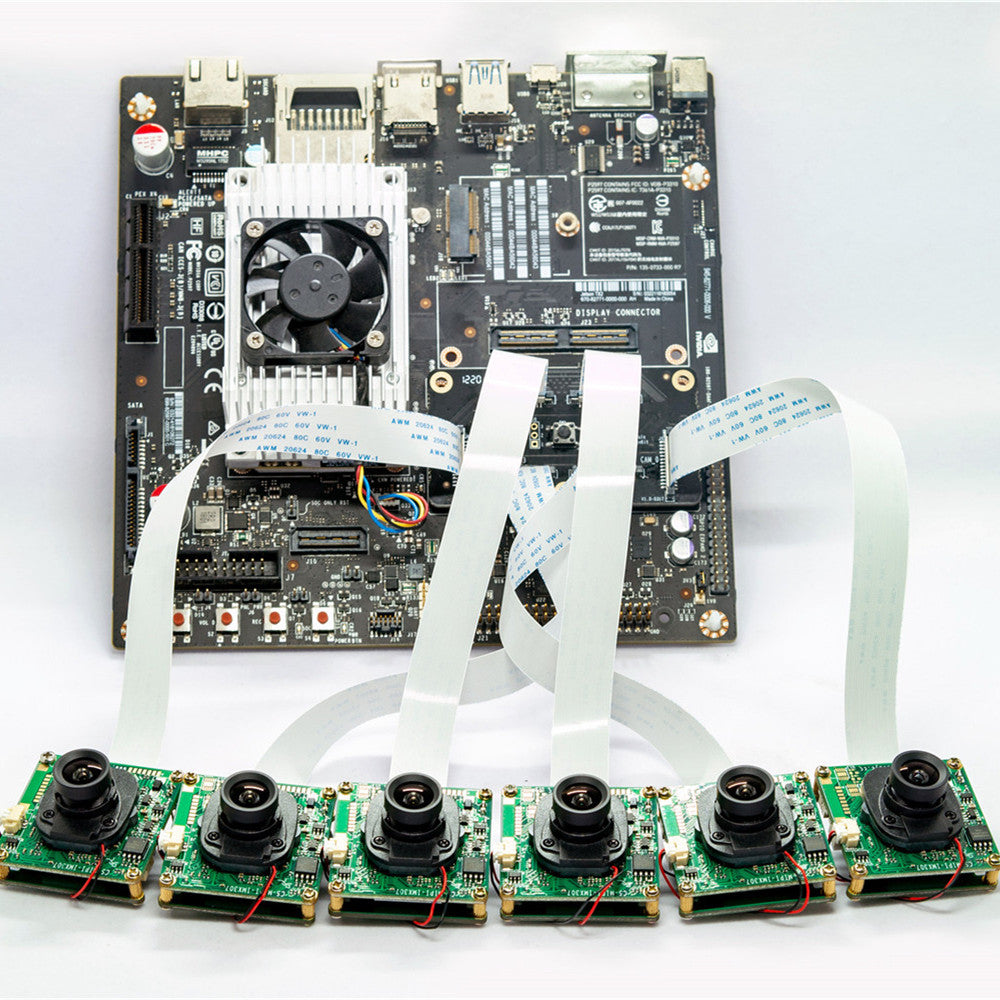

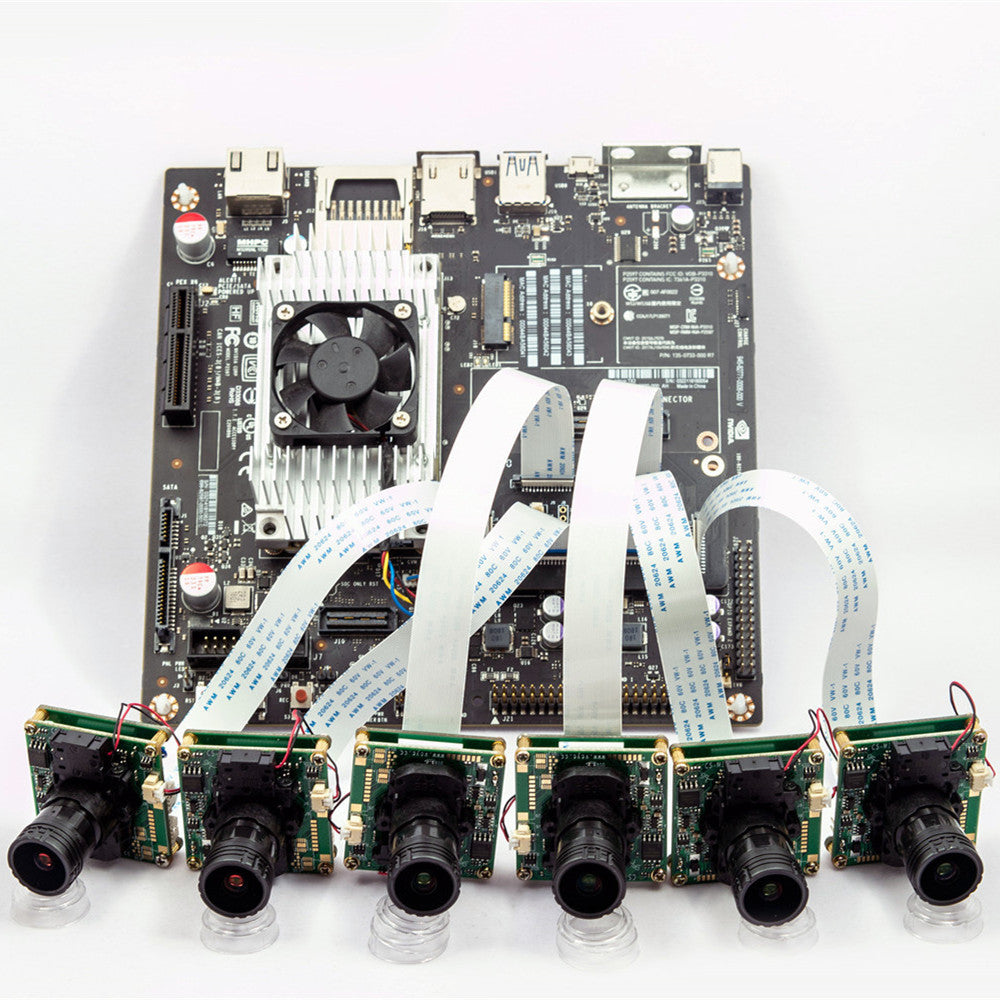

This package is compatible with Jetson TX2 DevKit and AGX-Xavier.

Features

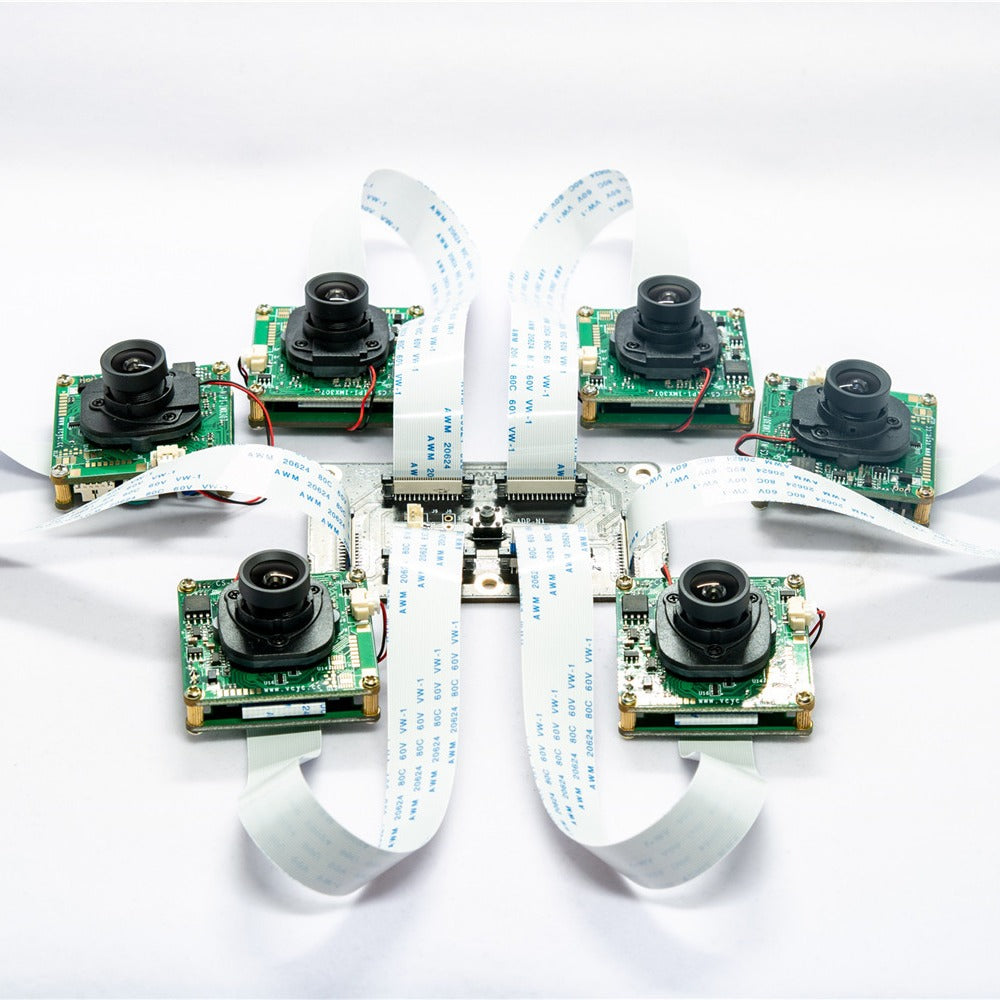

VEYE-MIPI-327 is a camera module with excellent low illumination and wide dynamic performance.This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc... + 1/2.8 inch 2 Mega STARVIS sensor IMX327 by SONY + MIPI output: CSI-2 + Uncompressed UYVY format, YUV422-8bit + Standard lens mount + IR-CUT circuit + BLC, DOL-WDR, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable + Stream mode and Capture mode + Framerate control + Support Raspberry PI, ZYNQ, RK3399, JETSON NANO,TX2,Xaviar + Open source drivers and applications for all platform supported

Thechnical Details

CAD drawing

Lens select

http://wiki.veye.cc/index.php/Lens_select
