CS-MIPI-IMX307 for Raspberry Pi and Jetson Nano XavierNX,i.MX8m Maaxboard, IMX307 MIPI CSI-2 2MP Star Light ISP Camera Module

Brief

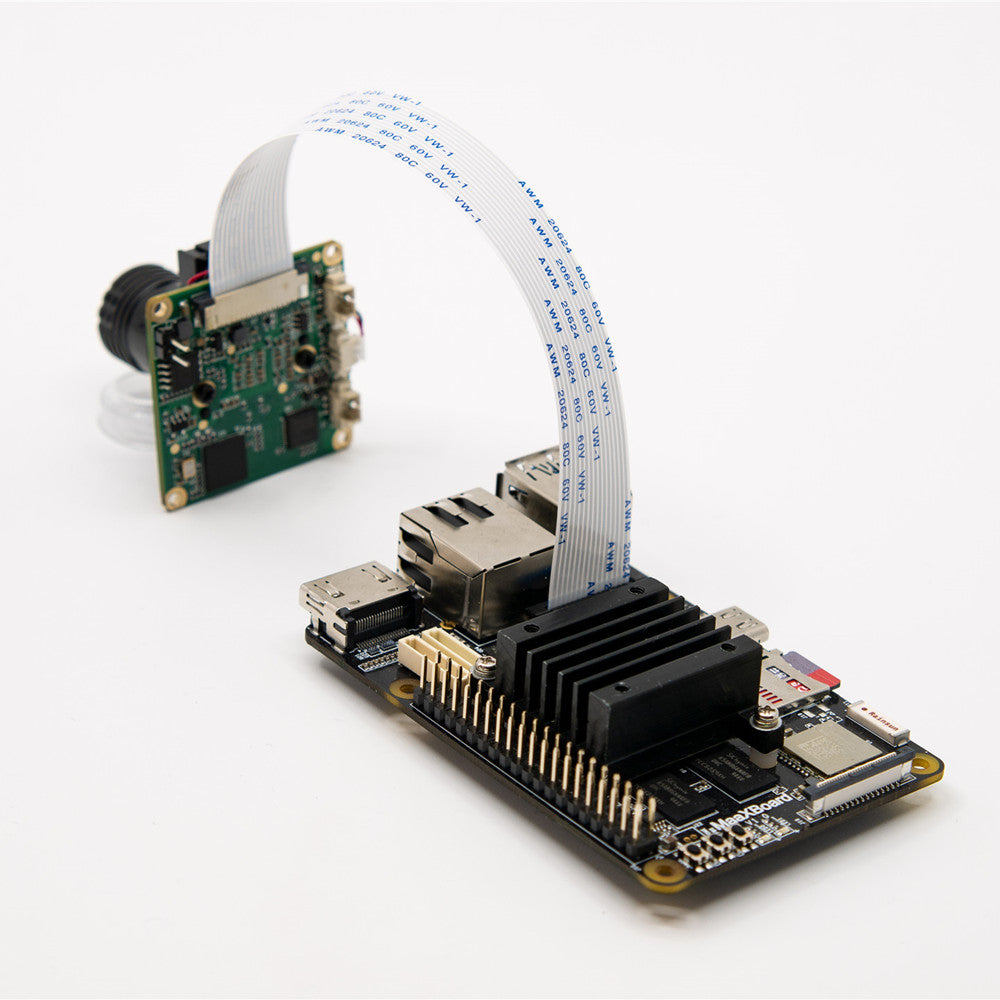

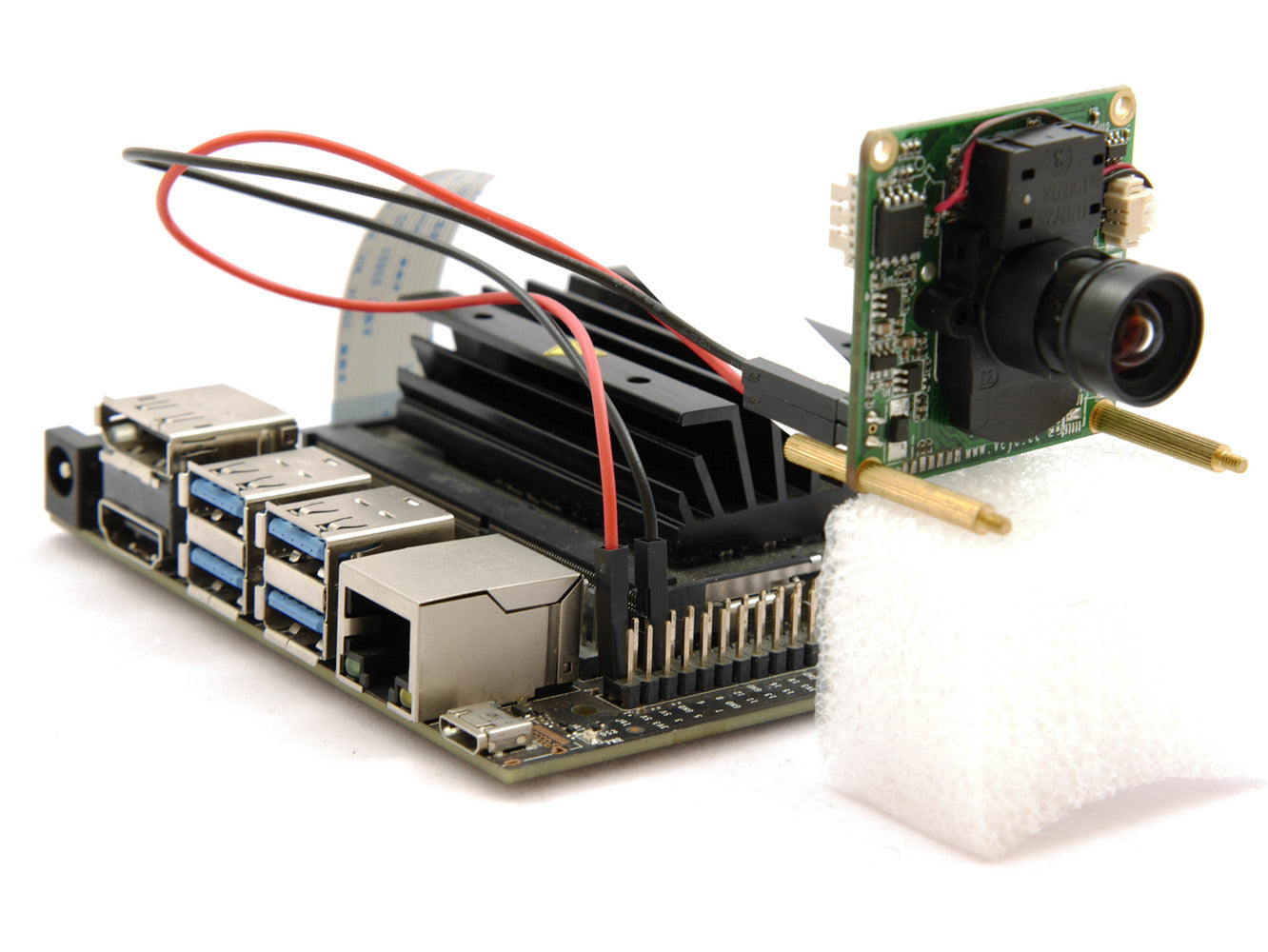

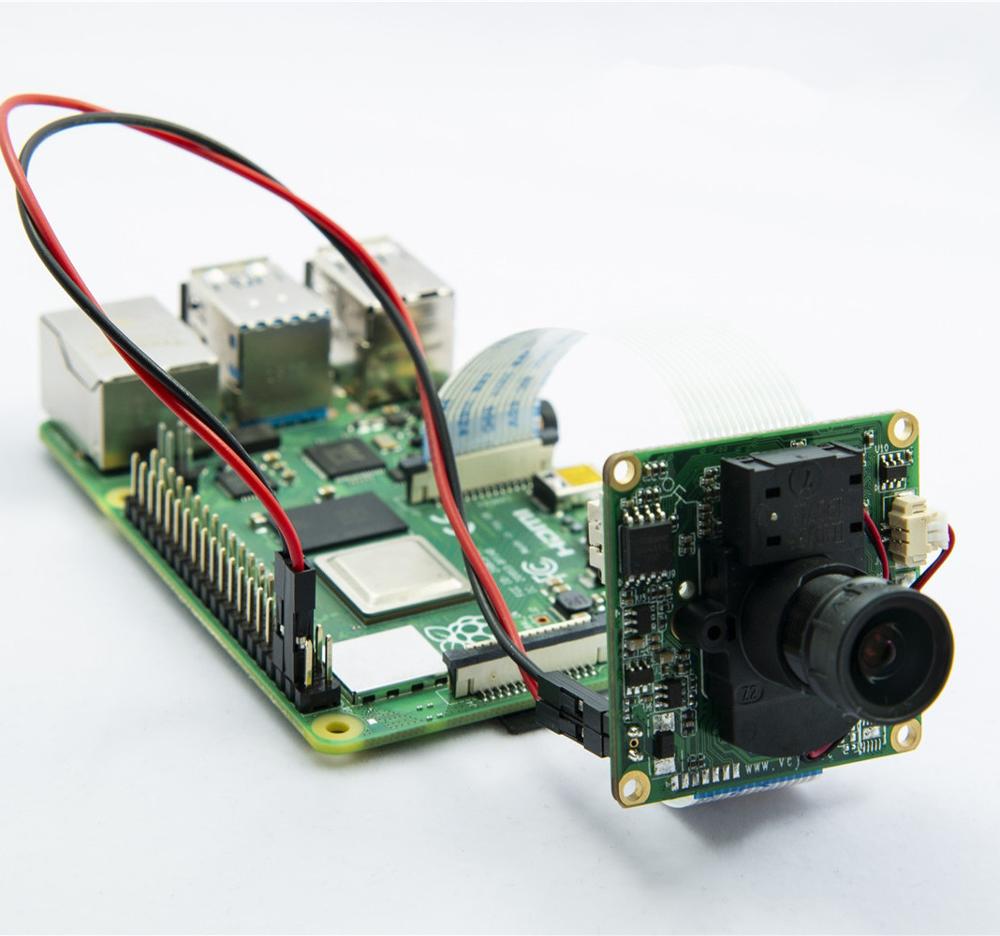

This package is compatible with Raspberry Pi 4/3B+/3/zero/cm3 and Jetson Nano NX and i.MX8m Maaxboard.

Features

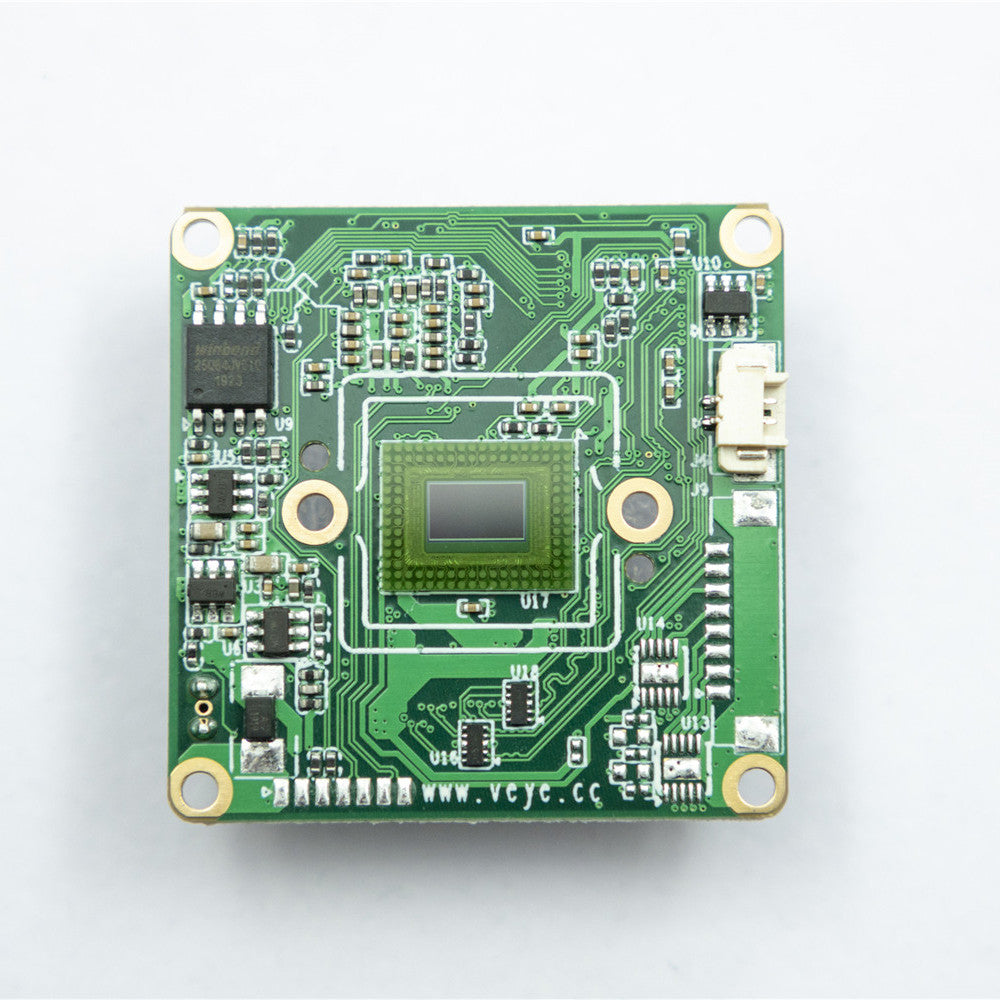

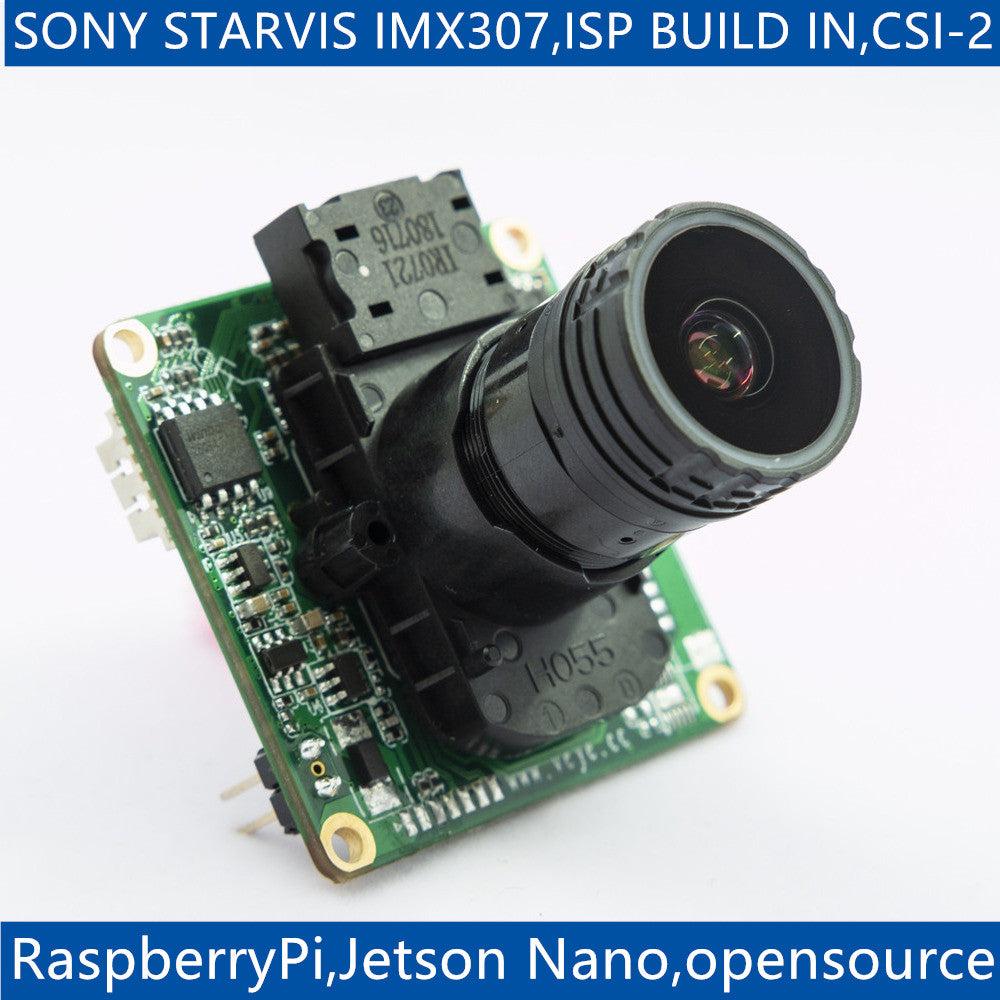

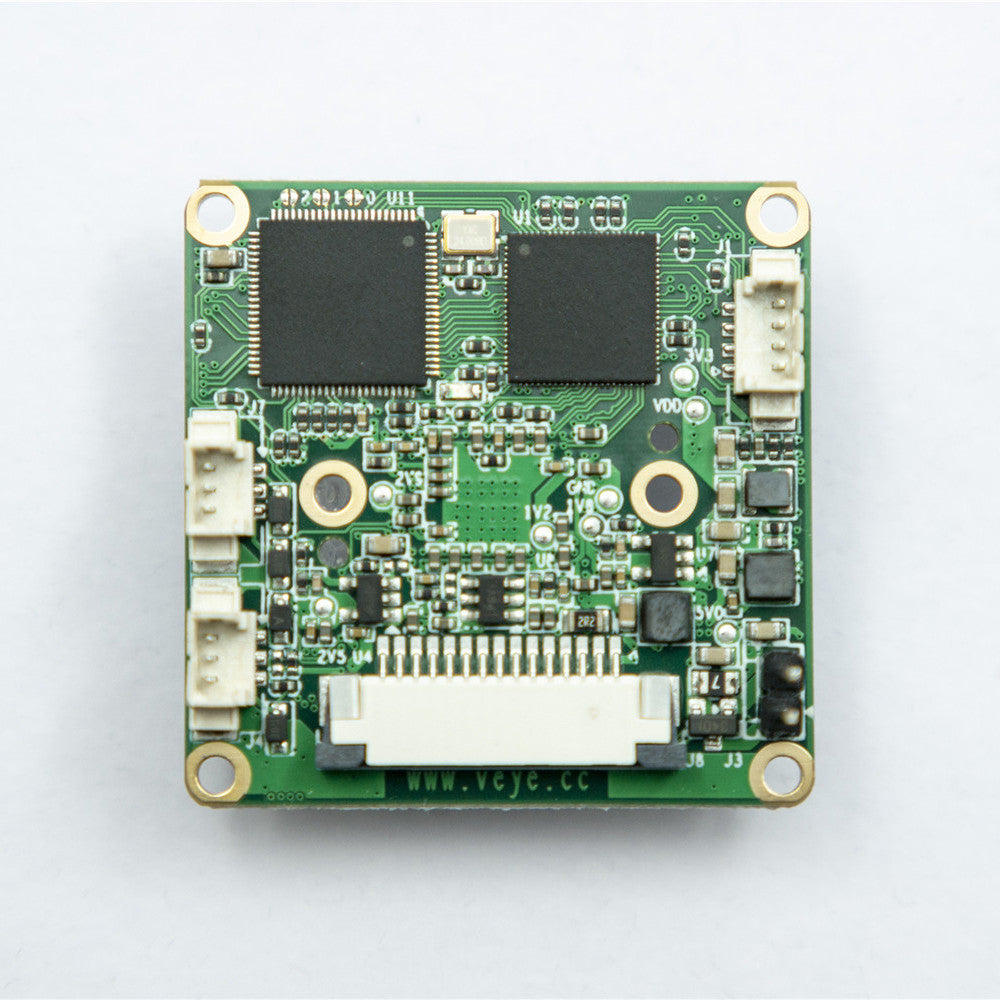

CS-MIPI-IMX307 is a camera module with excellent low illumination performance.This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc... + 1/2.8 inch 2 Mega STARVIS sensor IMX307 by SONY + MIPI output: CSI-2 + Uncompressed UYVY format, YUV422-8bit + Standard lens mount + IR-CUT circuit + Framerate Continuously Adjustable + Support Multi-camera Module Video Stream Synchronization + BLC, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable + Support Raspberry Pi, JETSON NANO NX,i.MX8m Maaxboard + Open source drivers and applications for all platform supported + Support firmware upgrade by USB disk

Thechnical Details

CAD drawing
