CS-FPD-XAVIER-nCAM-IMX307 FPD-Link3 2MP Star Light ISP Camera Module for Jetson Xavier cks pcba power board assembly

Lens chosen

If you want YT1.8-2.1I or YTC1.8-2.8I, please order YT0.95-4I and leave a message. The price is the same. If you want YT1.0-4I, YT1.0-6I, YT2.4-4I ,YT2.0-3.5I or YT1.8-2.8I please order YT1.0-4 and leave a message. The price is the same.

Compoent list

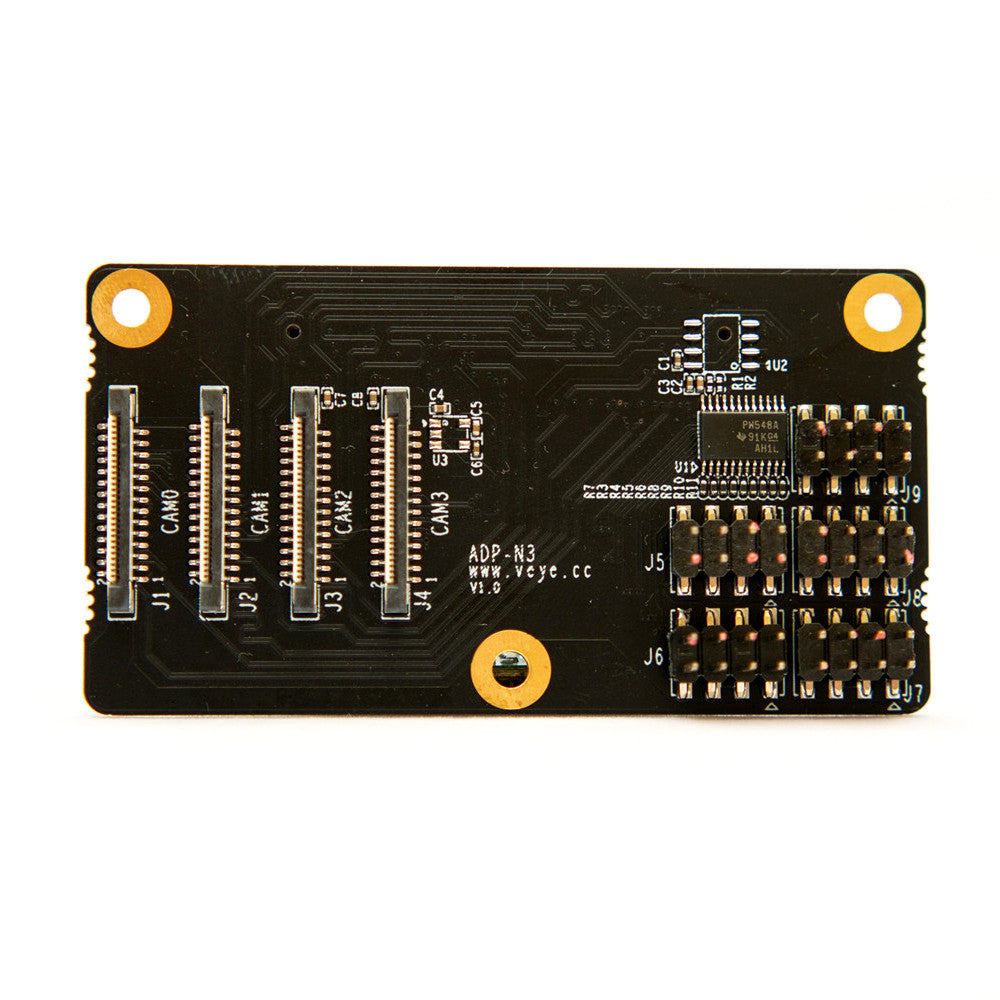

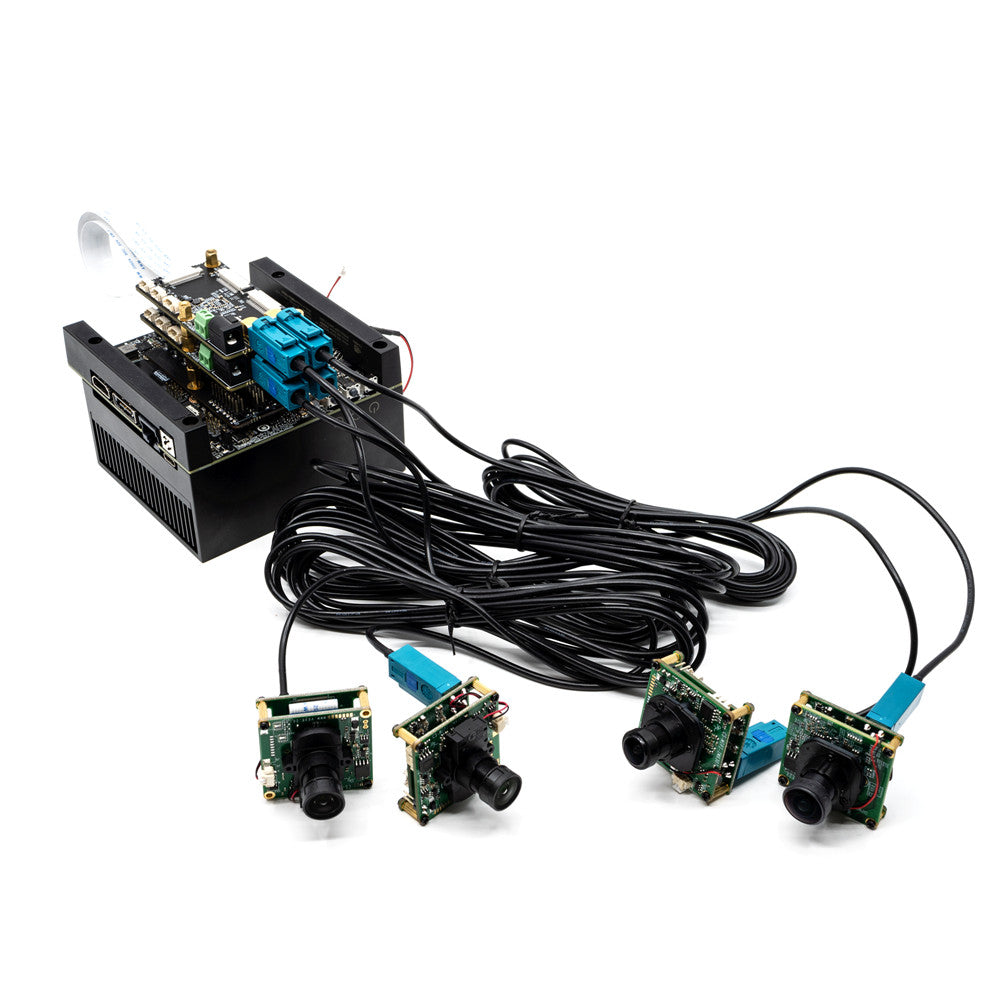

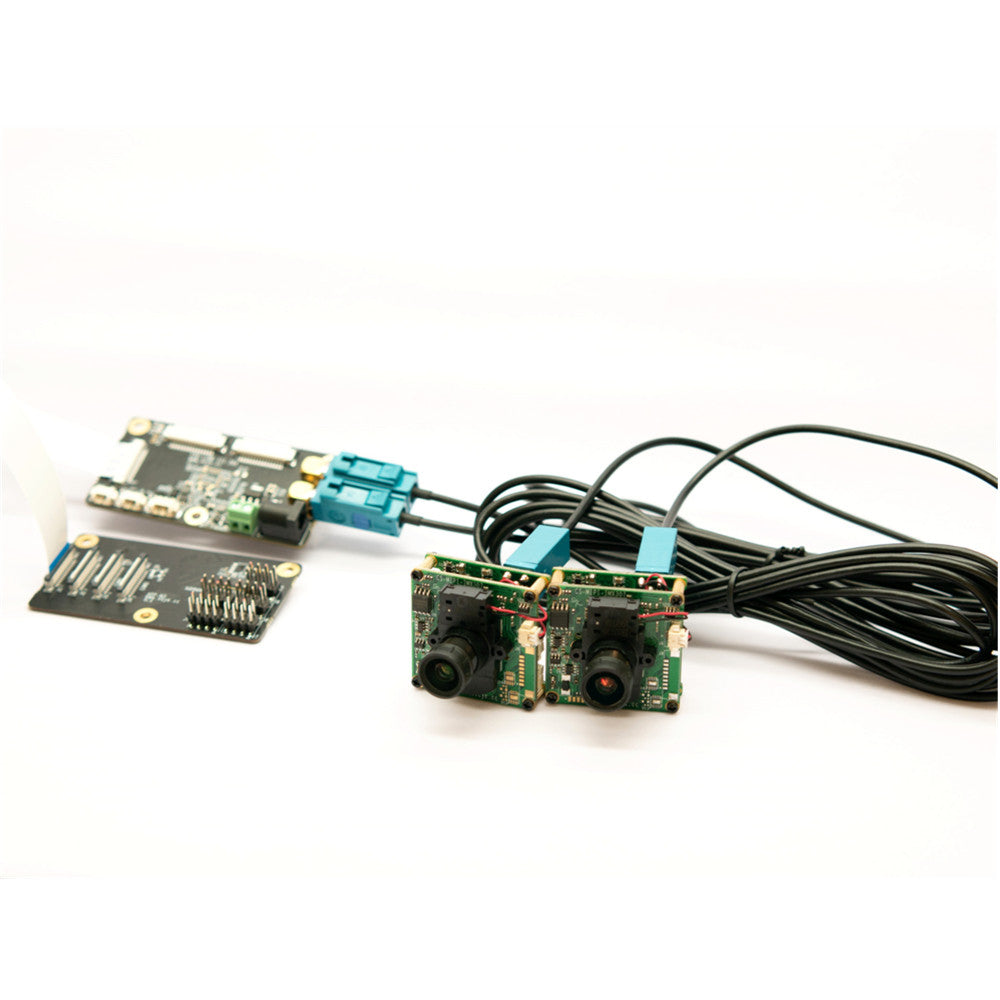

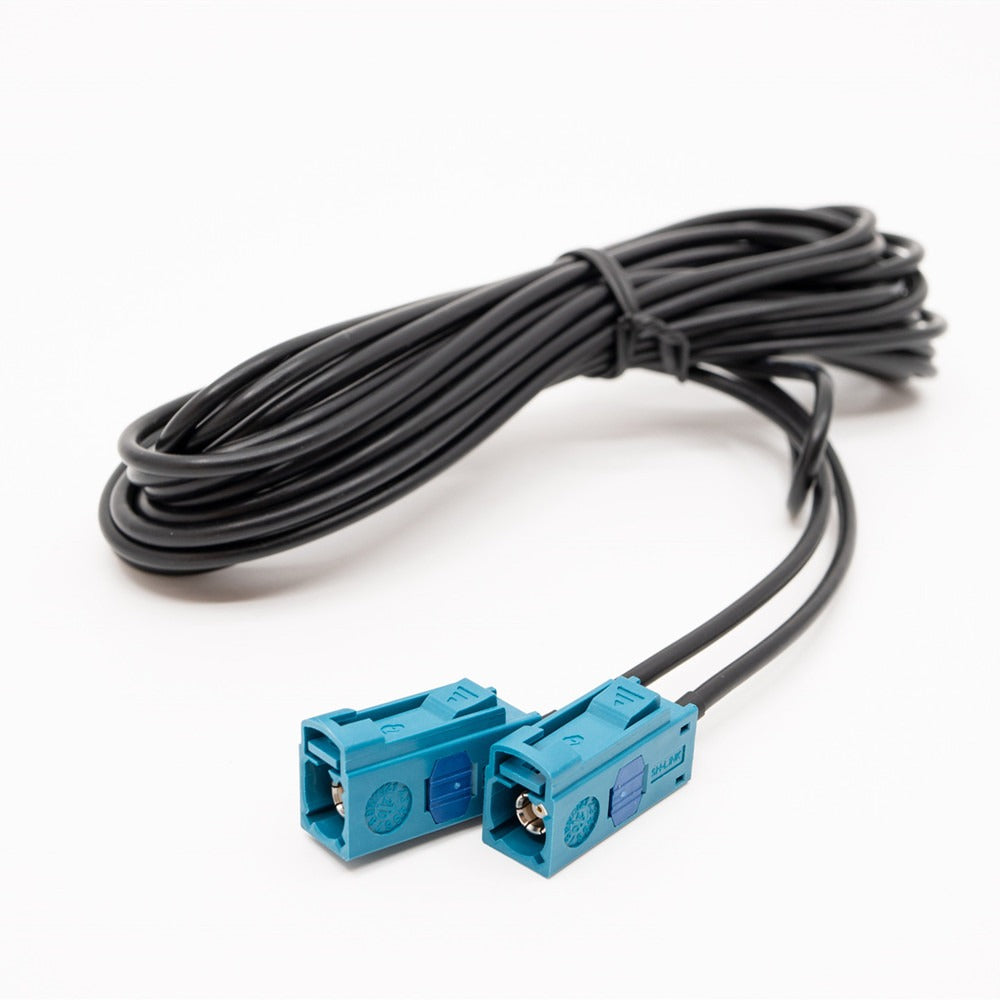

one set of CS-FPD-XAVIER-nCAM-IMX307 include: n X CS-MIPI-IMX307 n X FPD-LINK3-TX n/2 X FPD-LINK3-2RX n X RG174 Cable (5m) 1 X ADP-N3 n X lens

Brief

This package is compatible with Jetson Xavier.

Features

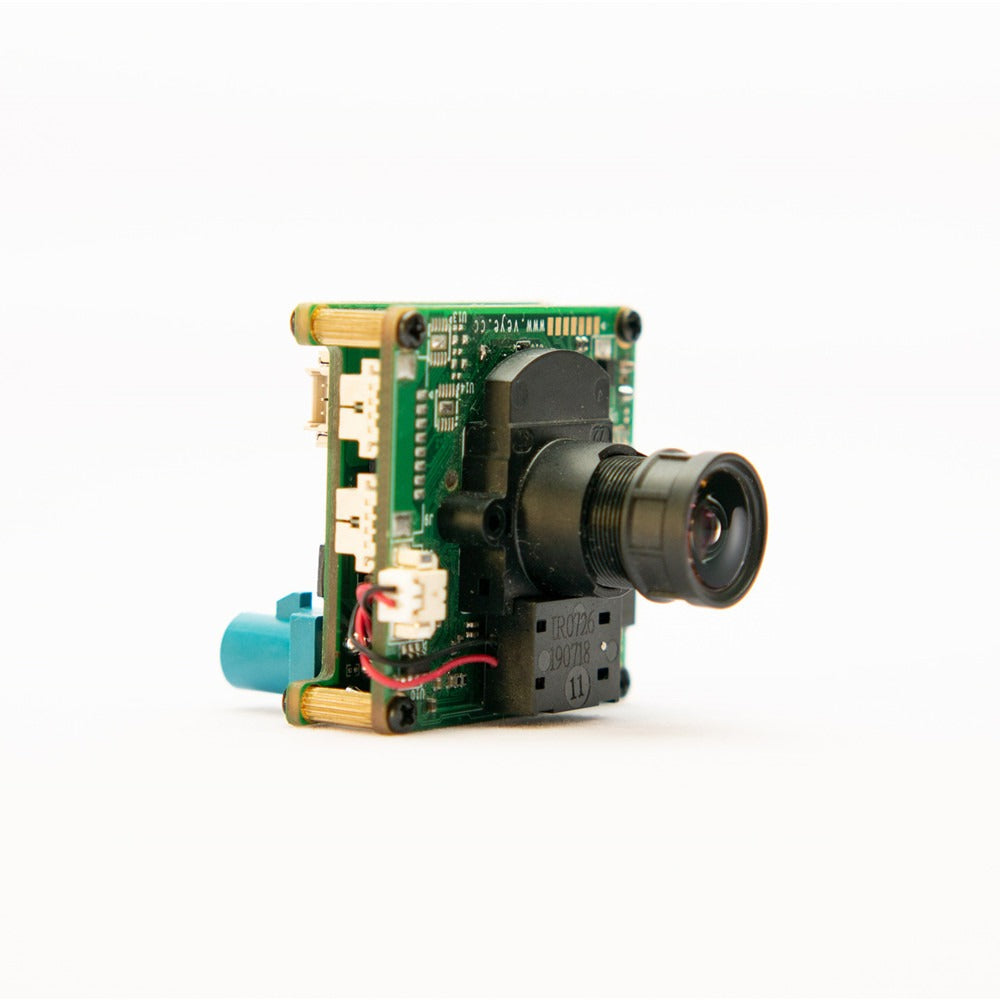

CS-FPD-XAVIER-nCAM-IMX307 is a camera module with excellent low illumination and wide dynamic performance.This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc... + 1/2.8 inch 2 Mega STARVIS sensor IMX307 by SONY + Output: FPD-Link3 + Uncompressed UYVY format, YUV422-8bit + Standard lens mount + IR-CUT circuit + Framerate Continuously Adjustable + Support Multi-camera Module Video Stream Synchronization + BLC, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable + Support Raspberry Pi, JETSON NANO,Xavier NX + Open source drivers and applications for all platform supported + Support firmware upgrade by USB disk

Thechnical Details

CAD drawing

Lens select

http://wiki.veye.cc/index.php/Lens_select
