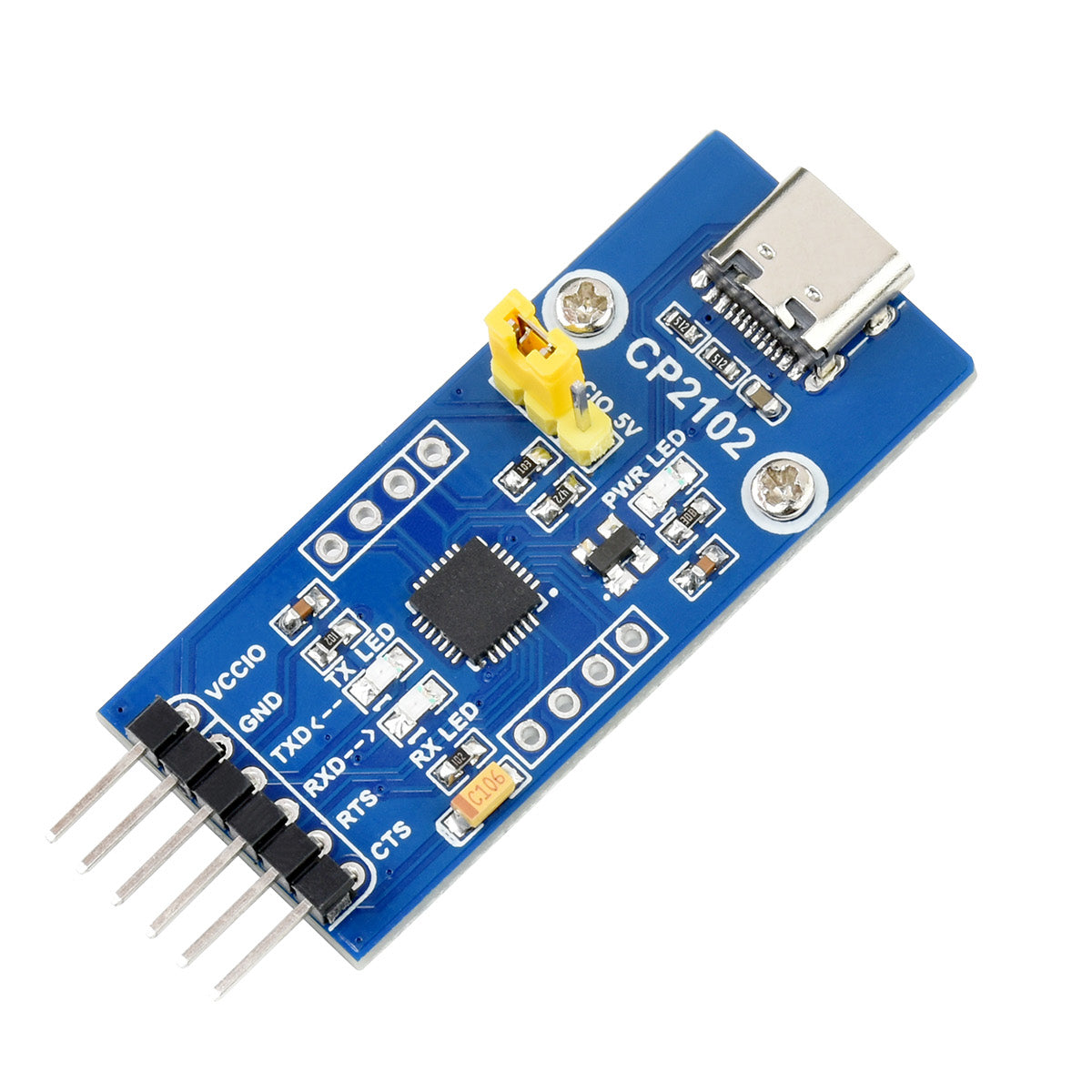

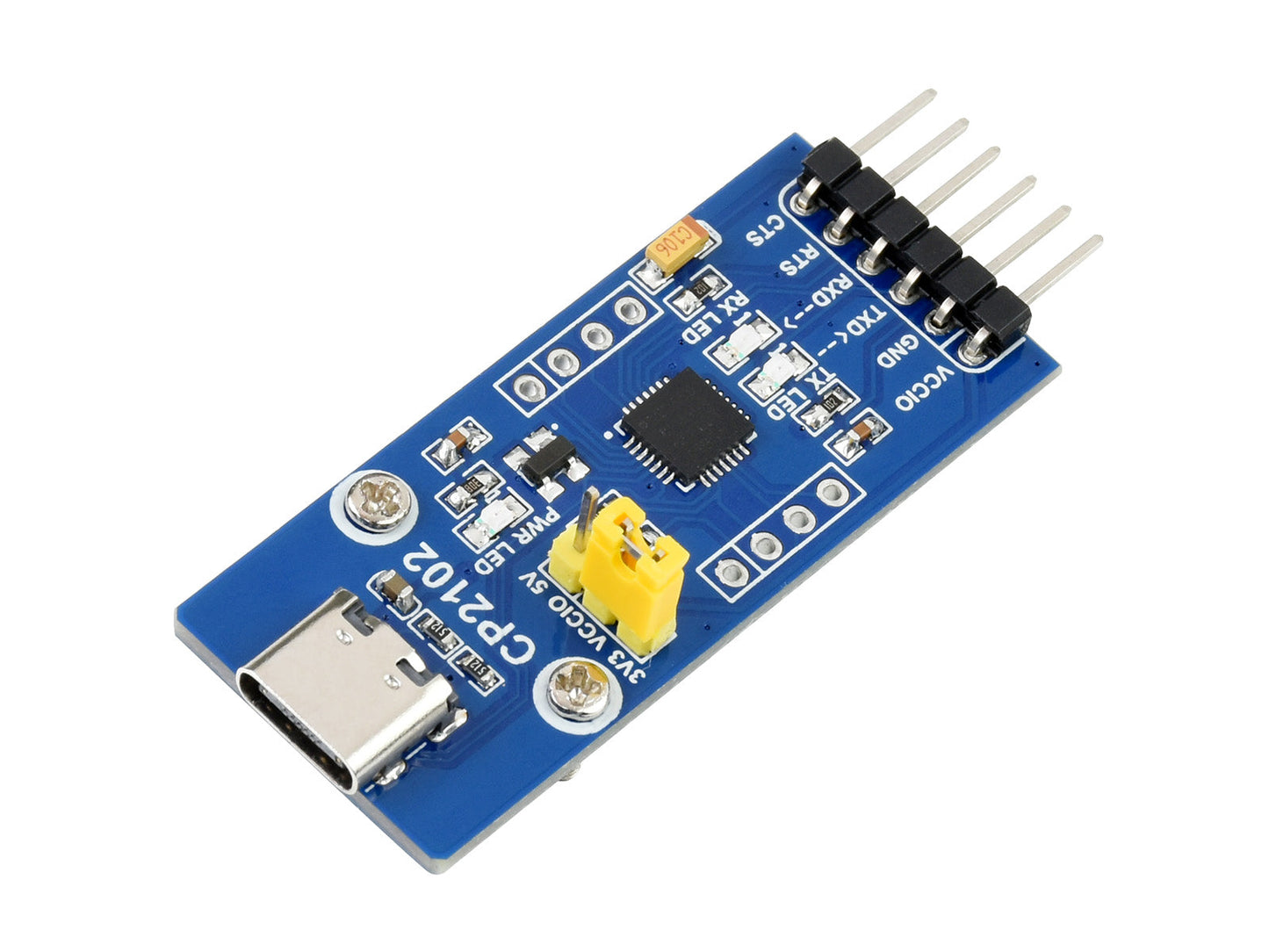

CP2102 USB UART Board Type CUSB To UART (TTL) Communication Module USB-C Connector Support Mac OS Linux Custom PCB
CP2102 USB UART Board Type CUSB To UART (TTL) Communication Module USB-C Connector Support Mac OS Linux Custom PCB
DESCRIPTION
Adopts CP2102, Compatible With 3.3V Logic Level
-
Supports Mac OS, Linux, Android, WinCE, Windows 7/8/10/11
-
Voltage output support: 5V or 3.3V
-
Integrated USB protection device: SP0503
-

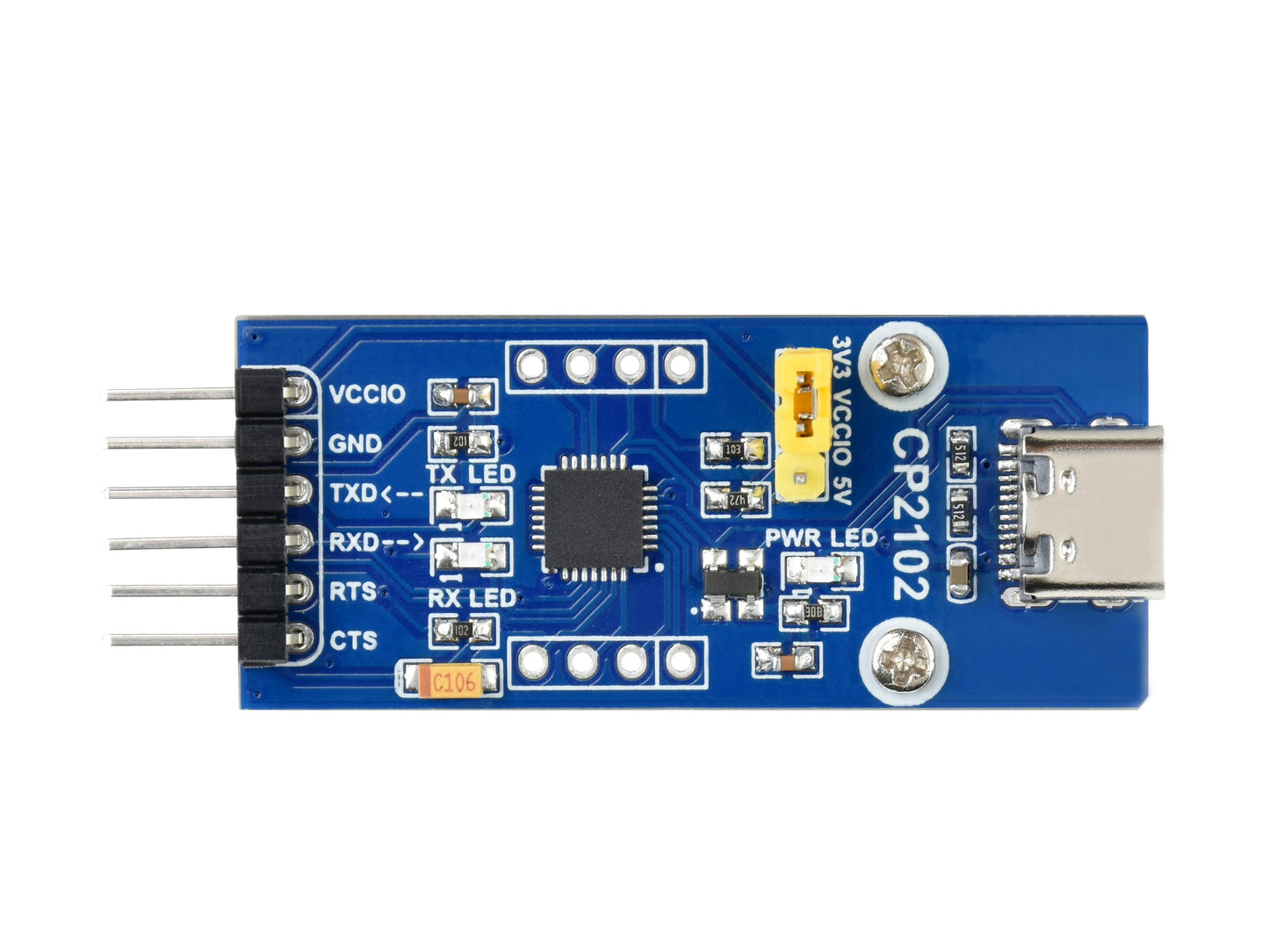

3x LED indicators: TXD LED, RXD LED, POWER LED
-
Pins accessible on pinheaders: TXD, RXD, RTS, CTS
-

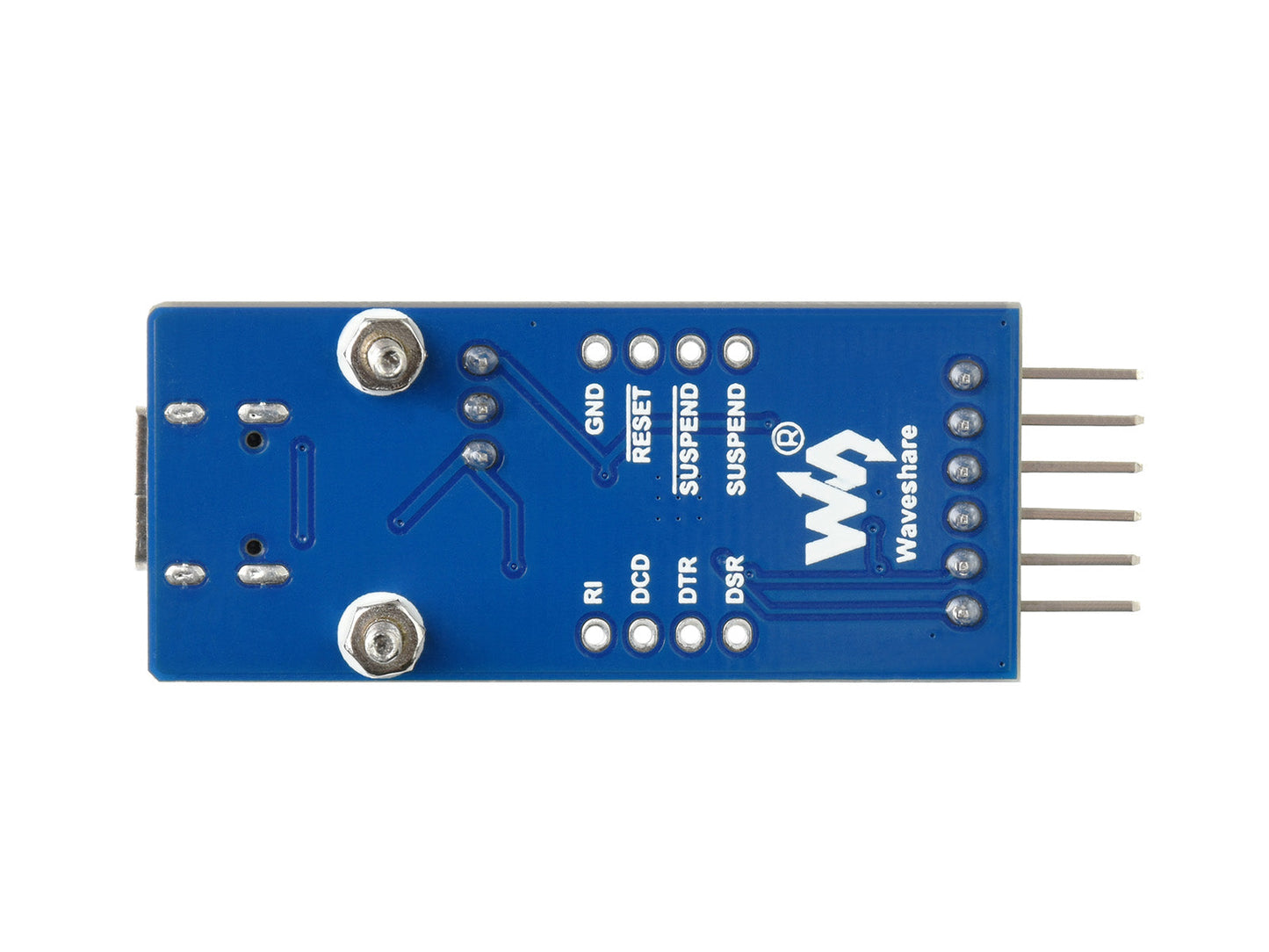

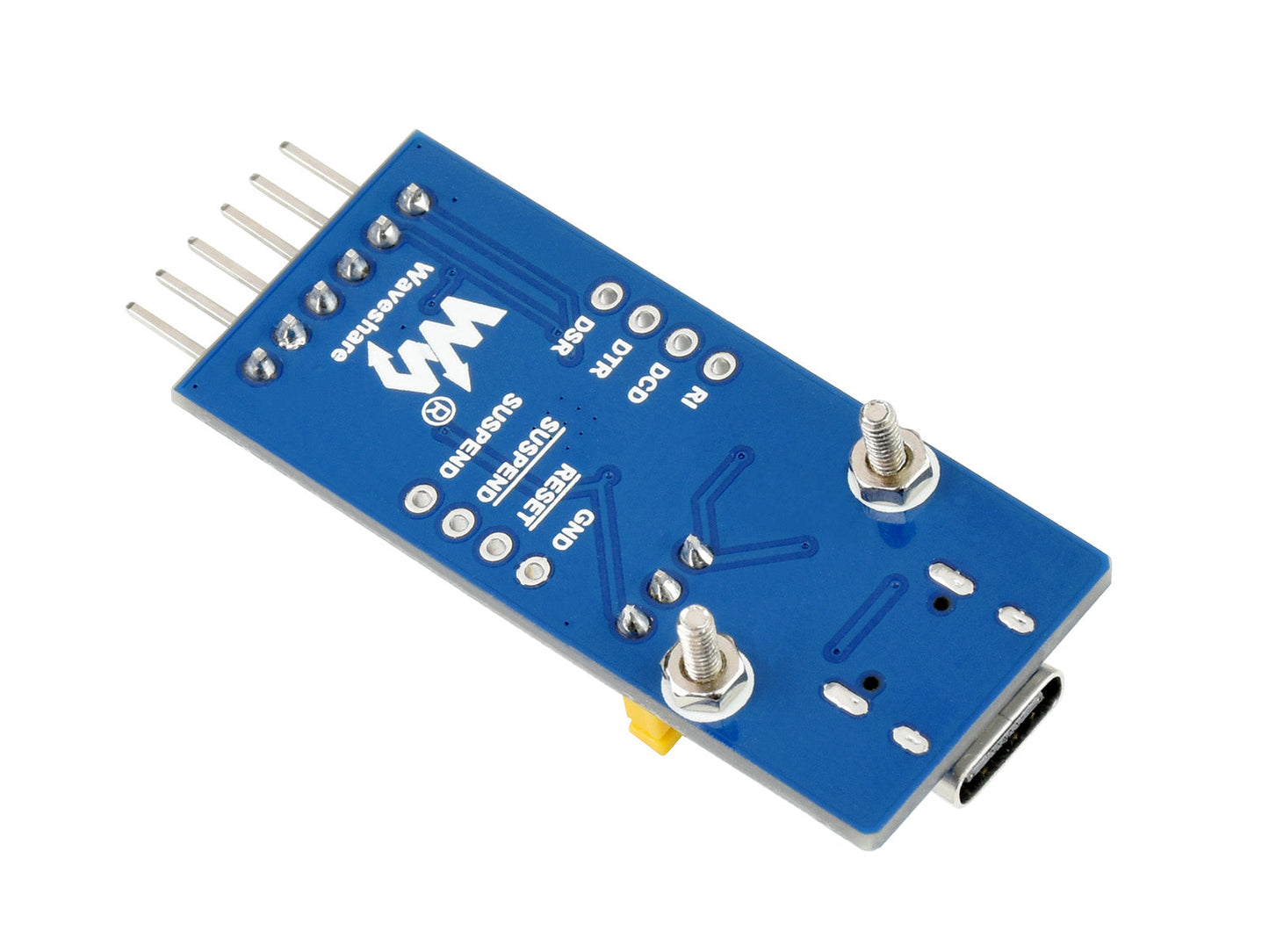

Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
- Single-Chip USB to UART Data Transfer
-
No external resistors required, no external crystal required
-
On-chip power-on reset circuit and voltage regulator
-
Integrated 1024-Byte EEPROM
-
- USB Function Controller
-
USB Specification 2.0 compliant; full-speed (12 Mbps)
-
USB suspend state, supported via SUSPEND pins
-
- UART
-
All handshaking and modem interface signals
- Data formats:
-
Data bits: 5, 6, 7, 8
-
Stop bits: 1, 1.5, 2
-
Parity: odd, even, no parity
-
-
Baudrates: 300bps to 1Mbps
-
576 byte receiving buffer; 640 byte transmitting buffer
-
Hardware or X-On/X-Off handshaking support
-
Event character support
-
- Virtual COM Port Device Drivers
-
Windows 8/7/Vista/Server 2003/XP/2000
-
MAC OS-X/OS-9
-
Linux 2.40 or higher
-
- USBXpress Direct Driver Support
-
Windows 7/Vista/Server 2003/XP/2000
-
Windows CE
-
- Temperature Range
-
–40 to +85 °C
-

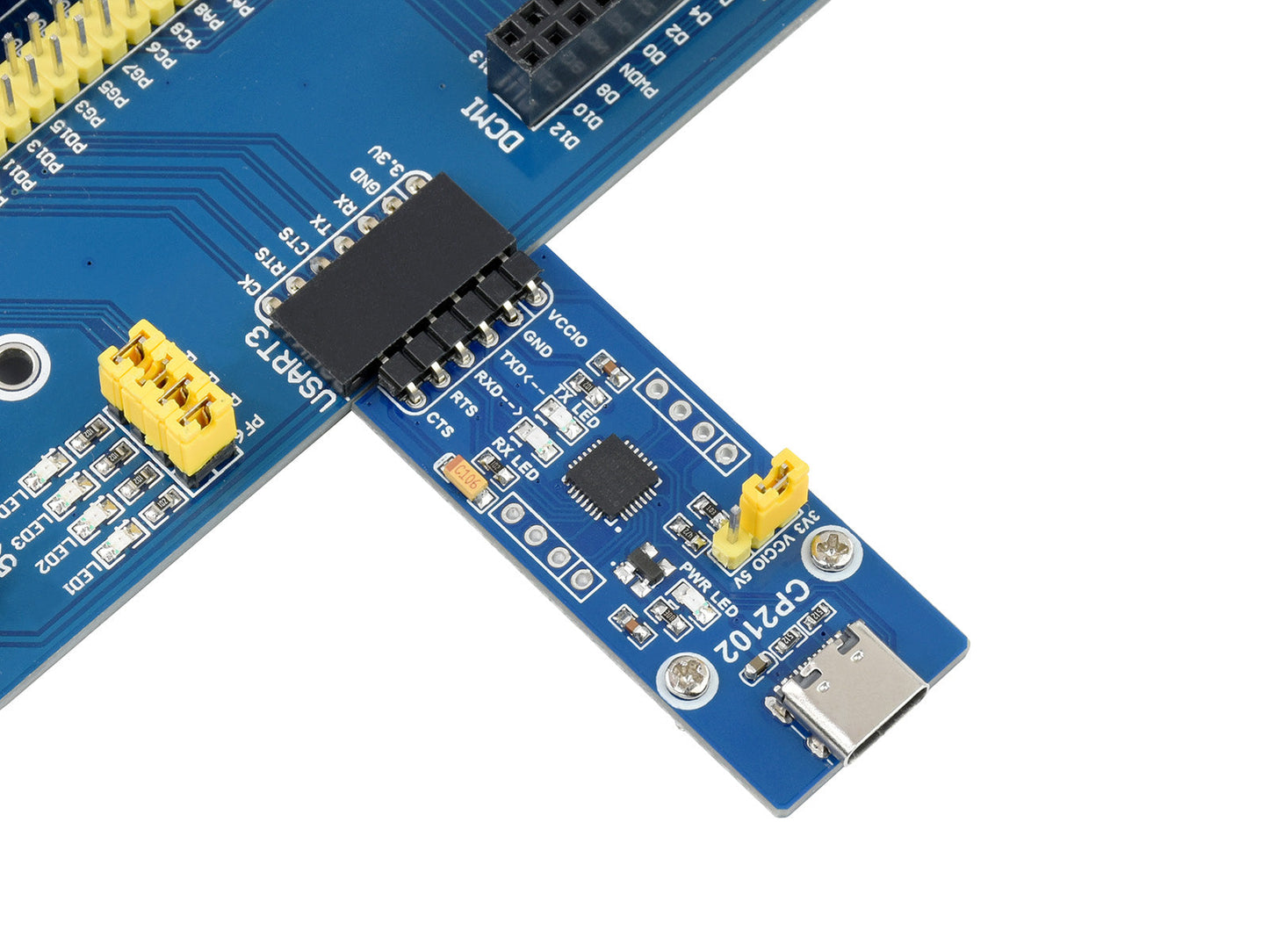

In The Case Of Working With MCU
-
VCCIO: 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
-
GND: connects to GND
-
TXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
-
RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
-
RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
-
CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)
PACKAGE CONTENT
Weight: 0.011 kg
-
CP2102 USB UART Board (Type C) x1
-
6-pin custom connector jumper wire x1
