Custom CM4 to CM3 Converter / Adapter Board with Heatsink C23 for Raspberry Pi Compute Module 4 Manufacturer

Note:

• 1,Not include Raspberry Pi Compute Module 4(CM4)

• 2,Make sure that the CM4 module is installed on the expansion board correctly before power on.

Overview:

• Since the Compute Module 3 (CM3) module is in short supply, we made an adapter board, so the CM4 module can be used as CM3 interface.

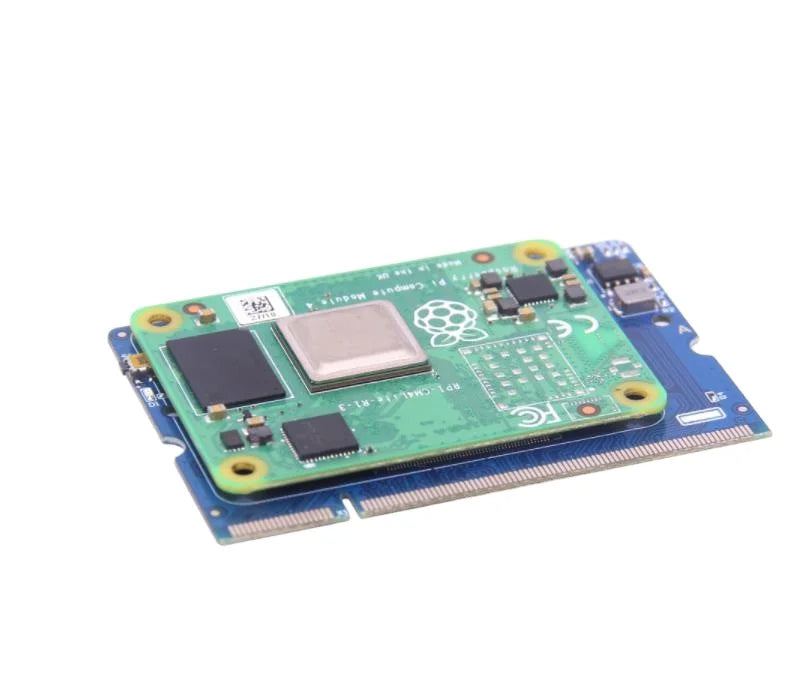

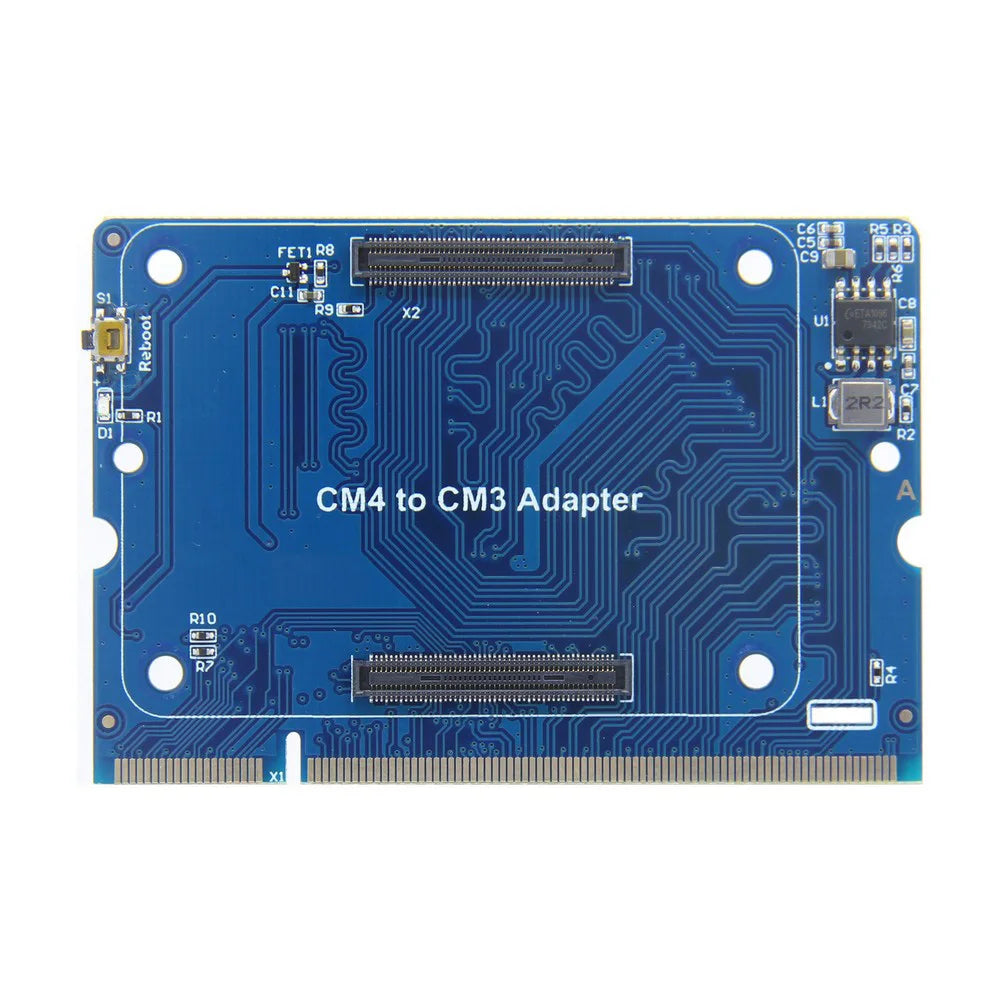

• This adapter board converts the latest Raspberry Pi Compute Module 4 (CM4) to CM3 interface, allowing CM4 to adapt to the old CM3+/CM3/CM3L series board

•

SPECIFICATION

• Raspberry Pi Compute Module 4 interface

• 1 x CM3 interface

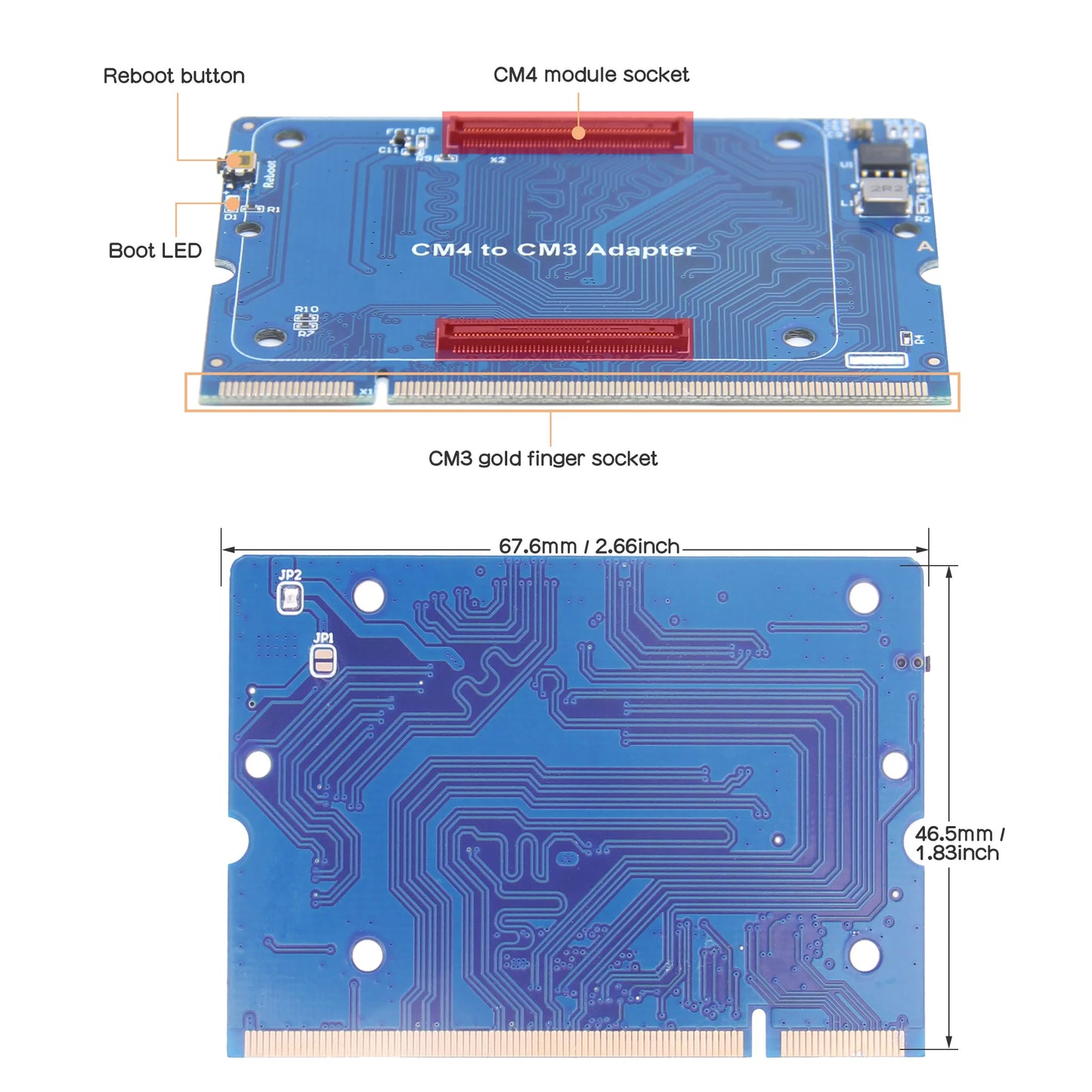

• 1x Boot LED

• 1x Reboot Button

• Operating temperature: 0℃~80℃

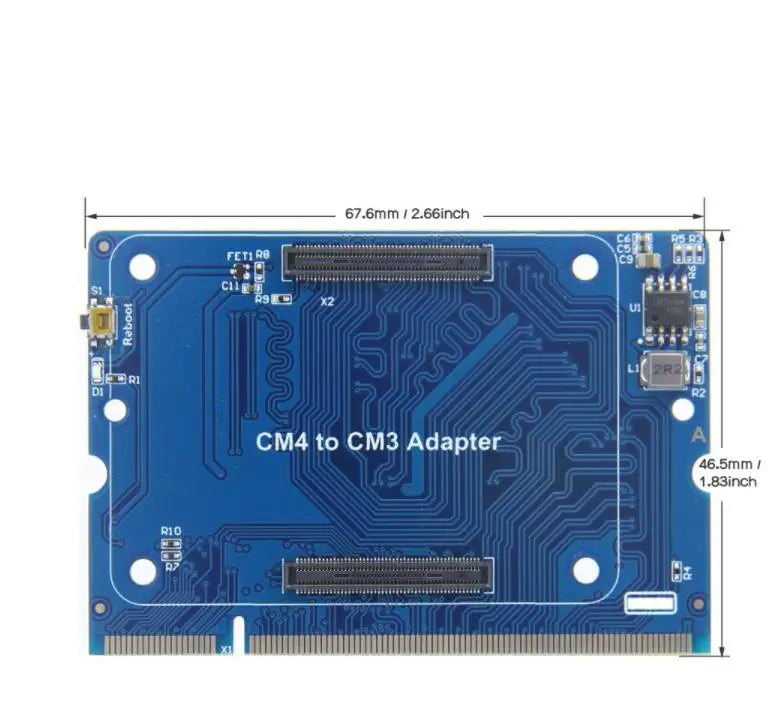

• Size: 67.6x46.5mm

Picking List:

• 1 CM4 to CM3 Adapter

•
