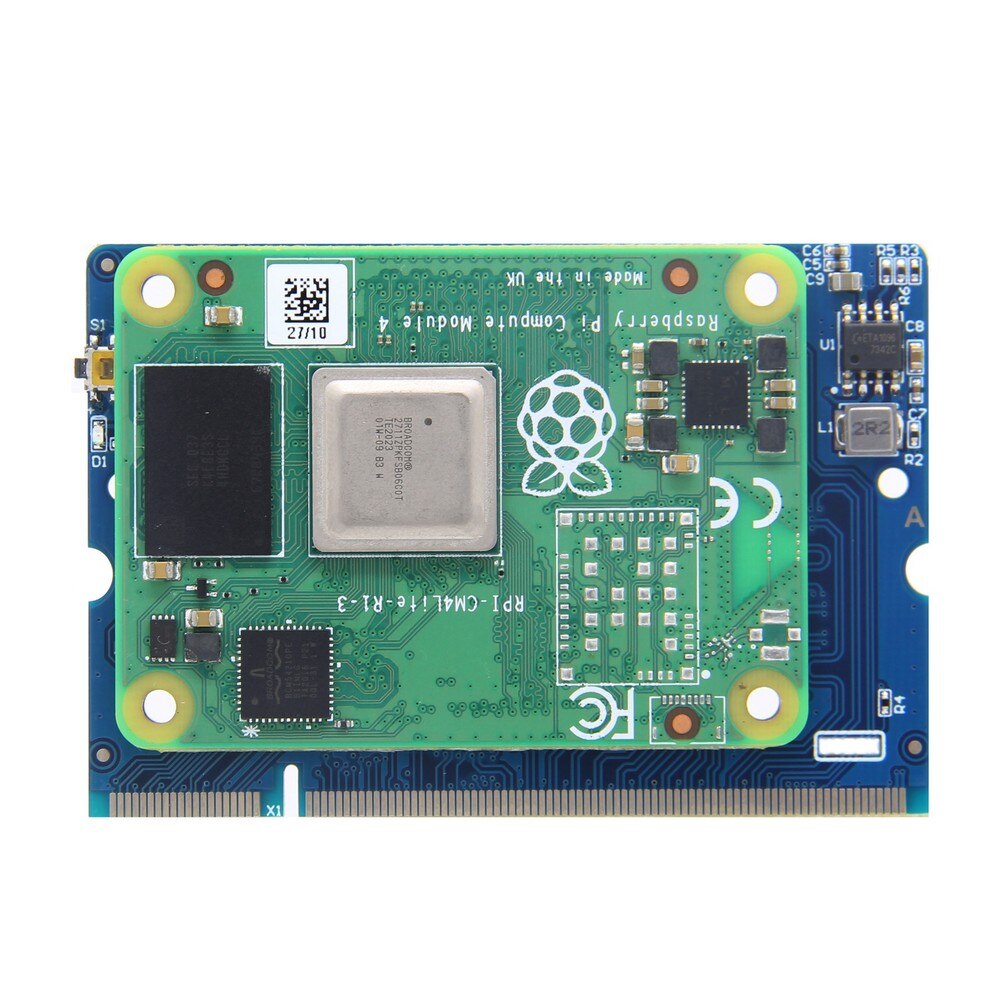

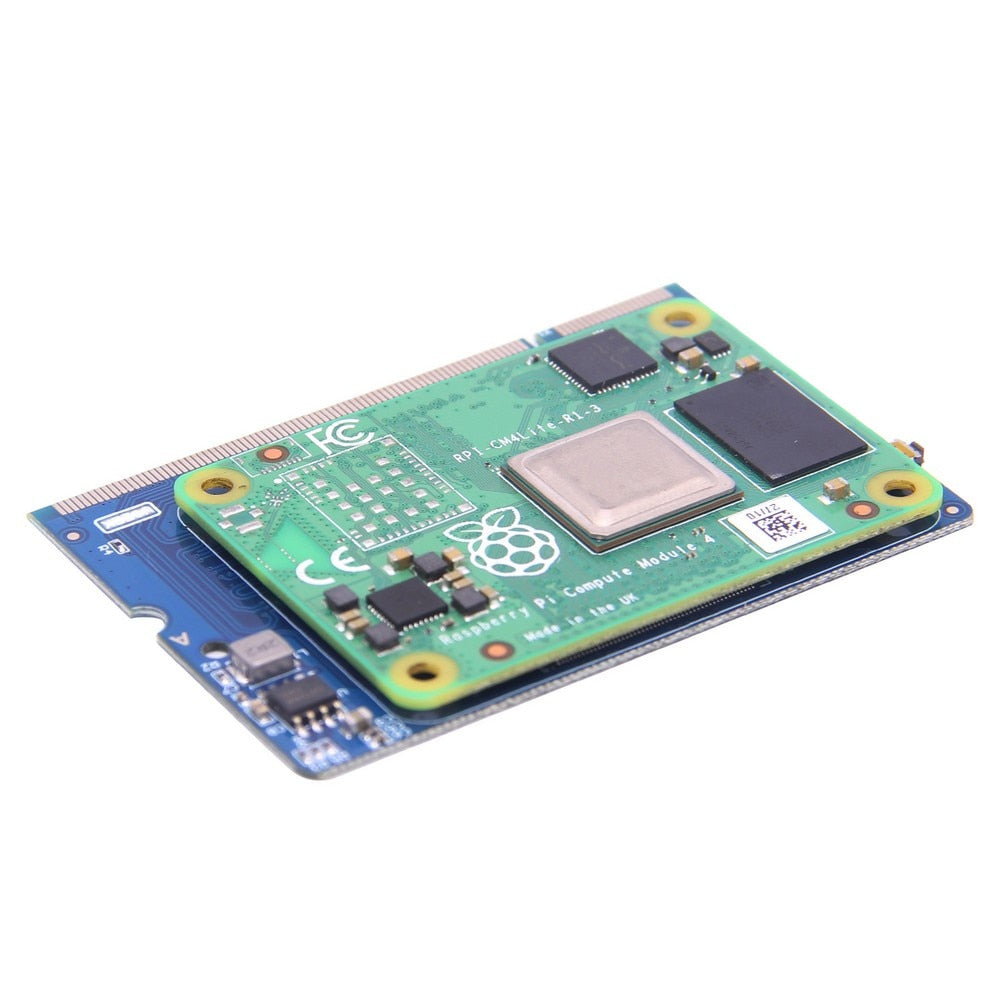

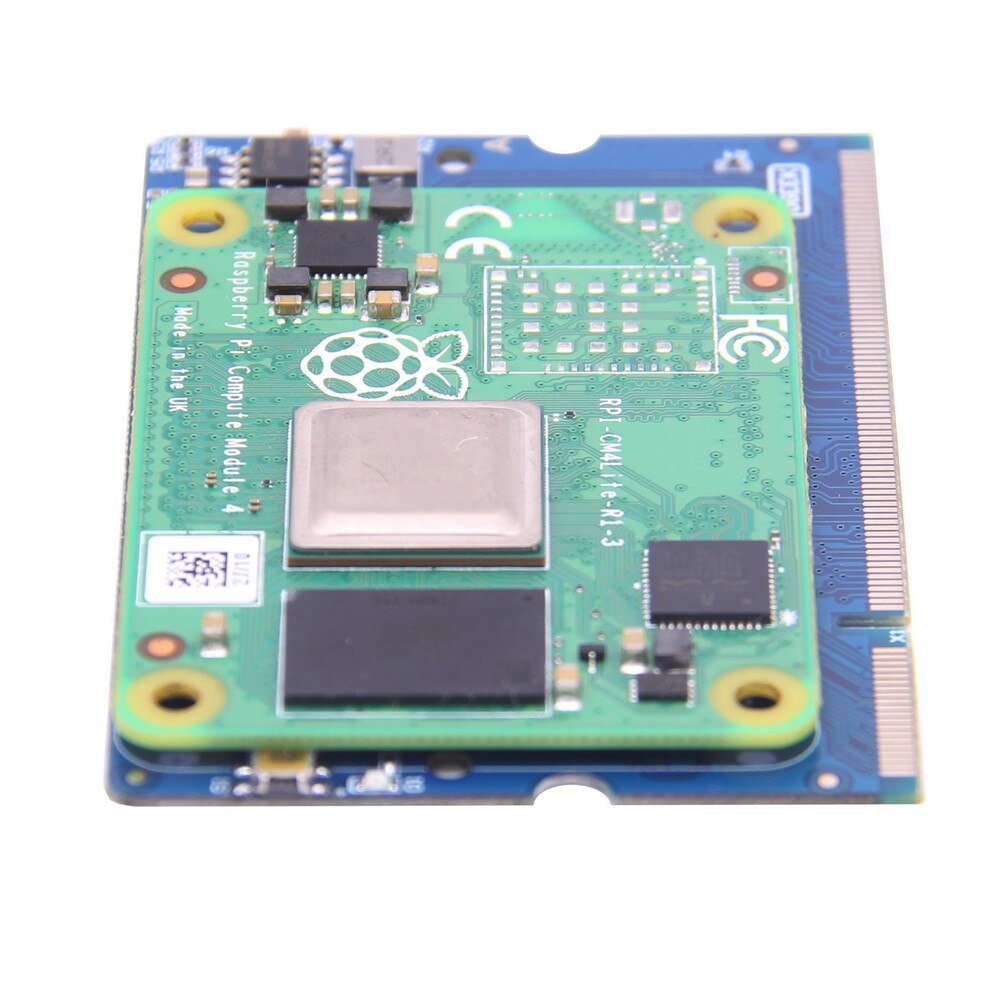

CM4 to CM3 Converter / Adapter Board for Raspberry Pi Compute Module 4

Note：

• 1，Not include Raspberry Pi Compute Module 4（CM4）

• 2，Make sure that the CM4 module is installed on the expansion board correctly before power on.

Overview:

• Since the Compute Module 3 (CM3) module is in short supply, we made an adapter board, so the CM4 module can be used as CM3 interface.

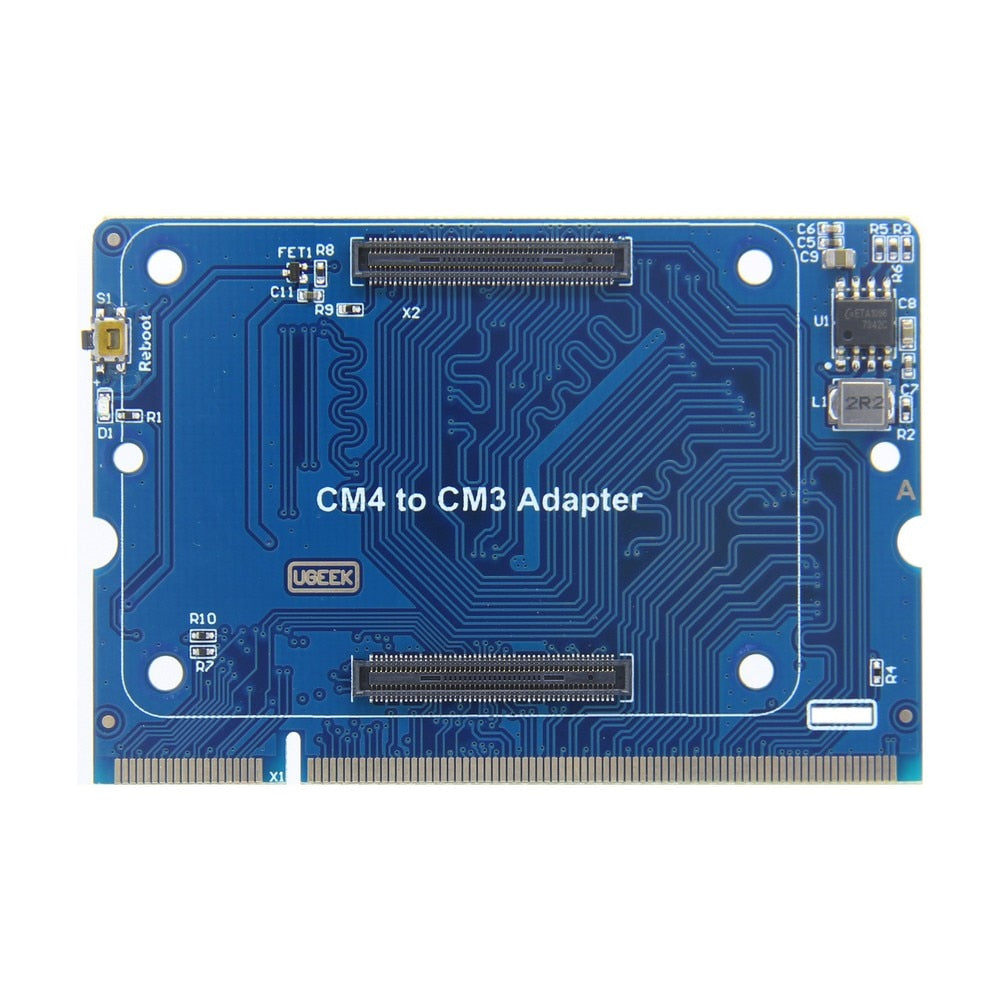

• This adapter board converts the latest Raspberry Pi Compute Module 4 （CM4） to CM3 interface, allowing CM4 to adapt to the old CM3+/CM3/CM3L series board

SPECIFICATION

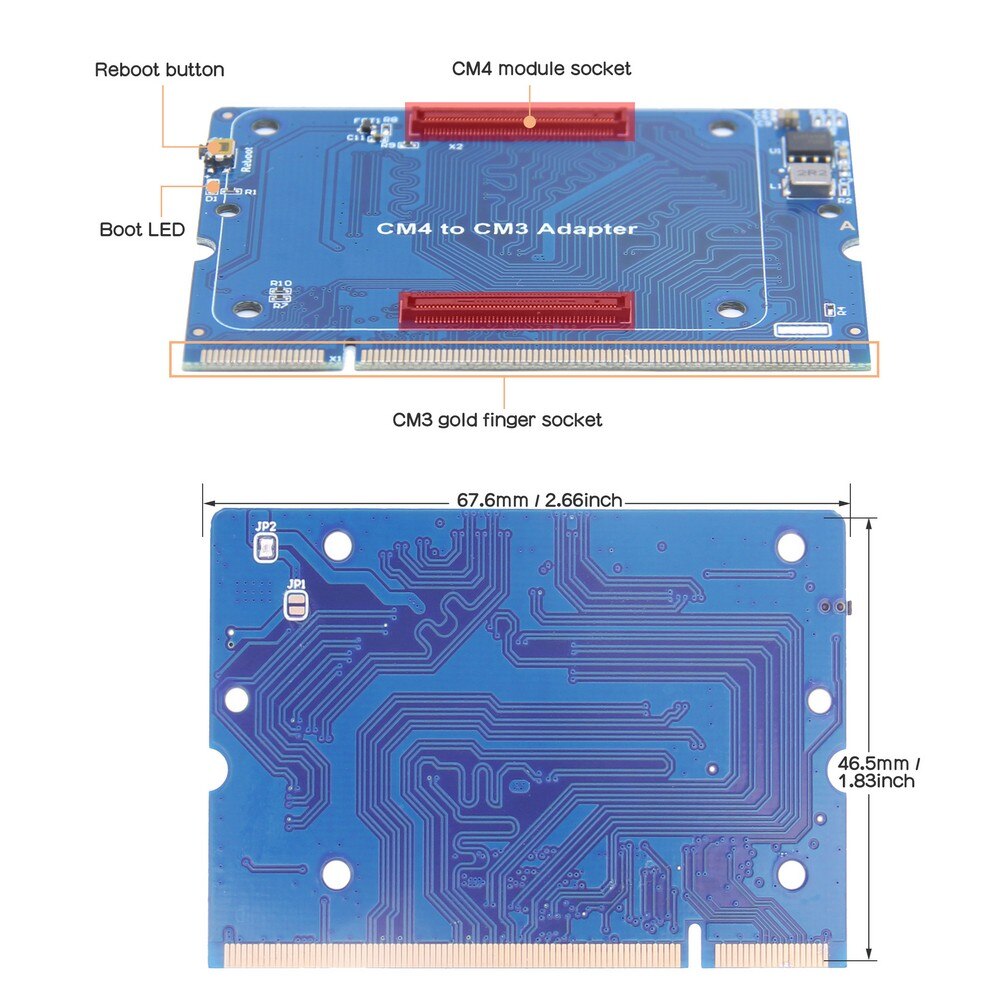

Raspberry Pi Compute Module 4 interface

1 x CM3 interface

1x Boot LED

1x Reboot Button

Operating temperature: 0℃~80℃

Size: 67.6x46.5mm

Picking List：

1 X CM4 to CM3 Adapter
