C792 HD to CSI-2 Converter Module with HD Loop Out Supports I2S Audio Output for Raspberry Pi 5B/4B//3B/Zero/CM5/CM

[NOTE]
The hardware programme is GSV2001+TC358743, in which GSV2001 realizes HD one-part-two function and TC358743 realizes HD to CSI-2 function.
In order to ensure the stability of the module, it is strongly recommended that the module be powered through the 5V power supply interface.
When the ‘HD Loop Out’ is connected to the monitor, the HD source detects the monitor connected to the ‘HD Loop Out’; when the ‘HD Loop Out’ is not connected to the monitor, the HD source detects the monitor connected to the TC358743. When ‘HD Loop Out’ is not connected to a monitor, the HD source detects the monitor emulated by the TC358743.
[Overview]
The C792 is an HD to CSI-2 converter module with HD loop out that supports I2S audio output.
The HD input supports up to 4K 60Hz, and the HD loop out screen is consistent with the HD input screen.
CSI-2 output support up to 1080p 60Hz (4K screen will be automatically scaled to 1080p, the refresh rate remains unchanged).
[Hardware Parameters]
Model: C792
Compatible with Raspberry Pi 5B/4B//3B/Zero/CM5/CM4
HD input: supports up to 1080P60Hz on Raspberry Pi (Only when use with CM4 /CM5/ Pi 5B)
HD to CSI-2 bridge chip:Toshiba TC358743XBG
2 CSI-2 channels & clock (Pi 4B/3B and Pi Zero only support 2 lan, max 1080P1080p50Hz, and Pi CM4 /CM5/ 5B can support 4 lan, max 1080P1080p60Hz)

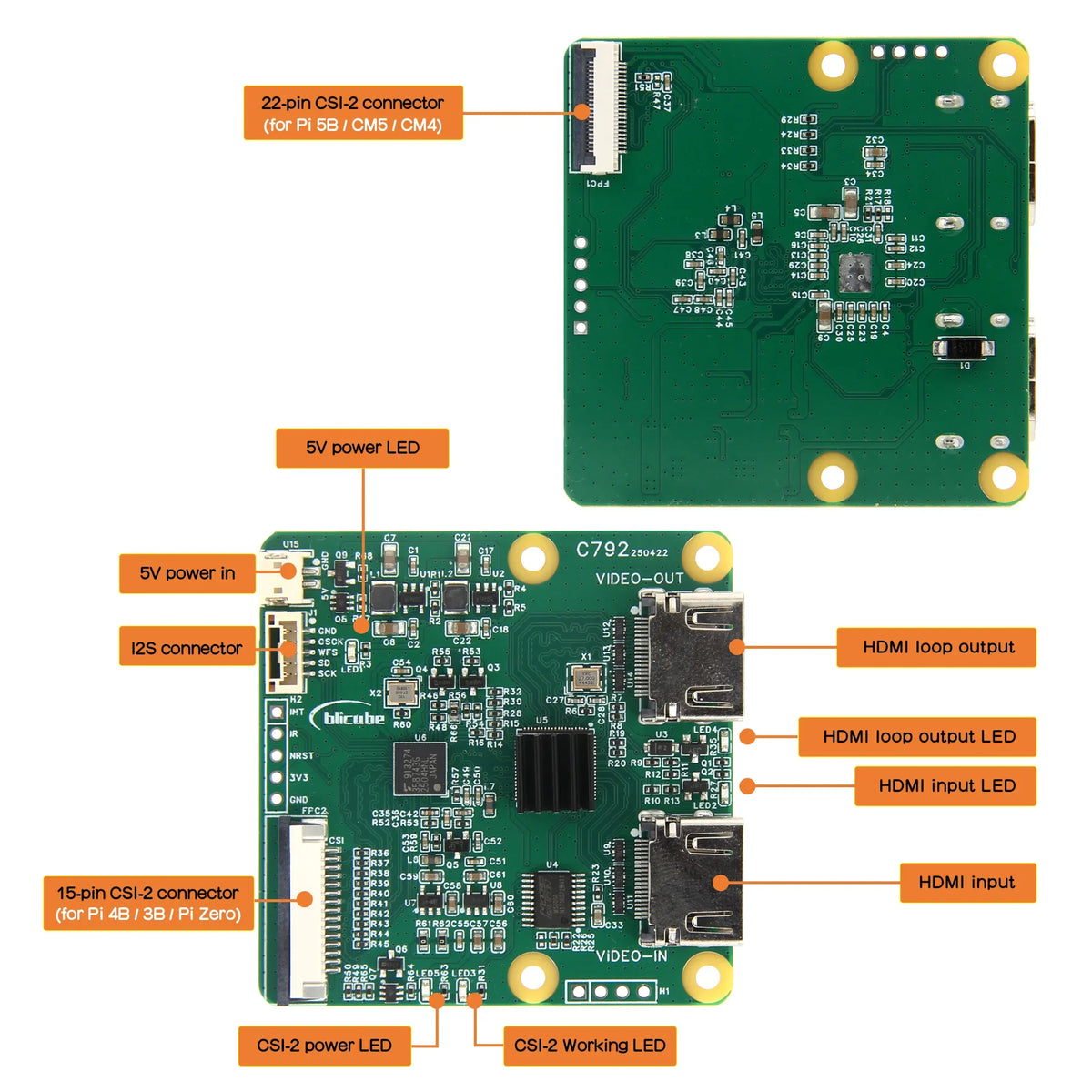

The CSI-2 interface, with 15 pin FPC seat, spacing 1.0 mm, is located on the front of the C792 module.
The CSI-2 interface, with 22 pin FPC seat, spacing 0.5 mm, is located on the back of the C792 module.

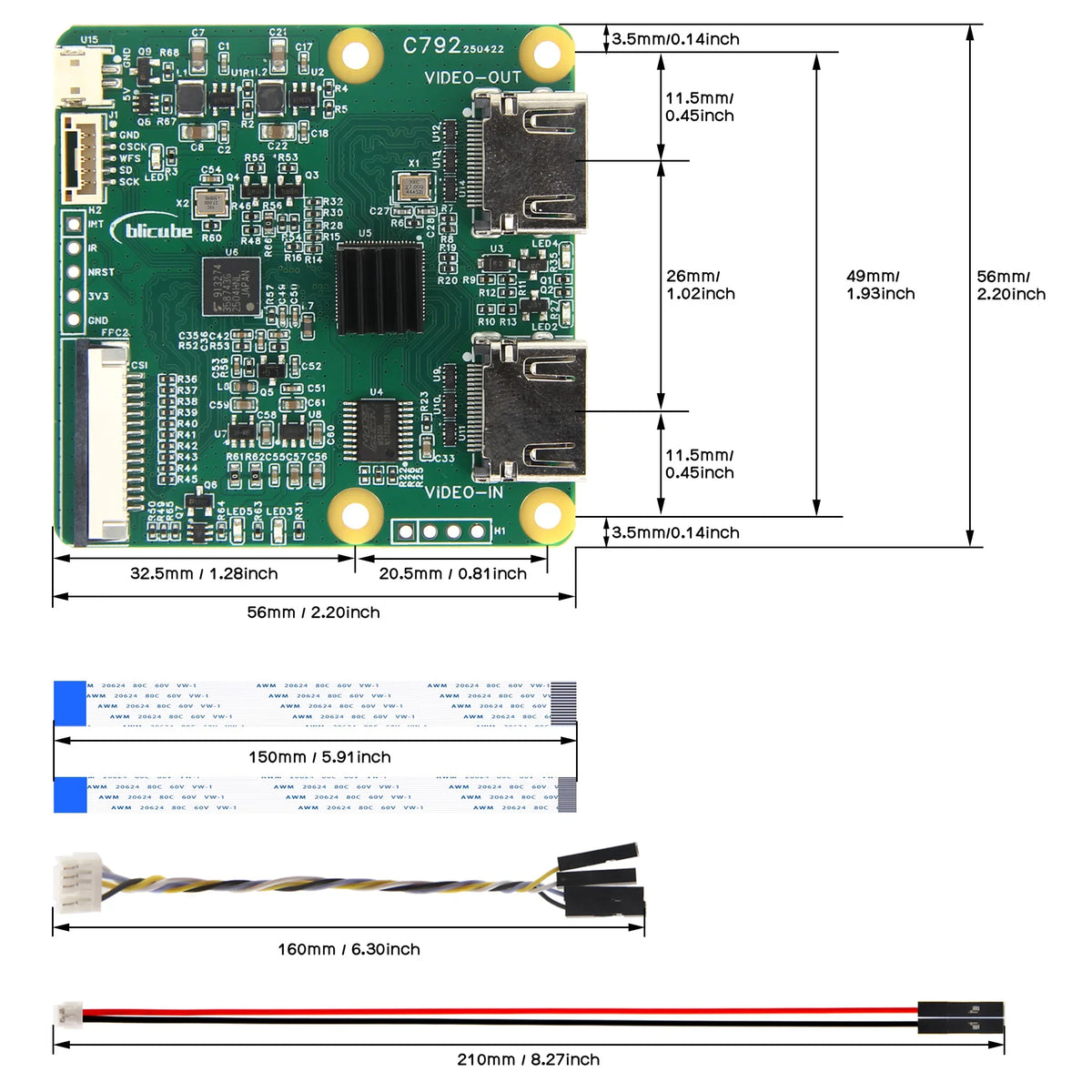

Size: 56 x 56 mm
Power supply:5V
Weight: 25g
[Packing List]

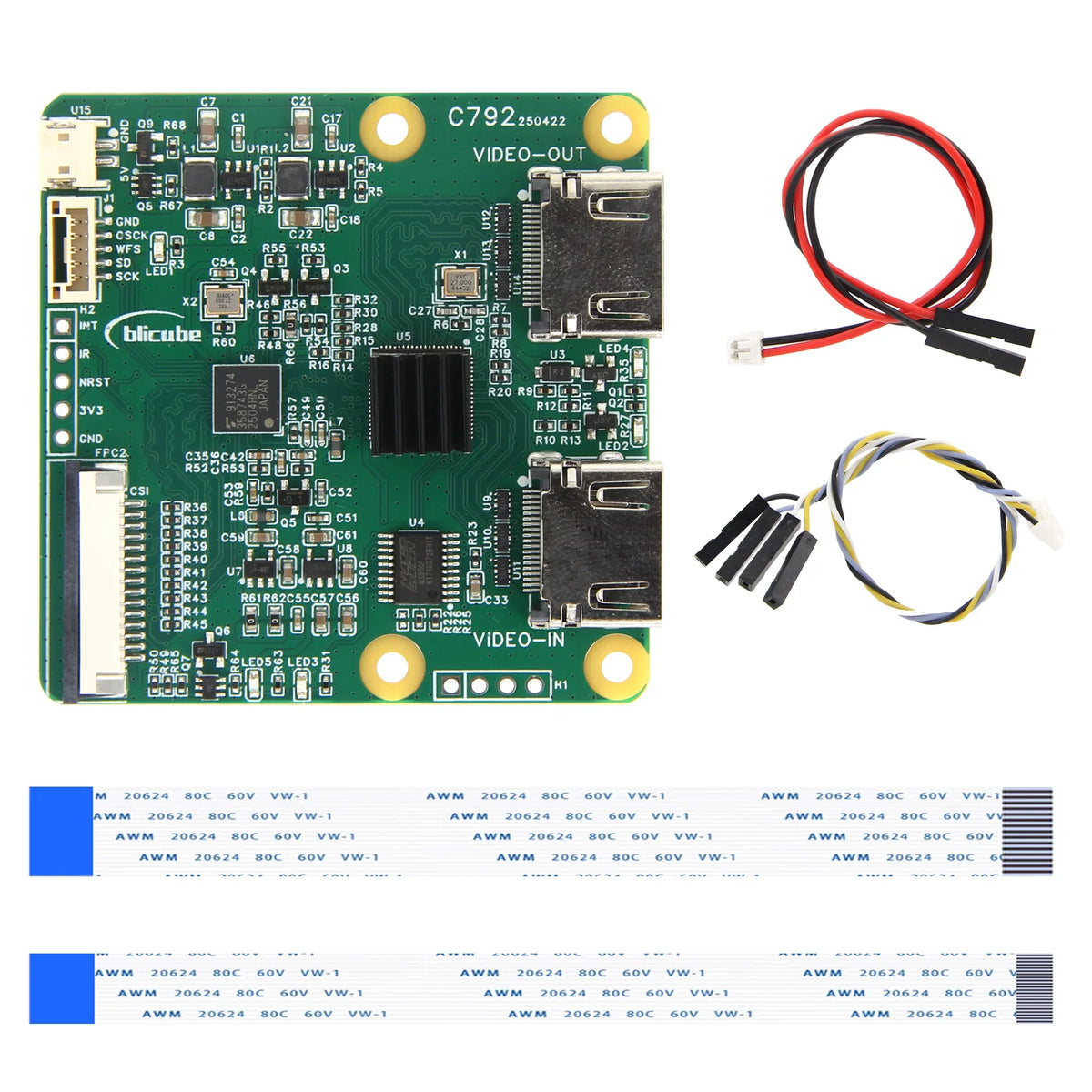

1 x C790 HD to CSI-2 Module
1 x 5V power cable
1 x 15cm Length FPC 15pin 1.0mm cable (for Pi 4B / 3B / Pi Zero)
1 x 15cm Length FPC 22pin 0.5mm cable (for Pi 5B / CM5 / CM4)
1 x I2S cable
