Lonten Technology

Binocular Stereo Vision Expansion Board For Raspberry Pi Compute Module Custom PCB wood router pcba pcba candy fang

Binocular Stereo Vision Expansion Board For Raspberry Pi Compute Module Custom PCB wood router pcba pcba candy fang

Regular price $56.00 USD
Regular price $96.00 USD Sale price $56.00 USD
Sale Sold out

DESCRIPTION


Binocular Stereo Vision Expansion Board For Raspberry Pi Compute Module CM3 / CM3 Lite / CM3+ / CM3+ Lite, Provides Multi Expansion Ports, Small Size
BINOCULAR VISION EXPANSION BOARD

Dual Cameras Support, Play Around With Raspberry Pi Binocular Vision Projects

for Raspberry Pi Compute Module CM3 / CM3 Lite / CM3+ / CM3+ Lite



This binocular stereo vision expansion board is specially designed for Raspberry Pi Compute Module, compatible with CM3 / CM3 Lite / CM3+ / CM3+ Lite. It features three camera ports and common used ports like DSI and USB, more other peripheral interfaces are also supported through the FPC connector, all in the small size body.

By connecting with various sorts of cameras, combined with the included IMU fill light board, it is easy and flexible to build different Raspberry Pi stereo vision projects such as binocular parallax ranging, facial identification, living object detection, VR video recording, and so on.

Features At A Glance
  • Compatible with Raspberry Pi Compute Module CM3 / CM3 Lite / CM3+ / CM3+ Lite
  • Three camera ports, CAM0 port for default use, and CAM1/CAM3 ports are two alternative options selected by GPIO
  • Onboard DSI port, allows directly connecting with DSI display
  • Onboard USB connector, convenient for flashing system image, or used as regular USB port
  • 36PIN GPIO connector, comes with adapter board for extending UART port and standard 40PIN Raspberry Pi GPIO
  • 24PIN HDM1 extended connector, comes with adapter board for connecting with HDM1 display
  • 10PIN GPIO/I2C extended connector, for connecting the included ICM20948 IMU fill light board
  • Integrates DS1307 RTC chip, along with CR1220 battery holder
  • Comes with acrylic mounting plate and tripod adapter, make it easy to use with general tripod
  • Comes with development resources (examples and user manual)
Designed For Compute Module

Supports Raspberry Pi Compute Module CM3 / CM3 Lite / CM3+ / CM3+ Lite

Using With Camera

Connecting With Single Camera

directly plug into CAM0 port (enabled by default), OR plug into CAM1/CAM3 port (enabled by GPIO38)

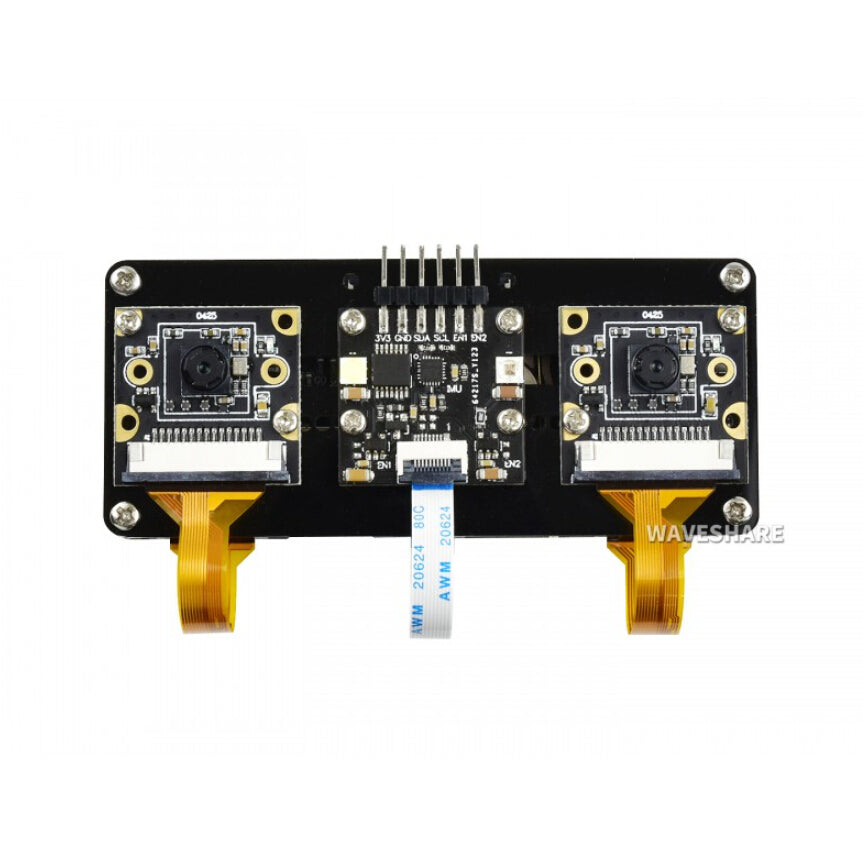

Connecting With Dual Cameras

it is recommended to use two identical cameras (with the same FOV, distortion, focal length, etc.)

Working With Raspberry Pi LCD Display

Directly Connecting With Raspberry Pi DSI Display, Via The Onboard DSI Port

Also Supports HDM1 Display, Via The HDM1 Adapter

Tripod Support

Comes With Acrylic Mounting Plate To Use With General Tripod

The DSI Display, IMX219 Camera, and Tripod in photo are NOT included.
What's On Board

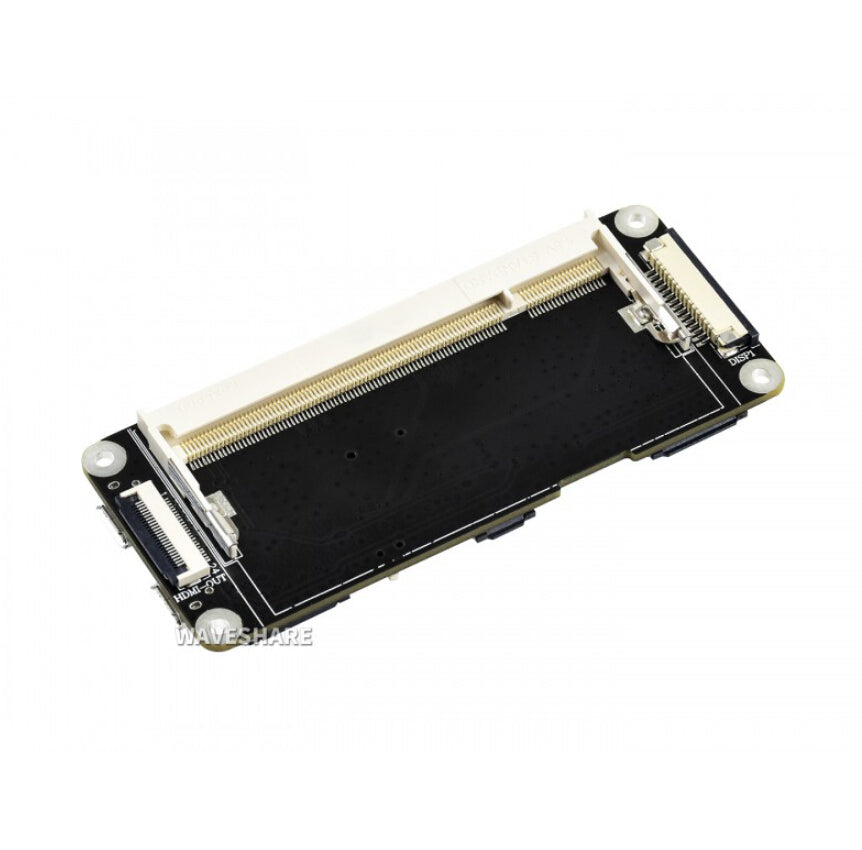

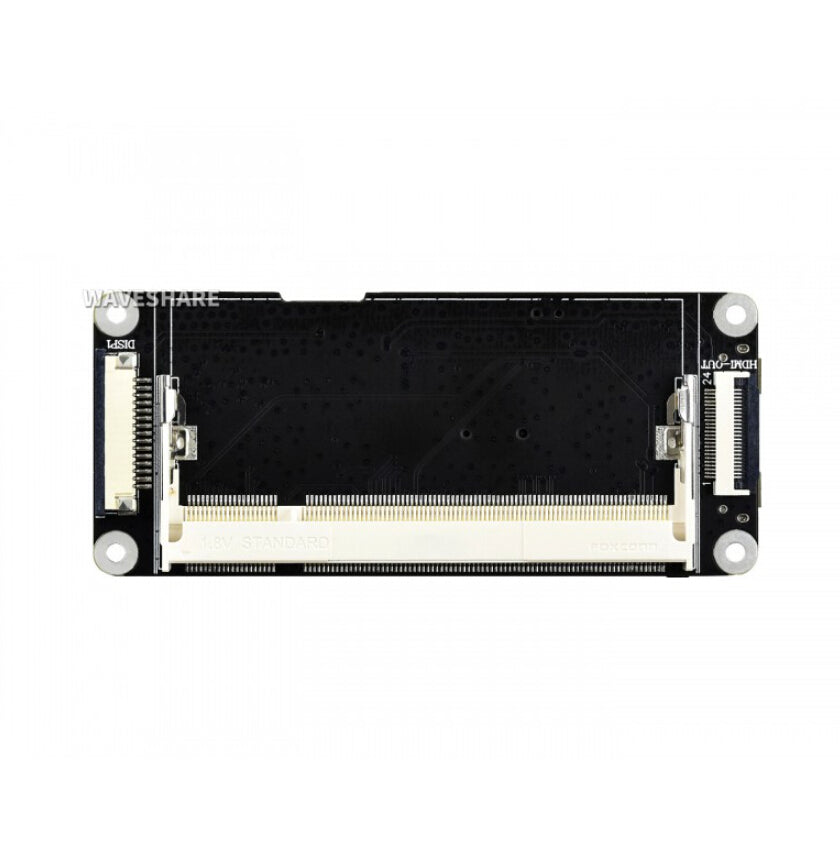

The CM3 Base Board

  1. Compute Module connector
    for connecting with Compute Module CM3 / CM3 Lite / CM3+ / CM3+ Lite
  2. DSI display port
    for connecting with Raspberry Pi DSI display
  3. 24PIN HDM1 extended connector
    for connecting with HDM1 display via HDM1 adapter
  4. CSI camera port
    CAM0: enabled by default
    CAM1: set GPIO38 low to enable
    CAM3: set GPIO38 high to enable
  5. Micro SD card slot
    for Micro SD card with pre-flashed system image
  6. 36PIN GPIO connector
    for extending UART port and Raspberry Pi GPIO via adapter

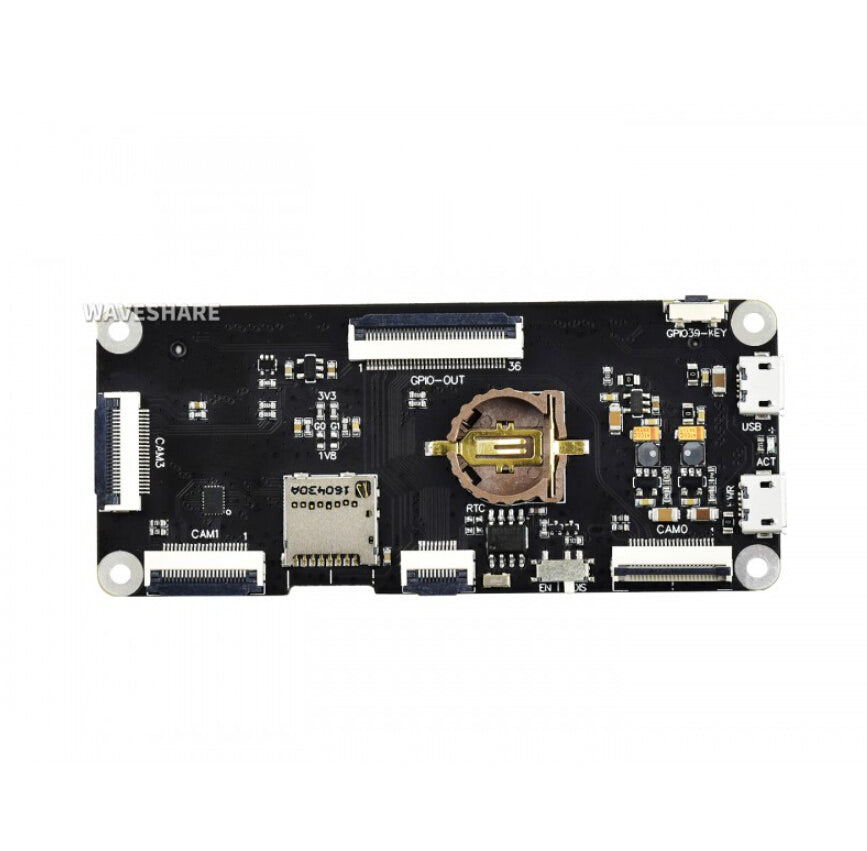

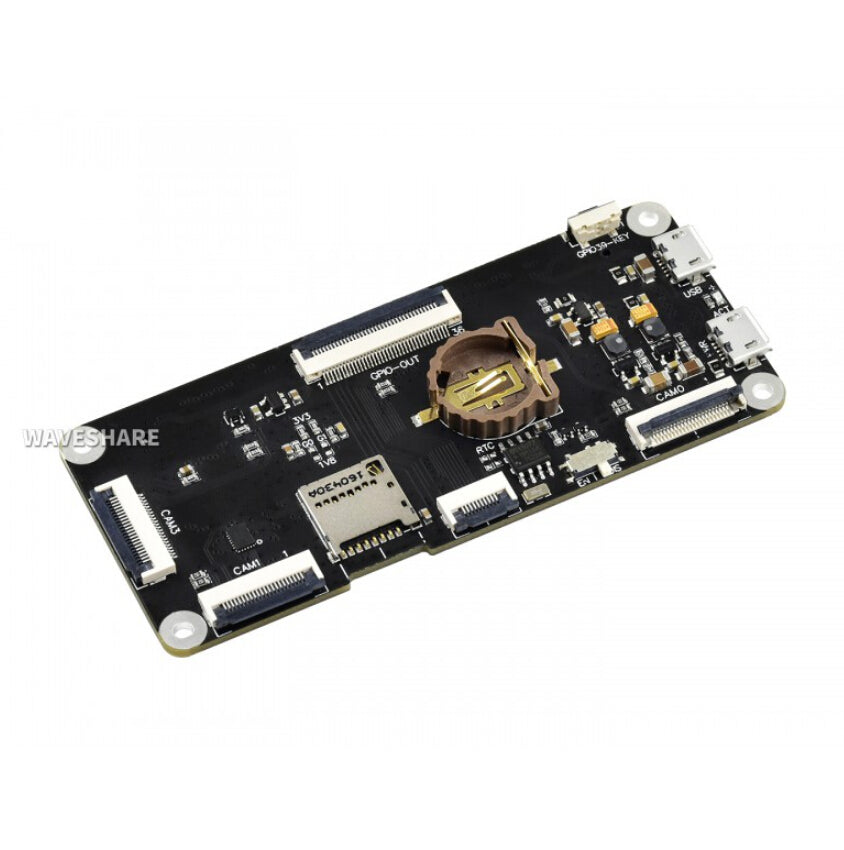

  1. 10PIN I2C connector
    for connecting with ICM20948 IMU fill light board
  2. USB connector
    for flashing system image, or used as regular USB port
  3. 5V power input
  4. RTC battery holder
    supports CR1220 button battery
  5. DS1307
    RTC chip
  6. USB BOOT ENABLE switch
    EN: allows flashing system image via USB port
    DIS: set the port as regular USB port
  7. User key

The UART Adapter

  1. Raspberry Pi GPIO interface
    for connecting with Raspberry Pi HATs
  2. 36PIN GPIO connector
    for connecting with CM3 base board
  3. USB TO UART port
    allows accessing Raspberry Pi via serial terminal, or used as power supply

  1. CH340
    USB TO UART chip
  2. UART power switch
    OPEN: disconnect from the USB TO UART power supply
    Link: connect to the USB TO UART power supply

The IMU Fill Light Board

  1. ICM-20948
    • Accelerometer
      • Resolution: 16 bit
      • Measurement range (configurable): ±2, ±4, ±8, ±16g
      • Operating current: 68.9uA
    • Gyroscope
      • Resolution: 16 bit
      • Measurement range (configurable): ±250, ±500, ±1000, ±2000°/sec
      • Operating current: 1.23mA
    • Magnetometer
      • Resolution: 16 bit
      • Measurement range: ±4900µT
      • Operating current: 90uA

  1. White fill light
    controlled via GPIO
  2. 850nm IR fill light
    controlled via GPIO
  3. 10PIN I2C connector
    for connecting with CM3 base board
  4. 6PIN I2C header
    for connecting with host board
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/CM-STEREO-VISION-BOARD
Selection Guide
Compute Module PoE Board

Provides Ethernet port with PoE feature, 40PIN GPIO header, ideal for product integration
Learn more
CM-IO-POE-BOX

Compute Module PoE Board + Metal Case, ideal for industrial application
Learn more
Compute Module IO Board Plus

Breakout all of the GPIO, ideal for prototyping
Learn more
CM-STEREO-VISION-BOARD

Small size, ideal for sorts of camera-required projects, easy integration
Learn more

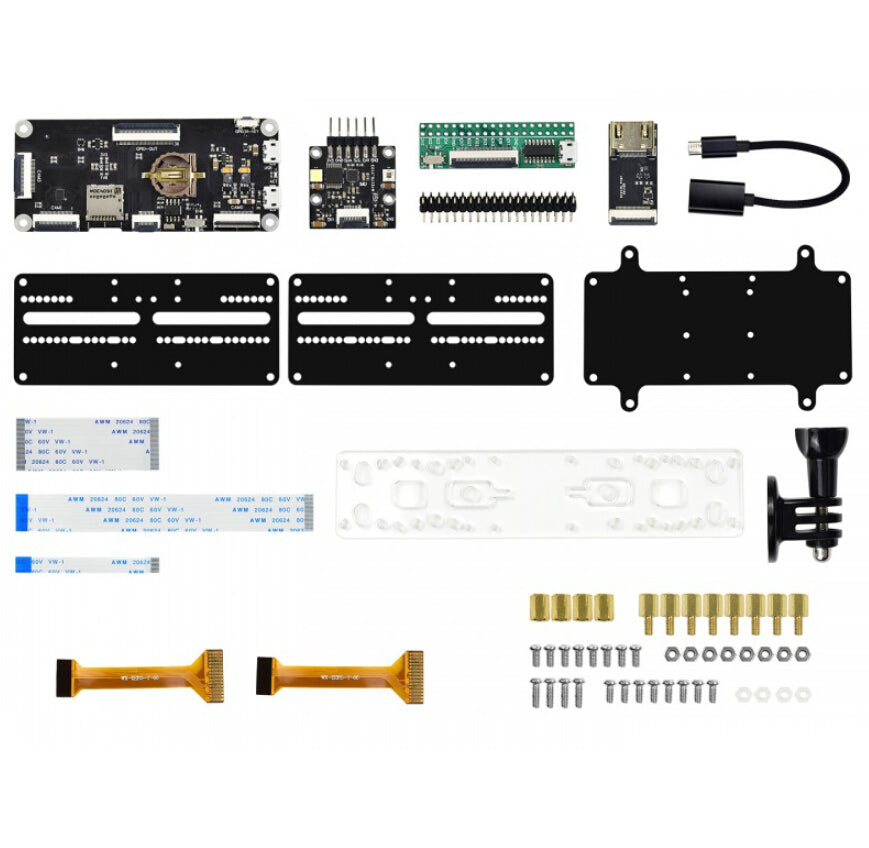

PACKAGE CONTENT

Weight: 0.184 kg

  1. CM3 base board x1
  2. ICM20948 IMU fill light board x1
  3. UART adapter x1
  4. 40PIN header x1
  5. HDM1 adapter x1
  6. USB OTG cable x1
  7. Camera mounting board x2
  8. Base mounting board x1
  9. 36PIN FPC x1
  10. 24PIN FPC x1
  11. 10PIN FPC x1
  12. Acrylic mounting plate x1
  13. Tripod adapter x1
  14. 22PIN to 15PIN FPC x2
  15. Screw pack x1
