INTRODUCTION

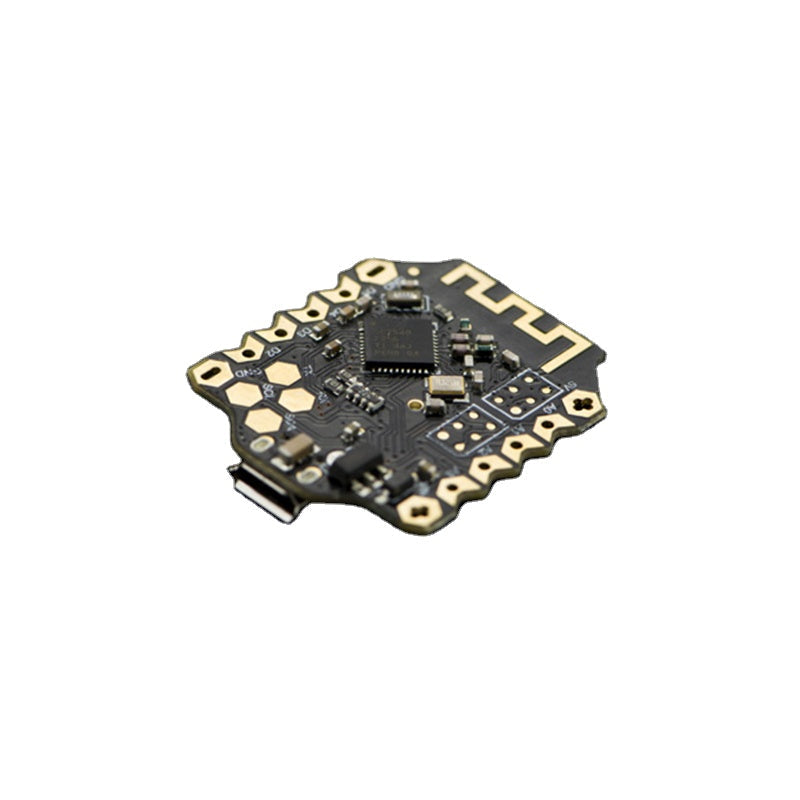

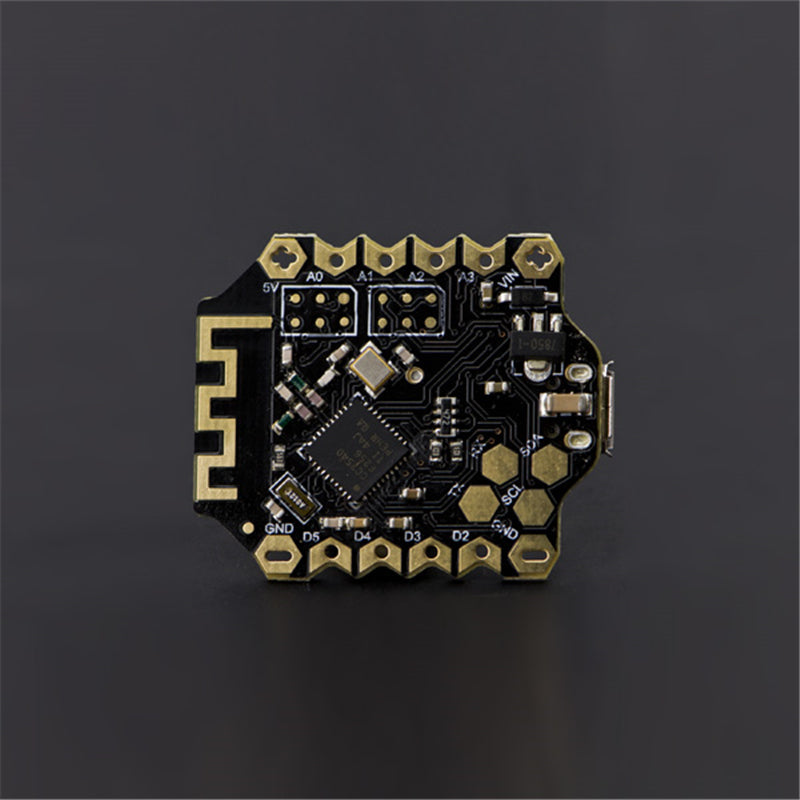

The Beetle Ble (Former name as Bluno Beetle)  is  an Ard based board with  blth 4.0 (BLE).  It is probably the smallest Ard BLE board in the market.  It uses standard Ard IDE to upload codes via  without any extra library and drivers.  This Beetle BLE is another milestone in the Beetle line, which makes DIY users have more options in the project design. It is fully compatible with Bluno in instructions and procedures. Support Blth HID and ibeacon modes. You may also check Blth microcontrollor selection guide to get more information.

The Beetle BLE offers a super tiny and low cost Ard with blth 4.0. The Beetle BLE can be used for disposable projects, such as DIY projects, workshops, gift projects, E-Textiles wearable and educational. For students and makers who can not afford too much on hardware purchasing, Beetle can be a great solution for them.

Just like a native Ard board, but with Blth 4.0. An APP called Play Bluno is avaliable on IOS and Android which gives a quick access to this little tiny board.

It not only supports USB programming, but also wireless uploading method. With the V shaped gilded I/O interface, it is convenient to screw conductor wire on it, which could a good choice in the wearable market.



Introduction to Bluno Series

FEATURES



  • ATmega328@16MHz
  • Blth Low Energy (BT 4.0)

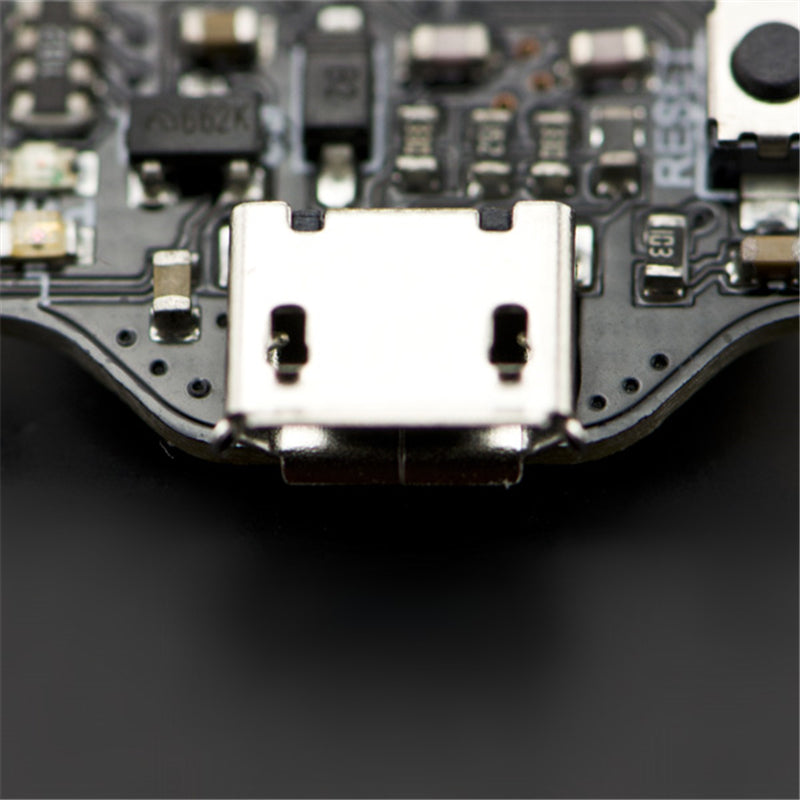

  • Micro USB port

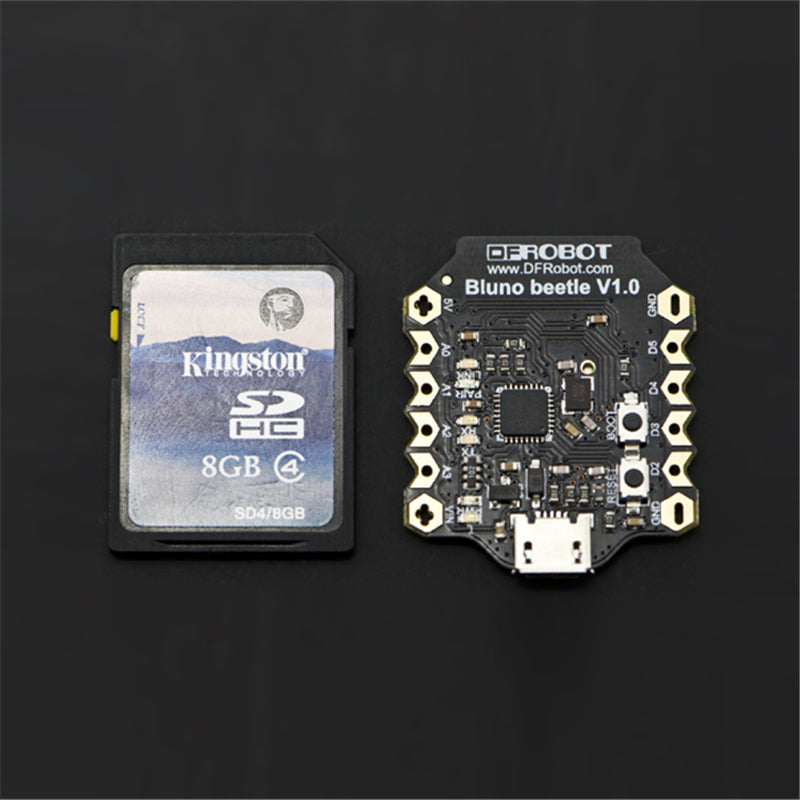

  • Super Compact Size
  • Support Blth HID and ibeacon
  • Comaptible with all DFRobot Bluno Series
  • Support Wireless Programming

SPECIFICATION

  • Blth Chip: CC2540
  • Sensitivity: -93dBm
  • Working Temperature:-10 ℃ ~ +85 ℃
  • Maximun Distance:50m(1968.50")(Open field)
  • Microcontroller: ATmega328
  • Clock frequency: 16 MHz
  • Operating voltage: 5V DC
  • Input voltage: <8V (Vin < 8V)
  • Digital Pin x4
  • Analog Pin x4
  • PWM Output x2
  • UART interface x1
  • I2C interface x1
  • Micro USB interface x1
  • Power port x2

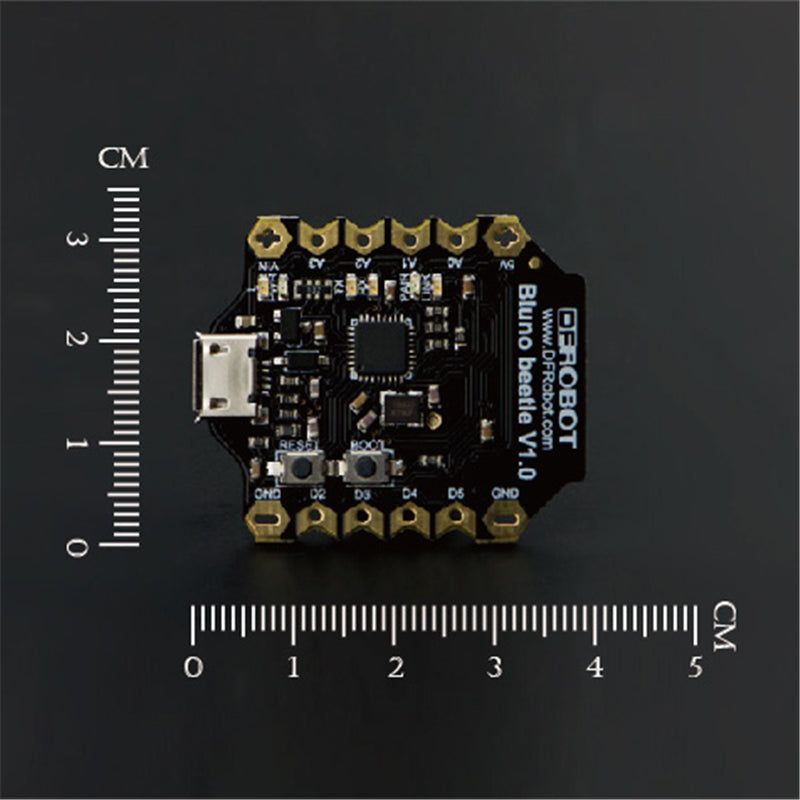

  • Size:28.8mm X 33.1mm(1.13" x 1.30")
  • Weight:10g



SHIPPING LIST

  • Beetle BLE x1
