banana pi zero Allwinner H2+ Open source hardware platform BPI M2 zero all ineter face same as Raspberry pi Zero WCustom PCB

Name: banana pi zero Allwinner H2+ Open source hardware platform BPI M2 zero all ineter face same as Raspberry pi Zero WCustom PCB
Brand: Lonten Technology
Price: 28.00 USD
Availability: InStock

$28.00 USD

~~$68.00 USD~~ $28.00 USD

Sale Sold out

Quantity

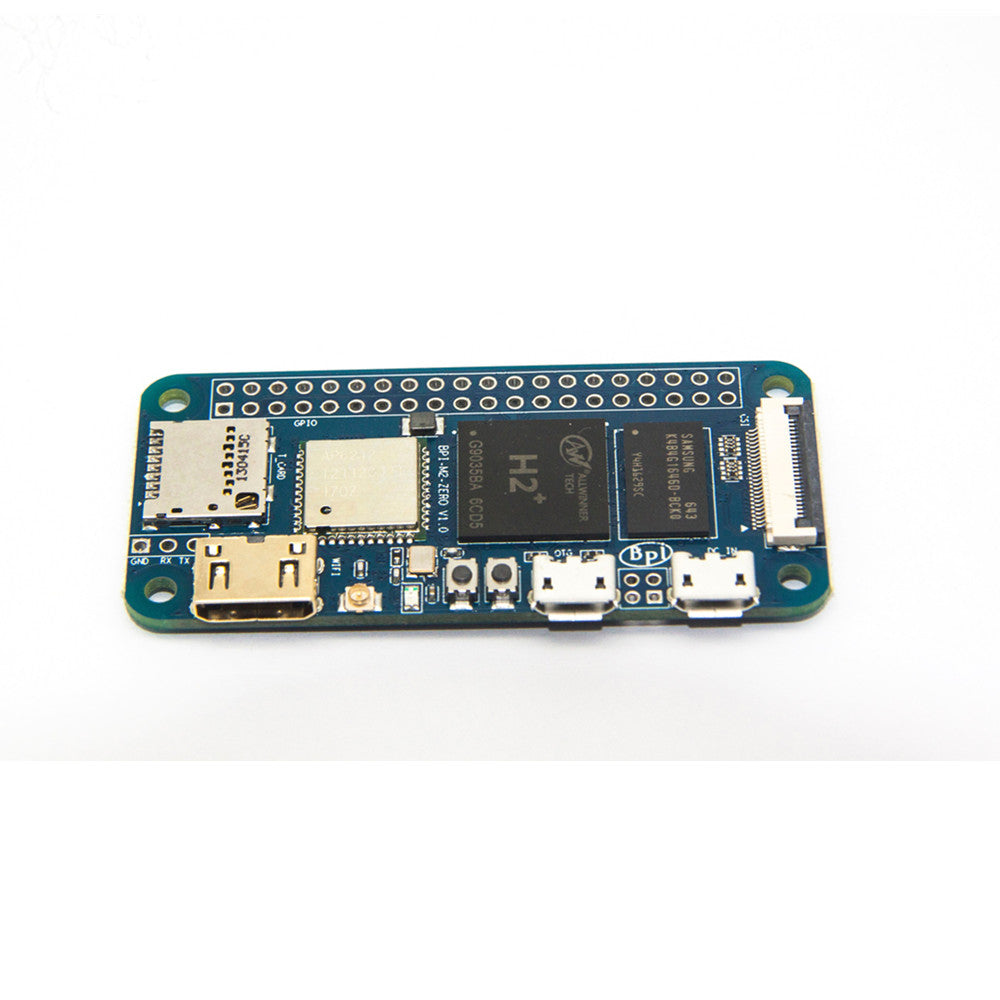

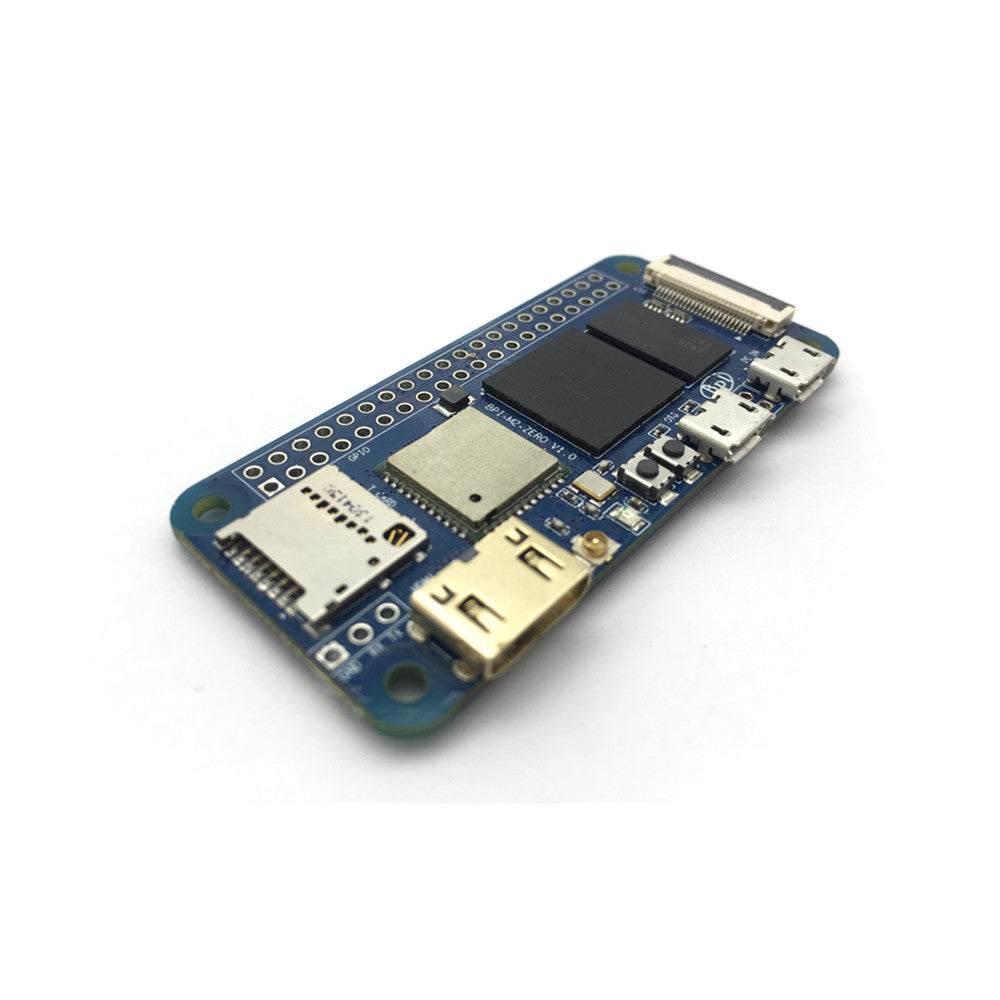

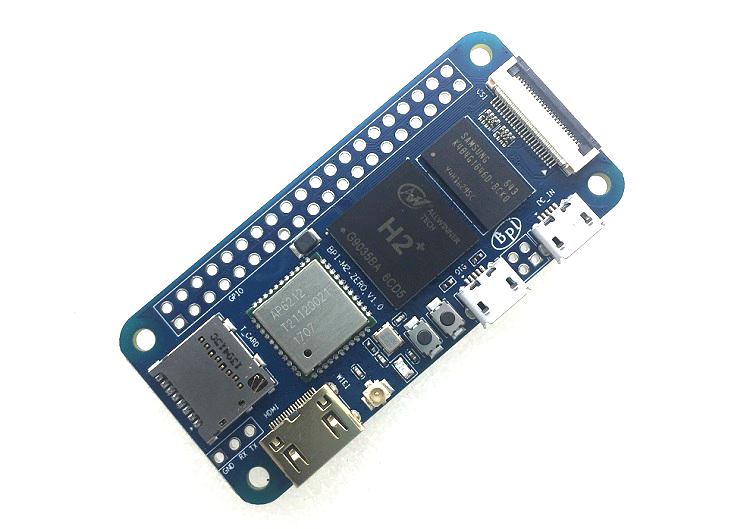

BPI-M2 Zero Version with Allwinner H2+ chipquad core singel board computerdesign

Epacket logistics is expected to be 15-30 working days,and slow update of logistics informations, If you mind ,please choose the fast logistics channel . Thank you : )

Support : BPI OV5640 camera, 2db antenna

Introduction:

Banana PI BPI-M2 Zero is the open source hardware platform,Banana PI BPI-M2 Zero is an quad core version of Banana Pi,it support WIFI on board. use Alliwnner H2+ chip on board. and mini size only 60mm*30mm, all ineter face same as Raspberry pi Zero W.

Banana Pi BPI-M2 Zero series run Android,Debian linux,Ubuntu linux, Raspberry Pi image and others image. Banana PI PBI-M2 Zero hardware: 1Ghz ARM7 quad-core processor, 512M DDR3 SDRAM, and SDIO wifi module on board.

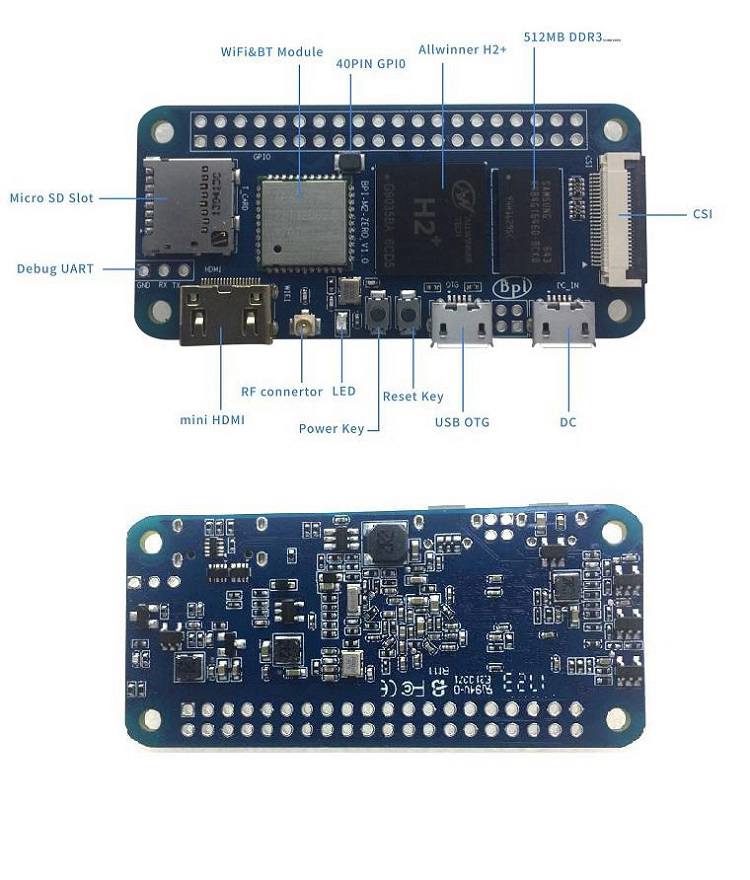

BPI-M2 zero Hardware interface:

Hardware spec

HardWare Specification of Banana pi BPI-M2 zero VS Raspberry Pi Zero W
Module	Banana Pi BPI-M2 Zero	Raspberry Pi Zero W
CPU	H2+ Quad-core Cortex-A7 H265/HEVC 1080P	Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core
GPU	Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0	VideoCore IV
Memory $SDRAM$	512M DDR3(shared with GPU)	512 MB DDR2
Onboard Storage	TF card $Max. 64GB$	TF card $Max. 64GB$
Onboard Network	NOPE	NOPE
Onboard WIFI	SDIO AP6212（option AP6181、AP6335）	802.11n wireless, Blh 4.1
Video decoding	1080p@60fps,H.264 Video encoding 1080p@30fps,H.264	1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder
Video input	A CSI input connector Camera	CSI camera connector
Video Outputs	mini HDM1 1.4,1080P@30fps, DHCP	Mini HDM1 and USB On-The-Go ports
Audio Output	Mini HDM1	Mini HDM1
Power Source	Micro USB with 5V/2A	5V/2A
USB 2.0 Ports	one USB 2.0 OTG	one USB 2.0 OTG
Buttons	Power Button, Reset Button	Composite video and reset headers
Low-level peripherals	40 Pins Header,compatible with Raspberry Pi 3	40 PIN
uart GPIO$1x3$ pin	UART, ground	UART
LED	Power led & Status led	Power Status LED
IR	N/A	N/A
Supported OS	Android, Ubuntu, Debian, Rasberry Pi Image	Linux
Product size	65mm × 30mm	65mm x 30mm
Weight	15g	9G

GPIO define ,support Wiring Pi.

same size as raspberry pi Zero W, can use it case on BPI-M2 Zero：
