Banana Pi PCB Prototype Board Plate Prototyping Board Custom PCB full duplex audio pcba

Banana Pi prototype PCB prototype board prototype plate prototyping board

Product Specification

Produce Overview

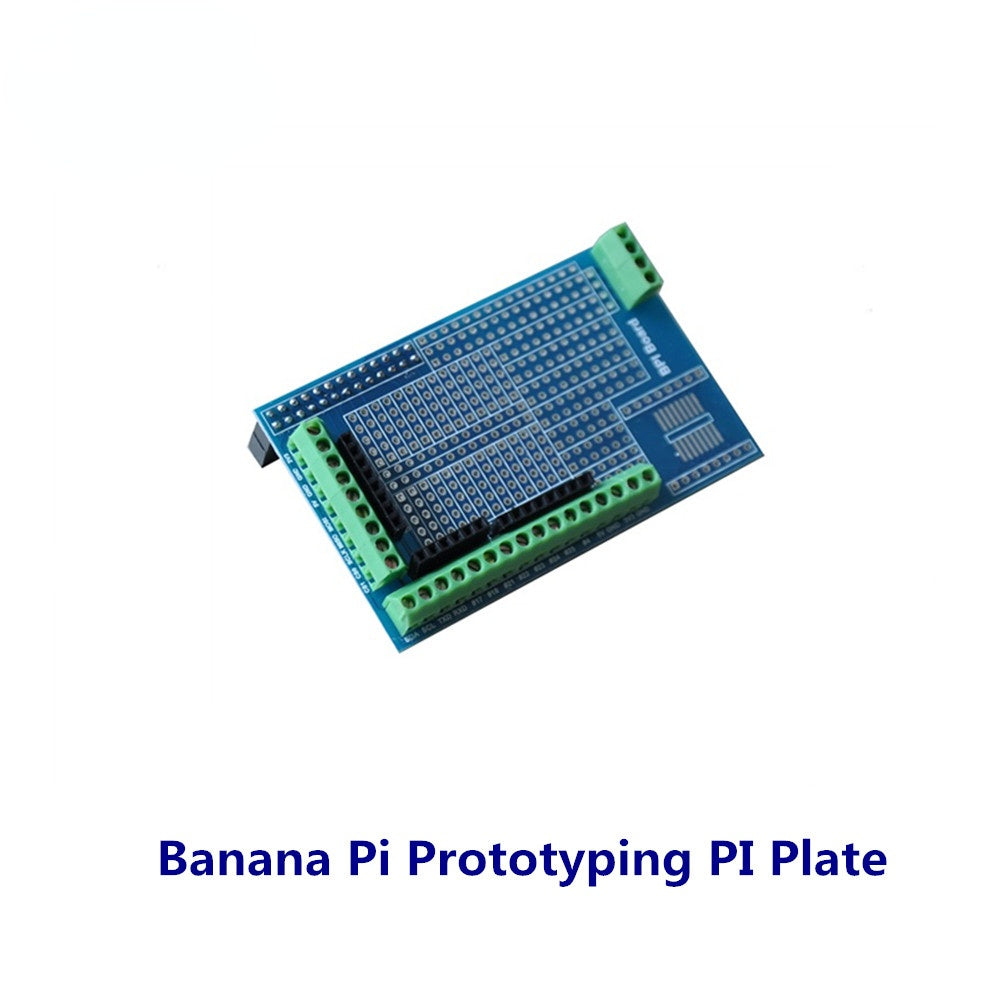

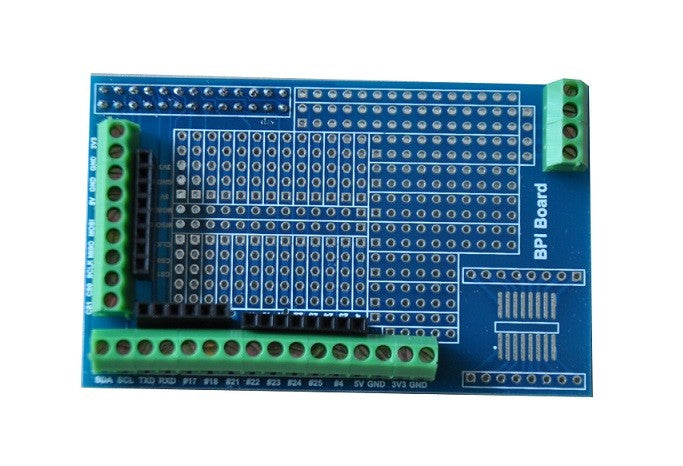

The Prototype development module is designed specifically for the Banana Pi. The module suitable enthusiasts and user can weld peripheral to the module,The module expand some amphenol connector and some SMT, so the user can finish prototype test easily.

Product Feature

1. Expand common GPIO through amphenol connector
2. Expand common GPIO through Female Header Connector
3. Set aside a large amount of welding hole

Port

1. I2C amphenol connector
2. Female Header Connector
3. SPI amphenol connector
4. SPI Female Header Connector
5. Serial port amphenol connector
6. Serial port Female Header Connector
7. 3.3V Vcc
8. 5V Vcc

Product Parameters

1. 3.5mm Amphenol Connector
2. 2.54mm Female Header Connector

Typical Application

1. Hardware weld primer
2. Prototype experiment
3. DIY enthusiasts

How to use

Insert the Prototype development module to Banana Pi, Pay attention don’t make the direction reversed! The correct direction of insert module is above the Banana Pi’s PCB.
