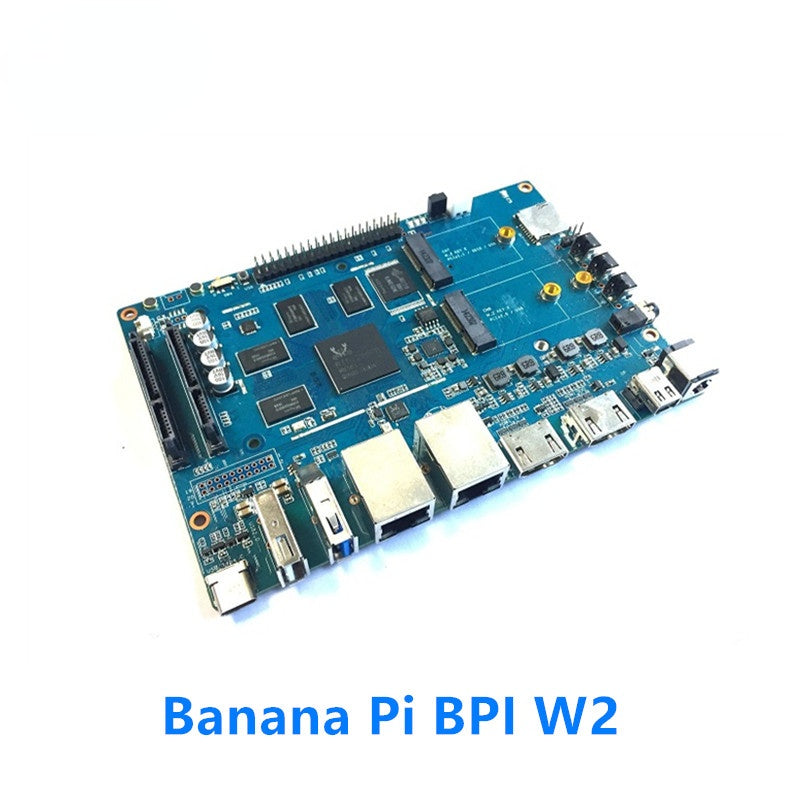

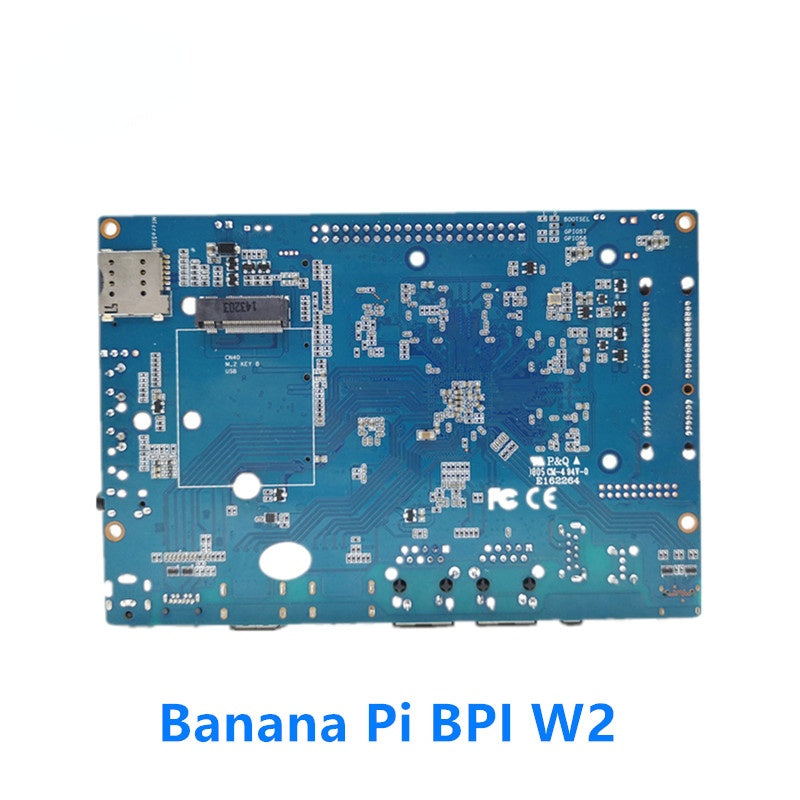

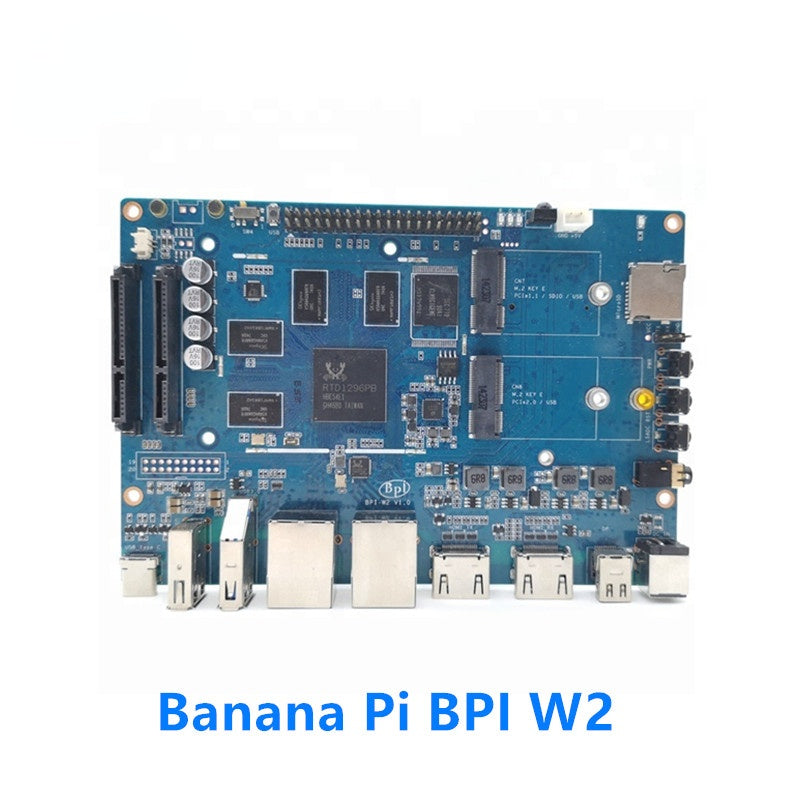

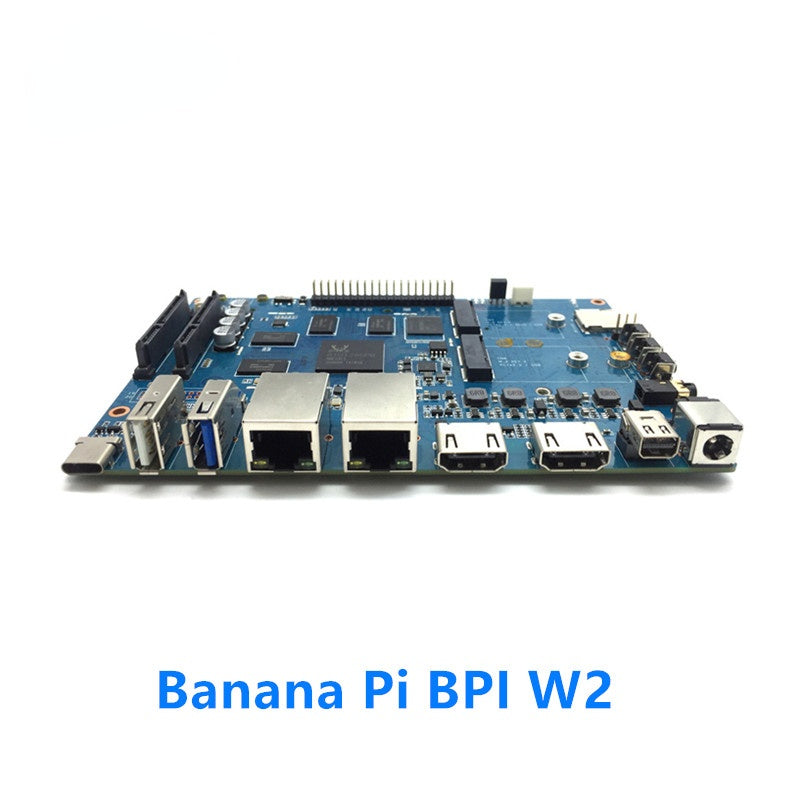

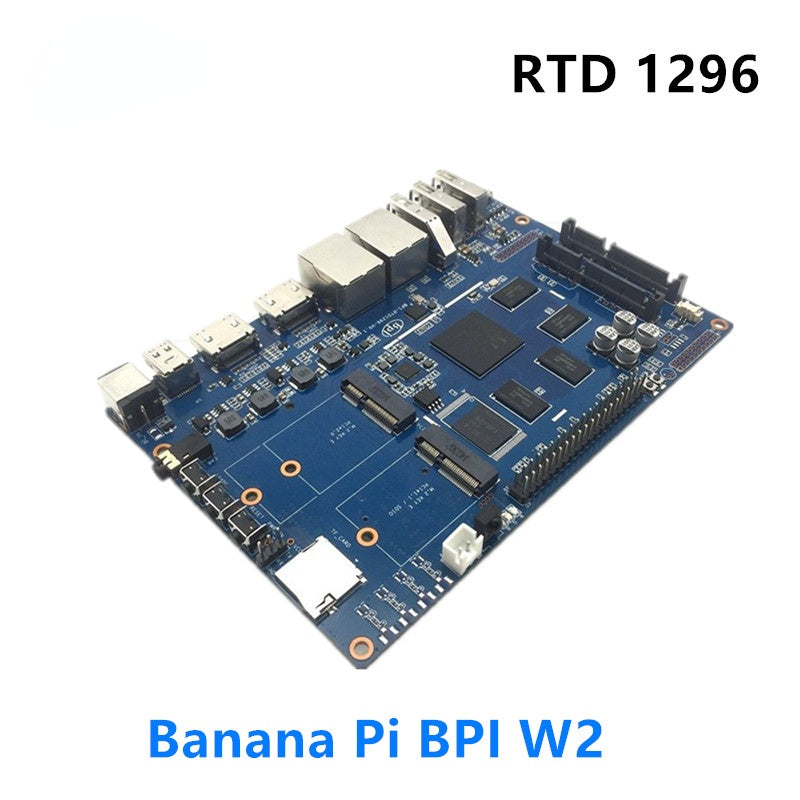

Banana Pi BPI-W2 smart NAS router，RTD1296 chip design

Epacket logistics is expected to be 15-30 working days,and slow update of logistics informations, If you mind ,please choose the fast logistics channel . Thank you : )

Introduction:

Banana PI BPI-W2 is a highly integrated multimedia network router with Realtek RTD1296 chip design ;it can be used for high wireless performance, homeentertainment,home automation and so on…

BPI-W2 integrate a Quad-core ARM Cortex-A53 MPcore operating up to 1.5GHz, The Router also includes a variety of peripherals, including HDM1 RX/TX, Mini DP, PCIe2.0,PCIe1.1&SDIO,M.2 interface, USB 2.0 , USB3.0 Port,TYPE C, SATA port，2 Gbps Port Gigabit Ethernet port, also support 802.11ac/n WLAN connection thru PCI-e port

BPI-W2 can run with Android6.0 smoothly, it also can run OpenWRT, Debian, Linux, Ubuntu linux, Raspbian and others OS. The size of Banana  Pi BPI-W2 same asBPI- R2, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi3



More specs follow below.

  • Realtek RTD1296, Quad-core ARM Cortex-A5

  • Mali T820 MP3 GPU

  • 2G DDR4 SDRAM

  • PCIE 2.0 interface.PCEe 1.1&SDIO

  • support 2 SATA interface

  • MicroSD slot supports up to 256GB expansion

  • 8G eMMC flash (option 16/32/64G)

  • Mini DP

  • 2 port 10/100/1000 Mb Ethernet port

  • (1) USB 3.0 and (2) USB 2.0,otg port

  • 1080P high-definition video playback

  • HDM1 In/Out

  • TYPE C interface

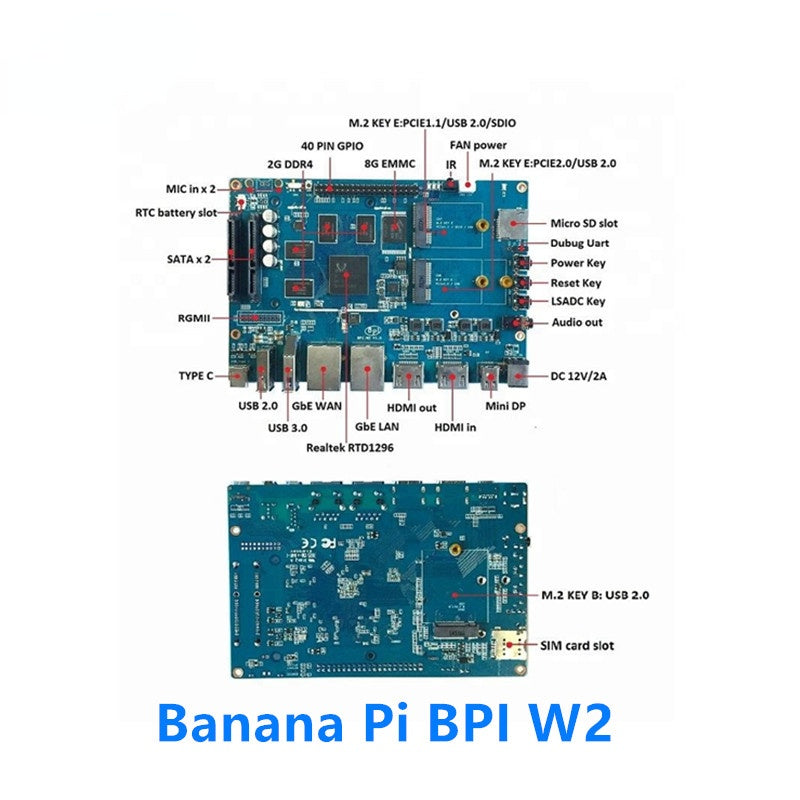

HardWare Specification of Banana pi BPI-W2
Soc Realtek RTD1296 quad-core ARM A53
GPU Mali T820 MP3 GPU
SDRAM 2GB DDR4 \(shared with GPU\)
Power 12V @ 2A via DC power 5.0mmx2.0mm jack
Low-level peripherals 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
Onboard Network 2x 10/100/1000Mbps Ethernet
Wifi/Bth **Option** ,not support onboard WIFI & BT
RGMII 1 RGMII interface with PIN
On board Storage MicroSD \(TF\) card; 2 native SATA 3 6Gbps ;eMMC;SIM card slot
Display HDM1 \(Type A\) output with HDCP 1.4, resolutions up 1920x1200； MIPI DP
Video decoder/encode The Video DSP of RTD1296 is dedicated to manipulating,decoding and encoding of video streams in various formats, e.g. decoding 4K2K H.265,Full HD MPEG1/2/4/H.264/H.264 MVC,AVC/VC-1,VP8,AVS,AVS Plus,HD jpeg,etc.Video decoding and encoding can run simultaneously. support 3D de-intrlacing,video scaling up to 4K2K and so on.
Aideo decoding Audio decoding is carried out by an Audio DSP that is capable of decoding a set of audio formats,e.g. DTS HD,Dolby Digital Plus,TrueHD,and other popular formats.the Audio DSP also performs audio post processing
Audio support two audio device HDM1 and headphone, also support Audio In/Out with PIN define. support 2 MIC in
HDM1 Out/In 1* HDM1 2.0a out port and 1* HDM1 2.0a In port
Audio outputs/Inputs HDM1, I2S audio,Audio micro out, Audio out/in with PIN define
M.2 KEY E：PCIE 2.0/USB 2.0 1 pcie 2.0 interface
M.2 KEY E:PCIe 1.1 / SDIO / USB 2.0 1 pcie 1.1 and SDIO interface
USB 3.0 1x USB 3.0 host
USB 2.0 2x USB 2.0 OTG, 1 with standard USB port , 1 define with PIN
M.2 KEY B 1 * M.2 interface USB 2.0 for 4G with Micro SIM card slot
Mini DP 1* Mini DP
TYPE C 1 type C interface
RTC battery RTC battery power interface
Buttons Reset button, Power button, U-boot button
Leds Red, Green, Blue
Other IR reciever
Sizes 148 mm × 100.5mm
Weight 100g



GPIO PIN define

Banana Pi BPI-W2 has a 40-pin GPIO header that matches that of the Model Raspberry Pi 3. Following is the Banana Pi GPIO Pinout:



Banana Pi BPI-W2 40-pin GPIO
GPIO Pin Name Default Function Function 2：GPIO
CON1-P01 VCC-3V3
CON1-P02 5VD
CON1-P03 I2C5\_SCL GPIO13
CON1-P04 5VD
CON1-P05 I2C5\_SDA GPIO14
CON1-P06 GND
CON1-P07 PWM0\_0 IGPIO21
CON1-P08 UR2\_TX IGPIO3
CON1-P09 GND
CON1-P10 UR2\_RX IGPIO2
CON1-P11 GPIO17 GPIO17
CON1-P12 AO\_BCK GPIO58
CON1-P13 I2C3\_SDA GPIO25
CON1-P14 GND
CON1-P15 I2C3\_SCL GPIO27
CON1-P16 UR2\_RTS IGPIO5
CON1-P17 VCC-3V3
CON1-P18 UR2\_CTS IGPIO4
CON1-P19 G\_MOSI GPIO7
CON1-P20 GND
CON1-P21 G\_MISO GPIO4
CON1-P22 IR\_TX IGPIO9
CON1-P23 G\_SCK GPIO5
CON1-P24 G\_CS GPIO6
CON1-P25 GND
CON1-P26 GPIO8 GPIO8
CON1-P27 I2C4\_SDA GPIO12
CON1-P28 I2C4\_SCL GPIO11
CON1-P29 GPIO100 GPIO100
CON1-P30 GND
CON1-P31 AI\_CK GPIO21
CON1-P32 SPDIF GPIO54
CON1-P33 AO\_CK GPIO59
CON1-P34 GND
CON1-P35 AO\_LRCK GPIO57
CON1-P36 AI\_BCK GPIO22
CON1-P37 AI\_LRCK GPIO23
CON1-P38 AI\_SDO GPIO24
CON1-P39 GND
CON1-P40 AO\_D0 GPIO60

UART specification:

Theheader CON3 is the UART interface. For developers of Banana Pi, this is an easy way to get the UART console output to check the system status and log message.

BPI-W2 Debug UART(CON3)
CON2-P1 GND
CON2-P2 UART0-RX
CON2-P3 UART0-TX


                                                                                           Android6.0 system support

Liux system :
