Banana Pi BPI M2 Ultra Quad Core A40i Allwinner Chip Development Board With WIFI& BT4.0 EMMC Custom PCB
Banana Pi BPI M2 Ultra Quad Core A40i Allwinner Chip Development Board With WIFI& BT4.0 EMMC Custom PCB
Couldn't load pickup availability

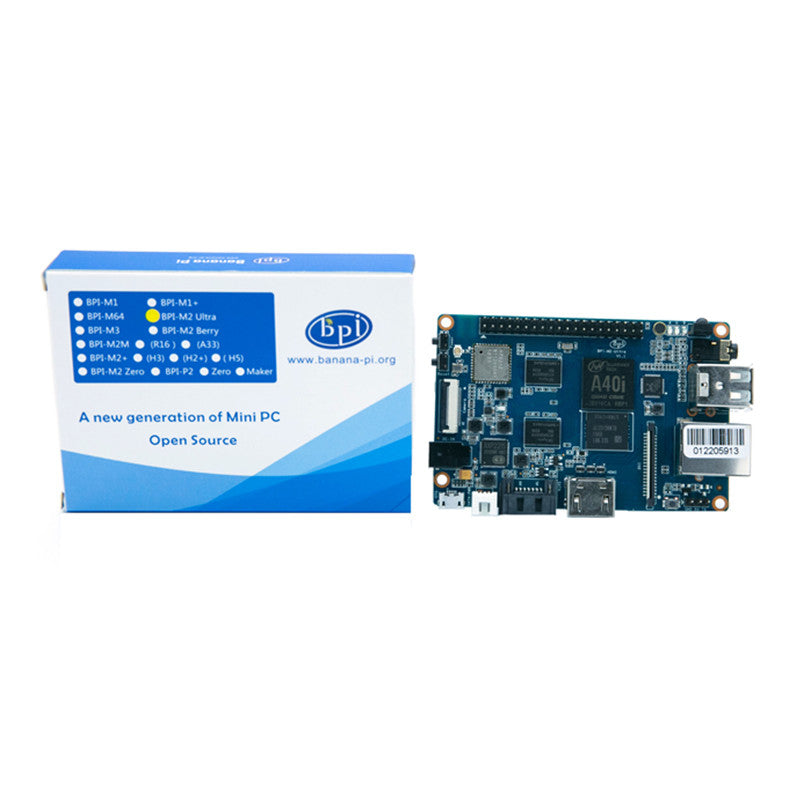

Quad Core A40i Allwinner chip Banana Pi M2 Ultra Development board
Epacket logistics is expected to be 15-30 working days,and slow update of logistics informations, If you mind ,please choose the fast logistics channel . Thank you : )Epacket logistics is expected to be 15-30 working days,and slow update of logistics informations, If you mind ,please choose the fast logistics channel . Thank you : )
PS: Now we change the chip to A40i, please kindly note that.

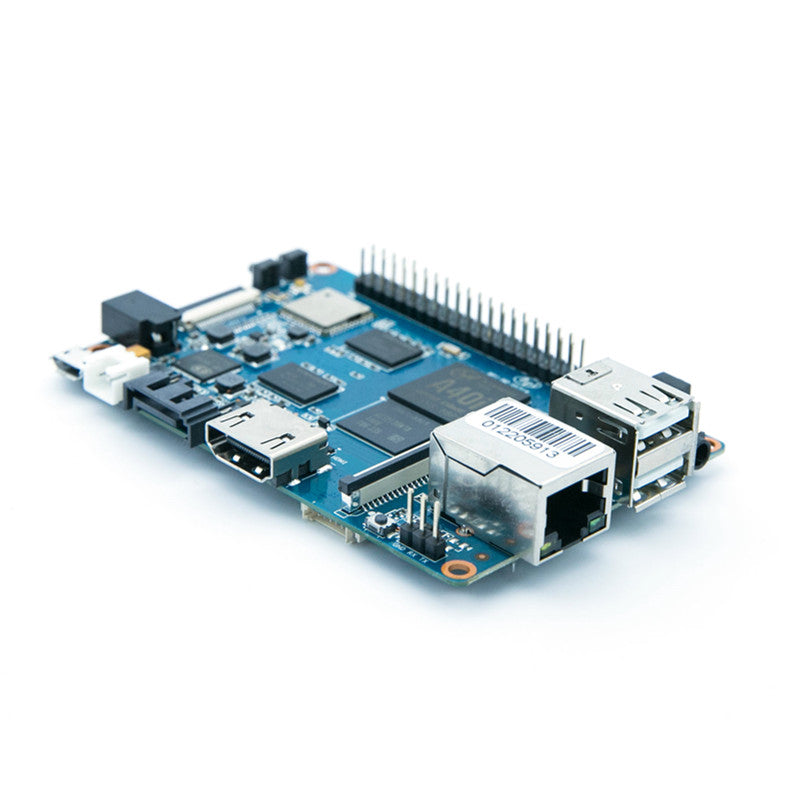

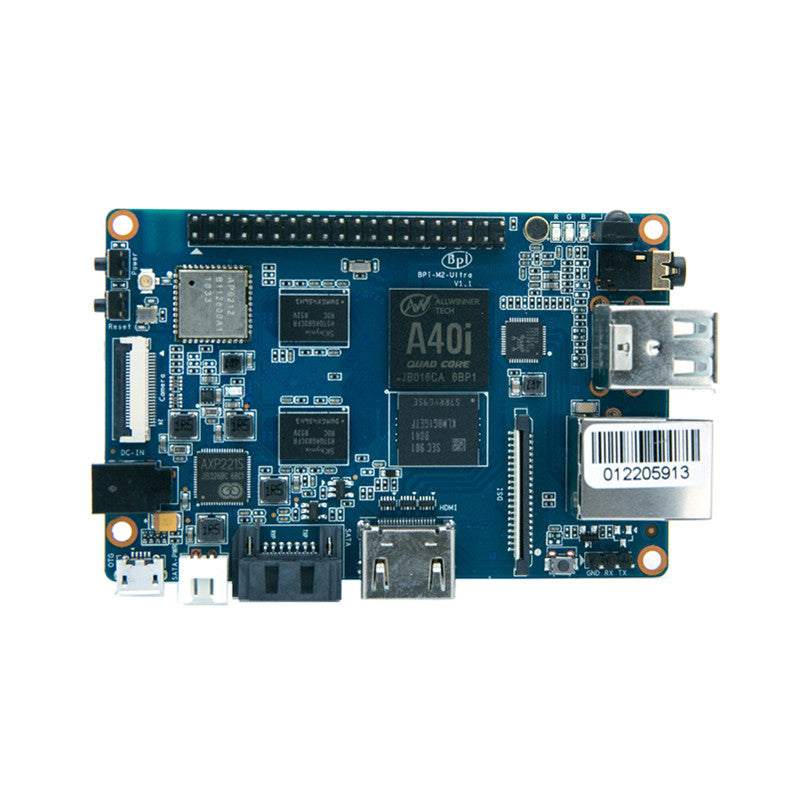

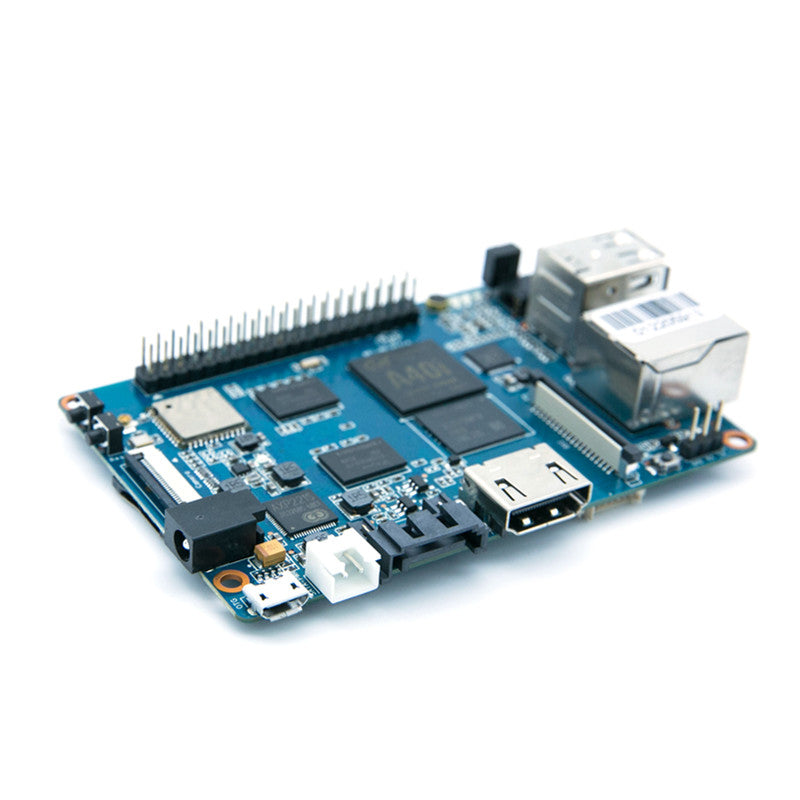

Banana Pi BPI-M2 Ultra is a quad-core mini single board computer built with Allwinner R40/V40 SoC. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDM1 port, 1 audio jack, a DC power port, and last but not least, a SATA port.. Also being a member of the Banana Pi family, the M2 Ultra is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the R40 is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.
-
Allwinner A40i Quad Core ARM Cortex A7 CPU
-
2GB DDR3 SDRAM.
-
8GB eMMC flahs onboard.
-
WiFi (AP6212) & Bth onboard.
-
SATA Interface.
-
2*USB 2.0
-
MIPI DSI ingerface
-
CSI camera interface
Hardware

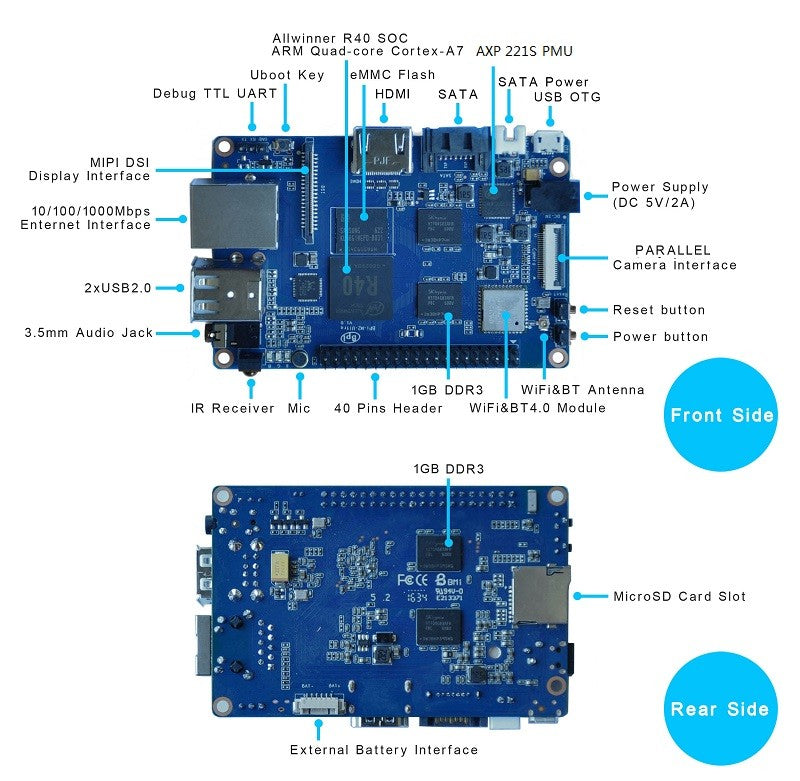

Hardware interfact
Hardware spec
| HardWare Specification of Banana pi BPI-M2 Ultra | |||
| Soc | Allwinner A40i | ||
| CPU | quad-core cortex -A7,the most power efficient CPU core ARM's ever development | ||
| GPU | dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode. | ||
| SDRAM | 2 GB DDR3 with 733MHz\(shared with GPU\) | ||
| SATA | suppoort SATA interface | ||
| GPIO | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. | ||
| On board Network | 10/100/1000Mbps Ethernet \(Realtek RTL8211E/D\) | ||
| Wifi Module | WiFi 802.11 b/g/n \(AP 6212 module on board\) | ||
| Blth | BT4.0 | ||
| On board Storage | MicroSD \(TF\) card,8GB eMMC onboard | ||
| Display | 4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDM1 V1.4 | ||
| Video | Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition\(HD\)H.264 video encoder is up to 1080P@45fps | ||
| Audio outputs | HDM1, analog audio \(via 3.5 mm TRRS jack\), I2S audio \(also potentially for audio input\) | ||
| Camera | A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps | ||
| Audio input | On board microphone | ||
| USB | 2 USB 2.0 host, 1 USB 2.0 OTG | ||
| Buttons | Reset button, Power button, U-boot button | ||
| Leds | Power status Led and RJ45 Led | ||
| IR | onboard IR receiver | ||
| DC Power | 5V/2A with micro USB port | ||
| battery | 3.7V lithium battery power support | ||
| Sizes | 85mmX56mm,same size as raspberry pi 3 | ||
| Weight | 40g | ||
GPIO PIN define
Banana Pi BPI-M2 Berry has a 40-pin GPIO header that matches that of the Model Raspberry Pi 3. Following is the Banana Pi GPIO Pinout:
| 40 PIN GPIO of Banana pi BPI-R2 | |||
| GPIO Pin Name | Default Function | Function2：GPIO | Function3 |
| CON1-P01 | VCC-3V3 | ||
| CON1-P02 | DCIN | ||
| CON1-P03 | TWI2-SDA | PB21 | PWM5 |
| CON1-P04 | DCIN | ||
| CON1-P05 | TWI2-SCK | PB20 | PWM4 |
| CON1-P06 | GND | ||
| CON1-P07 | PB3 | PB3 | PWM1 |
| CON1-P08 | UART2-TX | PI18 | SPI1\_MOSI |
| CON1-P09 | GND | ||
| CON1-P10 | UART2-RX | PI19 | SPI1\_MISO |
| CON1-P11 | UART7-TX | PI20 | PWM2 |
| CON1-P12 | UART2-CTS | PI17 | SPI1\_CLK |
| CON1-P13 | UART7-RX | PI21 | PWM3 |
| CON1-P14 | GND | ||
| CON1-P15 | PH25 | PH25 | CSI1-FIELD |
| CON1-P16 | UART2-RTS | PI16 | SPI1\_CS0 |
| CON1-P17 | VCC-3V3 | ||
| CON1-P18 | PH26 | PH26 | CSI1-HSYNC |
| CON1-P19 | SPI0\_MOSI | PC0 | |
| CON1-P20 | GND | ||
| CON1-P21 | SPI0\_MISO | PC1 | |
| CON1-P22 | PH27 | PH27 | CSI1-VSYNC |
| CON1-P23 | SPI0\_CLK | PC2 | |
| CON1-P24 | SPI0\_CS | PC23 | |
| CON1-P25 | GND | ||
| CON1-P26 | PH24 | PH24 | CSI1-PCLK |
| CON1-P27 | TWI3-SDA | PI1 | |
| CON1-P28 | TWI3-SCK | PI0 | |
| CON1-P29 | PH0 | PH0 | CSI1-D0 |
| CON1-P30 | GND | ||
| CON1-P31 | PH1 | PH1 | CSI1-D1 |
| CON1-P32 | PD20 | PD20 | CSI1-MCLK |
| CON1-P33 | PH2 | PH2 | CSI1-D2 |
| CON1-P34 | GND | ||
| CON1-P35 | PH3 | PH3 | CSI1-D3 |
| CON1-P36 | UART5-RX | PH7 | CSI1-D7 |
| CON1-P37 | UART4-TX | PH4 | CSI1-D4 |
| CON1-P38 | UART5-TX | PH6 | CSI1-D6 |
| CON1-P39 | GND | ||
| CON1-P40 | UART4-RX | PH5 | CSI1-D5 |
CSI Camera Connector specification:
The CSI Camera Connector is a 24-pin FPC connector which can connect external camera module with proper signal pin mappings. The pin definitions of the CSI interface are shown as below. This is marked on the Banana Pi board as “Camera”.
| CSi Camera connector GPIO of Banana pi BPI-R2 | |||
| CSI Pin Name | Default Function | Function2：GPIO | |
| CN5-P01 | NC | ||
| CN5-P02 | GND | ||
| CN5-P03 | CSI0-SDA | PI3 | |
| CN5-P04 | CSI0-AVDD | ||
| CN5-P05 | CSI0-SCK | PI2 | |
| CN5-P06 | CSI0-Reset | PI7 | |
| CN5-P07 | CSI0-VSYNC | PE3 | |
| CN5-P08 | CSI0-PWDN | PI6 | |
| CN5-P09 | CSI0-HSYNC | PE2 | |
| CN5-P10 | CSI0-DVDD | ||
| CN5-P11 | CSI0-DOVDD | ||
| CN5-P12 | CSI0-D7 | PE11 | |
| CN5-P13 | CSI0-MCLK | PE1 | |
| CN5-P14 | CSI0-D6 | PE10 | |
| CN5-P15 | GND | ||
| CN5-P16 | CSI0-D5 | PE9 | |
| CN5-P17 | CSI0-PCLK | PE0 | |
| CN5-P18 | CSI0-D4 | PE8 | |
| CN5-P19 | CSI0-D0 | PE4 | |
| CN5-P20 | CSI0-D3 | PE7 | |
| CN5-P21 | CSI0-D1 | PE5 | |
| CN5-P22 | CSI0-D2 | PE6 | |
| CN5-P23 | GND | ||
| CN5-P24 | CSI0-AFVCC | ||
Display specification
MIPI DSI \(Display Serial Interface\)
The display Connector is a 40-pin FPC connector which can connect external LCD panel \(MIPI DSI\) and touch screen \(I2C\) module as well. The pin definitions of this connector are shown as below. This is marked on the Banana Pi board as “DSI”.
| 40 PIN GPIO of Banana pi BPI-R2 | |||
| DSI Pin Name | Default Function | Function2：GPIO | |
| CN6-P01 | VCC-3V3 | ||
| CN6-P02 | IPSOUT | ||
| CN6-P03 | VCC-3V3 | ||
| CN6-P04 | IPSOUT | ||
| CN6-P05 | GND | ||
| CN6-P06 | IPSOUT | ||
| CN6-P07 | GND | ||
| CN6-P08 | IPSOUT | ||
| CN6-P09 | NC | ||
| CN6-P10 | GND | ||
| CN6-P11 | NC | ||
| CN6-P12 | DSI-D0N | ||
| CN6-P13 | NC | ||
| CN6-P14 | DSI-D0P | ||
| CN6-P15 | NC | ||
| CN6-P16 | GND | ||
| CN6-P17 | TWI0-SDA | PB19 | |
| CN6-P18 | DSI-D1N | ||
| CN6-P19 | TWI0-SCK | PB18 | |
| CN6-P20 | DSI-D1P | ||
| CN6-P21 | CTP-INT | PI10 | |
| CN6-P22 | GND | ||
| CN6-P23 | CTP-RST | PI11 | |
| CN6-P24 | DSI-CKN | ||
| CN6-P25 | GND | ||
| CN6-P26 | DSI-CKP | ||
| CN6-P27 | LCD-BL-EN | PH16 | |
| CN6-P28 | GND | ||
| CN6-P29 | LCD-RST | PH17 | |
| CN6-P30 | DSI-D2N | ||
| CN6-P31 | LCD-PWR-EN | PH18 | |
| CN6-P32 | DSI-D2P | ||
| CN6-P33 | GND | ||
| CN6-P34 | GND | ||
| CN6-P35 | LCD-PWM | PB2 | |
| CN6-P36 | DSI-D3N | ||
| CN6-P37 | GND | ||
| CN6-P38 | DSI-D3P | ||
| CN6-P39 | NC | ||
| CN6-P40 | GND | ||
UART specification:
The header CON4 is the UART interface. For developers of Banana Pi, this is an easy way to get the UART console output to check the system status and log message.
| CON4 Uart GPIO of Banana pi BPI-R2 | |||
| CON2 Pin Name | Default Function | GPIO | |
| CON2 P03 | UART0-TXD | ||
| CON2 P02 | UART0-RXD | ||
| CON2 P01 | GND | ||
