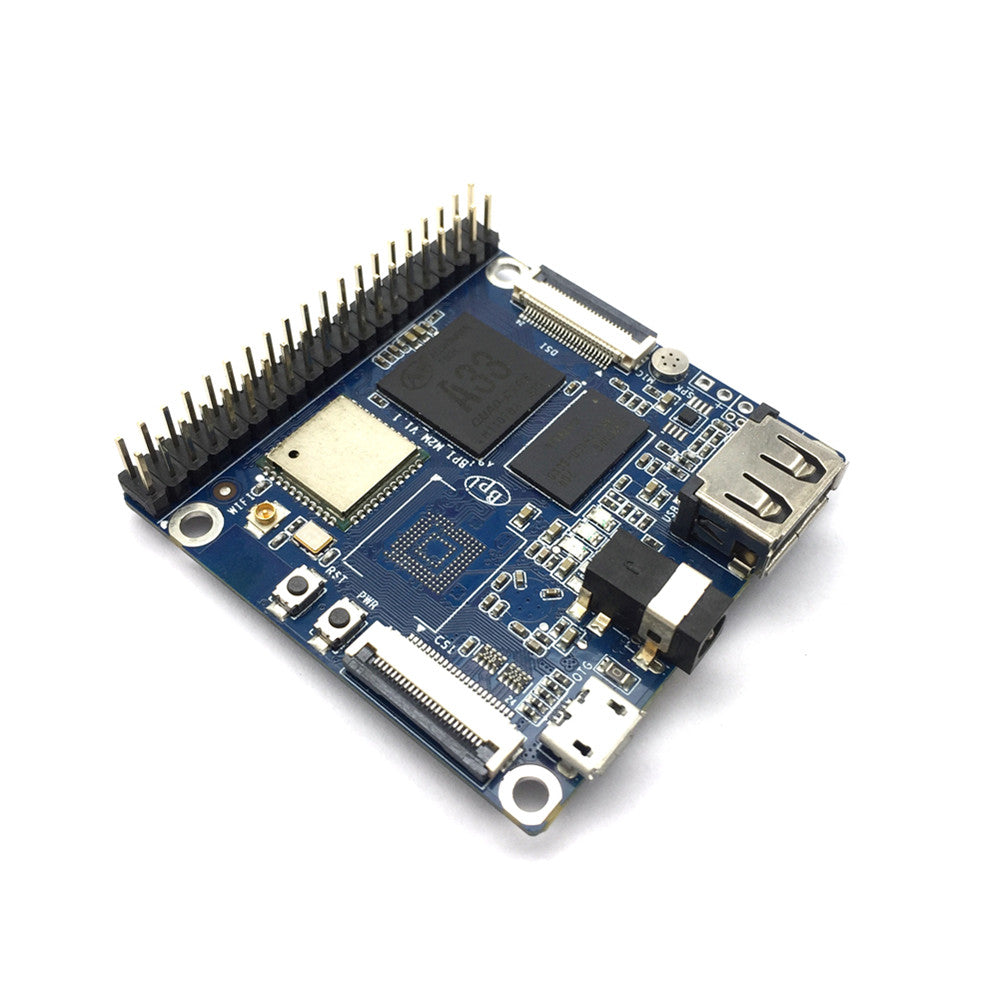

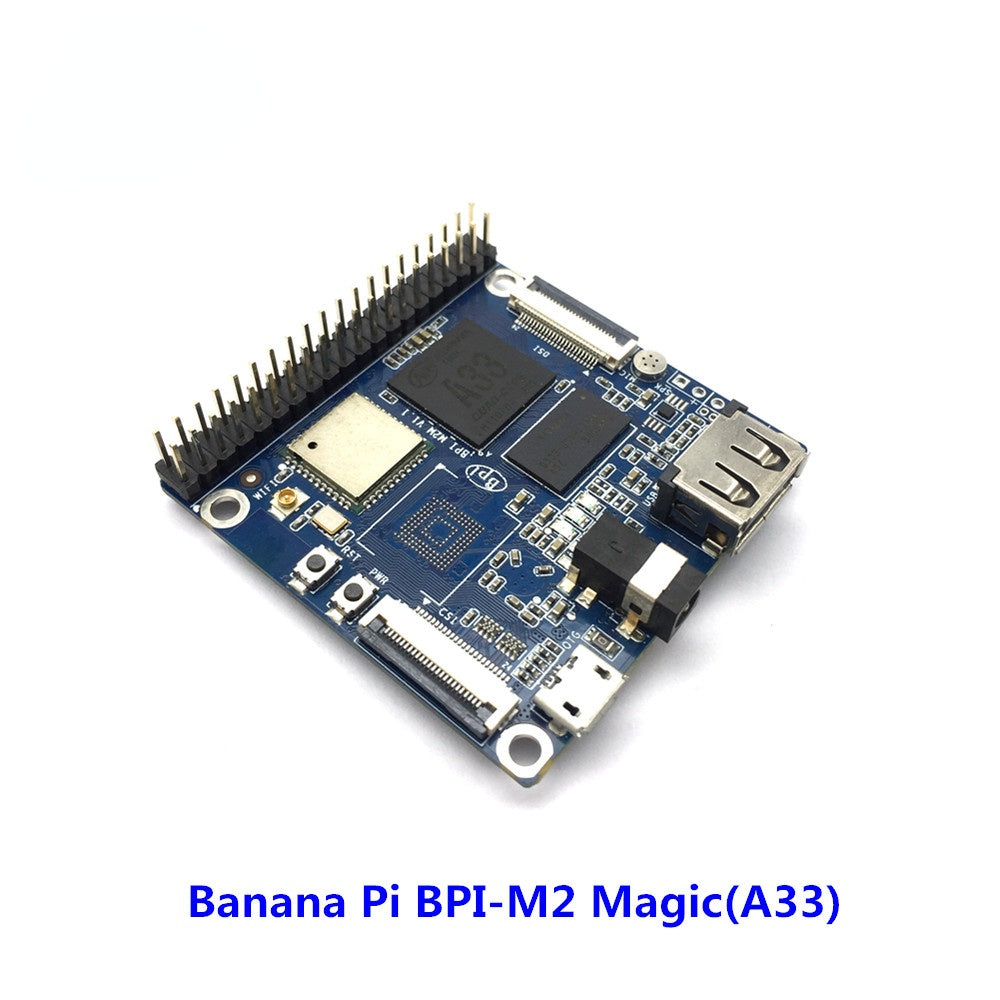

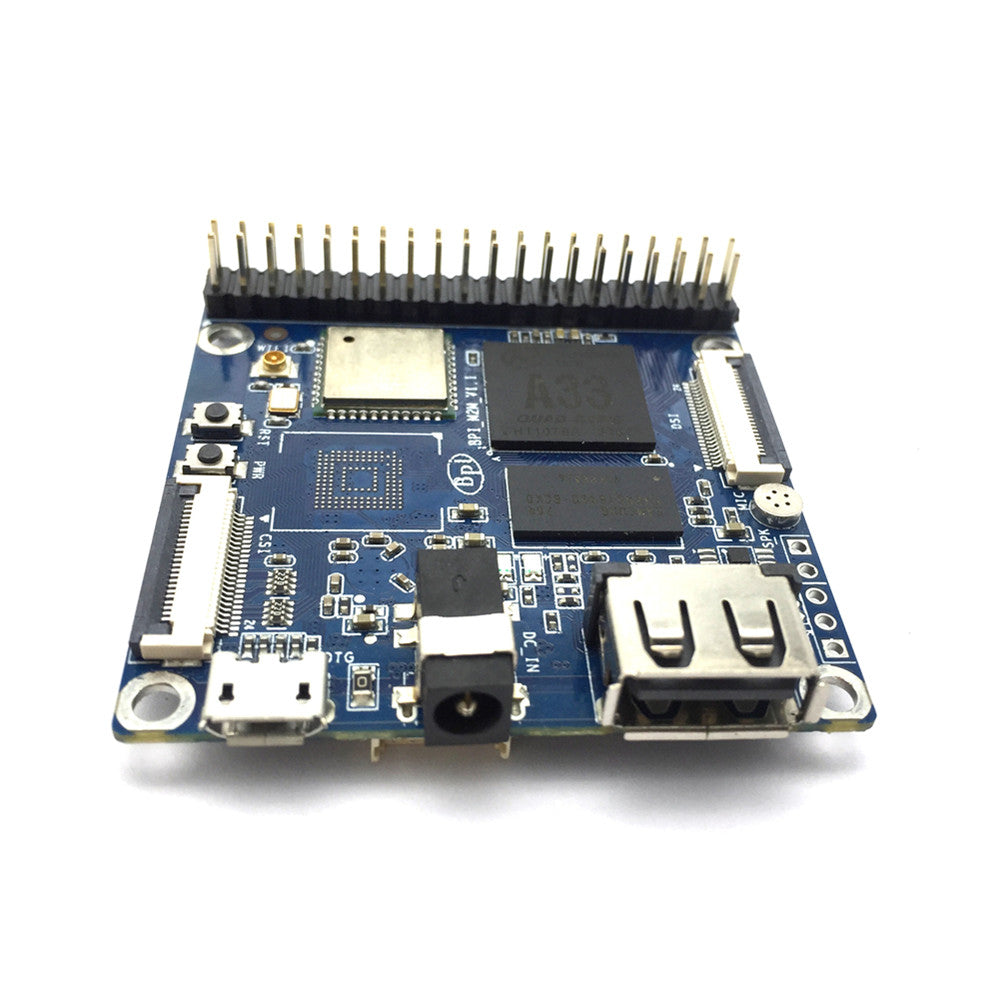

Allwinner A33 chip Quad-core A7 SoC and 512MB DDR3 RAM Banana Pi M2 Magic (without EMMC)
Not support : BPI 7 inch touch screen, without the GPIO headers
BPI-M2 Magic integrate four ARM Cortex-A7 CPU cores and Mali400MP2 graphics architecture, It also includes a variety of peripherals, BPI-M2 Magic with 512M DDR3，including 4 lane-MIPI DSI, LVDS, USB2.0 OTG/HOST,802.11 b/g/n wifi & BT4.0 onboard.
**Note:
1,BPI-M2 Magic not HDM1 interface.
2,Not support RJ45 interface**
BPI-M2 Magic can run with Android smoothly, it also can run Debian, Ubuntu linux, Raspberry Pi image and others OS. It can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi B+ and can run the ROM Image
allwinner R16 chip and A33 chip is PIN to PIN compatibility, so BPI-M2 Magic just replace R16 ,A33 chip onboard, easy to DIY new product.

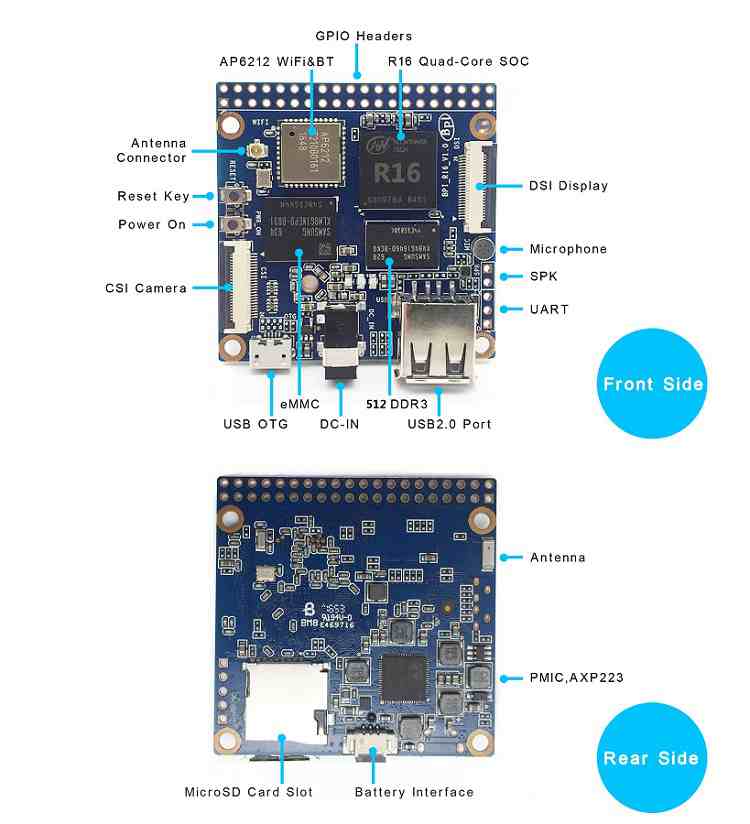

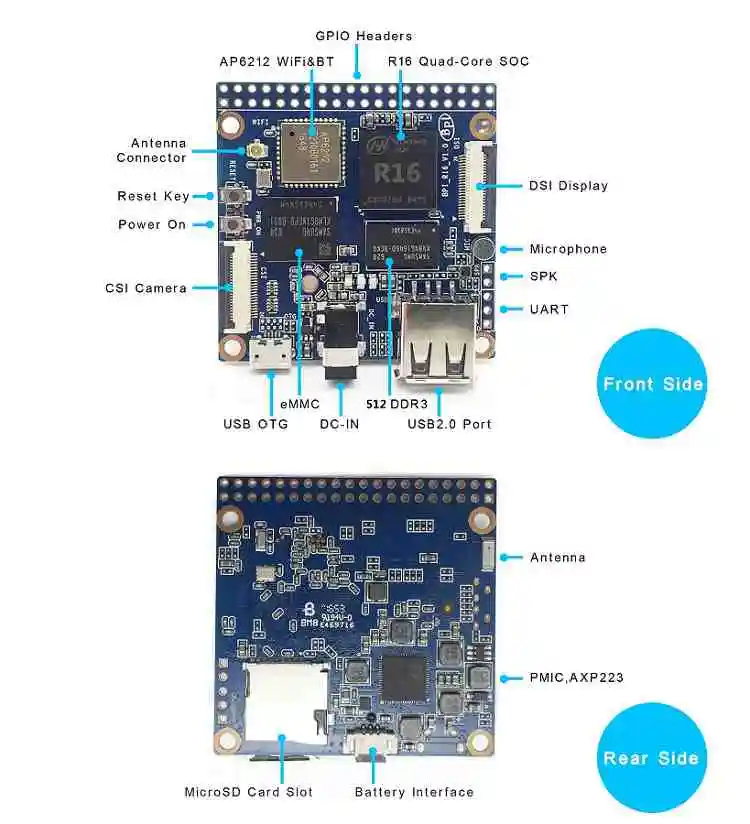

Hardware Specification of BPI-M2 Magic
| Soc | Allwinner R16,Quad-code ARM Cortex-A7，also support A33 design |
|---|---|
| GPU | Mali 400 MP2 |
| SDRAM | 512MB DDR3 (shared with GPU) |
| Power | 5V @ 2A via DC power |
| Low-level peripherals | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM. |
| Wifi | Wifi 802.11 b/g/n 2.4GHz (AP6212) |
| Blth | BT4.0 BLE |
| On board Storage | MicroSD (TF) card, eMMC 8G on board (option：16/32/64G) |
| Display | MIPI Display Serial Interface (DSI) interface(4 data lanes) |
| Camera | A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps |
| Video decoder | Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 high profile 1080p@60fps |
| Video encoder | H.264 encoder: high profile 1080p@60fps |
| Audio input | On board microphone |
| USB | 1x USB 2.0 host, 1x USB 2.0 OTG |
| Buttons | Reset button, Power button |
| Leds | Red, Green, Blue |
| battery | 3.7V lithium battery power support |
| Sizes | 51 mm × 51mm |
| Weight | 40g |
