B20 800 900 1800 2100 2600MHz Four-Band Repeater Cellular Amplifier Mobile Network Enhancer 2G 3G 4G Booster+5/22dbi 4G Antenna

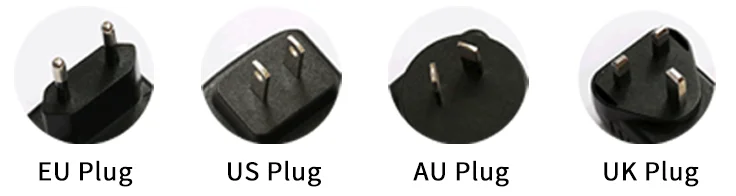

Please leave a massage about which plug you need when place order.
If no messege left in the order, we would send the plug in accordance with our experience.

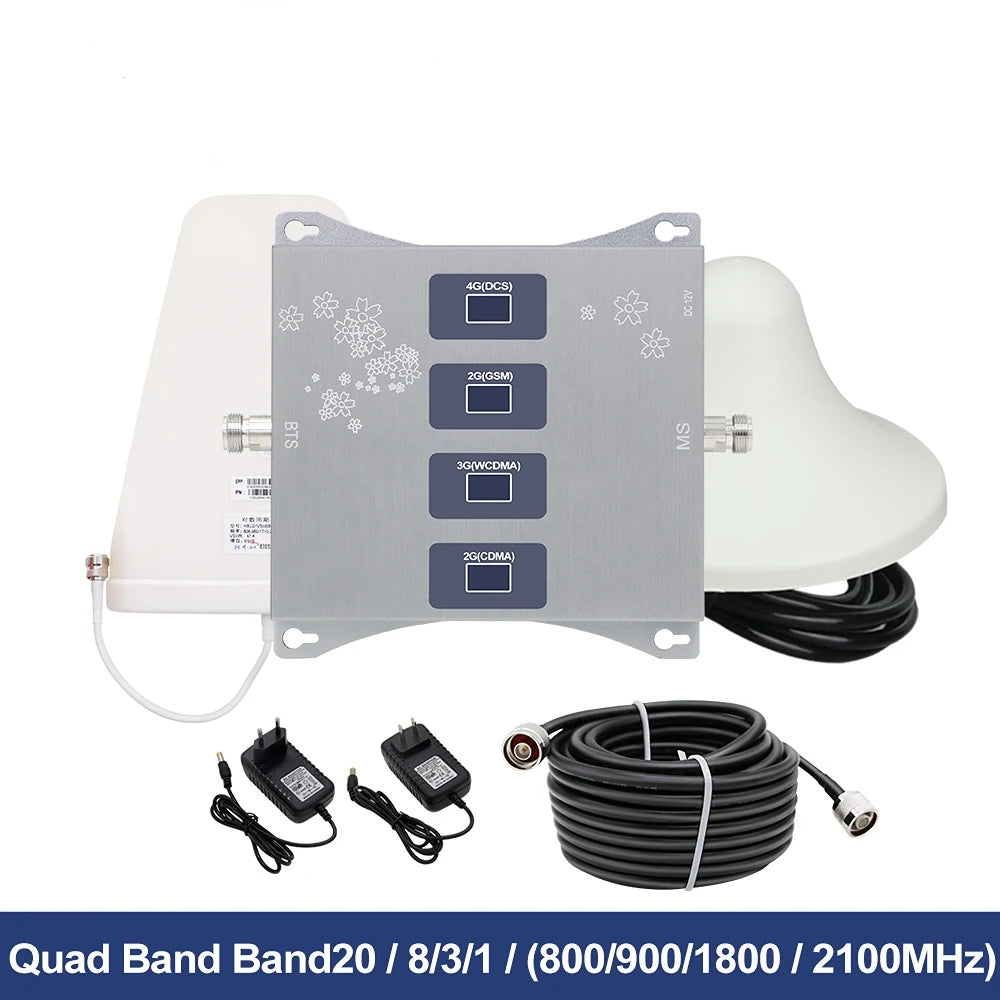

Packing Details:
1 pc Four-Band repeater
1 pc log outdoor antenna
1 pc 5dbi ceiling indoor antenna
1 pc 10 meters cable
1 pc manual
Please check this information before buying! ! (Very important)
My friend, before purchasing this product, please make sure that your current SIM card signal frequency matches the signal frequency of our device
(PS: At the same time, make sure that the signal level of the outdoor mobile phone signal is at least 3 or higher).
Because if the frequency is not matched or the outdoor signal source is weak, the device may not work.
Therefore, we recommend that you check the frequency and signal strength of outdoor mobile phone signals before buying.
There are some ways to check the frequency: (Frequency doesn't match, the signal booster can't works.)
1. Turn on the network (2G/3G/4G) you want to amplify and go to outdoors of your house:
A: If you use Samsung phone .Holding the phone to the outside. Dial: *#0011# →ServiceMode→
B: If you use iPhone .Holding the phone to the outside.Dial: *3001#12345#* → click into :Serving Cell info

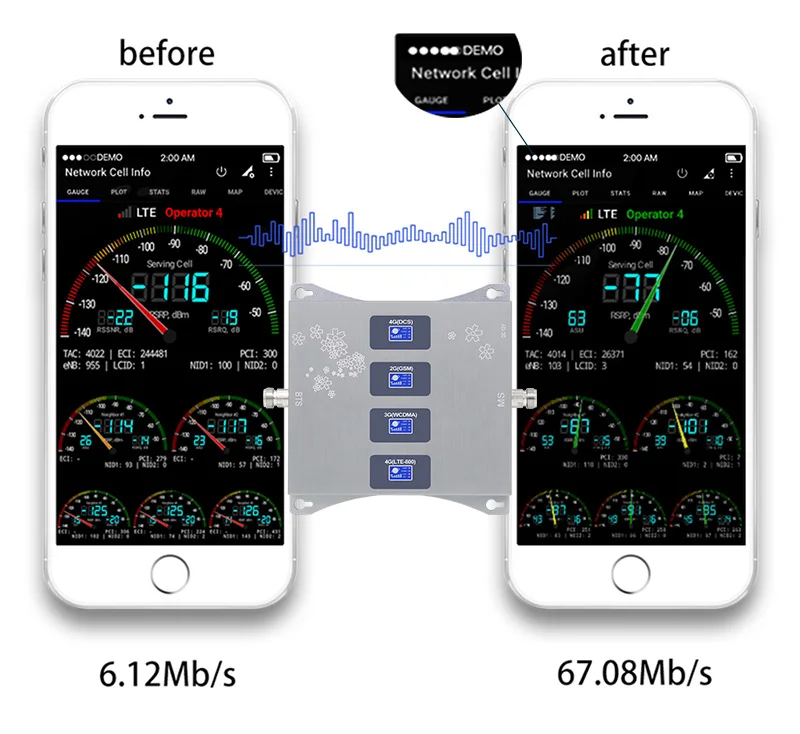

2.Install an app: Network cell info Lite, and show the screenshot to us.
How cell signal booster works ?
1.The outdoor antenna captures signal from the signal tower
2.The outdoor antenna transfers the signal to the cell booster via the Coaxial cable
3.The booster amplifies cell signal and sends it to the Indoor antenna
4.The Indoor antenna rebroadcasts the signal insides to all mobile devices
5.The Booster amplifies outgoing cell signal back to the signal tower
Note: External Signal Needed The signal booster can only amplify signal but can't create signal.If there is no signal outside, it won't work, please make sure you get 1-2 bars signal outside.
Feature:
[1] Coverage: 300-500 square meters without barriers
[2]

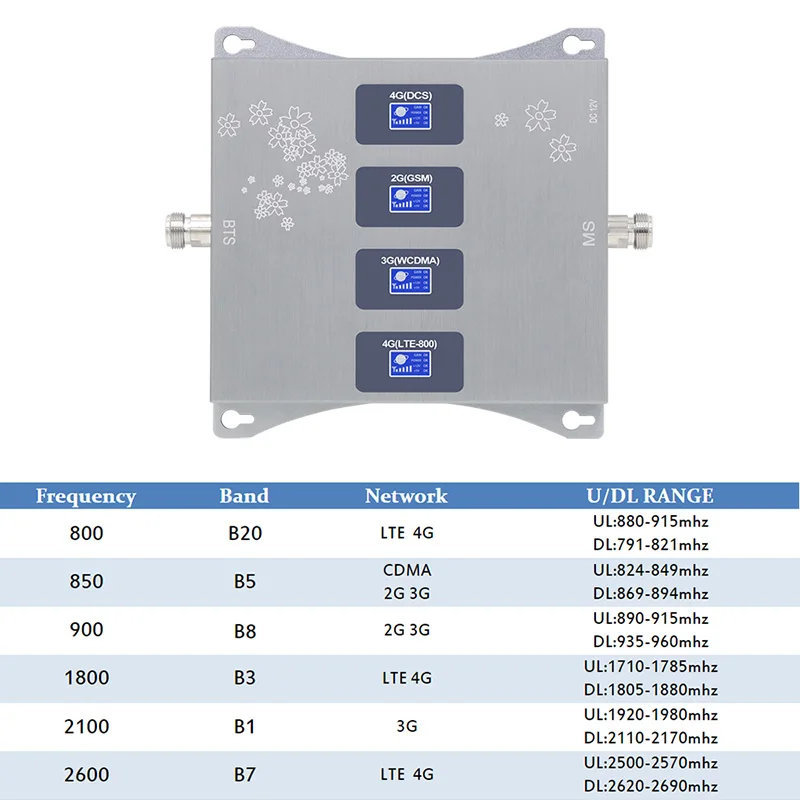

Frequency Range(Band8 GSM 900MHz): UL:890~915mhz;DL:935~960mhz;
Frequency Range(Band3 DCS 1800MHz): UL:1710~1785mhz;DL:1805~1880mhz;
Frequency Range(Band1 WCDMA 2100MHz): UL:1920~1980mhz;DL:2110~2170mhz;
Frequency Range(Band7 LTE 2600MHz): UL:2500-2570mhz;DL:2620~2690mhz;
[3] Support more than 25 cell phones to use at the same time
[4] Reduce cellphone transmit power
[5] Easy to install. This repeater set includes everything you need.

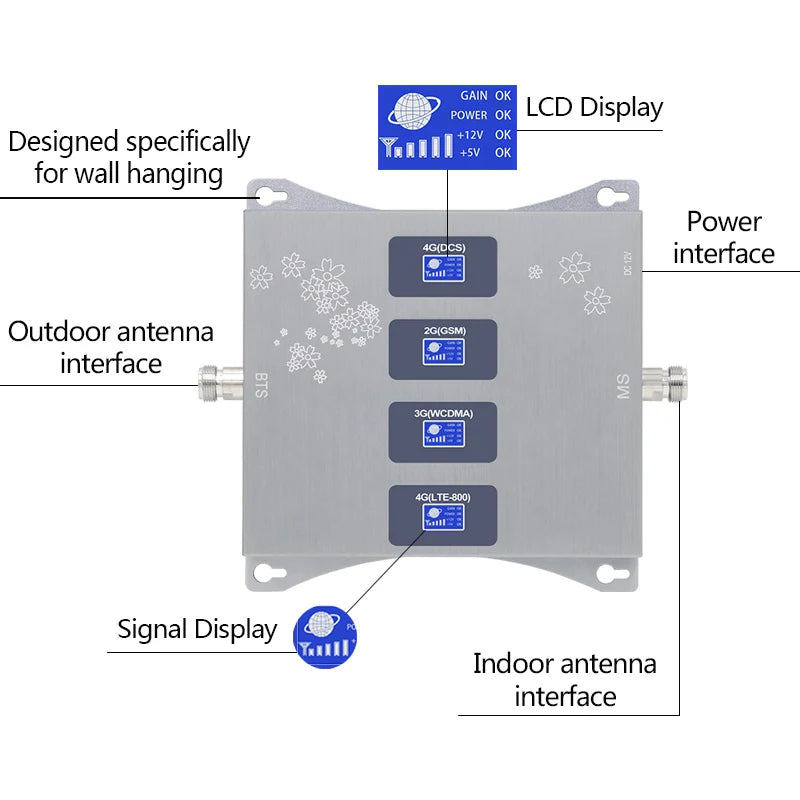

[6] LCD Dispaly and LED signal light indicates the signal status.

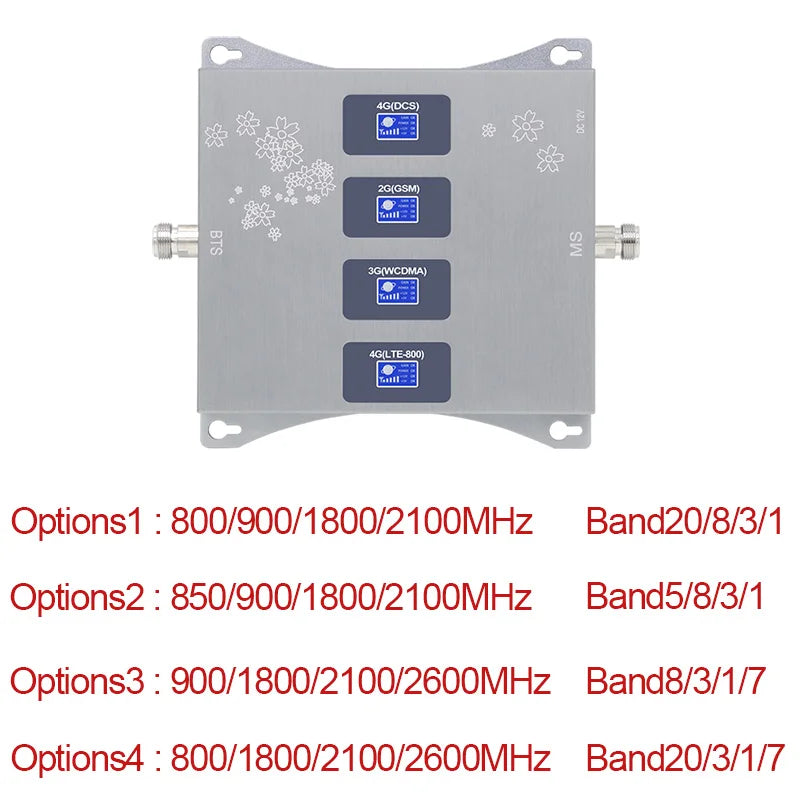

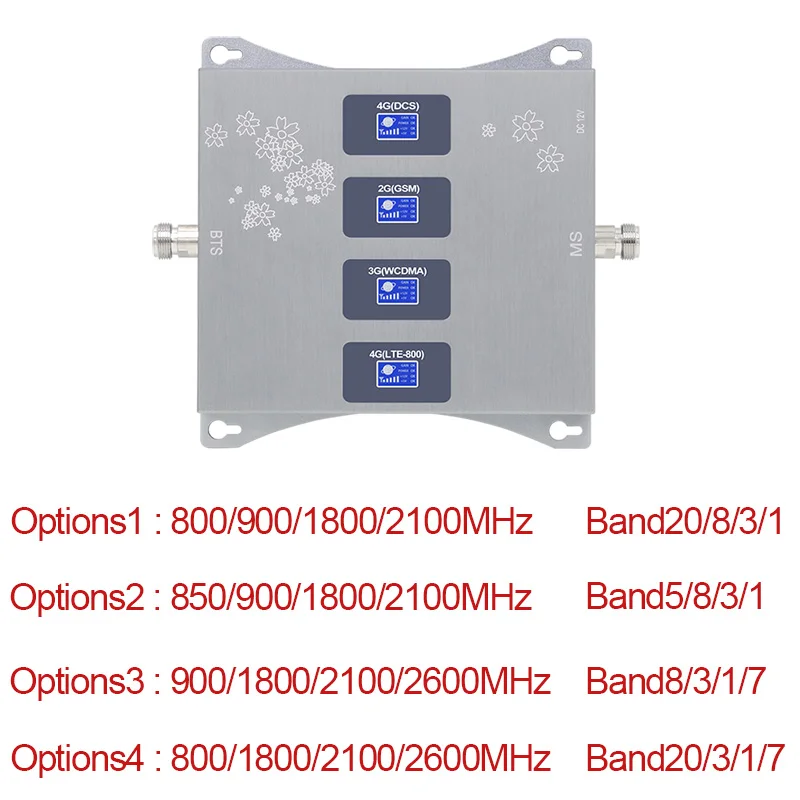

choose 800 900 1800 2100MHz , support : band 20/8/3/1
choose 900 1800 2100 2600MHz , support : band 8/3/1/7
choose 800 1800 2100 2600MHz , support : band 20/3/1/7
Feature:
1. Cover: 300-500 square meters without obstacles
2. Improve LTE800 GSM900 DCS1800 and WCDMA2100 LTE2600 at the same time
3. LED light indicates the state of the signal.
4. If can meet 800 850 900 1800 2100 2600 frequency band , it can support different oprators.
5. Easy to install. This signal amplifier kit includes everything you need.
6. Easy to install. Wall mounted, more convenient to help you decorate your home
7. Metal shell design, firm and durable. Convex heat dissipation design, better heat dissipation.
8.High Gain 70dbi, 4-band Booster

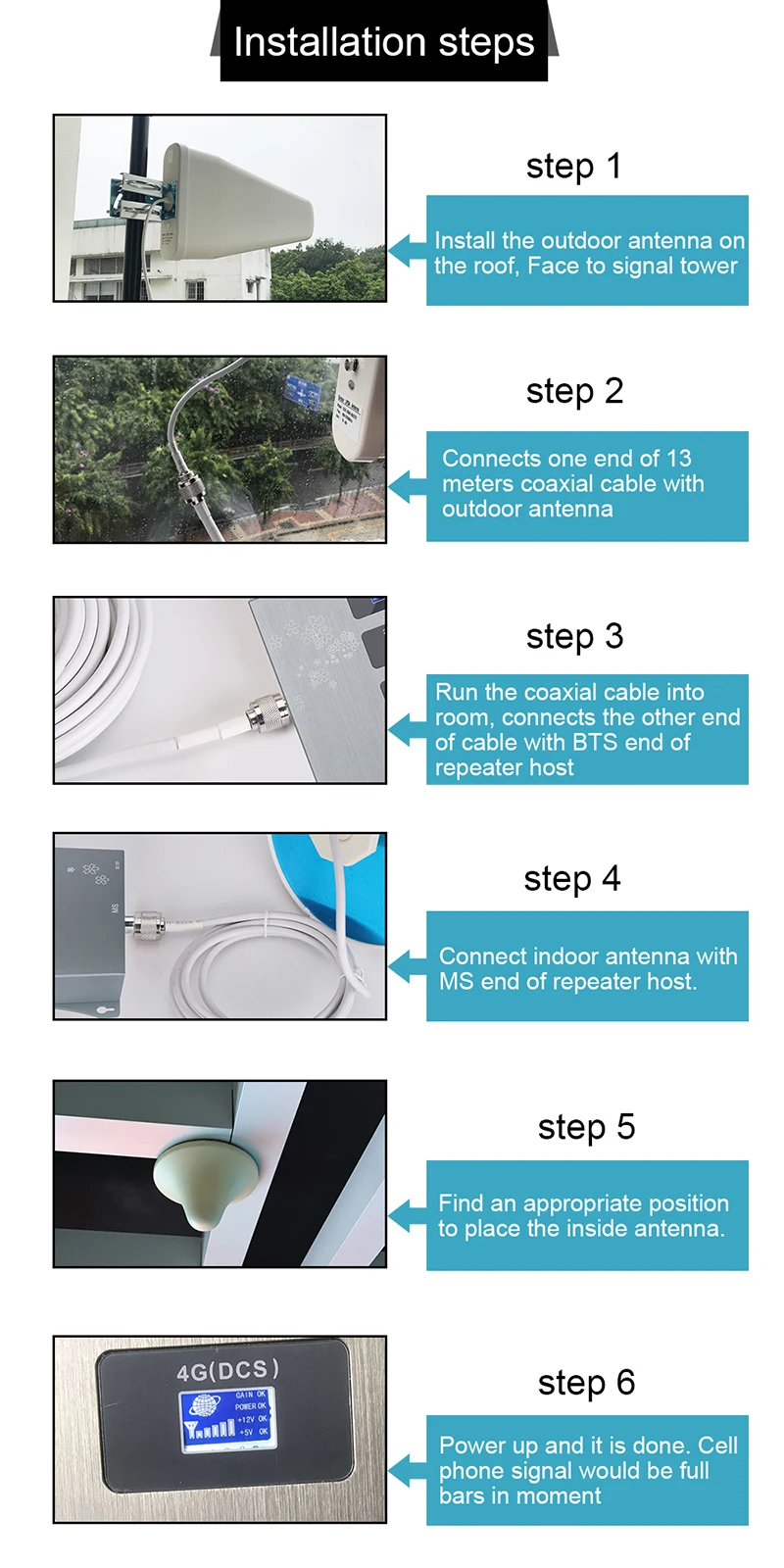

Installation steps:
1. Fix the reception of the roof outdoor antenna or the high place and the turn signal point.
2. Connect the external antenna to repeater machine '' BTS '' port via cable.
3. Connect indoor antenna to repeater '' MOBILE '' port.
4. AC plug power cord into the power source and finished.
5. TIP: An outdoor antenna should be "isolated" from the internal antenna, that is, it must be constructiveobstacles (walls, partitions, etc.) between the antennas.
Note :when outdoor antenna and indoor antenna are separated not enough, then it will be self-oscillation. yourphone will not get any signal.
Application scenario: It can be used for home, apartment, hotel, office, basement of buildings, coffee shop and shopping mall etc.

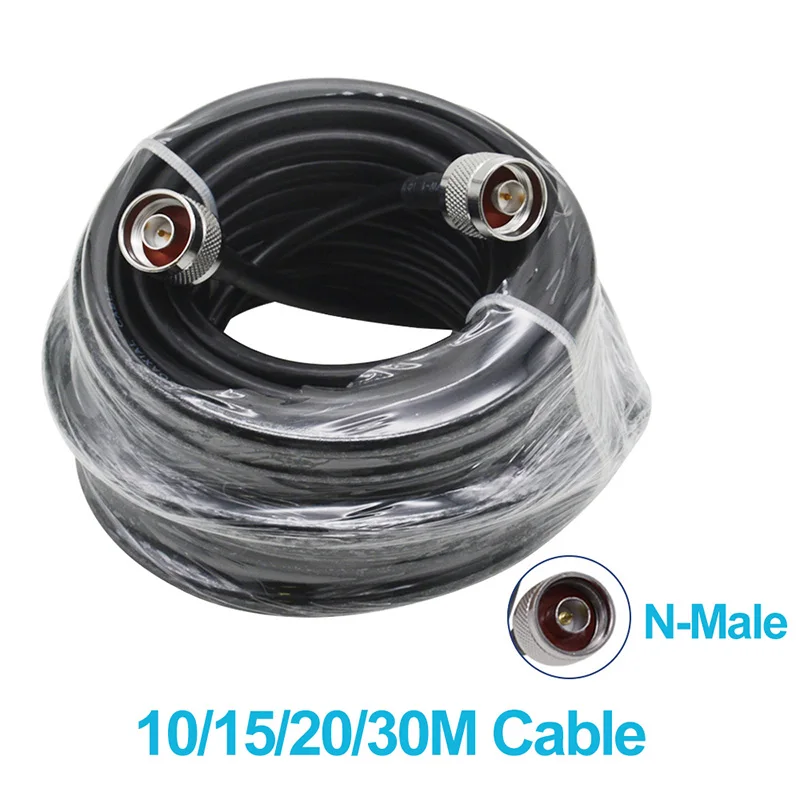

50-5 10M Cable
N Male to N Male Connector(If you need more long cable ,please contact us )
For 2g 3g 4g Signal Booster Repeater and 4g Antennas

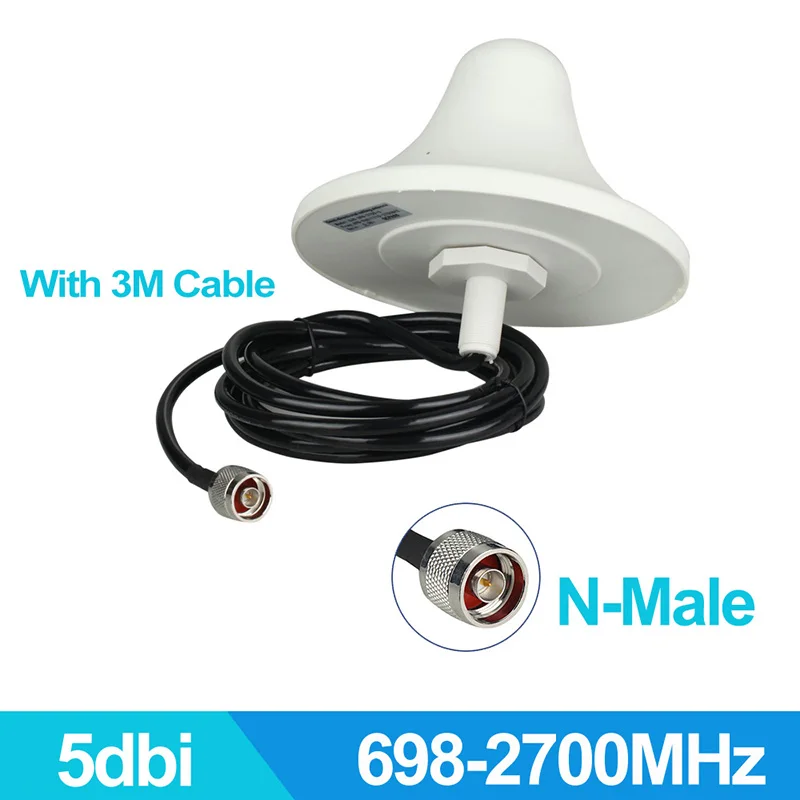

Indoor Antenna :indoor Ceiling antenna with 3 meters cable
Frequency range: 698-2700MHz
Installation type: Vertical
Gain: 3-5dBi
Connector:N-Male
Outdoor Antenna:Omni Outdoor Antenna
Frequency range: 698-2700MHz
Installation type: Vertical
Gain: 8/9dBi
Connector:N-Female
