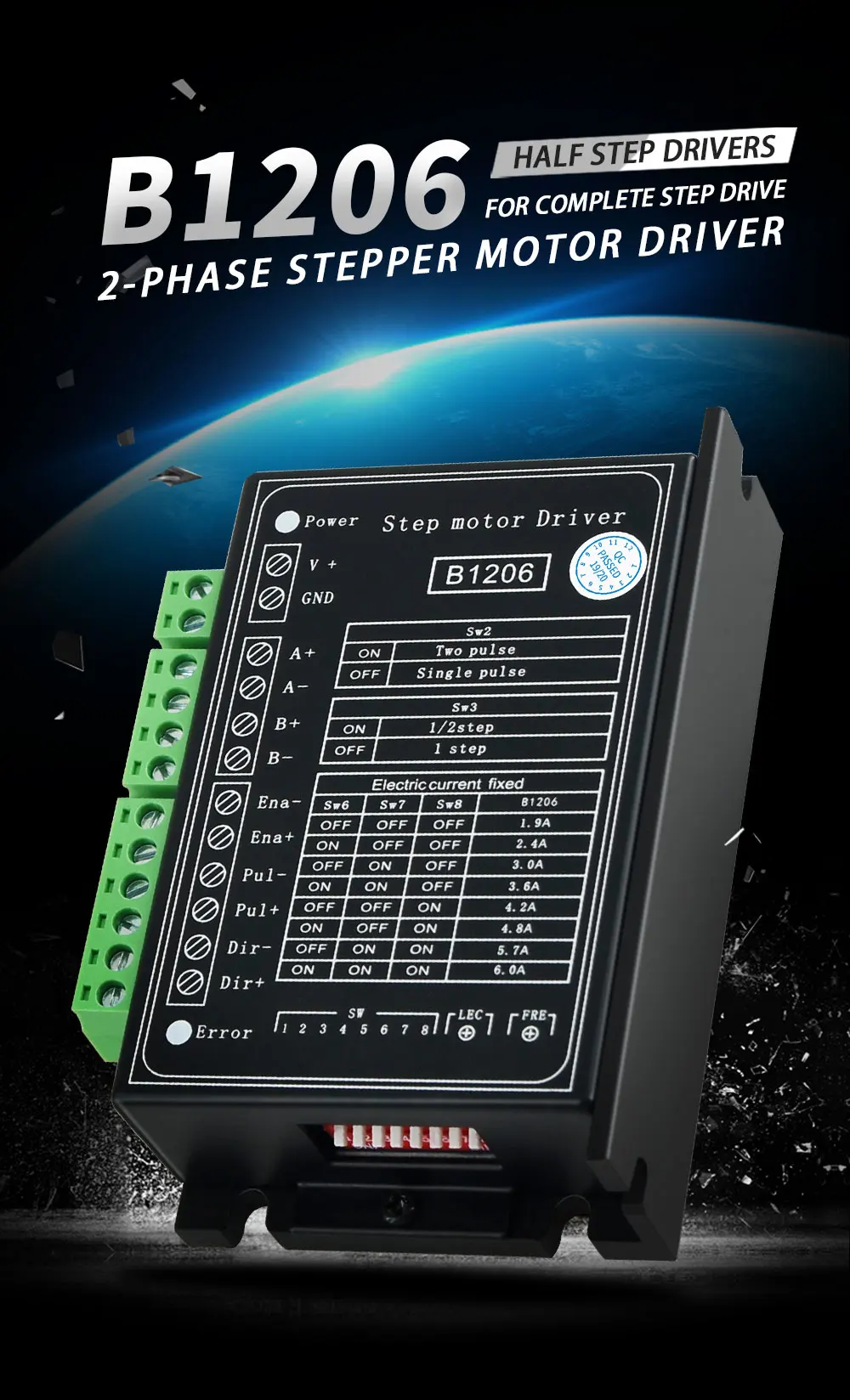

B1206 Stepper / Half Step Driver Two Phase Stepper Motor Driver Supply Voltage 120V Working Current 6A CNIM Hot

Features:
Reduce the noises and to make motor run steadily. It has phase protection and over current protection.
The full/half step series driver series uses the new current control technology to develop high-performance stepper motor drivers.
Improving the high speed torque of stepping motor. Reduce the motor temperature.
The driving voltage is DC20V-DC120V, which can be adapted to all kinds of brands stepper motor; The current is below 6.0A(1.8A-6A).

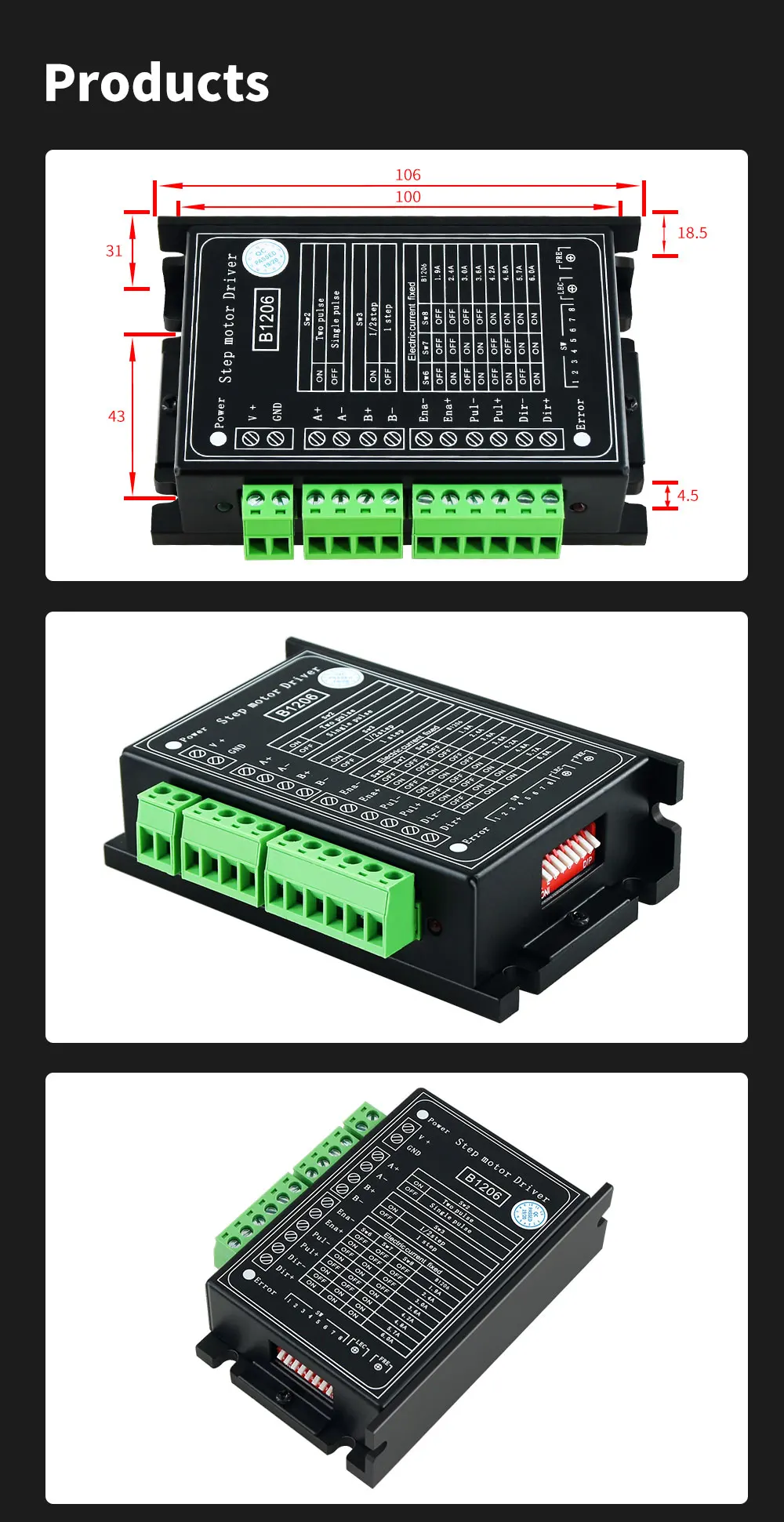

The diameter is 57mm,86mm stepper motor; The four-wire, six-wire and eight-wire two-phase hybrid stepping motor can be used.
