AX516 Brand XILINX FPGA Development Board SPARTAN6 LX16 LX45 DDR3 Gigabit Ethernet

Lonten is a professional PCB and PCBA manufacturer. Shenzhen, China, one-stop OEM solution provider. Provide high quality bare PCB and PCB assembly services, including component procurement. Injection parts and metal parts assembly, MCU programming and functional testing, a large number of wholesale sales of global buyers.
custom pcba pcba manufacture pcba assembly
pcba pcb pcba customized pcb and pcba board
pcb suppliers multilayer pcb pcb design

Key Features

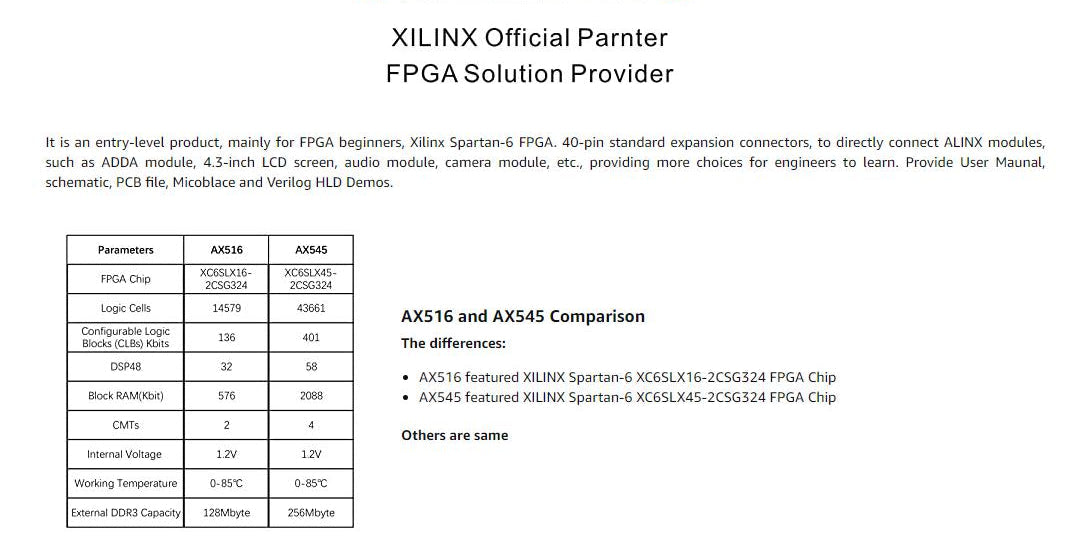

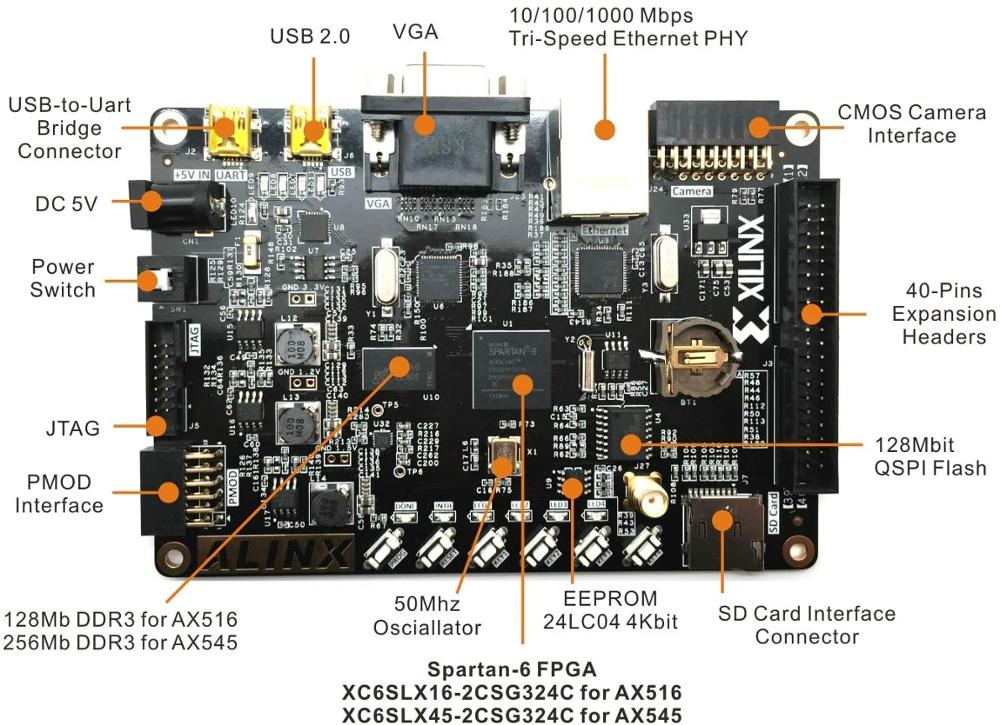

FPGA: Spartan-6 XC6SLX16-2CSG324C for AX516; Spartan-6 XC6SLX45-2CSG324C for AX545 Clocking: Fixed Oscillator with differential 50MHz output, used as the “system” clock for the FPGA Memory: 128Mbit DDR3 DRAM (64M * 16bit), 16bit bus; Quad-SPI FLASH: 128 Mbit; IIC EEPROM 24LC04: 4Kbit (2*256*8bit); SD Card Slot Communication & Networking 10/100/1000 Mbps Ethernet (RGMII), Tri-Speed Ethernet PHY USB-to-UART Bridge Connector VGA Video Display interface USB 2.0 18-Pin CMOS cameral module interface 12-Pin 0.1 inch spacing PMOD interface Expansion Connectors: 0.1 inch spacing standard 40-pin expansion headers Configuration: Onboard JTAG header provided for use with ALINX Brand Xilinx download cables such as the Platform Cable USB II Display: 6 Keys, 6 LEDs ; Real Time Clock
