AX1025 Brand Intel ALTERA FPGA Development Board Cyclone 10 10CL025 Gigabit Ethernet CMOS Camera Interface Custom PCB

Brand Intel ALTERA FPGA Development Board Cyclone 10 10CL006 10CL016 10CL025 Gigabit Ethernet HDM1 CMOS Camera Interface (AX1006, FPGA Board + Platform Cable USB +ADDA+Audio+Camera +LCD)

Intel Altera Cyclone 10 Platform east for function verification. Provide schematic, user manual in PDF, Verilog HDL demos with guideline, technical support during use it. Intel Cyclone 10 LP series FPGA board, cost-effective, low power consumption, rich peripherals for function verification. 4Kbit EEPROM 24LC04, SD Card Slot Interface Connector 18-pin CMOS cameral module interface, HDM1 video display, USB-to-UART, Real time clock, 4 keys and 7 LEDs. Powered 5V DC Adapter (Not provided) 40-pin connectors, expansion opportunities with ALINX Module, such as AD/DA data acquisition modules, camera and LCD modules Designed and manufactured by ALINX, that is XILINX Alliance Member in china. Providing customized services for enterprise

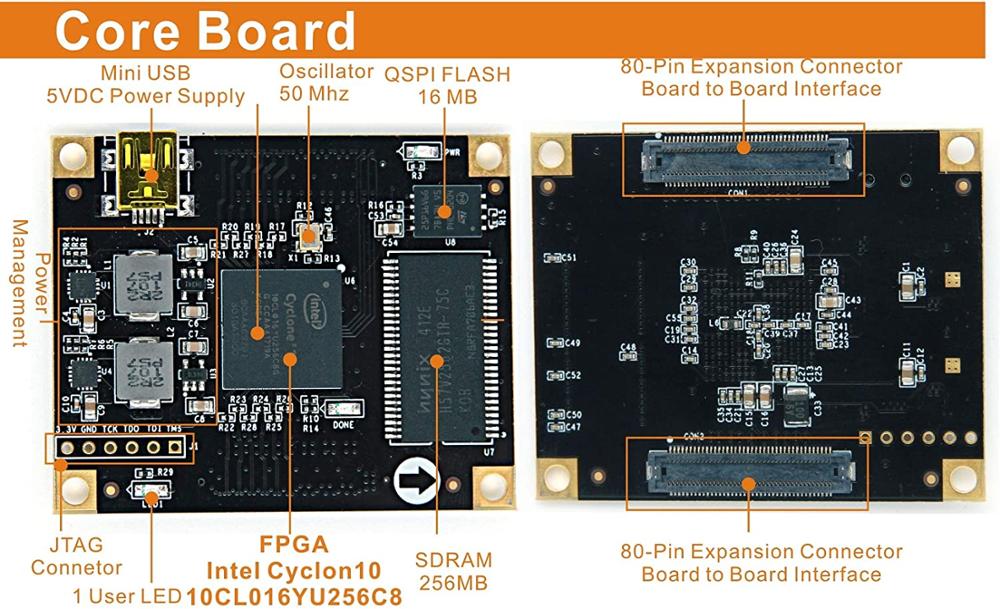

Core Board Key Features

FPGA: Intel Cyclone10 10CL025YU256C8 Clocking: 50MHz Fixed Oscillator Memory: 256Mbit SDRAM up to 133MHz, 16bit data width SPI Flash: 16MB Display: 3LEDs and 1 Reset Key. Configuration: Reserved JTAG Testing Holes, Onboard JTAG configuration circuitry to enable configuration over JTAG header, which is for use with ALINX Brand Intel/Altera download cables such as the Platform Cable USB II; Power: 5VDC (Reserved Mini USB interface or Power by Carrier Board) Two 80-pin high-speed board to board connectors, Expand Standard IO Ports Size Dimension: 1.77 inch x 1.95 inch

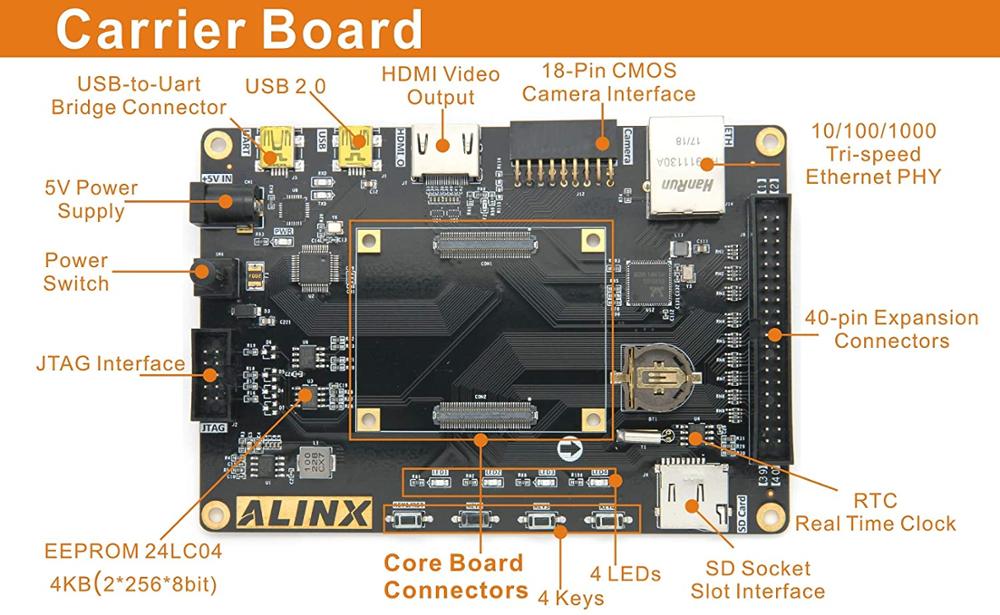

Carrier Board Key Features

Communication & Networking 10/100/1000 Mbps Ethernet (RGMII), Tri-Speed Ethernet PHY HDM1 Output interface USB 2.0 Communicate Interface USB-to-UART Bridge Connector 18-pin CMOS Camera interface Memory: SD Card Slot EEPROM 24LC04: 4Kbit (2*256*8bit) Real Time Clock: DS1302 40-pin expansion connectors Configuration: Onboard JTAG configuration circuitry to enable configuration over JTAG header, which is provided for use with ALINX Brand Intel/Altera download cables such as the Platform Cable USB II; Display: HDM1 Video Output; 4Keys and 7LEDs. Power: 5V DC Adapter Size Dimension: 3.64 inch x 5.12 inch
