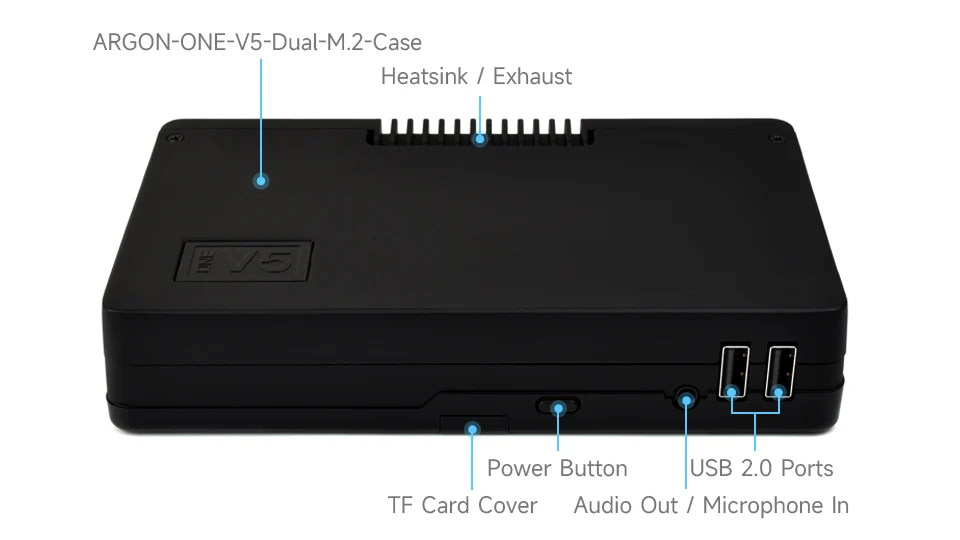

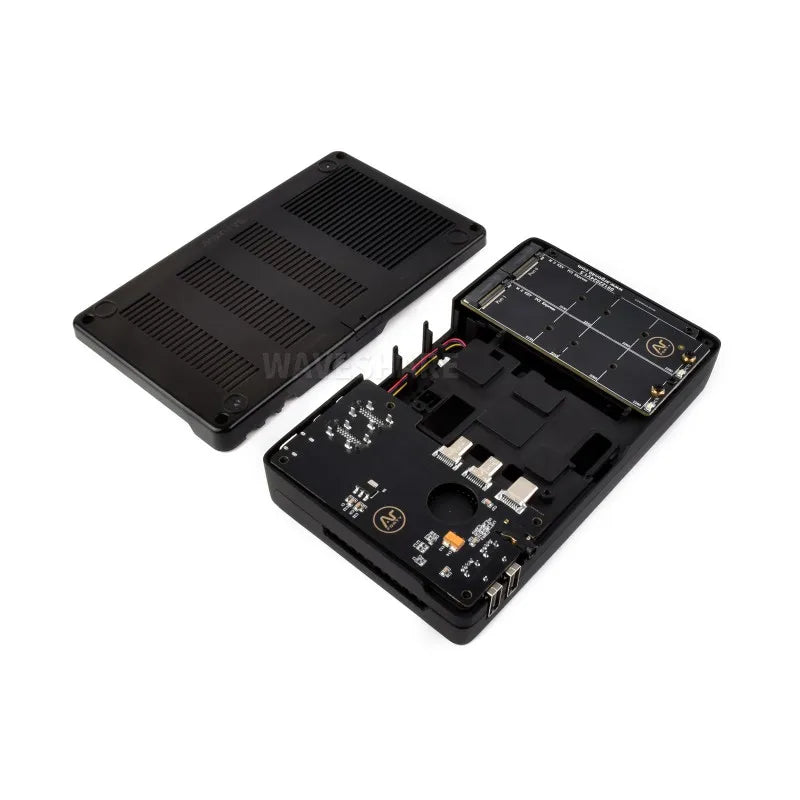

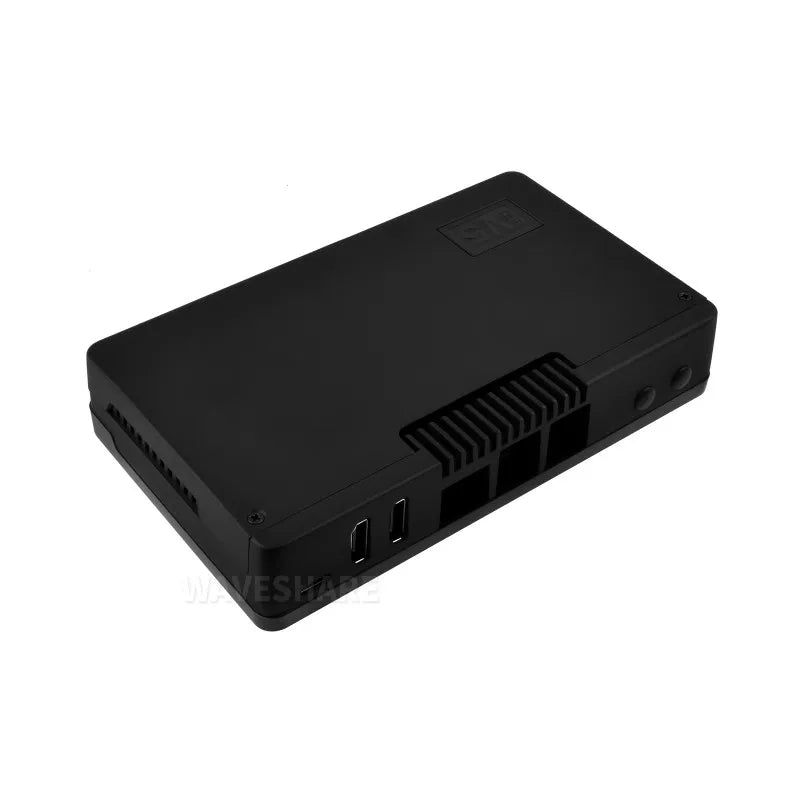

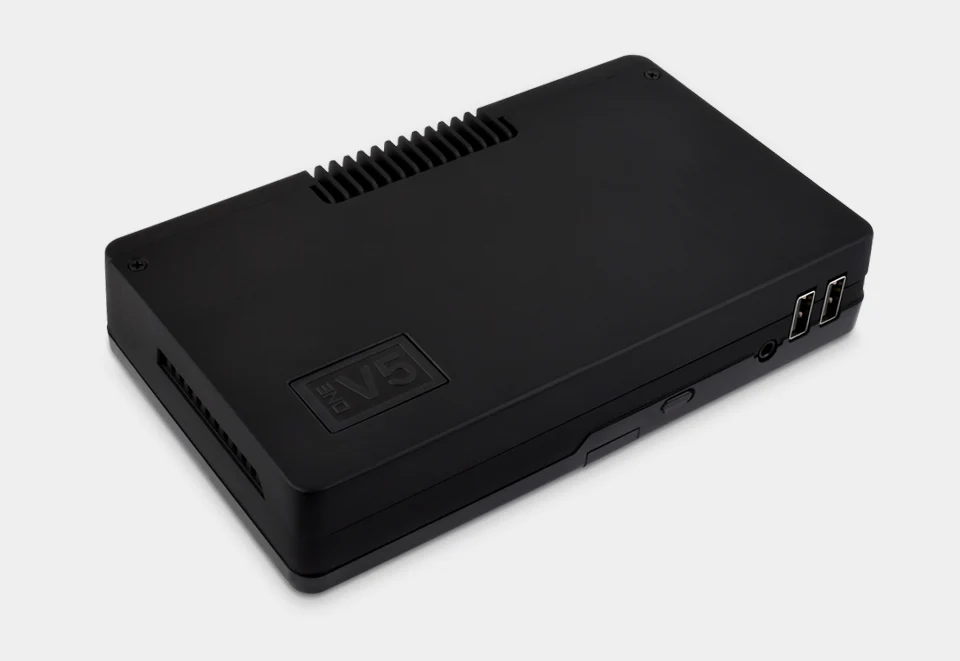

ARGON ONE V5 Case For Raspberry Pi 5, Dual M.2 NVMe PCIe Slots, Aluminum Alloy Case, Built-in Cooling Fan, Compatible With Standard Raspberry Pi HATs
Dual M.2 NVMe PCIe Slots
Aluminum Alloy Case for Raspberry Pi 5
Built-in Cooling Fan, Designed For Raspberry Pi 5
* for reference only, the Raspberry Pi 5 and M.2 NVMe drive are NOT included.
Features
-
Aluminum alloy case for efficient heat dissipation performance
Built-in 30mm PWM fan for greater thermal control, providing active cooling to ensure optimal performance during intense workloads
Onboard dual HD ports, allow you to connect dual displays at high resolution, making it perfect for multi-tasking and media playback
Expands two additional front-facing USB 2.0 ports for easier access to peripherals, boosting convenience and flexibility
Built-in DAC with 3.5mm microphone input & headphone output jack, providing a better audio experience
Built-in dual NVMe PCIe slots, providing high-speed storage for Raspberry Pi 5 and enhancing data access speed and expandability (PCIe Gen 2.0, 500MB/s per channel)
Compatible with standard Raspberry Pi HATs for expanded functionality
Dual M.2 NVMe Expansion Board Compatibility
| compatible with the following M.2 NVMe Drives |
| Waveshare NX-NVME 2280 SSD |
| Official Raspberry Pi SSD |
| Western Digital SN850 |
| Western Digital SN740 |
| Western Digital SN570 |
| Western Digital SN530 |
| Western Digital Black SN750 SE (Phison Controller) |
| WD Blue SN580 NVME |
| Samsung 980 Pro |
| Samsung 980 |
| Sabrent Rocket Nano |
| Sabrent Rocket 4.0 |
| PNY CS1030 |
| Origin Inception TLC830 Pro NVMe |
| Netac NV3000 NVMe SSD |
| Netac NV2000 NVMe SSD |
| Lexar NM710 |
| Lexar NM620 |
| Kioxia Exceria NVMe SSD |
| Kioxia Exceria G2 NVMe SSD |
| Kingston KC3000 |
| Kingston SNV2S NV2 Gen4 PCIe NVMe M.2 2280 Solid-State Drive |
| Inland PCIe NVMe SSD |
| Crucial P2 M.2 |
| Axe Memory Generic Drive |
| AData XPG SX8200 Pro |
Note: the models listed above are the NVMe drives that have been tested for compatibility. Other models may also work, but have not been tested.
Assembly Instructions

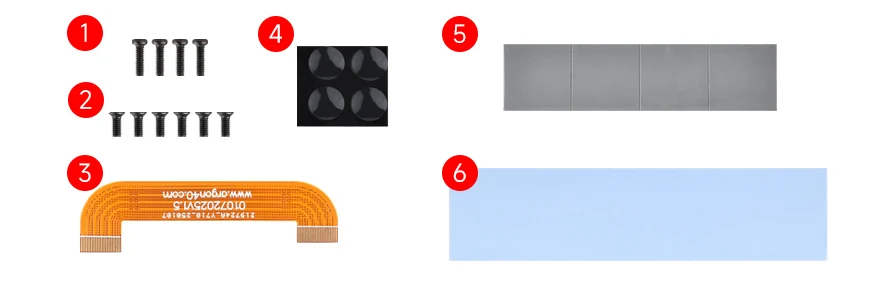

Prepare the accessories as shown above.

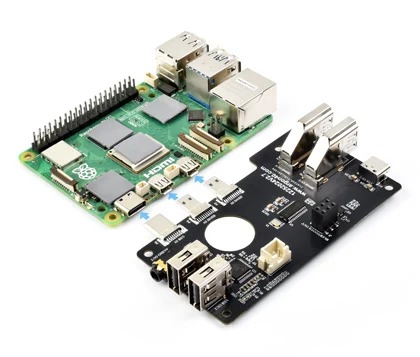

1. Connect the Raspberry Pi 5 to the HD-USB2-Audio Board, and place the thermal pads to the positions shown in the image.

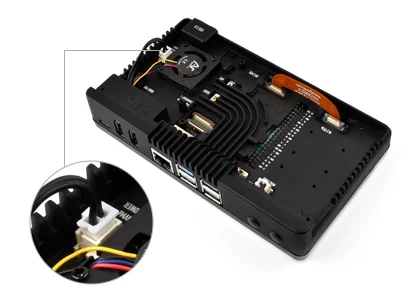

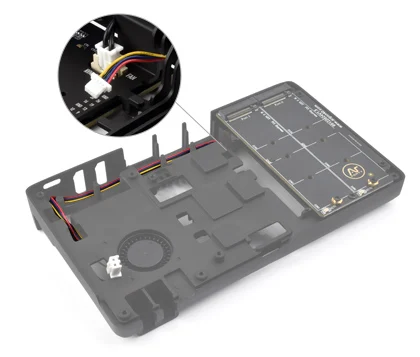

2. Route the PWM fan cable and NVMe power cable through the guide posts at the rear of the Argon ONE V5 case, as seen in the picture above.

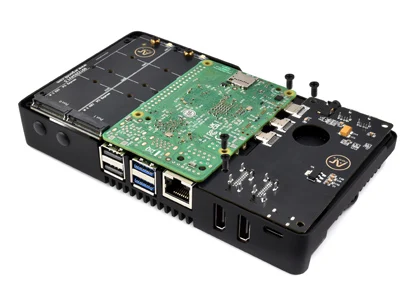

3. Place the Raspberry Pi 5 and HD-USB2-Audio Board assembly on the V5 case as shown in the picture above, and fix them with 4x screws.

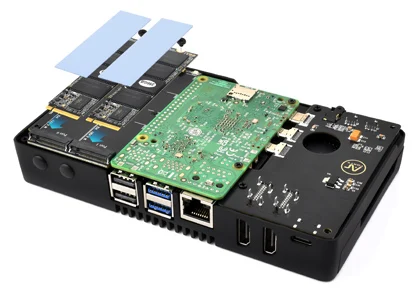

4. Install your M.2 NVMe Drives (NOT included) on the two NVMe PCIe slots. Then add the blue silicon thermal pads on the NVMe Drives.

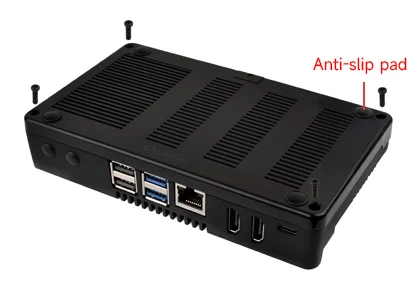

5. Fix the middle case and bottom case with 4x screws, and install the anti-slip pads at each corner shown in the picture.

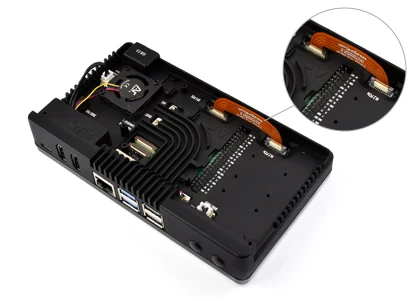

6. Connect the PCle cable to the NVMe Board and Raspberry Pi 5 PCle port. Make sure that the COPPER side is facing the WHlTE side of the PCIe port.
7. Connect the power cable of the NVMe board to the position shown in the picture.

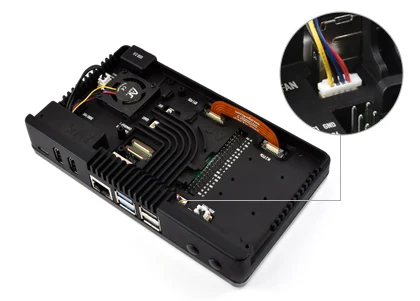

8. Connect the power cable of the cooling fan to the exposed Raspberry Pi 5 FAN port.

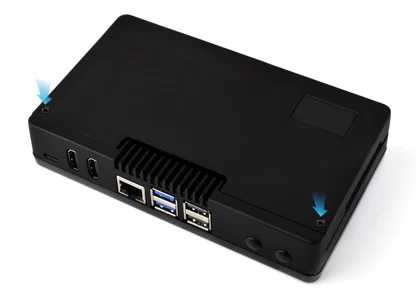

9. Attach the top cover and secure it with 2x screws to complete the assembly.
* for reference only, please refer to the Package Content for detailed part list.
PACKAGE CONTENT
Weight: 0.369 kg
-
Metal case (with built-in cooling fan) x1
-
Instruction manual x1
-
Screws pack x1
-
Black anti-slip rubber 4PCS x1
-
PCIe cable x1
-
Thermal pad 4PCS x1
-
Blue thermal pad 2PCS x1
