Arducam Mini Module Camera Shield with OV26402 Megapixels Lens for Mega2560 Board & Raspberry Pi Pico Custom PCB

Arducam Mini Module Camera Shield with OV26402 Megapixels Lens for Mega2560 Board & Raspberry Pi Pico Custom PCB

$40.00 USD
$80.00 USD $40.00 USD
Sale Sold out


Item Description:

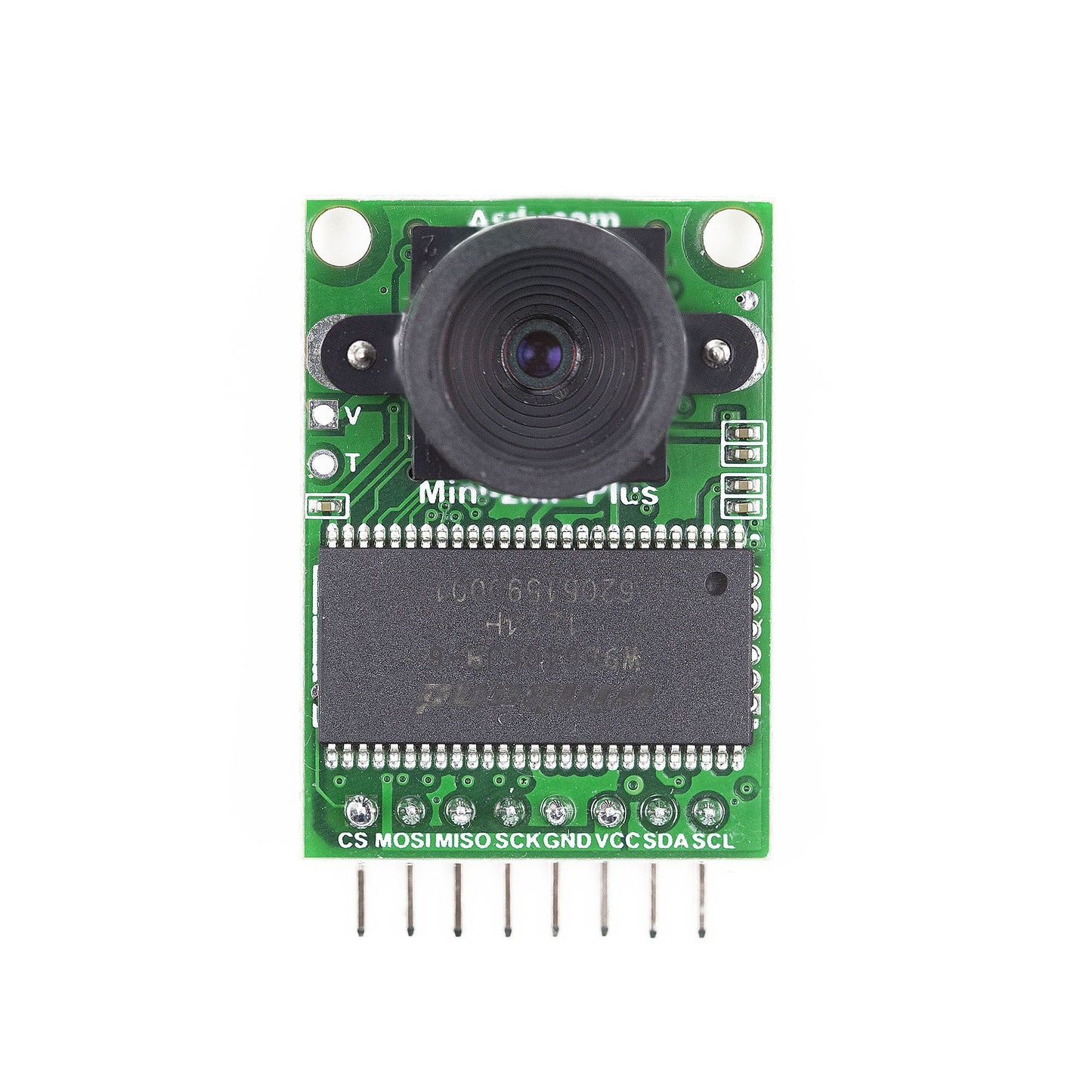

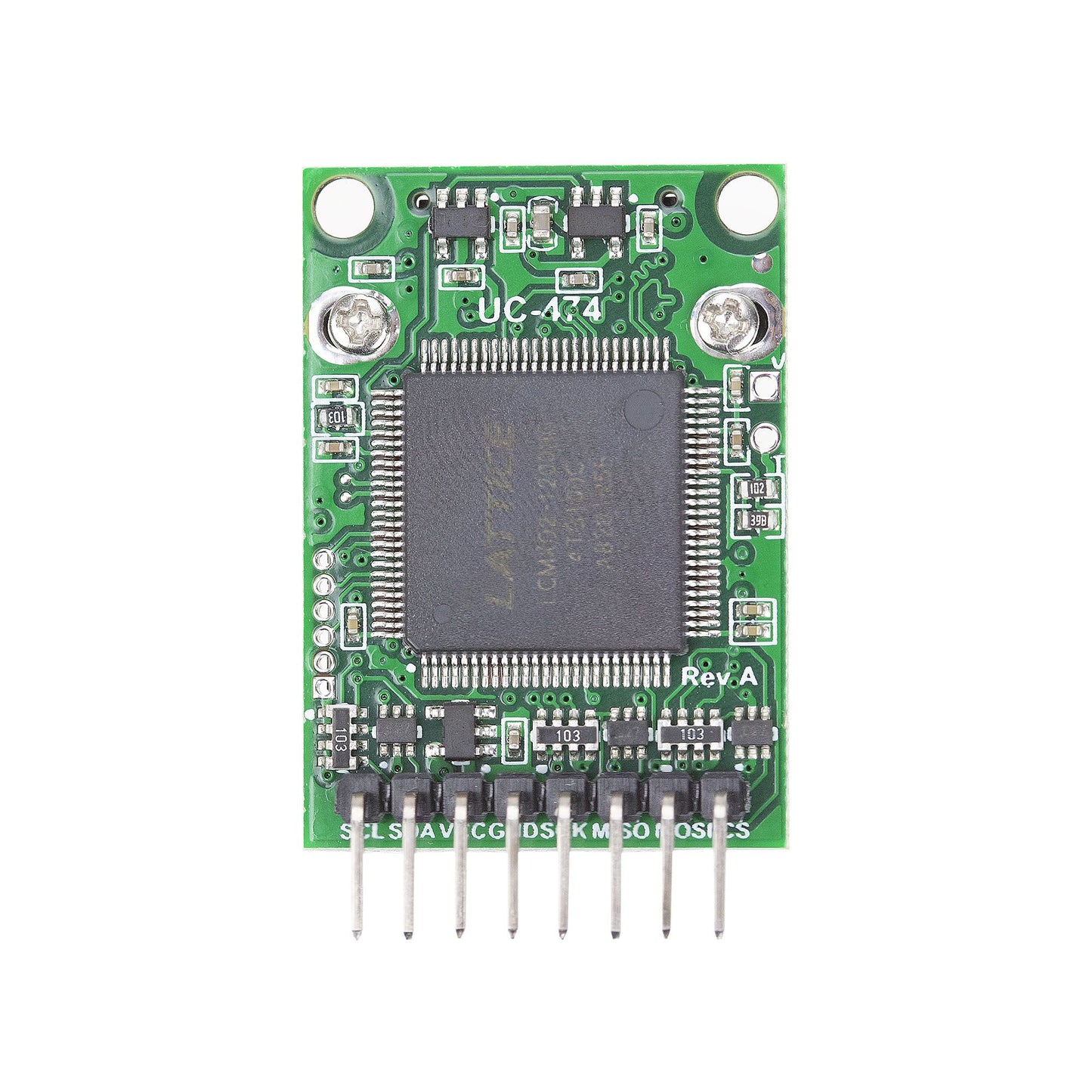

ArduCAM-M-2MP-Plus is update version of ArduCAM-M-2MP, and is a high definition 2MP SPI camera, which reduce the complexity of the camera control interface. It integrates 2MP CMOS image sensor OV2640, and provides miniature size, as well as the easy to use hardware interface and open source code library. The ArduCAM mini can be used in any platforms like Ard, Raspberry Pi, Maple, Chipkit, Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard Ard boards. ArduCAM mini not only offers the capability to add a camera interface which doesn’t have in some low cost microcontrollers, but also provides the capability to add multiple cameras to a single microcontroller.

Application:

  • IoT cameras

  • Robot cameras

  • Wildlife cameras

  • Other battery-powered products

  • Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms

Features:

  • 2MP image sensor OV2640

  • M12 mount or CS mount lens holder with changeable lens options

  • Onboard 8MByte frame buffer

  • IR sensitive with proper lens combination

  • I2C interface for the sensor configuration

  • SPI interface for camera commands and data stream

  • All IO ports are 5V/3.3V tolerant

  • Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read operation, low power mode and etc.

  • Well mated with standard Ard boards

  • Provide open source code library for Ard, STM32, Chipkit, Raspberry Pi, BeagleBone Black

  • Small form of factor

  • Output Format: RAW, YUV, RGB, JPEG

Package Including:

  • 1pcs Arducam Mini module Camera Shield w/ 2 MP-Plus OV2640 for Ard Mega2560 board

  • 1pcs Dupont Cable
