Arducam 8MP Synchronized Stereo Camera Bundle Kit for Raspberry Pi With Fisheye Lens Custom PCB panel light pcba

Overview

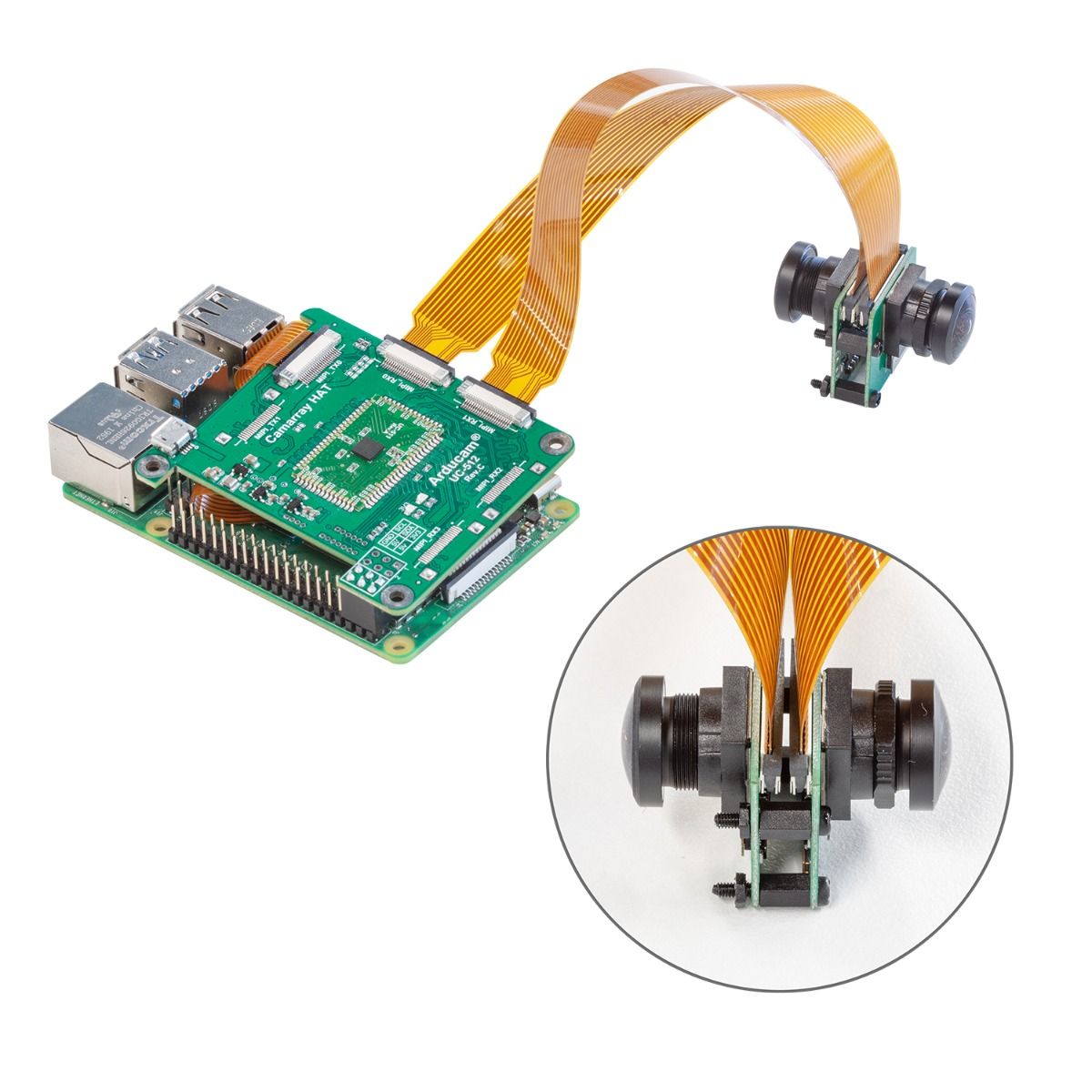

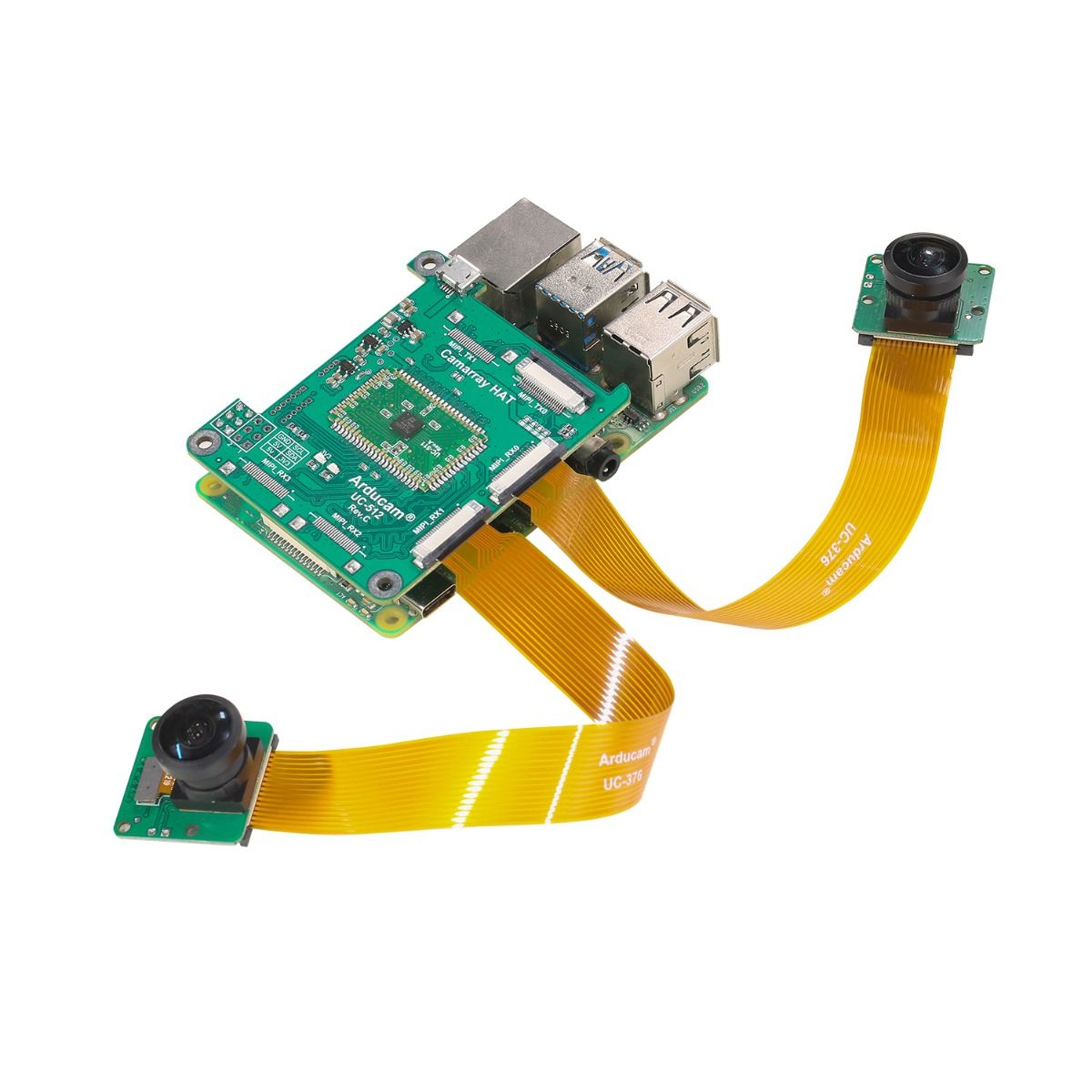

This Arducam 8MP Synchronized Stereo Camera Bundle Kit is capable of running two 8MP IMX219 Camera Modules simultaneously through a single MIPI CSI-2 camera slot connection on Raspberry Pi. It consists of two 8MP IMX219 camera module and an Arducam stereo camera HAT. The stereo camera HAT is enabled by ArduChip to disguise the dual-camera connection as a single camera to be accepted by the RPi. You can use this bundle to build your stereo camera system for depth-related vision applications or upgrade your IMX219 stereo setup.

Application

• Robot navigation

• Objective tracking

• 3D measurement

• 3D reconstruction

• Depth-related vision applications

Specifications:

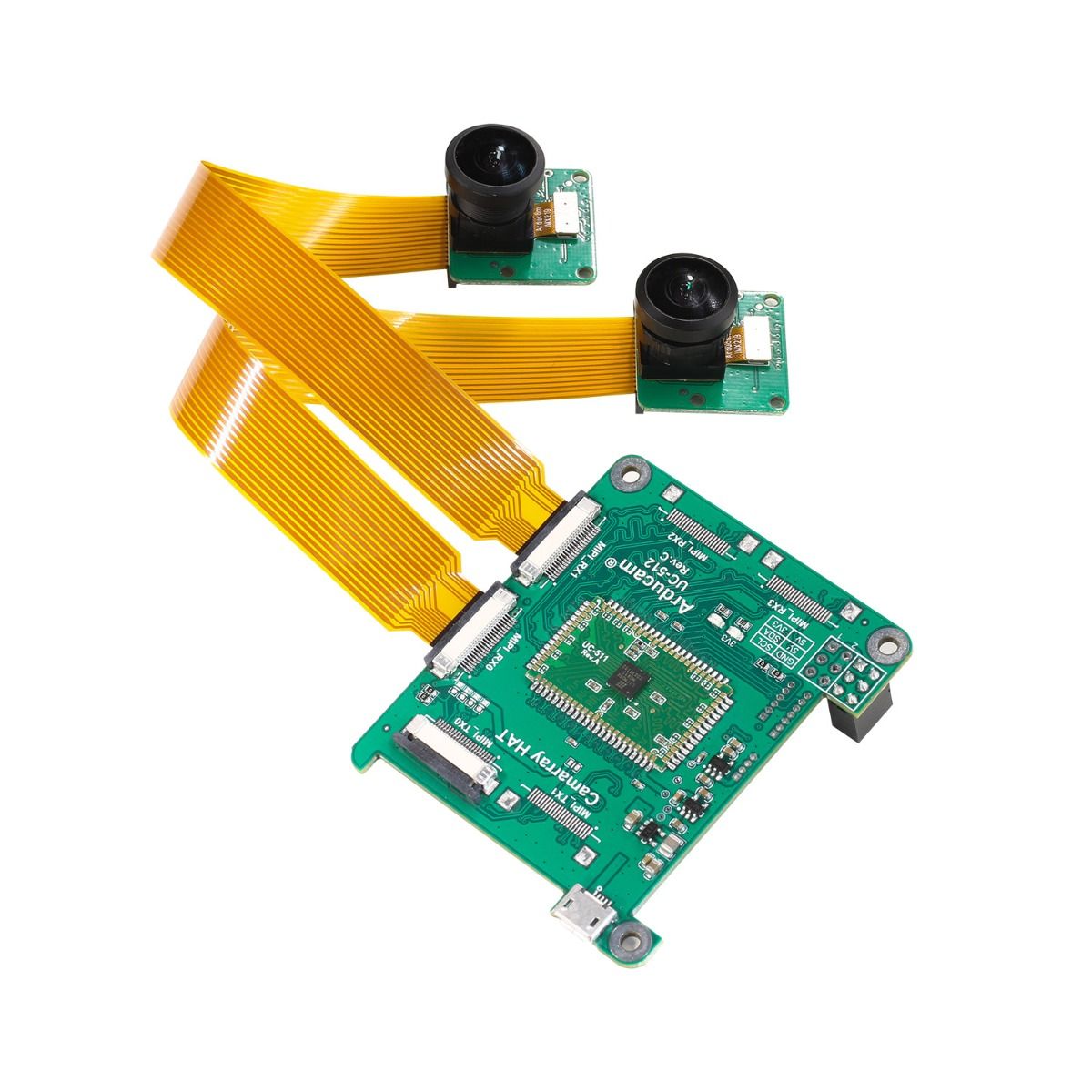

– Camarray Stereo Camera HAT

• Support Raspberry Pi 3B/3B+/4B, Pi HAT board style

• Two MIPI camera inputs and one MIPI camera output

• Support 1/2 lane MIPI cameras input up-to 1Gbps/lane

• Support 2 lane MIPI output up-to 1Gbps/lane

• Support RAW8/RAW10/RAW12 output format, the output format automatically changes with the input format

• Support Raspistill (preview) and Raspivid (processing) commands for 5MP/8MP/12.3MP pi cameras with half resolution combine

• Support Arducam Pi cameras up to 16MP with proprietary camera driver with full resolution combine

• Support camera side-by-side combine, channel 0 and channel 1 software switching on the fly

• HAT Size: 65 x 56 mm

 Camera

• Sensor: IMX219

• Optical Format: 1/4″ (diagonal 7.857mm)

• Resolution: 3280(H)×2464(V) 8MP

• Pixel Size: 1.12 µm (H) × 1.12 µm (V)

• IR Sensitivity: Visible light

• Interface: 2-lane MIPI CSI-2

• Default Lens Mount: M12 Mount Lens(PN#M32076M20)

• Video Modes: RAW8/RAW10

• Frame rate: Official driver-1642×1232@30fps with raspistill, 1920×1080@30fps with raspivid;    Arducam MIPI Camera driver-3264×2×2464@8fps 2592×2×1944@10fps 1920×2×1080@18fps

• Board Size: 24mm x 24mm

– Lens

• Format: 1/4 inch

• Focal Length: 0.76mm

• Aperture (F): F2.1

• Field of View (FOV): 220° (H)

• Mount: M12 Mount

• Back Focal Length: 2mm

• MOD: 0.2m

• Dimension: Φ16×13.5mm

• Weight: 5g

Package Includes

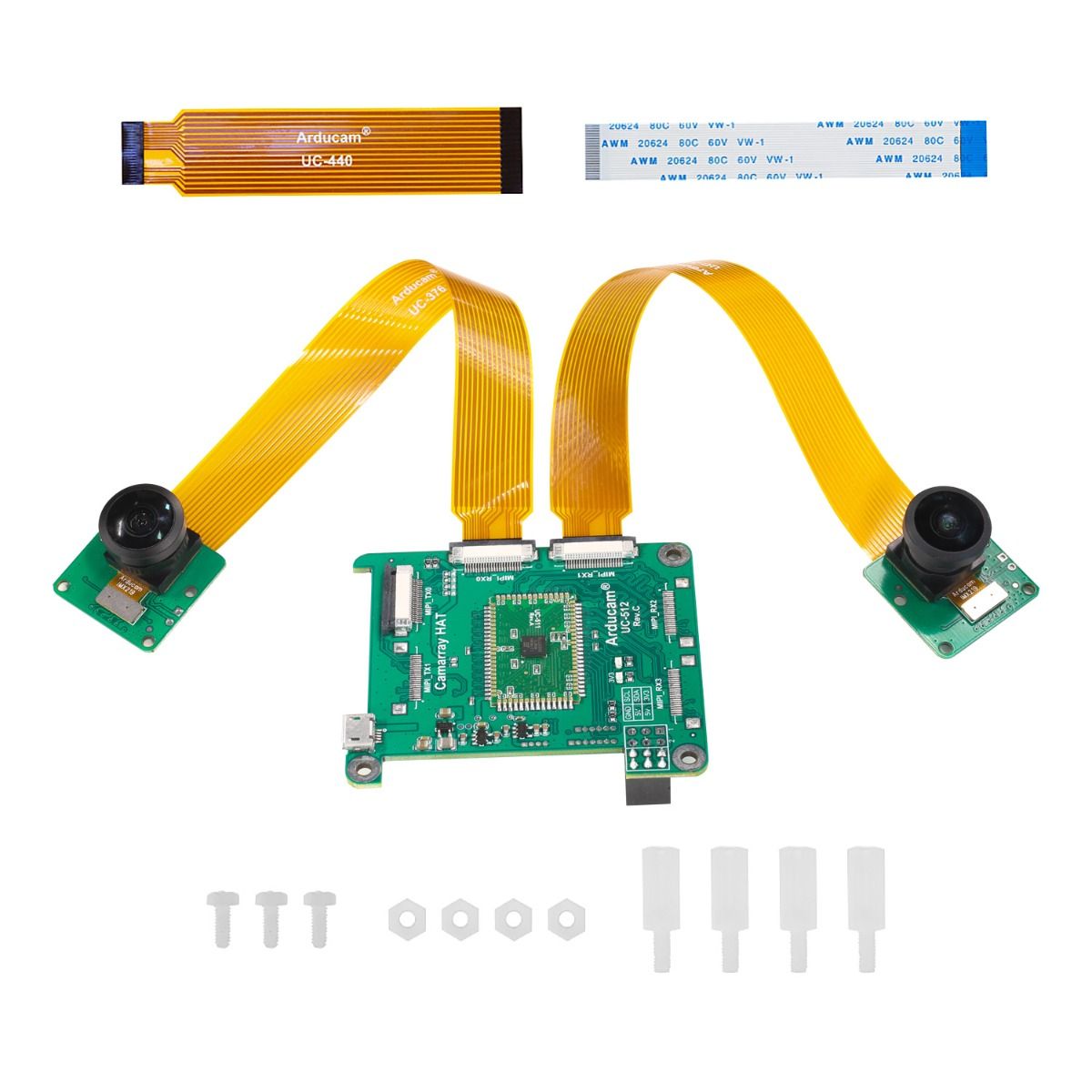

• 1pcs Arducam Synchronized Stereo Camera HAT for Raspberry Pi

• 2pcs 8MP IMX219 color camera module mounted with M12 lens

• 2pcs Arducam 73mm 15pin to 22pin Ribbon Cable

• 1pcs Arducam 150mm 15pin to 22pin Ribbon Cable

• 4pcs M2.5*11mm Nylon Hex Standoffs

• 4pcs M2.5 Nylon Nuts

• 3pcs M2.5*6mm Nylon Screws

NOTE

• Raspberry Pi board is not included in the package.

• Oscillator sharing requires extra cables, soldering skill needed or please use Arducam bundle kit.

• The IMX219 camera in this kit is a special version and cannot be used on Raspberry Pi or Jetson directly.

• Contact us for other platform support.
