Arducam 1MP*4 Quadrascopic Monochrome Camera Bundle Kit for Raspberry Pi Custom PCB wireless pcba powerbank

Key Specifications:

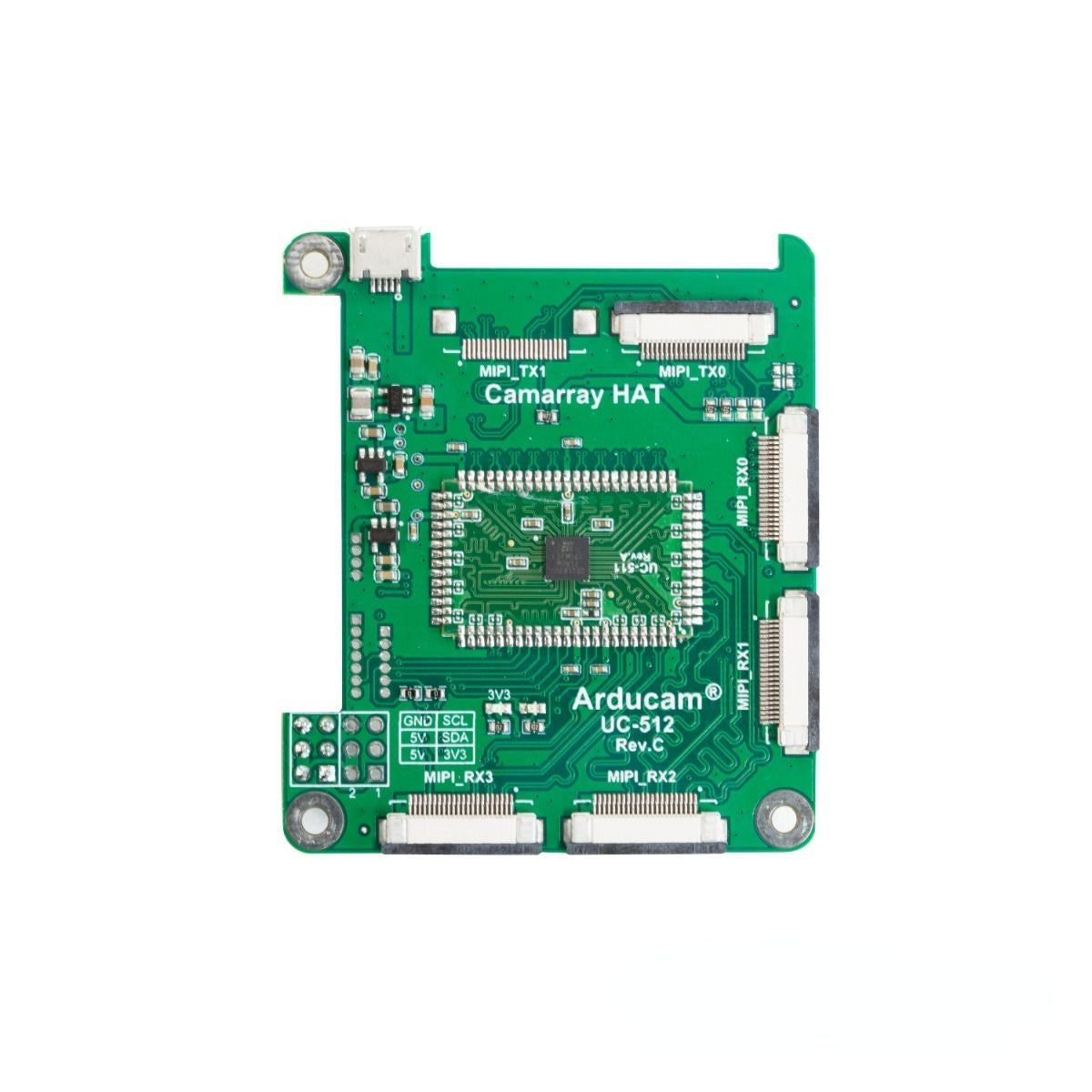

- Camarray Quadrascopic Stereo Camera HAT

• Support Raspberry Pi 3B/3B+/4B and Jetson Nano/NX

• Two/Three/Four MIPI camera inputs and one MIPI camera output

• Support 1/2 lane MIPI cameras input up-to 1Gbps/lane

• Support 2 lane MIPI output up-to 1Gbps/lane

• Support RAW8/RAW10/RAW12 output format, the output format automatically changes with the input format

• Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)

• Support Arducam cameras up to 12MP with proprietary camera driver with full resolution combine

• Support Two/Three/Four MIPI camera side-by-side combine, channel 0/1/2/3 software switching on the fly

• HAT Size: 65 x 56 mm

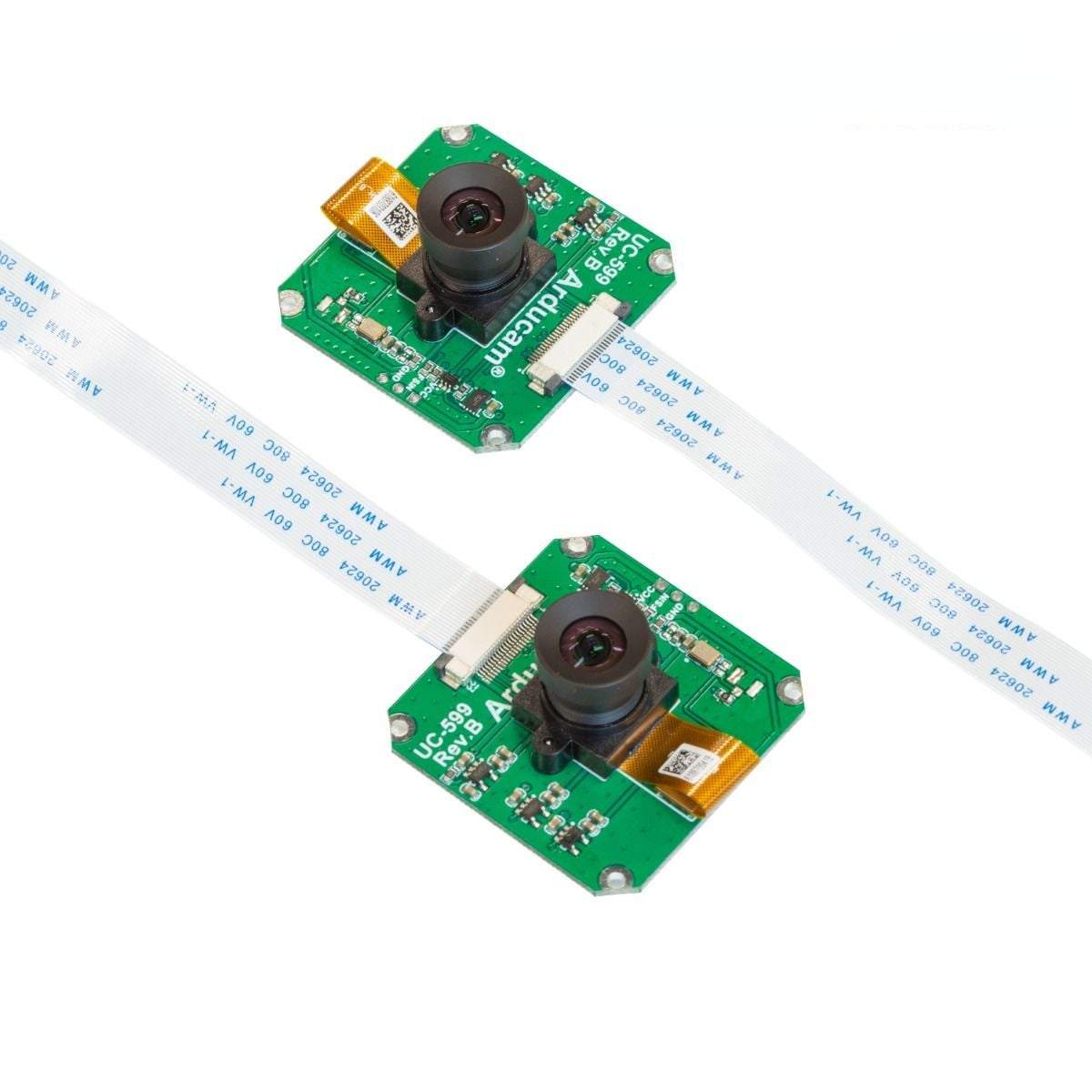

• Sensor: Monochrome global shutter OV9281

• Pixel Size: 3 μm x 3 μm

• Active Array Size: 1280 x 800

• Optical Size: 1/4 inch

• Focusing Range: 30mm ~ infinite

• IR Sensitive: No IR filter, sensitive to IR

• Output interface: 2-lane MIPI serial output

• Video Modes: 8-bit RAW, 45fps@1280*4 × 800 with Arducam driver on Jetson Nano/Xavier NX; 30fps@1280*4 × 800 with Arducam driver on Rpi

• Board Size: 40mm x 40mm

• Optical Format: 1/2.7”

• Distortion: <1%

• Effective Focal Length: 2.8mm

• FOV on 1/4” RPi Camera: 70° (H)

• F/NO: 2.8

• Mount: M12

• Size: 14mm x 15.6mm

• Weight: 4g

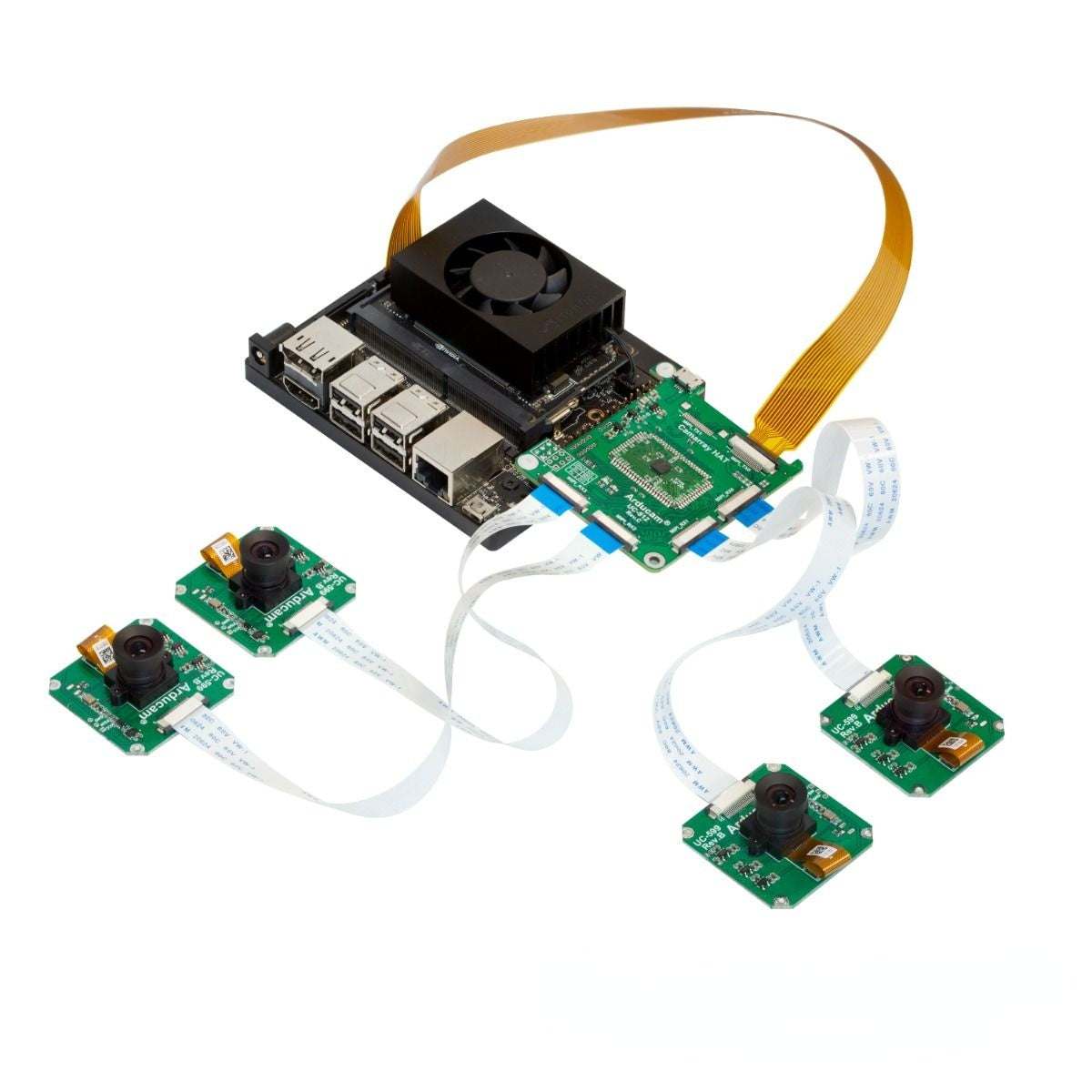

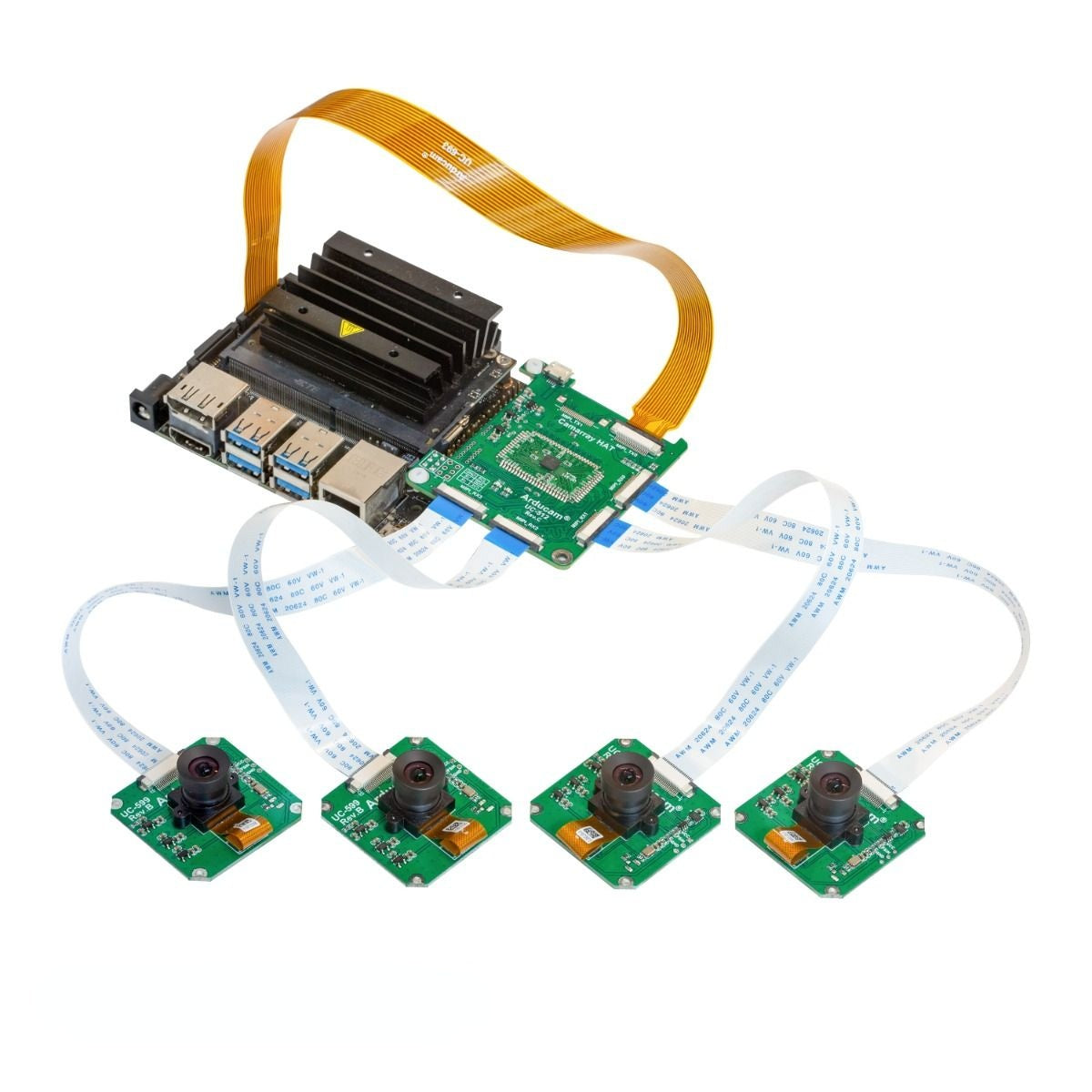

Package Including:

• 4 pcs 1MP OV9281 global shutter camera module with low distortion M12 lens

• 1 pcs Arducam Camarray quadrascopic stereo camera HAT

• 4 pcs 150mm/6inch 22pin to 22pin camera cables

• 1 pcs 300mm/12inch 15pin to 22pin camera cable

• 1 pcs 73mm/2.87inch 15pin to 22pin camera cable

• 4 pcs M2.5*10mm Nylon Hex Standoffs

• 4 pcs M2.5 Nylon Nuts

• 4 pcs M2.5*6mm Nylon Screws
