DESCRIPTION

Overview

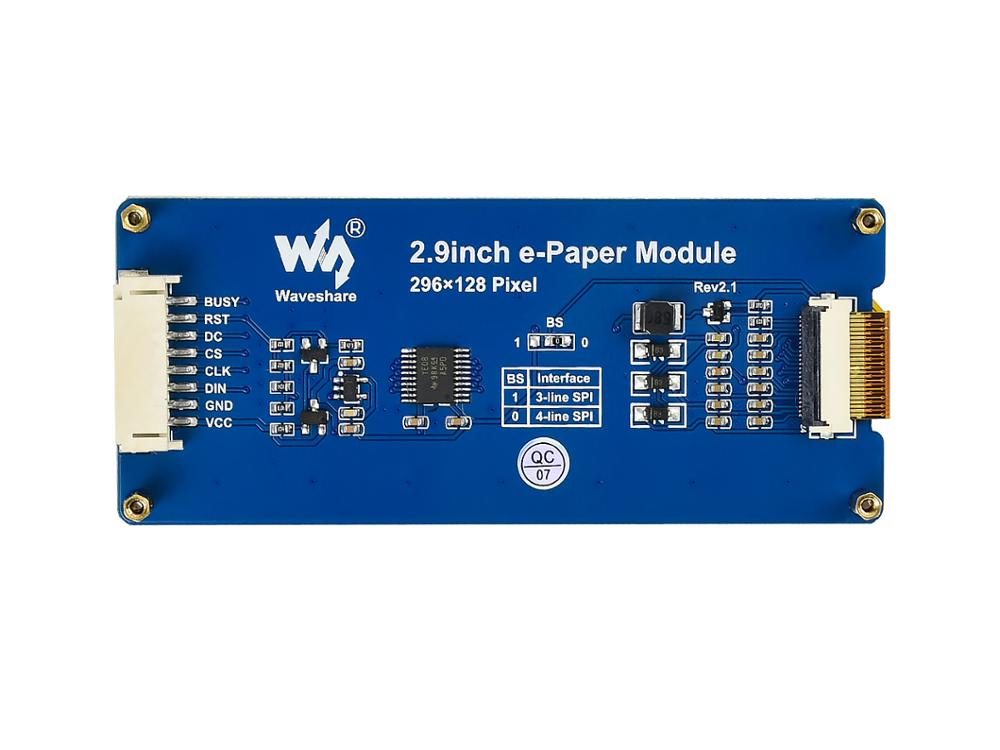

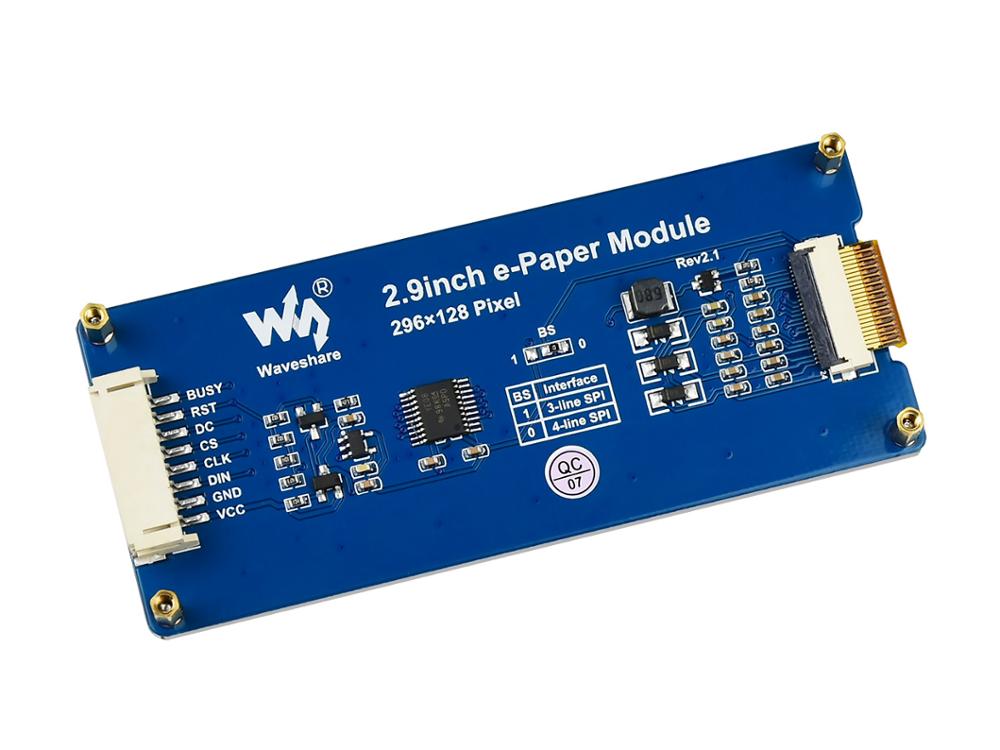

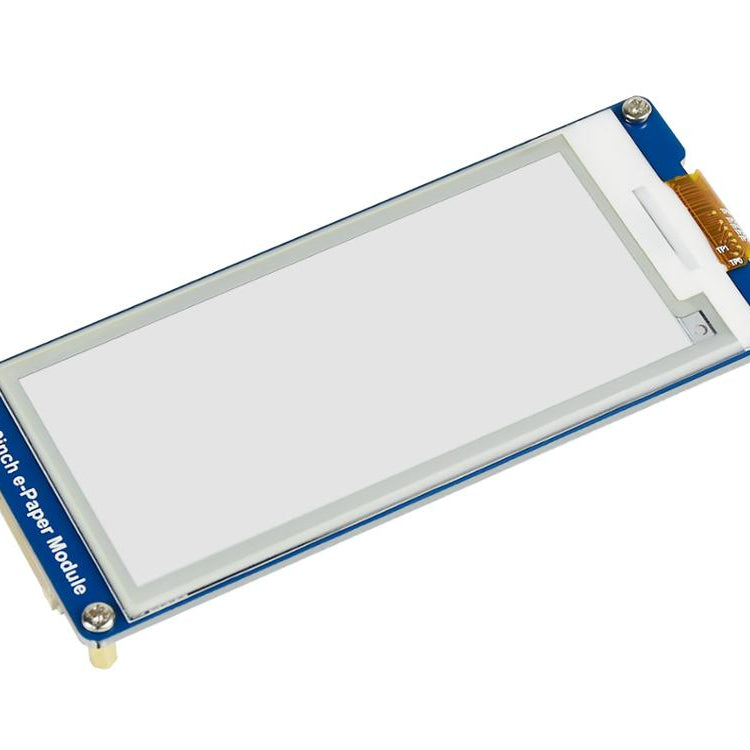

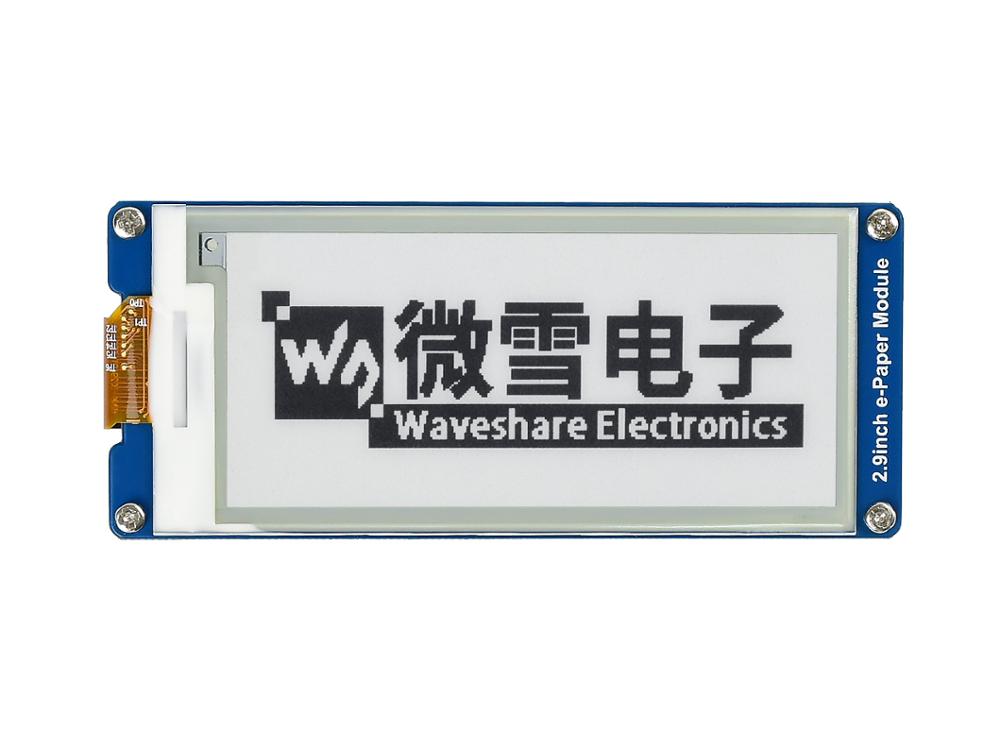

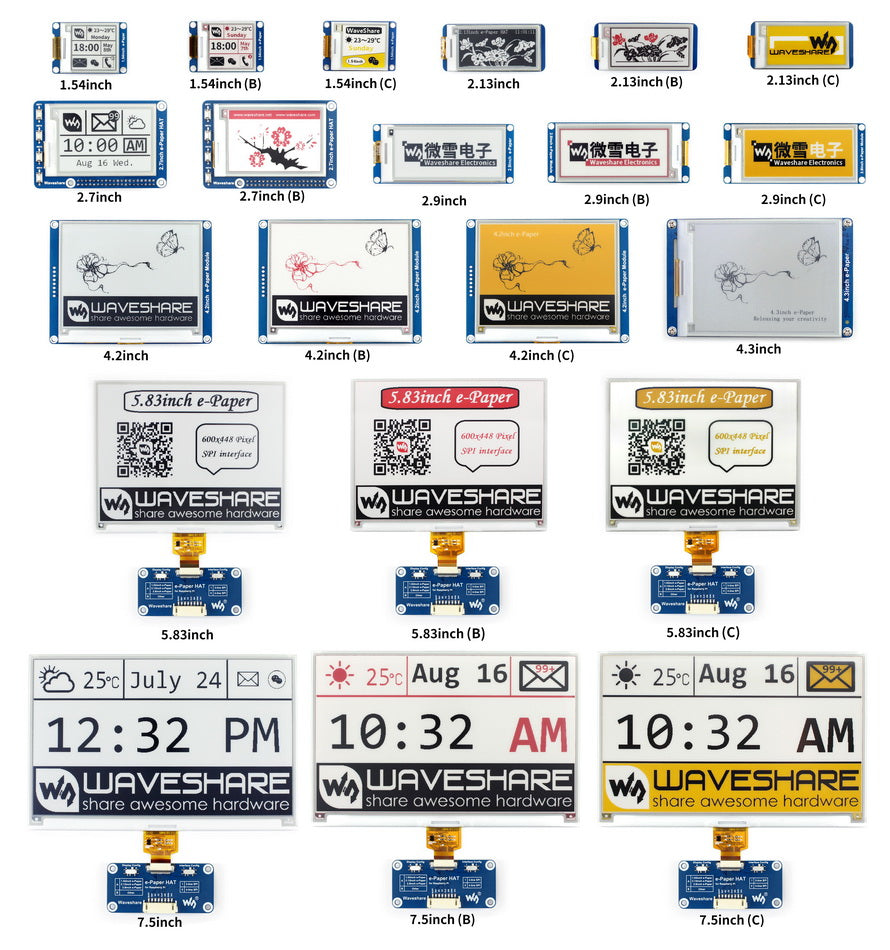

This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with controller boards like Raspberry Pi/Ard/Nucleo, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ard/STM32)

Specifications

• Operating voltage: 3.3V/5V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 89.5mm × 38mm
• Display size: 66.89mm × 29.05mm
• Dot pitch: 0.138 × 0.138

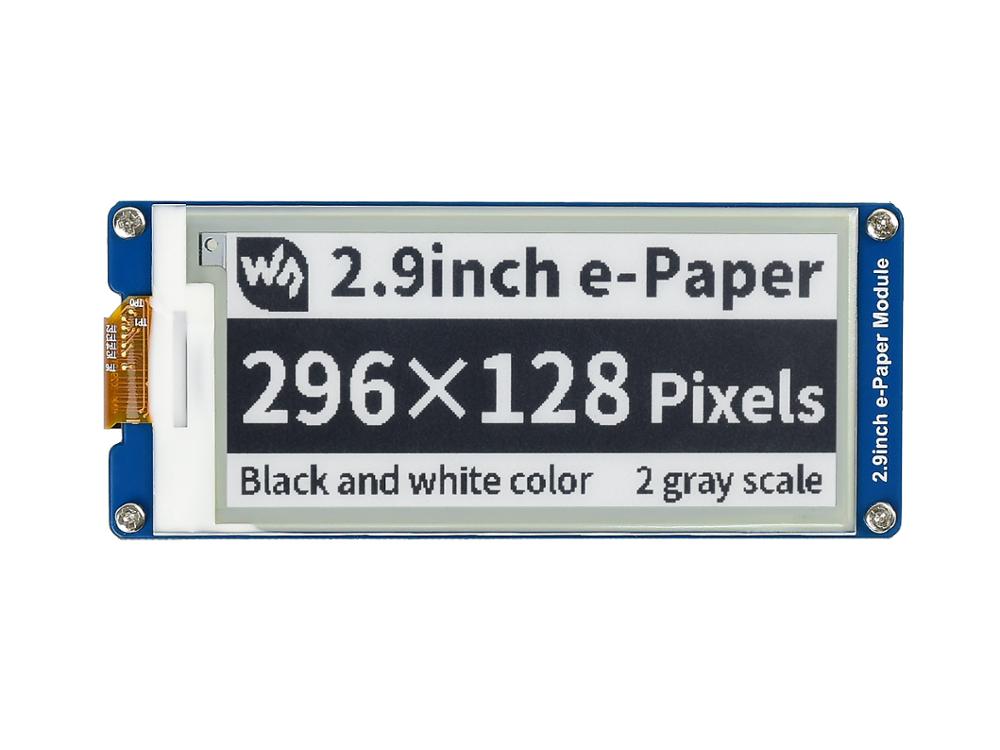

• Resolution: 296 × 128
• Display color: black, white
• Grey level: 2
• Partial refresh time: 0.3s
• Full refresh time: 2s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

1.
   Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

PACKAGE CONTENT

Weight: 0.036 kg

1. 1. 2.9inch e-Paper Module x1
2. 2. PH2.0 20cm 8Pin x1
