8MP Camera 160 200 IMX219 Focal Adjustable 3280X2464 1080p30/720p60 640X480p90 Camera Module for Raspberry Pi 5 Jetson Nano

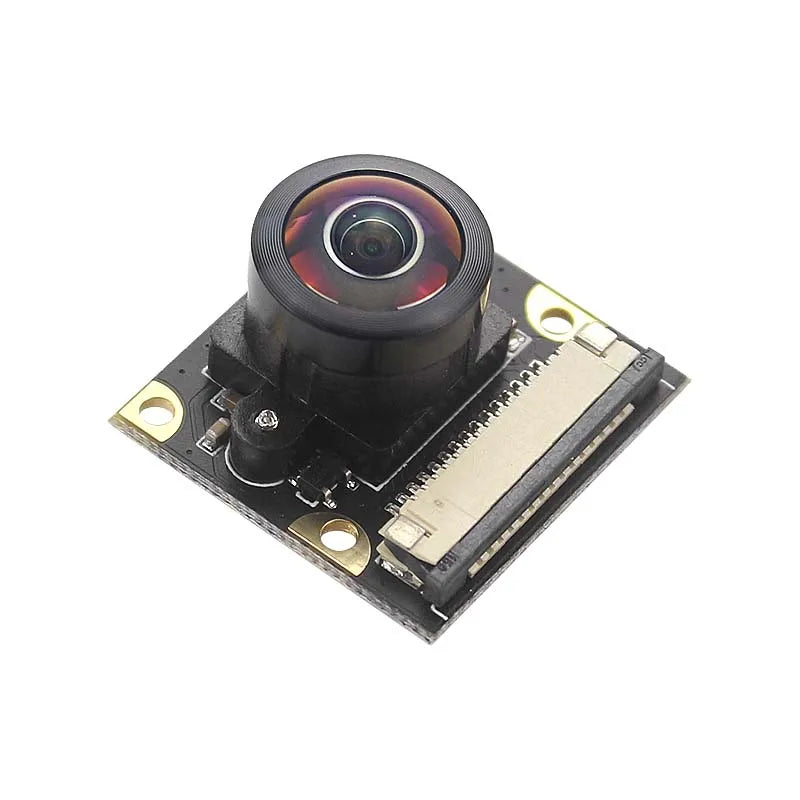

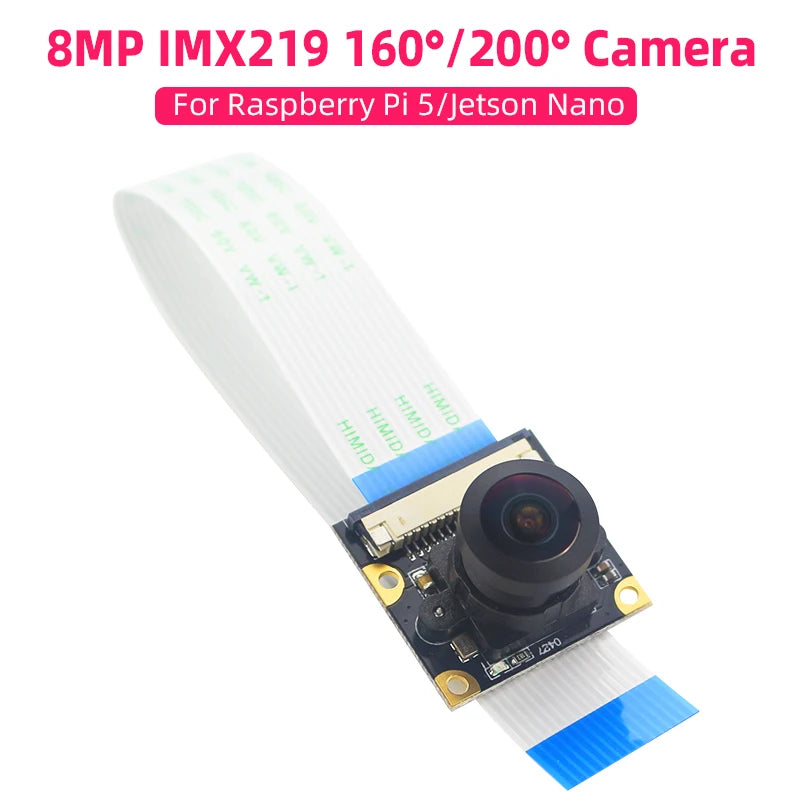

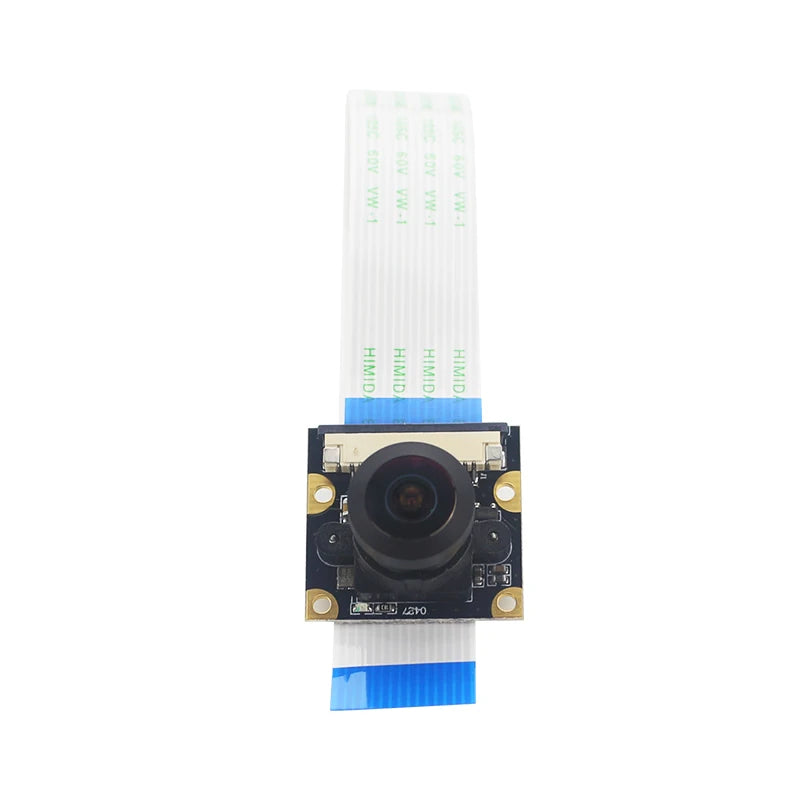

8MP Camera 160°/200° FOV IMX219 Focal Adjustable 3280×2464 Video Camera Module for Raspberry Pi 5/Jetson Nano

Introduction :

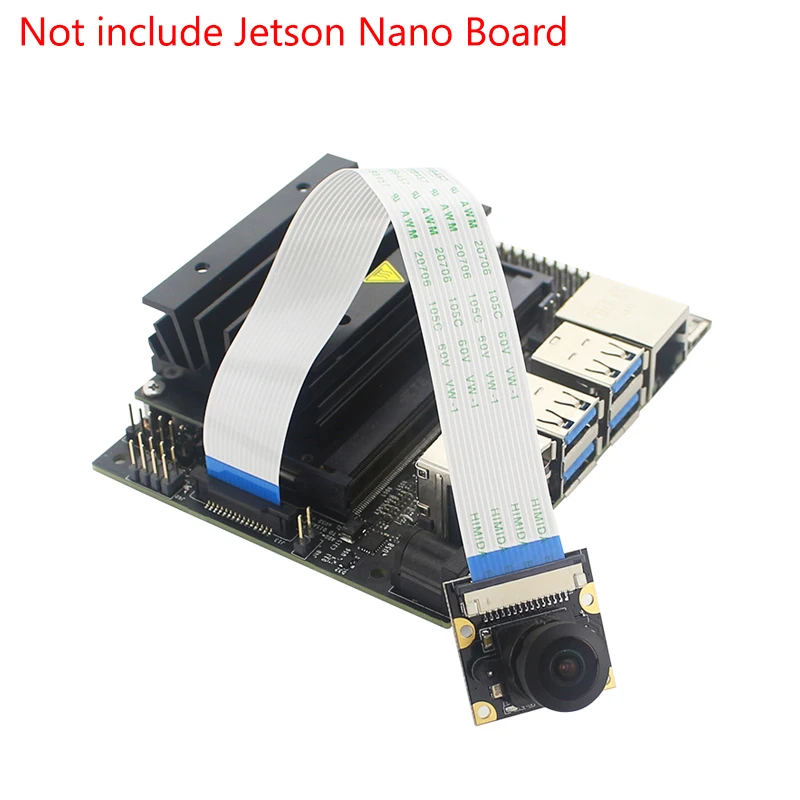

This is the camera for Raspberry Pi 5 or Nvidia Jetson Nano. It use IMX219 sensor , has 8MP pixel , 160 degree or 200 degree FOV to choose.

Specification:

1. 8 million pixels
2. Photosensitive chip: IMX219
3. Resolution: 3280 × 2464
4. CMOS size: 1/4 inch
5. Aperture (F): 2.35
6. Focal Length: 2.4mm
7. Diagonal angle: 160 degrees / 200 degrees (conventional lens is only 72 degrees)
8. Distortion: <14.3%
9. Support 1080p30, 720p60 and 640 × 480p90 video recording
10. Application scenarios: AI intelligent recognition, face recognition, road identification line recognition, license plate recognition, and other scene recognition and judgment. . .
11. 4 screw holes:
(1). Can be used for fixed position
(2). At the same time, it has its own power interface.
(3). Support 3.3V external power supply
12. Size: 25mm × 24mm × 19mm

Features:

1. 8 million high pixels
2. Can take 1080p30, 720p60 and 640 × 480p90 video
3. Small size
4. Application for many situation
5. Manual focal adjustable
6. 160 or 200 wide degree angle

If the camera shooting effect is red, you can follow the steps below

1. Download the camera-override.isp file and extract it to a specific folder
run:
wget http://www.waveshare.net/w/upload/e/eb/Camera_overrides.tar.gz
tar zxvf Camera_overrides.tar.gz
sudo cp camera_overrides.isp / var / nvidia / nvcam / settings /

2. Installation files:
run:
sudo chmod 664 /var/nvidia/nvcam/settings/camera_overrides.isp
sudo chown root: root /var/nvidia/nvcam/settings/camera_overrides.is

Packing List :

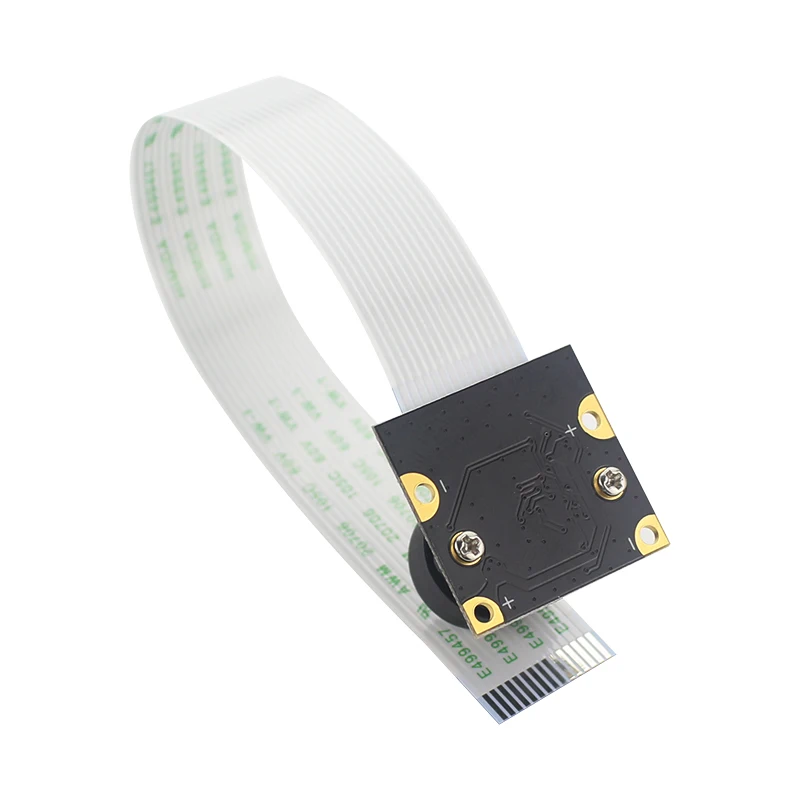

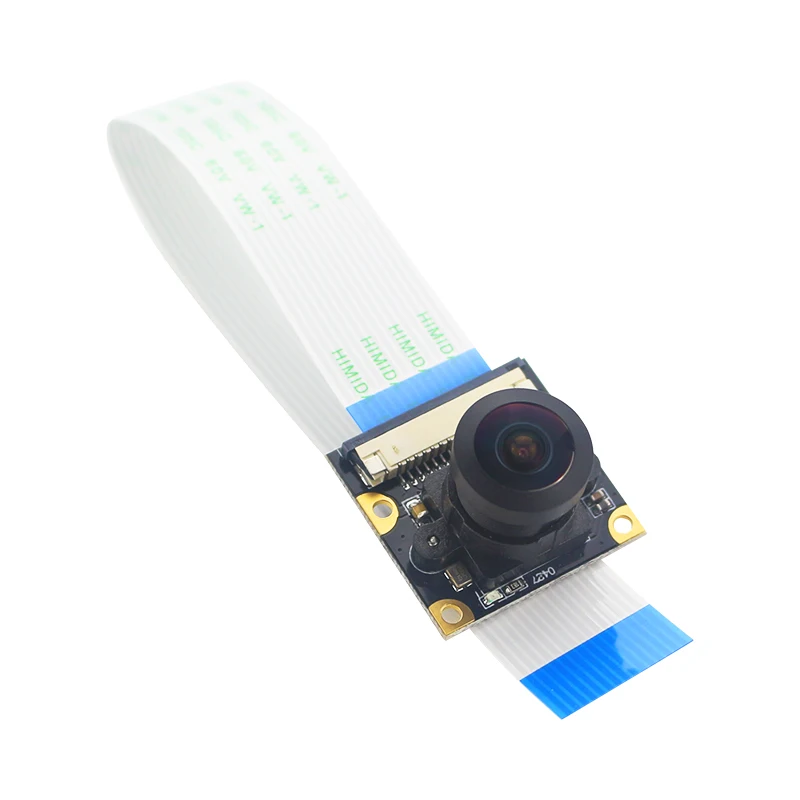

1 x 8MP IMX219 Camera
1 x 15cm Flat Cable

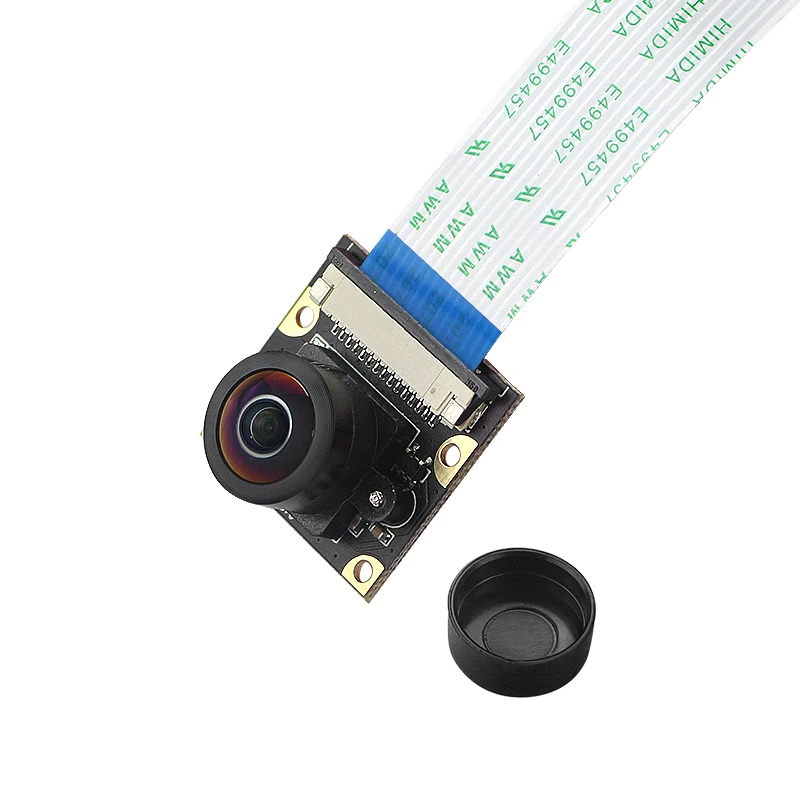

160 degree

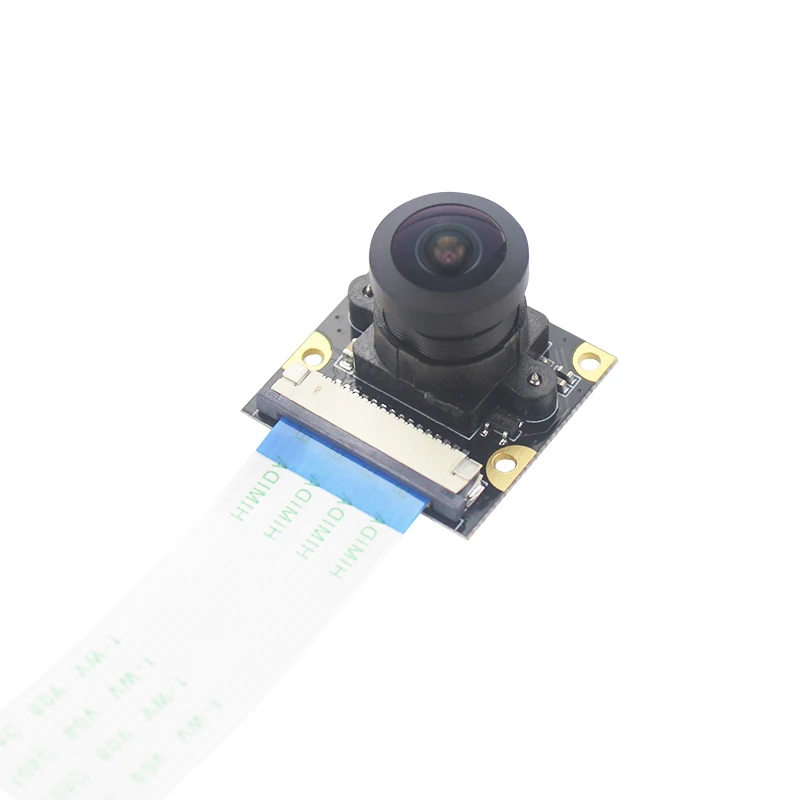

200 degree
