DESCRIPTION

Overview

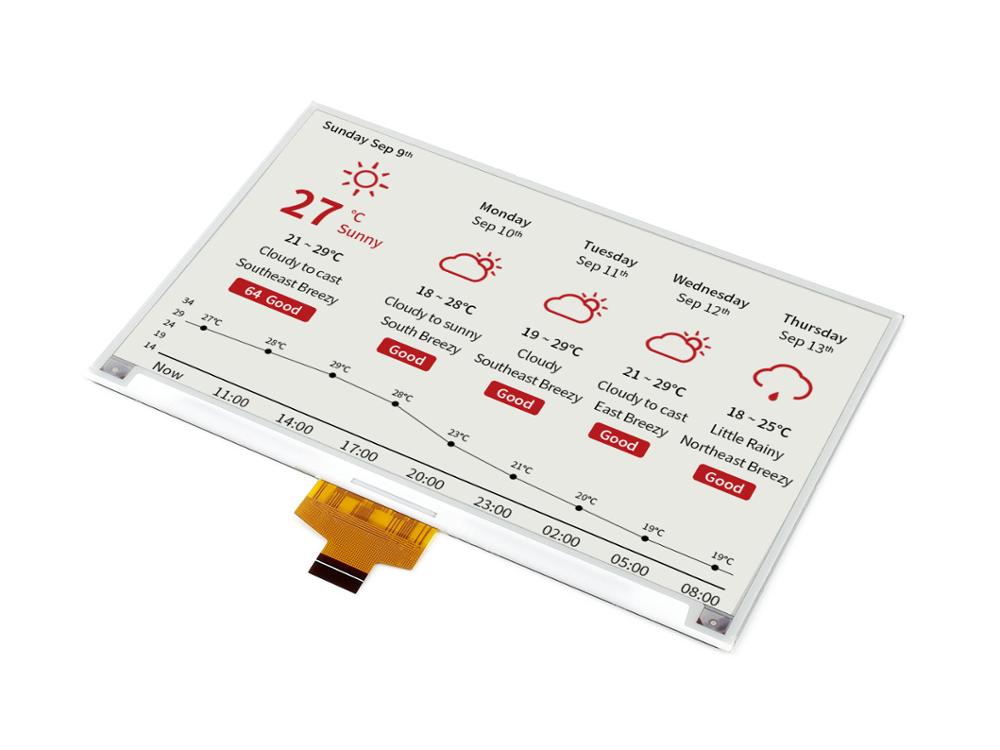

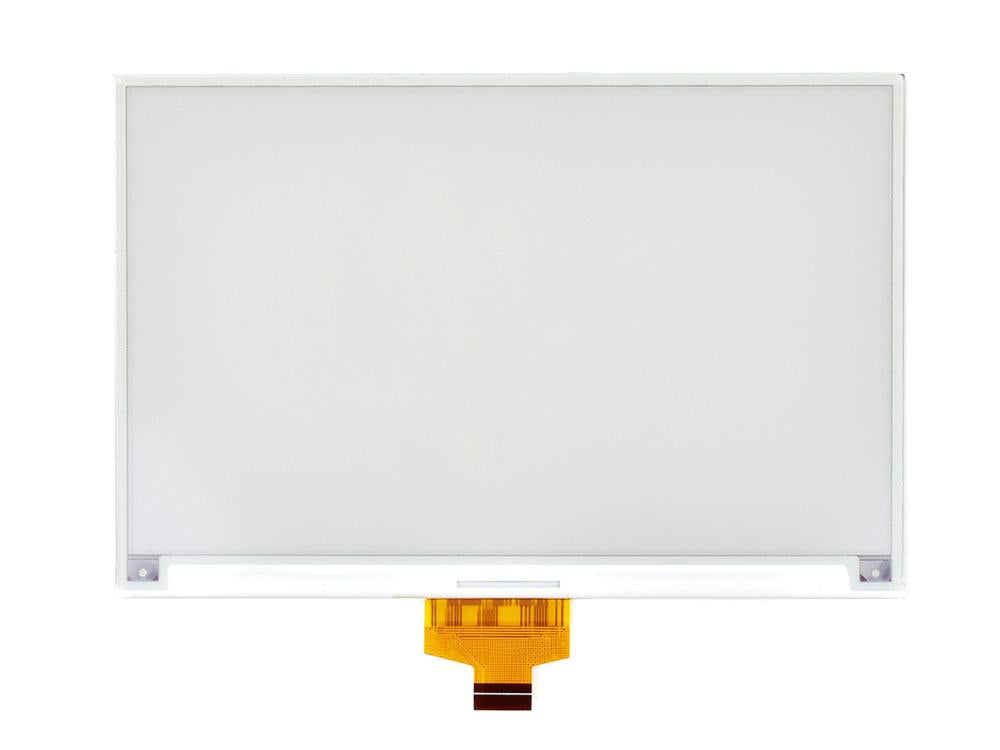

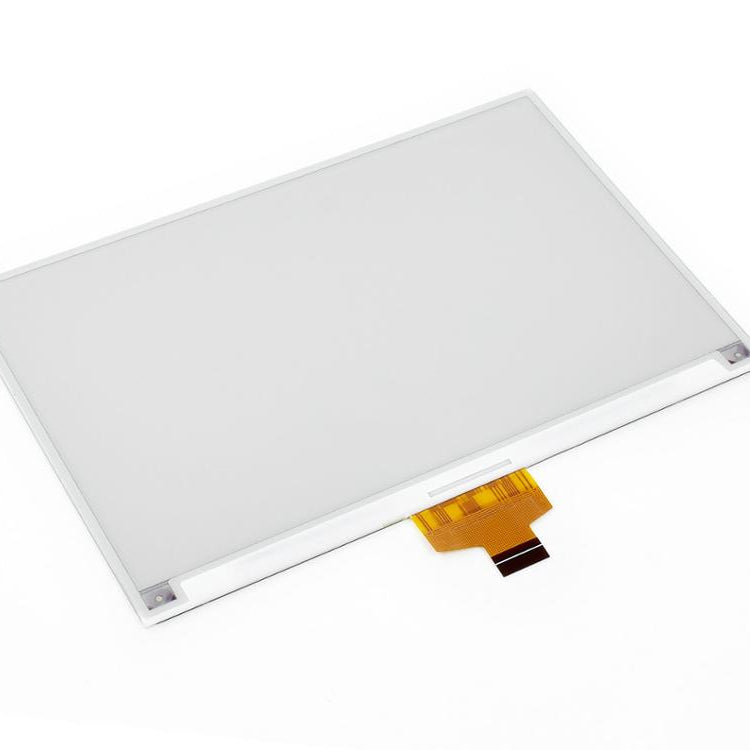

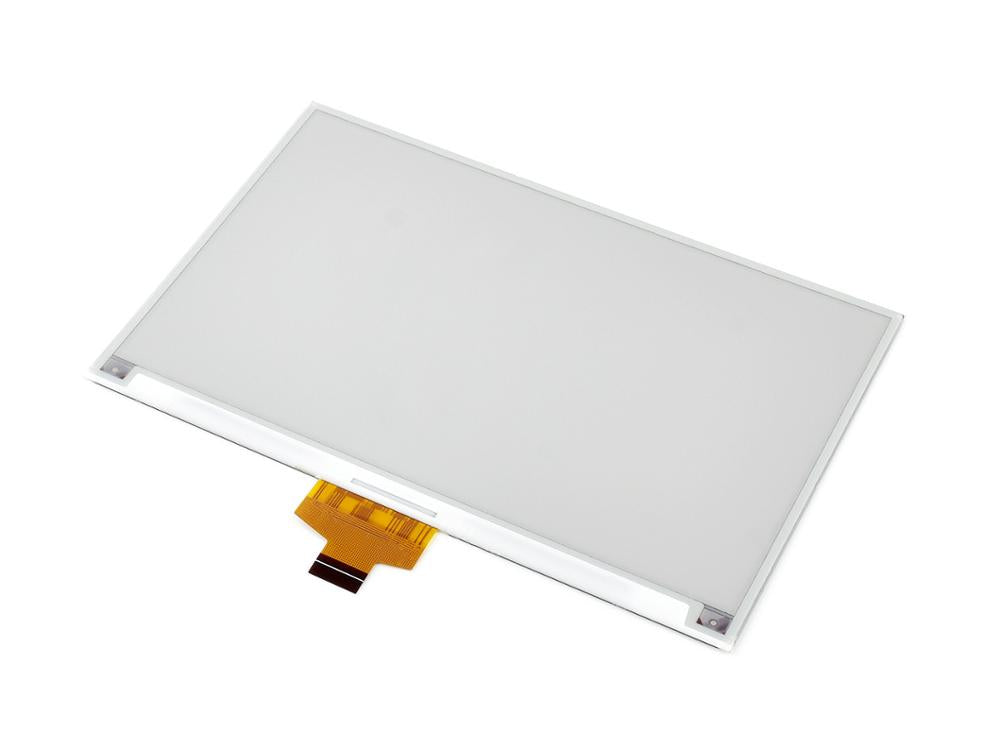

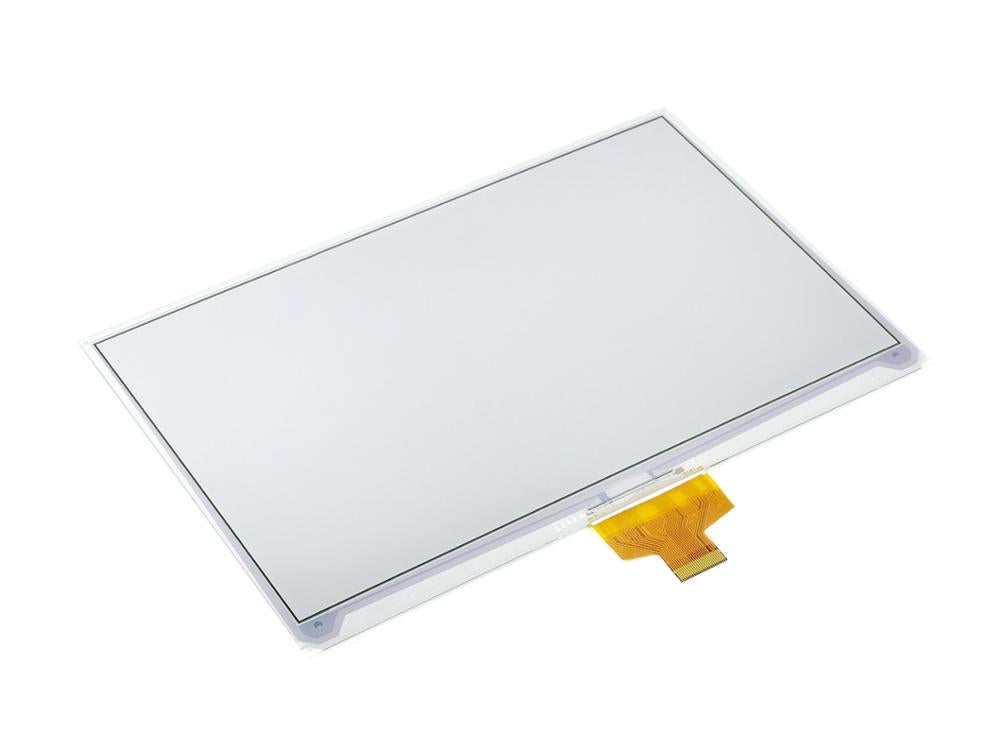

This is an E-Ink raw display, 7.5inch, 880×528 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Ard/STM32)

Specifications

• Operating voltage: 3.3V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 170.2mm × 111.2mm × 1.25mm
• Display size: 163.24mm × 97.94mm
• Dot pitch: 0.1855mm × 0.1855mm
• Resolution: 880×528
• Display color: red, black, white
• Grey scale: 2
• Full refresh time: 21s
• Refresh power: 50mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Recommended

To fastly get started with this raw display, please consider the following driver boards:

• e-Paper Driver HAT (Universal)
• e-Paper Shield (Ard/NUCLEO)
• e-Paper ESP8266 Driver Board (WiFi)
• e-Paper ESP32 Driver Board (WiFi / Bth)

PACKAGE CONTENT

Weight: 0.043 kg

Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 7.5inch HD e-Paper HAT (B)

1. 7.5inch HD e-Paper (B) x1
