Lonten Technology

800*480 7.5inch E-Ink display HAT for Raspberry Pi 2B/3B/Zero/Zero W Two SPI interface,No Backlight Custom PCB circuit led pcba

800*480 7.5inch E-Ink display HAT for Raspberry Pi 2B/3B/Zero/Zero W Two SPI interface,No Backlight Custom PCB circuit led pcba

Regular price $59.00 USD
Regular price $99.00 USD Sale price $59.00 USD
Sale Sold out


640x384, 7.5inch E-Ink display HAT for Raspberry Pi

DESCRIPTION

640x384, 7.5inch E-Ink display HAT for Raspberry Pi, SPI interface

Overview

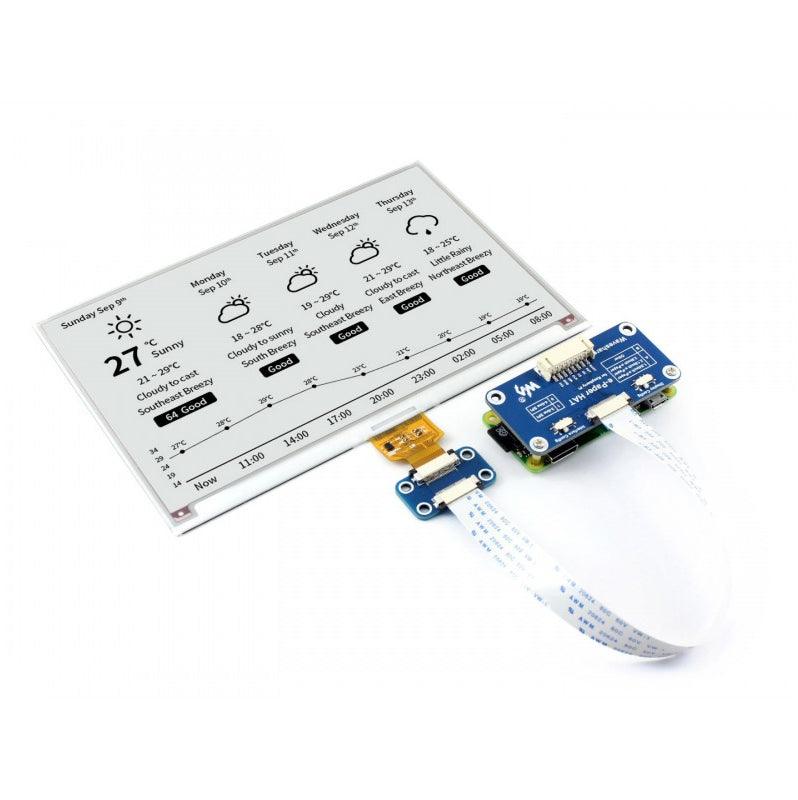

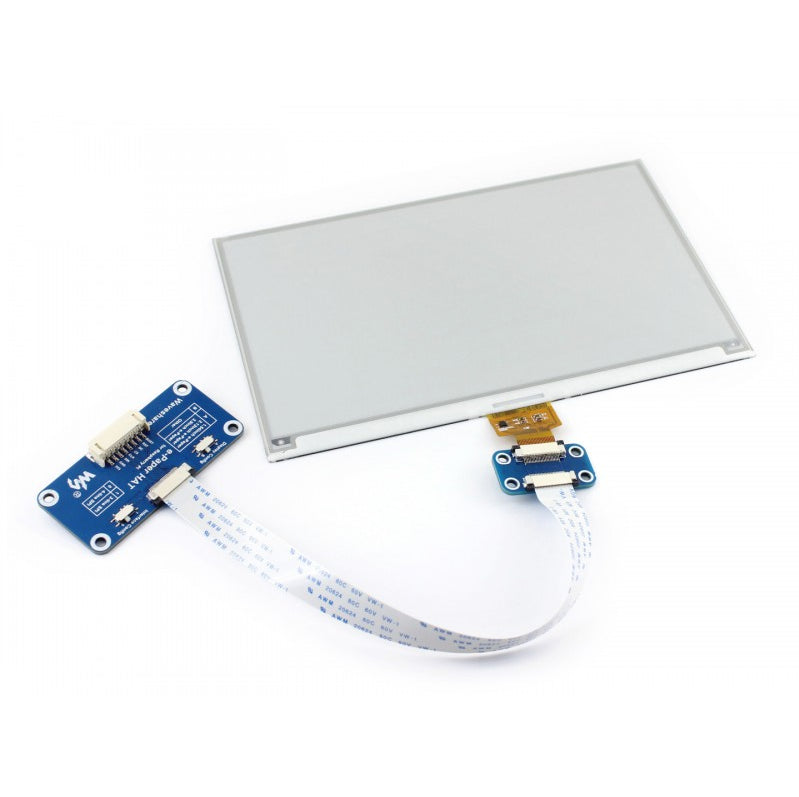

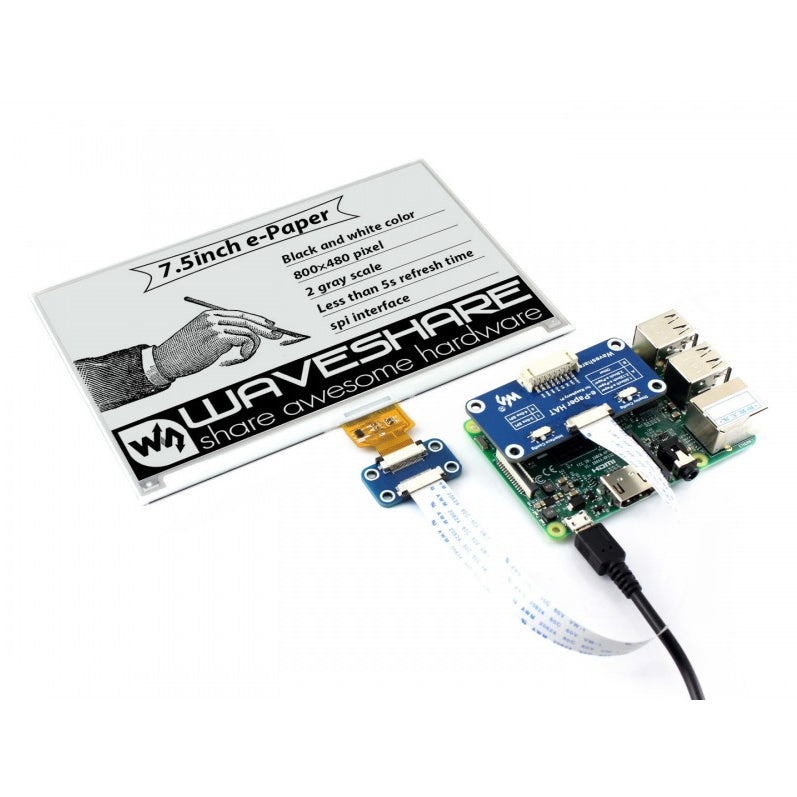

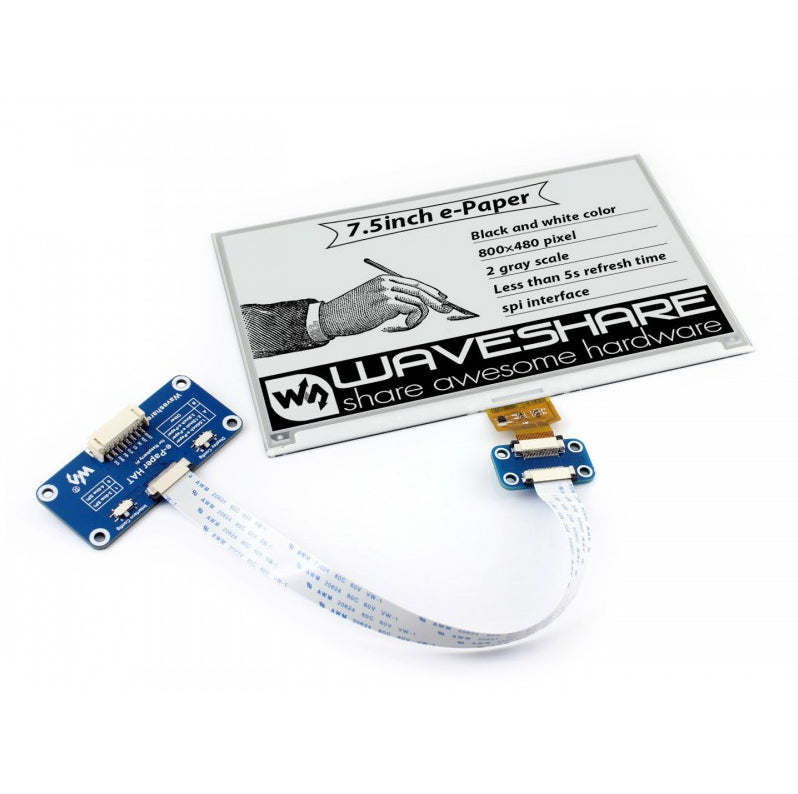

This is an E-Ink display HAT for Raspberry Pi, 7.5inch,  800×480 resolution, with embedded controller, communicating via SPI interface.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with other controller boards like Raspberry/Ard/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ard/STM32)

Specifications

  • Operating voltage: 3.3V~5V
  • Interface: SPI

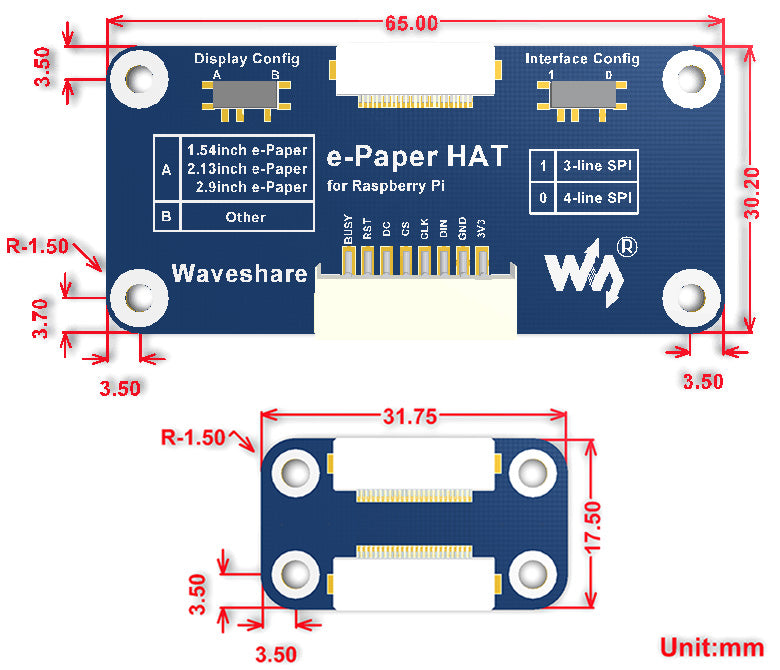

  • Outline dimension: 170.2mm × 111.2mm
  • Display size: 163.2mm × 97.92mm
  • Dot pitch: 0.205 × 0.204
  • Resolution: 800×480
  • Display color: black, white
  • Grey scale: 2
  • Full refresh time: 5s
  • Refresh power: 38mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Revision History

Revision V2 has been released on 2019.11, the resolution is upgraded to 800×480, from 640×384 of V1. The hardware and interface of V2 are compatible with V1, however, the related software should be updated.



Interface

SYMBOL DESCRIPTION
VCC 3.3V~5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, low active
