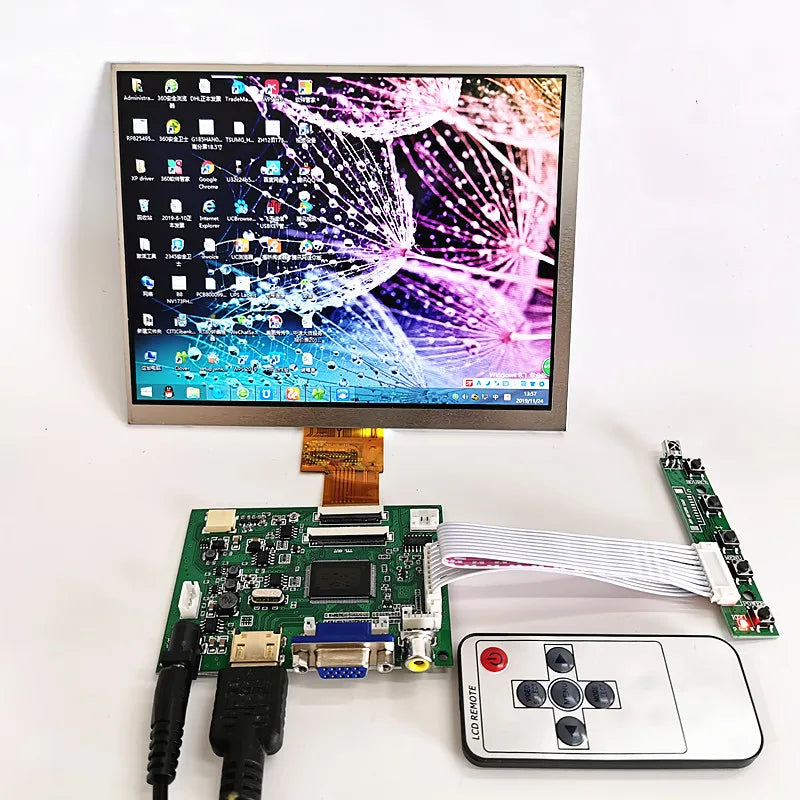

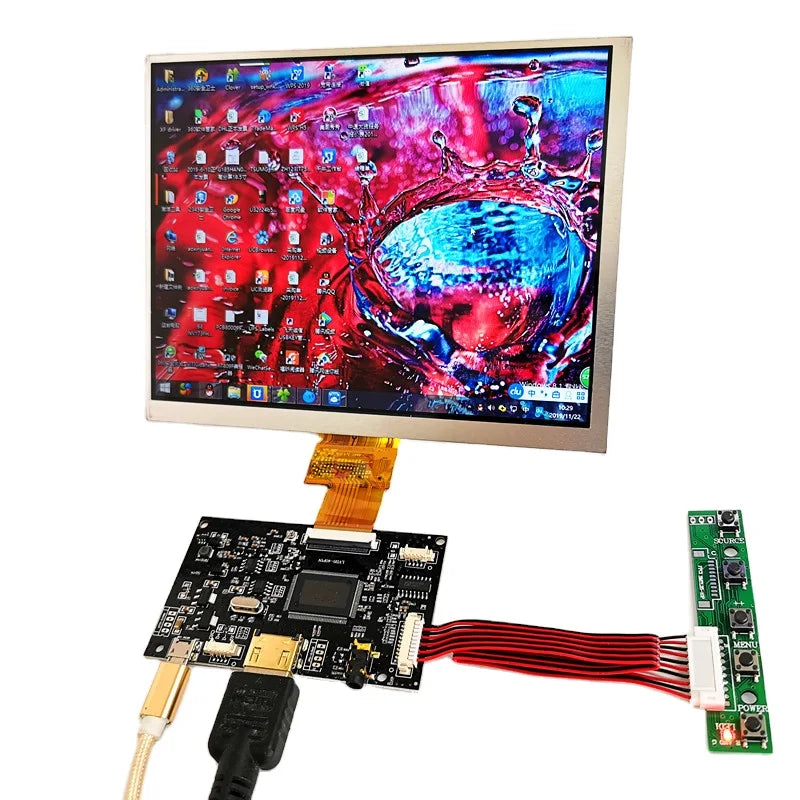

Custom 8 inch IPS 1024 * 768 LCD panel+LCD driver module DYI kits for Raspberry Pi 3B 2 Car LCD module Manufacturer
Custom 8 inch IPS 1024 * 768 LCD panel+LCD driver module DYI kits for Raspberry Pi 3B 2 Car LCD module Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Note:
This controller board support Automatically Switch to AV2(Reversing View camera). Please connected ACC to 12V.

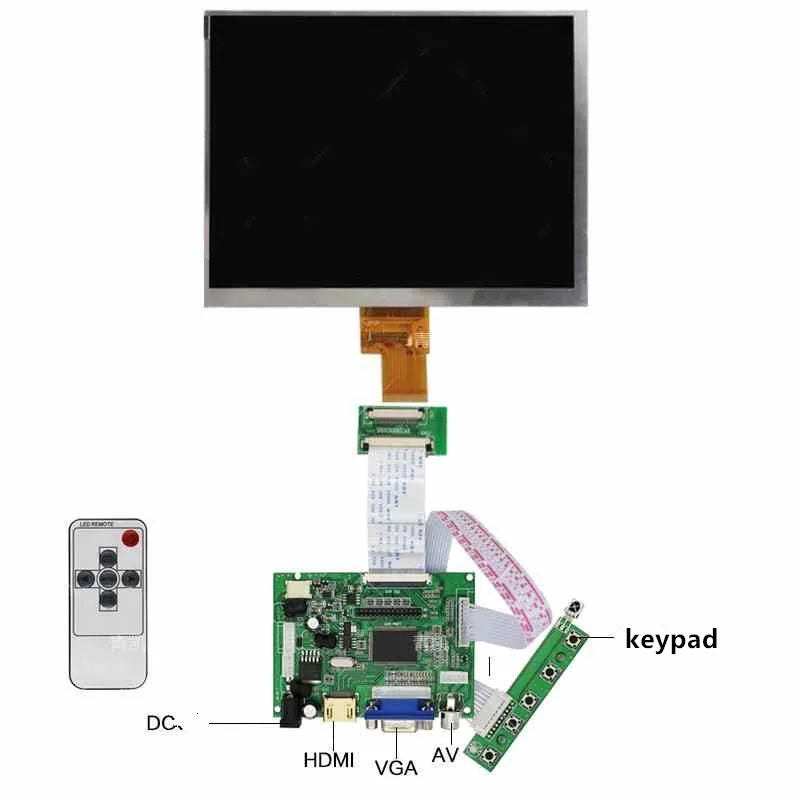

1.Power Supply(5V-24V) 2.HDMI 3.VGA Connector 4.AV1 5.AV1+AV2 6.Keyboard 7.TTL Signal 50Pin8.LVDS Signal 1/2 ch 6bit 8bit 9.12V Backlight
Screen
Panel Size:8.0 inch
Panel Type:a-Si TFT-LCD , LCM
Resolution:1024(RGB)×768 , XGA
Pixel Format:RGB Vertical Stripe
Display Area:162.048(W)×121.536(H) mm
Outline Size:174(W)×136(H) ×2.75(D) mm
Brightness:350 cd/m² (Typ.)
Contrast Ratio:800:1 (Typ.) (TM)
Viewing Angle:85/85/85/85 (Typ.)(CR>10)
Display Mode:IPS, Normally Black, Transmissive
Display Colors :262K/16.7M 50% (CIE1931)
Environment:Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

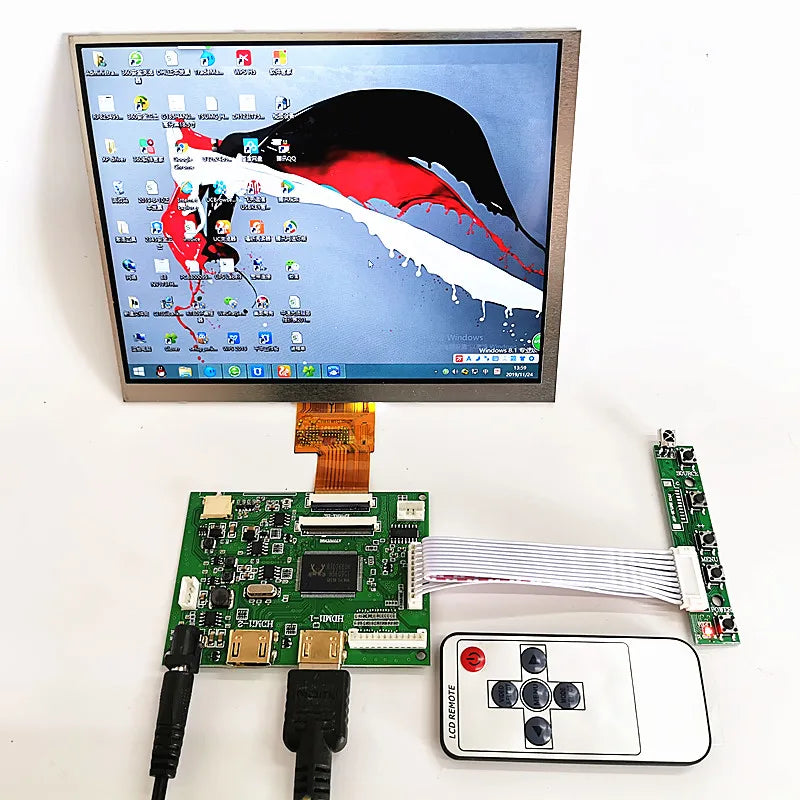

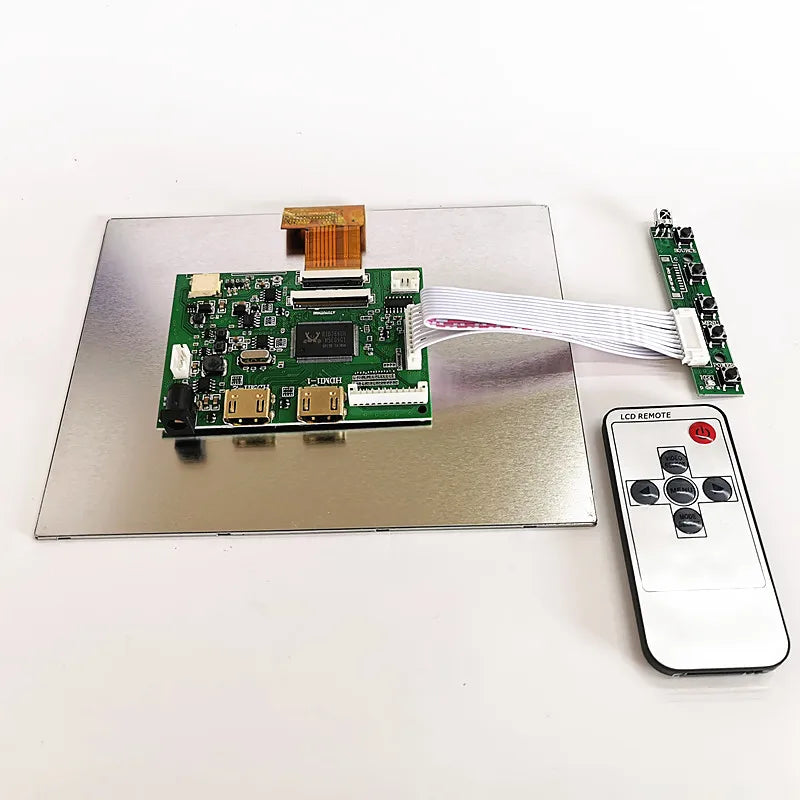

HDMI AV2 board
1.1 way VGA signal input 2 way AV signal input;
2.1 way HDMI signal input ,IC support HDMI1.2;
3.1 way reverse signal input;
4.support wide voltage:4.5-20v normal working
5.support back light 6pin,External high voltage board integrated LCD screen LED backlight driver board
6.Standard lvds signal output,support 1ch 6bit/8bit ,2ch 6bit/8bit lvds ,but only work 3.3v voltage screen.
7.Support two-color led indicator display
8.support TTL signal output.
