Lonten Technology

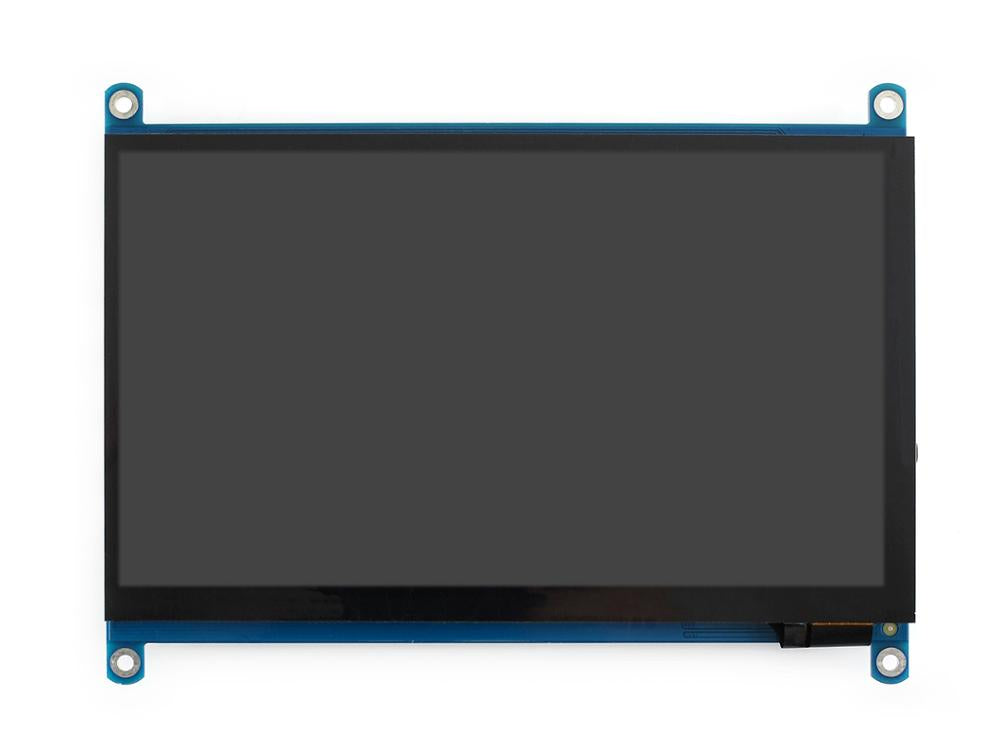

7 inch LCD (H) Computer Monitor 1024*600 IPS Capacitive Touch Screen Supports Raspberry Pi Jetson Nano Win10 etc Custom PCB

7 inch LCD (H) Computer Monitor 1024*600 IPS Capacitive Touch Screen Supports Raspberry Pi Jetson Nano Win10 etc Custom PCB

Regular price $60.00 USD
Regular price $100.00 USD Sale price $60.00 USD
Sale Sold out

7inch Capacitive Touch Screen LCD (H), 1024×600, HDM1, IPS, Various Devices & Systems Support
7" HDM1 Touch Display
  • Size7"

  • Resolution1024×600

  • Display PortHDM1 / VGA

  • Display PanelIPS

  • Viewing Angle170°

  • Touch TypeCapacitive

  • Touch Points5-Points

  • Touch PortUSB

  • OSD MenuBrightness/Contrast

  • Audio Output13.5mm Jack

  • Audio Output24PIN Header

  • GamingXbox360/PS4/Switch


Device & System Support

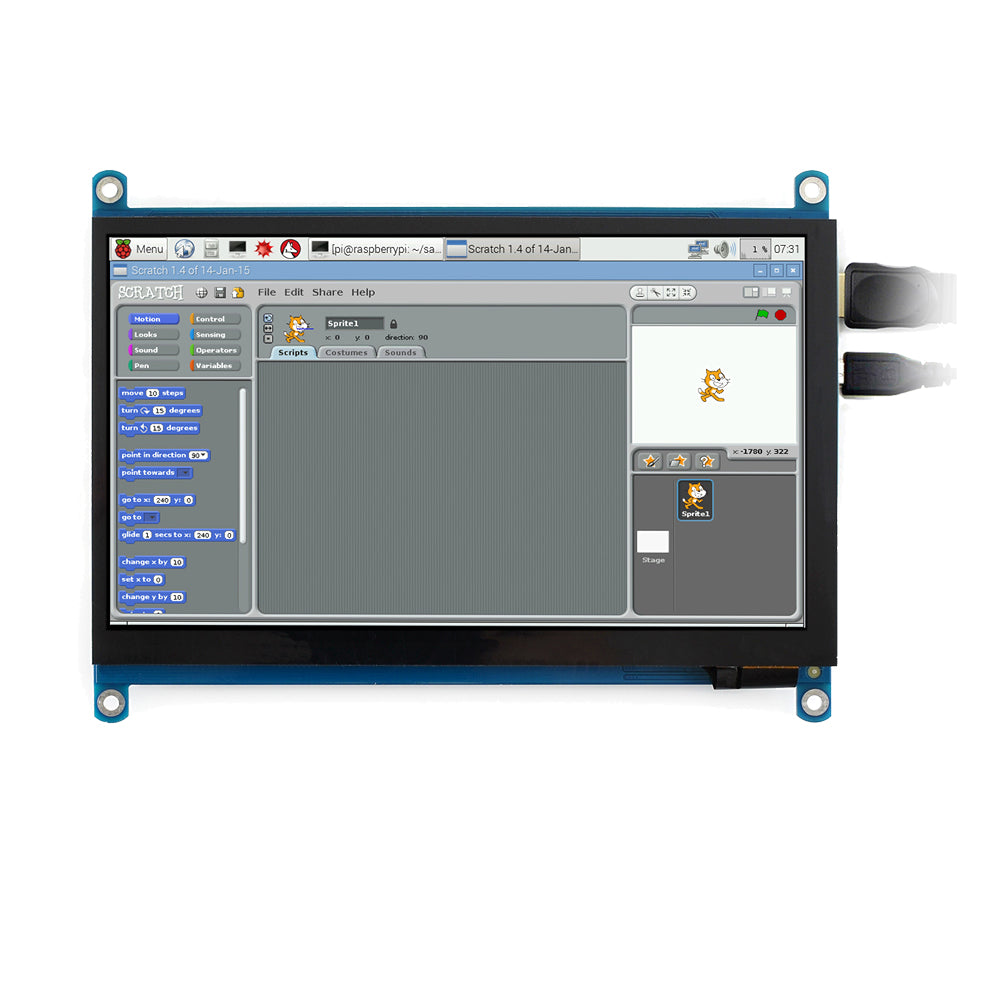

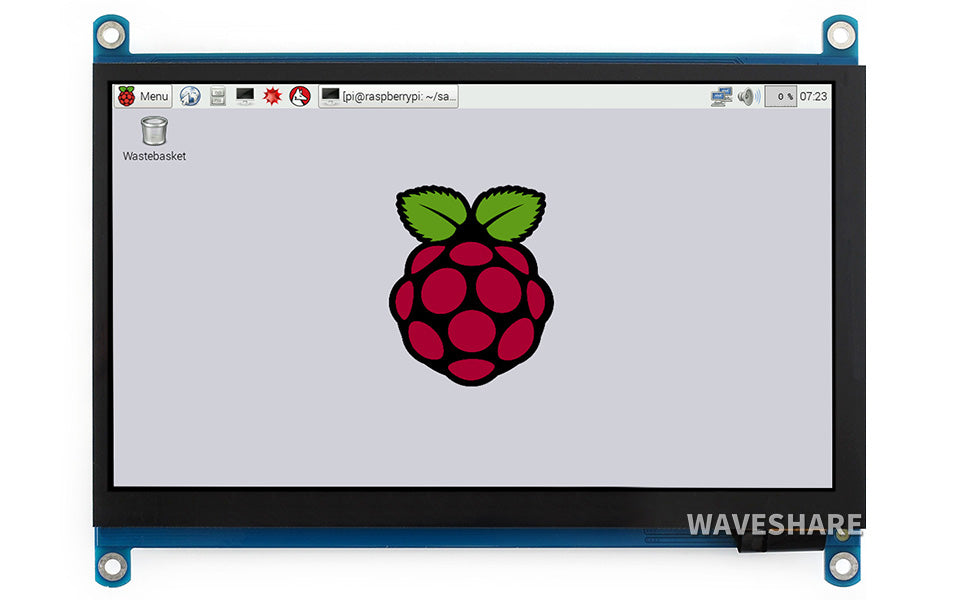

Raspberry Pi
Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free
Game Console
Xbox360, PS4, Switch...
Hookup Example

Working With Raspberry Pi 4

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Mini PC

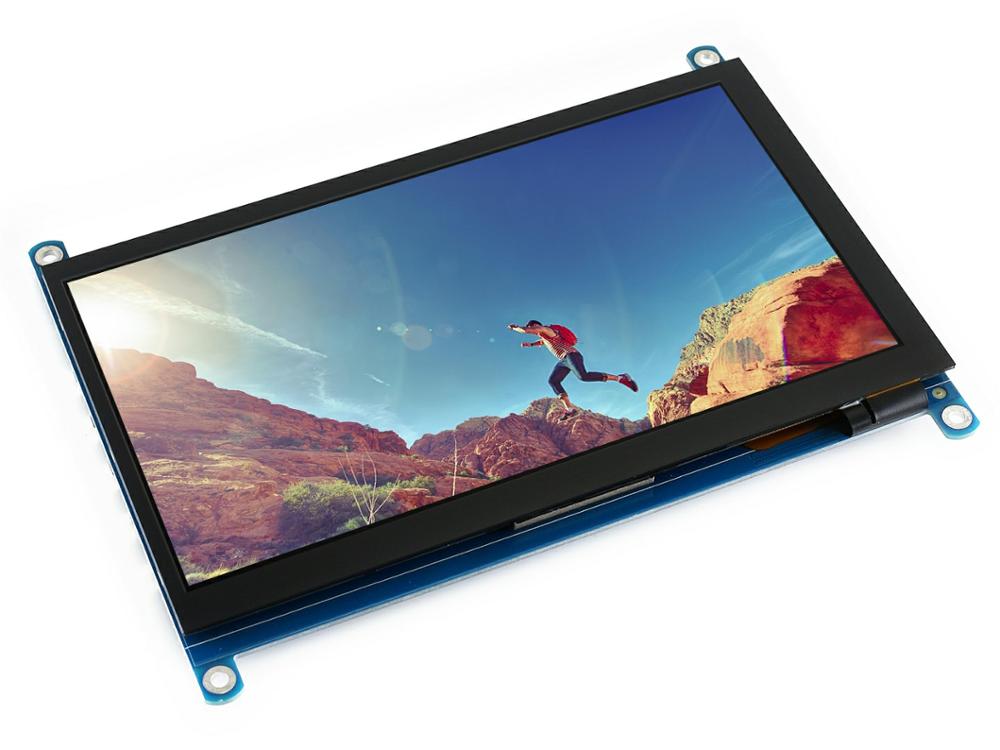

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system.

Enjoy Gaming

* audio output via earphone/speaker port.

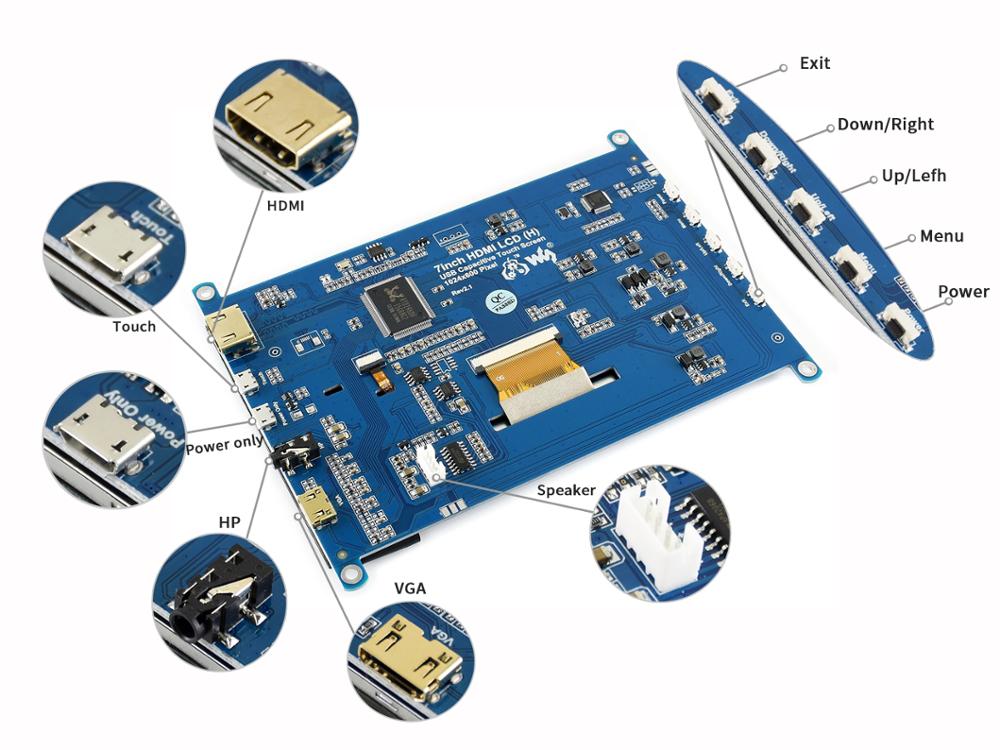

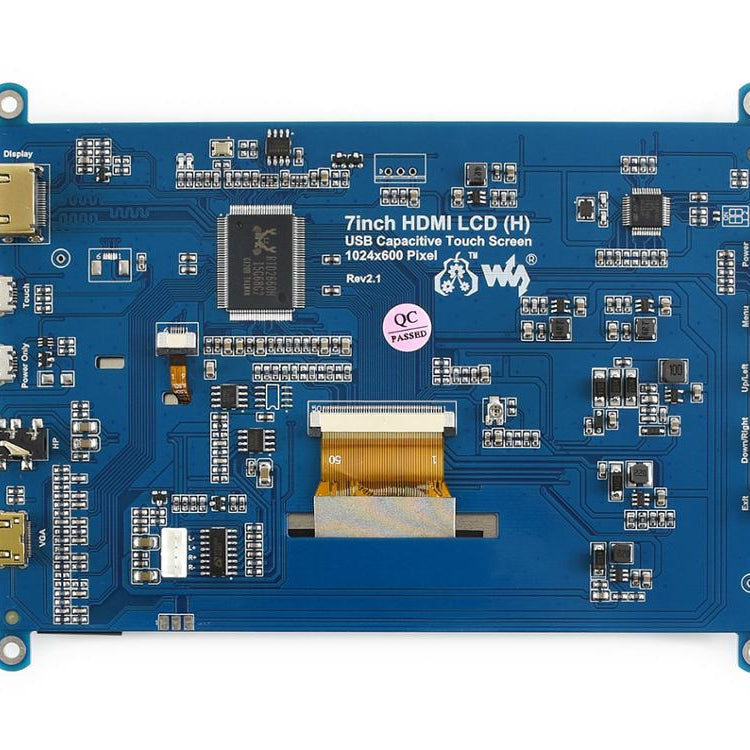

Demystifying Design Details
  1. LCD FFC cable anti-interference design, more stable for industrial application

  2. VCOM voltage adjustment for optimizing display effect

  3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control

  4. 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage


  5. One-way isolation circuit. When powered from Touch port, the 5V voltage from Touch port will provide power supply for both touch function and display circuit. When powered from Power Only port, the Touch port will provide power supply for just touch function, and the other circuit will be powered via Power Only port. The two power inputs are totally isolated to prevent any breakdown

  6. Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit

  7. OSD menu config buttons for adjusting backlight and display color

  8. DC-DC LCD driver circuit, low heating on long term operation

  9. VGA port to support VGA devices

Appearance And Dimensions

PACKAGE CONTENT

Weight: 0.273 kg

  1. 7inch HDM1 LCD (H) x1

  2. HDM1 cable x1

  3. HDM1 to Micro HDM1 Adapter x1

  4. USB type A plug to micro B plug cable x1

  5. RPi screws pack (4pcs) x 1

  6. Quick start sheet x1
