Raspberry Pi Case-LTRIG

7 inch 1024x600 IPS Capacitive Touch Screen 7" Monitor Display w/ Case Bracket OSD Menu for Raspberry Pi 4 Model B/ 3B+/ 3B

7 inch 1024x600 IPS Capacitive Touch Screen 7" Monitor Display w/ Case Bracket OSD Menu for Raspberry Pi 4 Model B/ 3B+/ 3B

Regular price $76.94 USD
Regular price $0.00 USD Sale price $76.94 USD
Sale Sold out

Note:

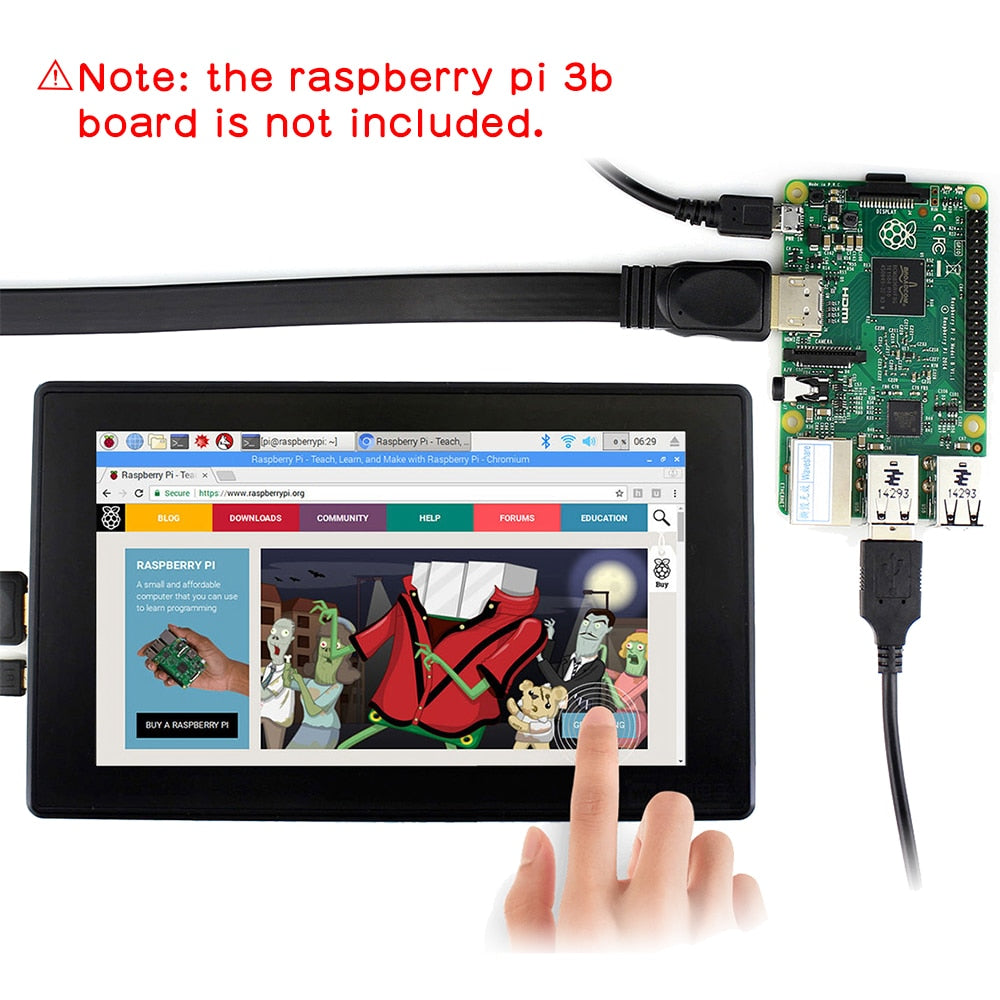

1. The Raspberry Pi is not included 2. There is a protective film on the screen, you can remove it before using.

Overview:
  • This is a raspberry pi universal 7 inch IPS HDMI LCD Touch Screen Display, 1024 x 600 physical resolution with tempered glass capacitive screen touch panel.
  • Not only supports Raspberry Pi (including newest raspberry pi 4 model B), but also supports Banana Pi, Beaglebone Black, NVIDIA Jetson Nano Developer Kit or other Mini PC ect.

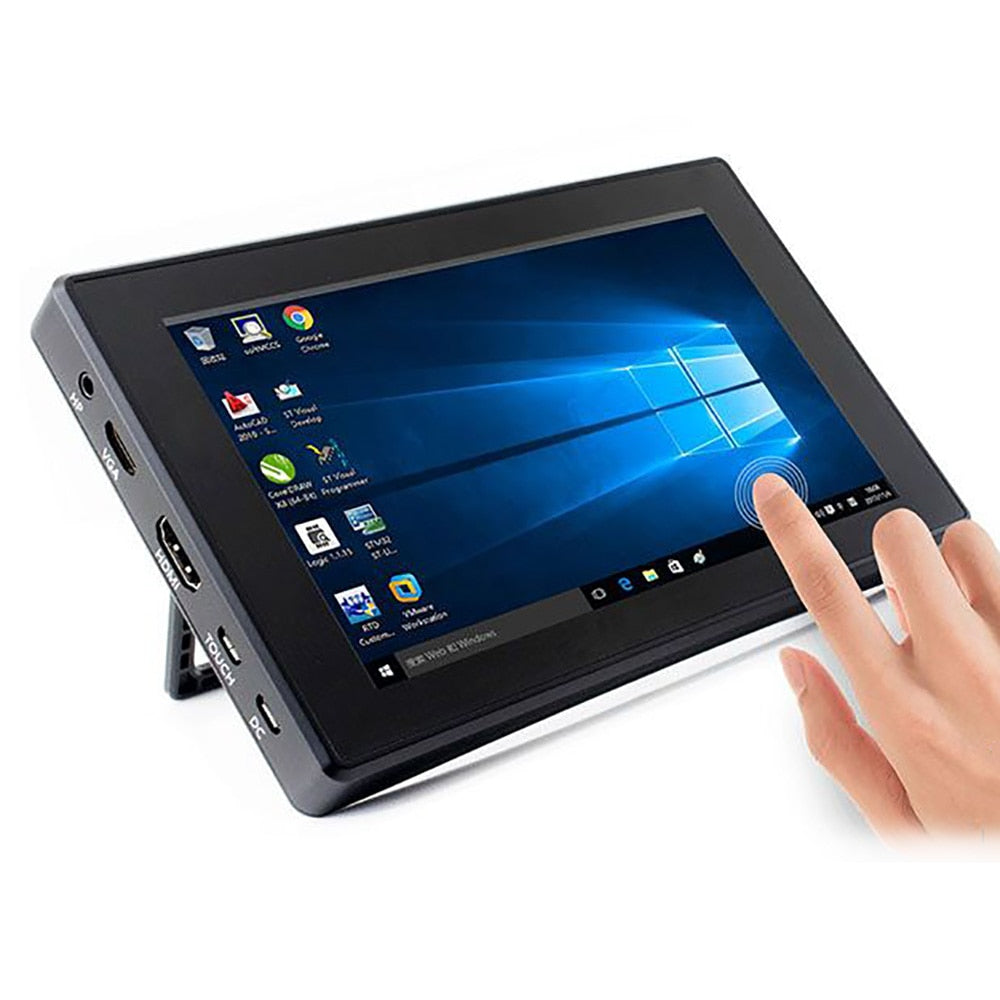

  • This screen can be used as a computer monitor, supports windows10
  • Note: Because the newest raspberry pi 4 model B without HDMI port, so if use this LCD with raspberry pi 4 model B, you need to get a Micro HDMI Male to HDMI Female Adapter
Features:
  • Plug and play!
  • 7 inch IPS Touchscreen;
  • 1024x600 physical resolution, configurable by software (up to 1920x1080);
  • Toughened glass capacitive touch panel, 6H hardness;
  • Supports popular mini PC such as Raspberry Pi, Beaglebone, Banana Pi;
  • Supports Raspbian, Ubuntu, WIN 10 IOT, single touch and driver free;
  • Supports Desktop/Laptop, Supports Windows 10/8.1/8/7,five-points touch, and driver free.
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc
  • 3.5mm audio jack;
  • Supports HDMI audio output;
  • Supports VGA input;
  • With high quality ABS case, optional tilt angle: 30deg/50deg
  • Support display rotation, please refer to wiki: http://www.raspberrypiwiki.com/index.php/7_inch_HDMI_LCD_(H)#Rotate

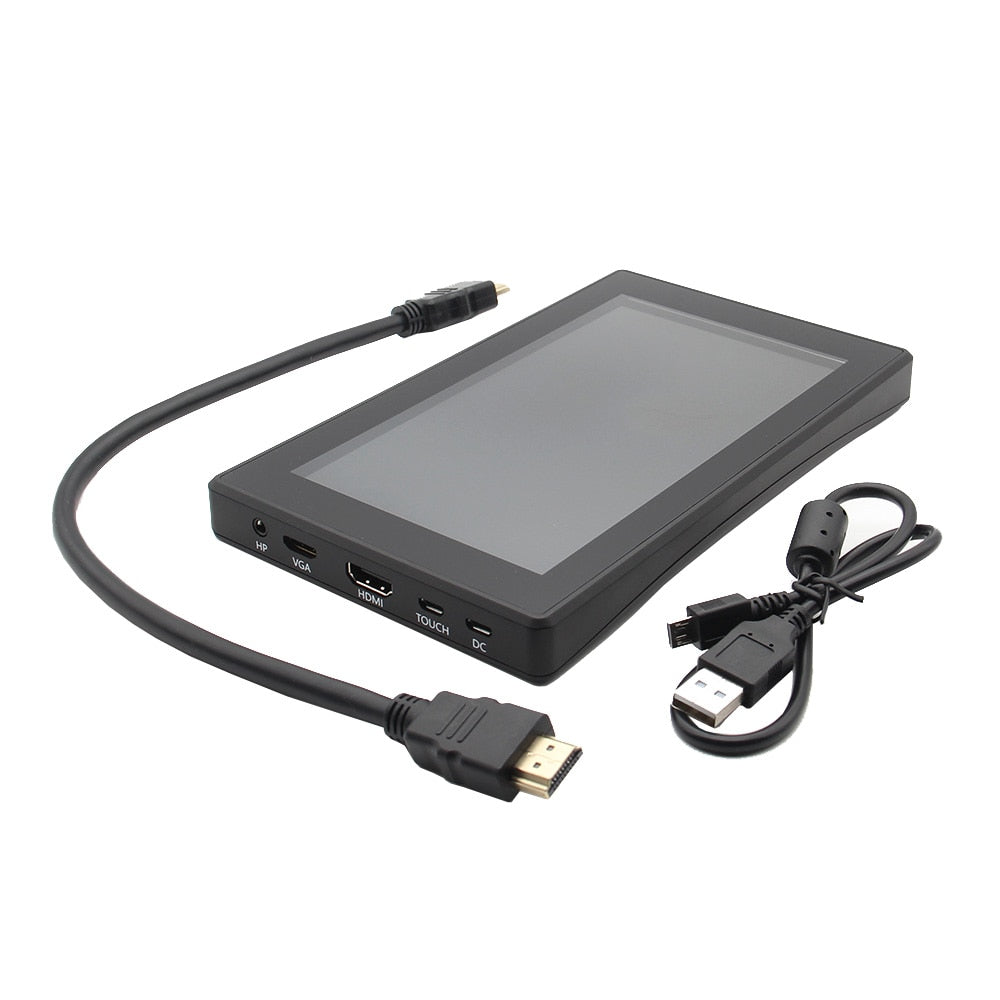

Packing List:
  • 1 x 7 Inch Touch Screen
  • 1 x ABS Case with Stander
  • 1 x HDMI Cable (30cm length)

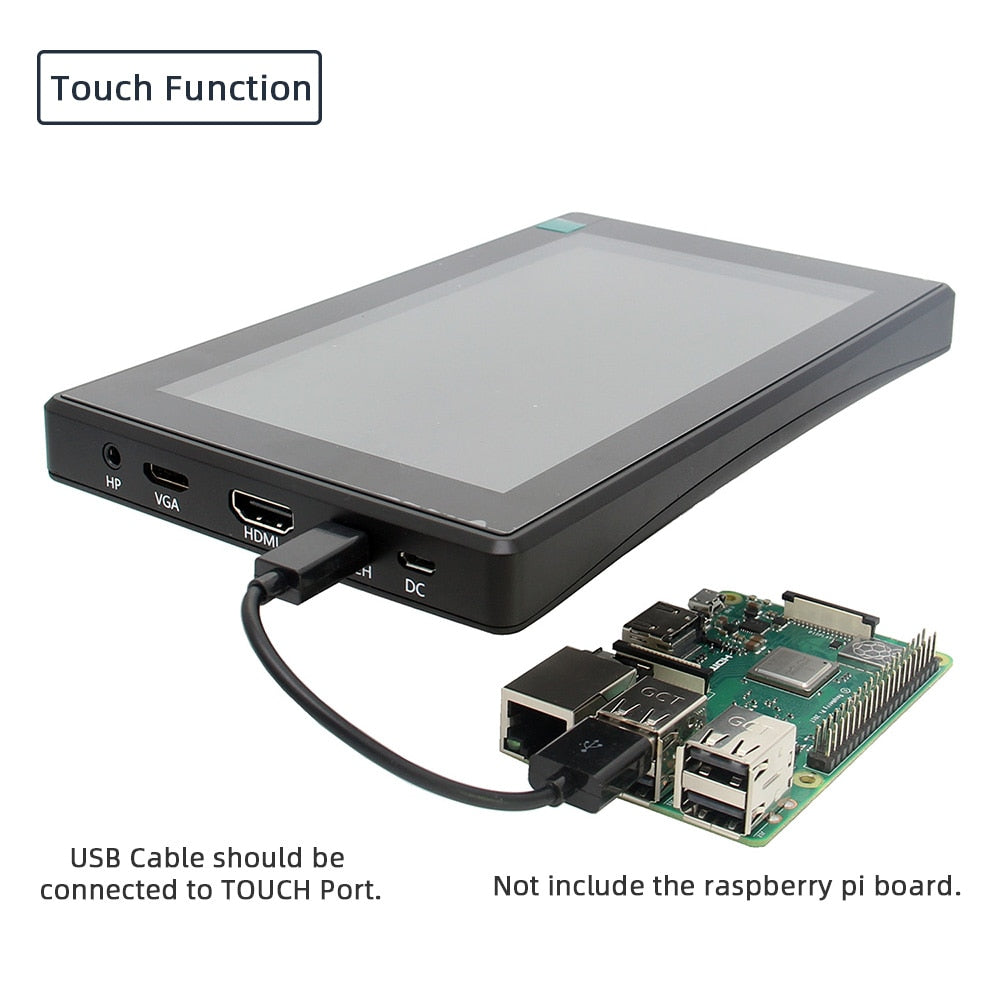

  • 1 x USB Cable (38cm length)(for Touch function)
Applications:
  • Raspberry Pi 4 Model B, 3 Model B+, 3 Model B, 2B, B+
  • Beaglebone Black
  • Banana Pi
  • Mini PC
  • NVIDIA Jetson Nano Developer Kit
  • Desktop/Laptop

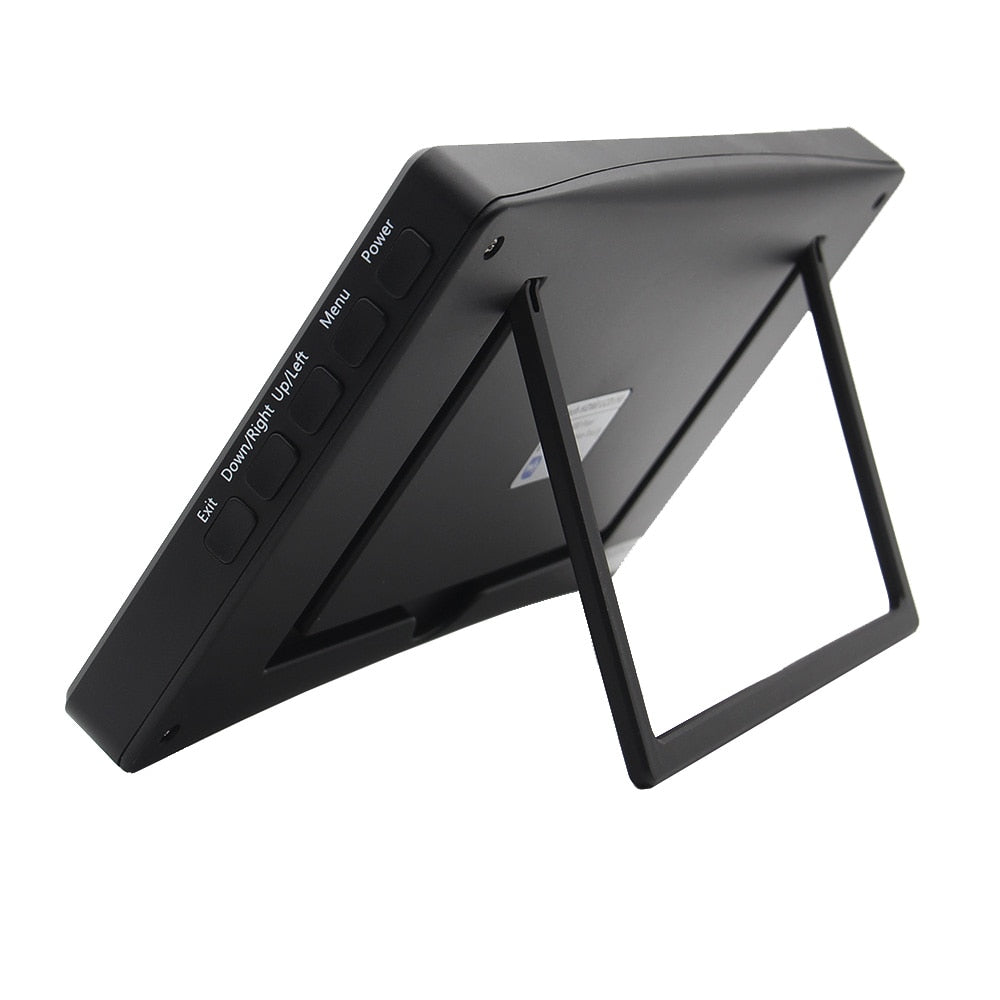

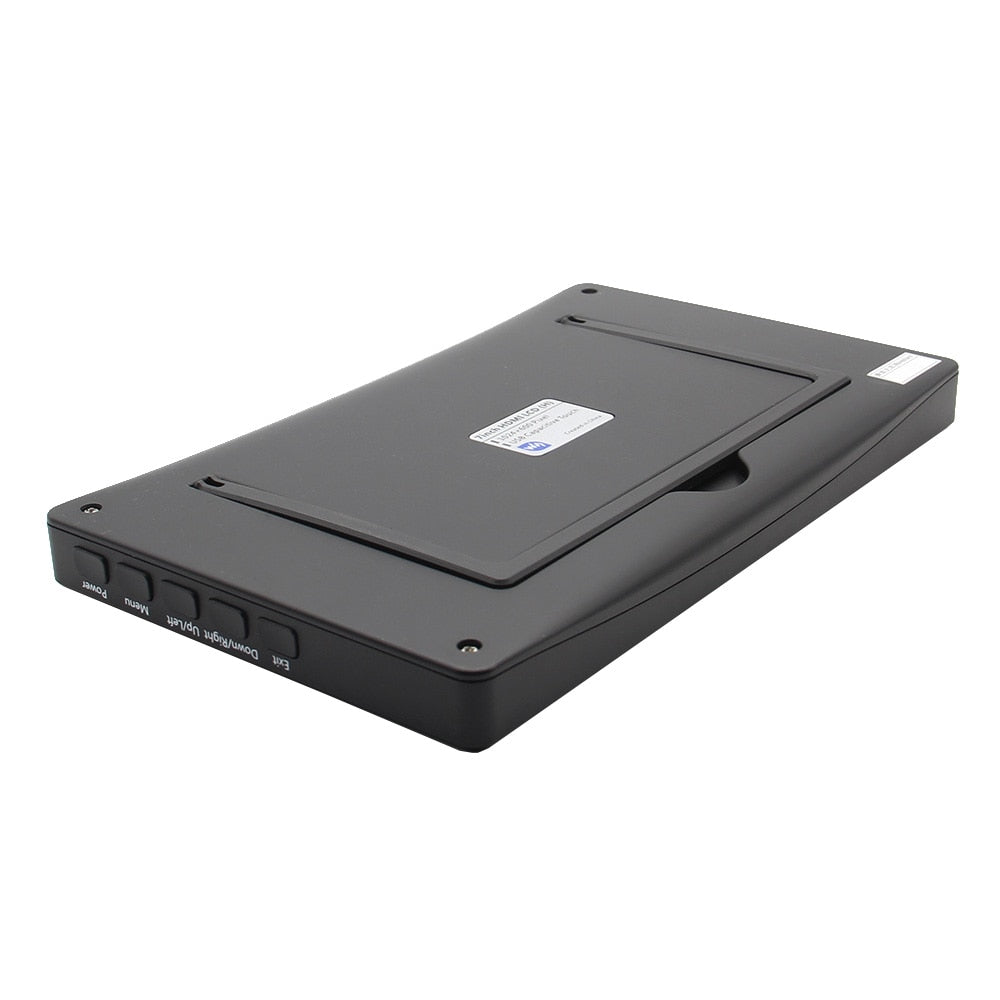

Keys Introduction:
  • Power: Open or Close LCD display
  • Menu: Open OSD menu (It can also work as OK after entering the menu )
  • Up/Left: Direction button
  • Down/Right: Direction button
  • Exit: it can also work as Return after entering the menu
  • You can use "Power" button to close LCD display for reducing consumption if it will be idle for a long time.
  • Open OSD menu by press button Menu, then use "OK button" and "Direction button" to change the configuration.Then use "Return button" to exit.
