7.5inch HD e-Paper E-Ink Display HAT for Raspberry Pi 880*528 SPI Custom PCB pcba alarm motherboard

7.5inch HD e-Paper E-Ink Display HAT for Raspberry Pi 880*528 SPI Custom PCB pcba alarm motherboard

Regular price $70.00 USD
Regular price $110.00 USD Sale price $70.00 USD
Sale Sold out


DESCRIPTION



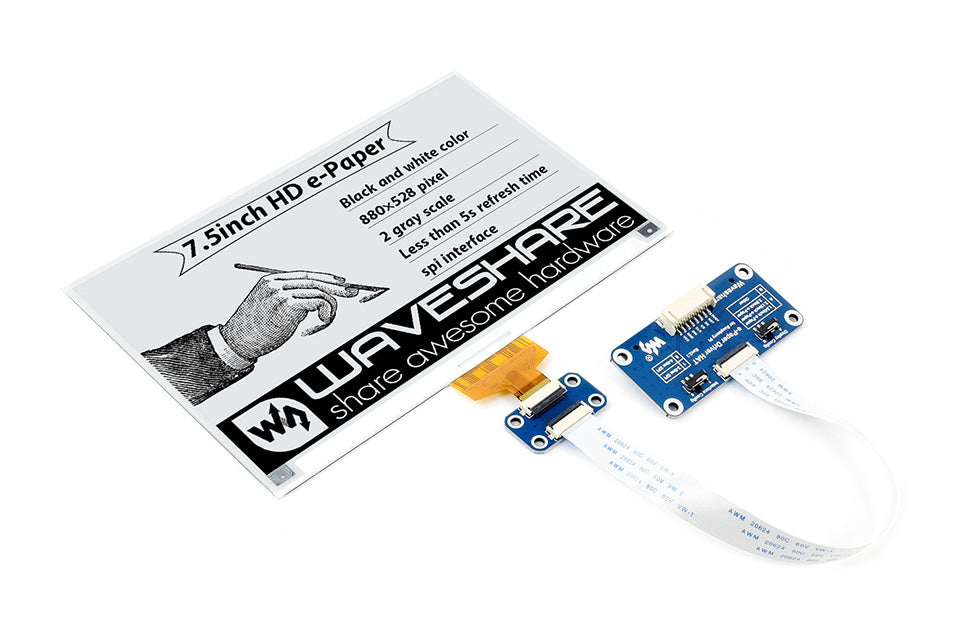

7.5inch HD E-Paper E-Ink Display HAT For Raspberry Pi, 880×528 Pixels, Black / White Dual-Color, SPI Interface

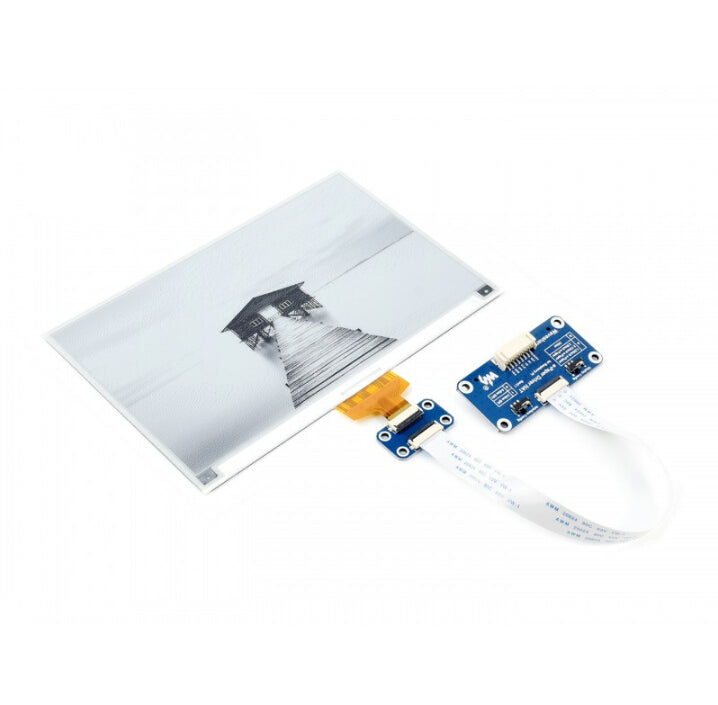

7.5" HD E-PAPER HAT  FOR RASPBERRY PI

Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for price tags, shelf labels, industrial instruments...



  • Size7.5"
  • Resolution880×528
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective

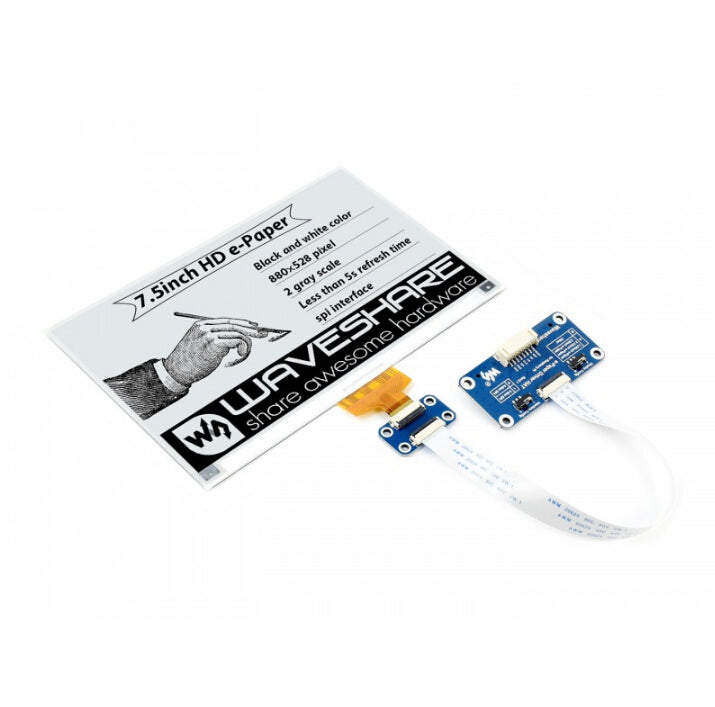

Features At A Glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Ard/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ard/STM32)
Specifications
OPERATING VOLTAGE 3.3V/5V DISPLAY COLOR black, white
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS 170.2 × 111.2 × 1.25mm FULL REFRESH TIME 5s
DISPLAY SIZE 163.24 × 97.94mm REFRESH POWER 50mW (typ.)
DOT PITCH 0.1855 × 0.1855mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 880 × 528 pixels VIEWING ANGLE >170°
Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header

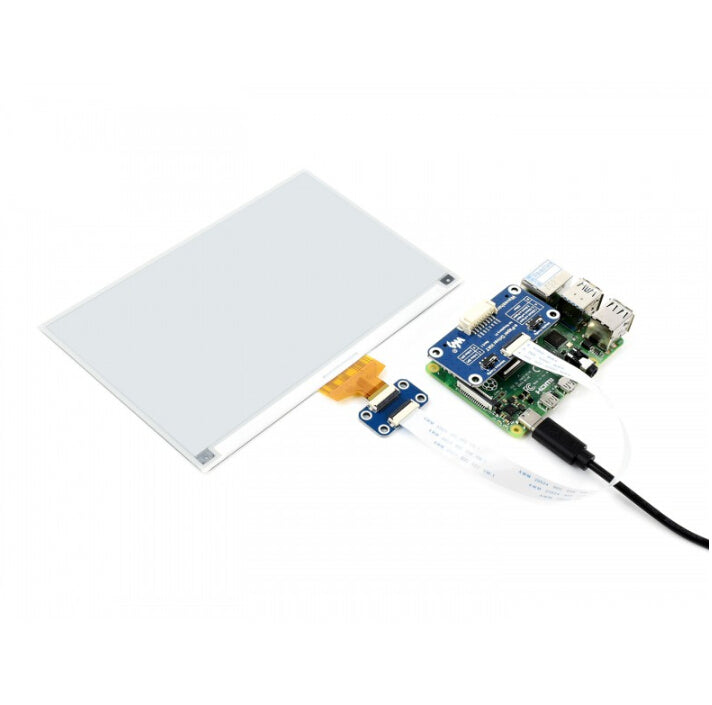

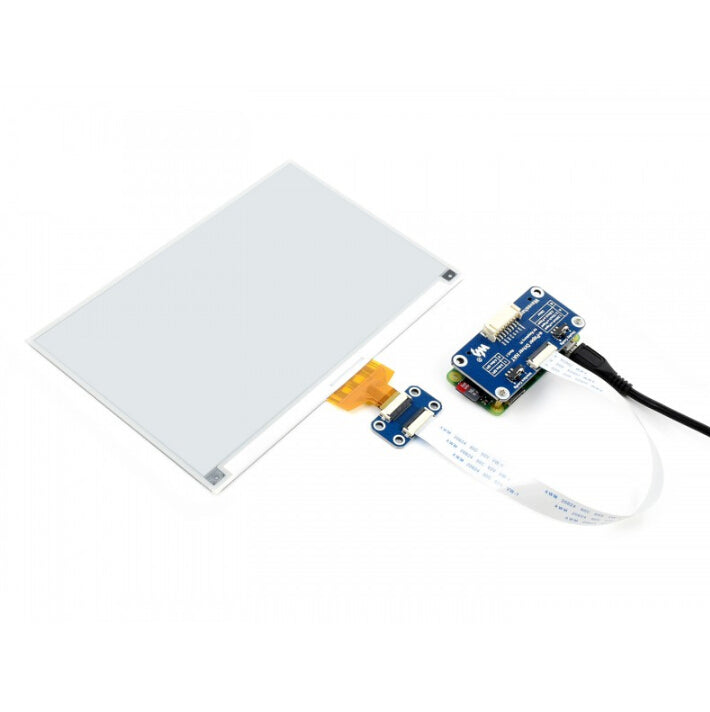

Compatible With Raspberry Pi Series Boards, Jetson Nano

Raspberry Pi, Jetson Nano in the photo are NOT included.
Onboard SPI Control Interface

For Use With Other Controller Boards Like STM32/Ard

VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, high active



Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

Resources & Services

W

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.









View full details
