Custom 60KTYZ 220V 30RPM Electric Motor Barbecue High Torque Synchronos With Motor Fixed Bracket And Power Cord Switch Plug 1.5m Manufacturer

This is a 60KTYZ motor with power cable and bracket. The 60KTYZ synchronous motor adopts high quality material for long lifespan, wear resistant and durable. This motor has simple construction and compact size, easy to install and use.

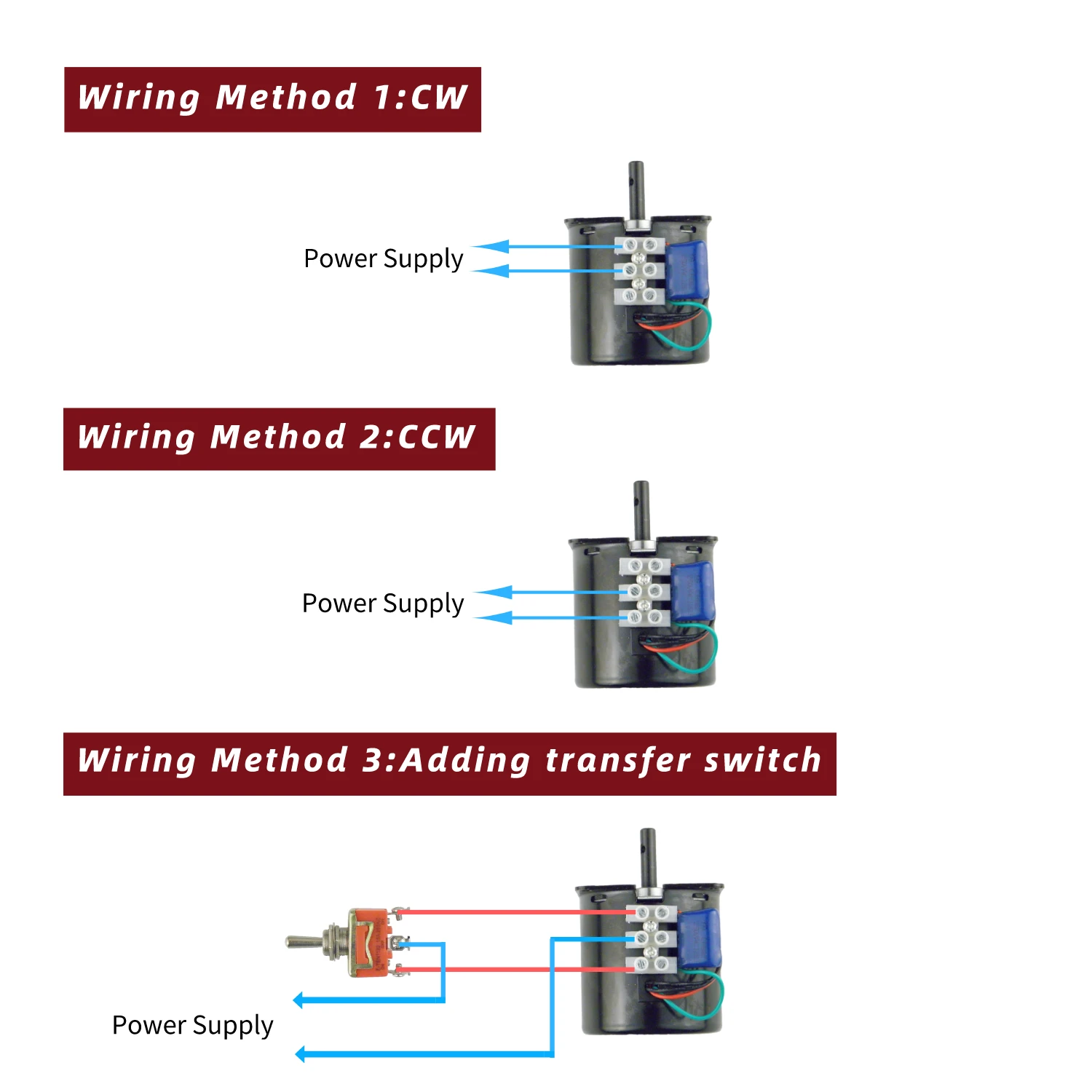

*The specification of motor: Shaft Diameter: 7mm , Shaft Length: 19mm, Working Voltage: AC 220V, Speed: 30RPM, Torque: ≤6.5Kg.cm, CW/CCW (Controllable) *The size of bracket: Base Width: 49mm, Base Length:100mm, Mounting hole distance: 50mm. *The specification od the power cable: Wire Length:1.5m, Voltage: 220V, Rated Power: 500W,

*It is normal the motor get hot when working. The surface temperature will up to 70-90℃(158-194℉). That will NOT influence motor’s service life. *Use the voltage within the rated torque of the motor. If you use more than the rated torque of the motor, the shaft will rotate unsteadily and the motor may be damaged.
