Custom 60KTYZ 110V CW/CCW Permanent Magnet Synchronous Gear Motor and Switch Plug Extension Manufacturer

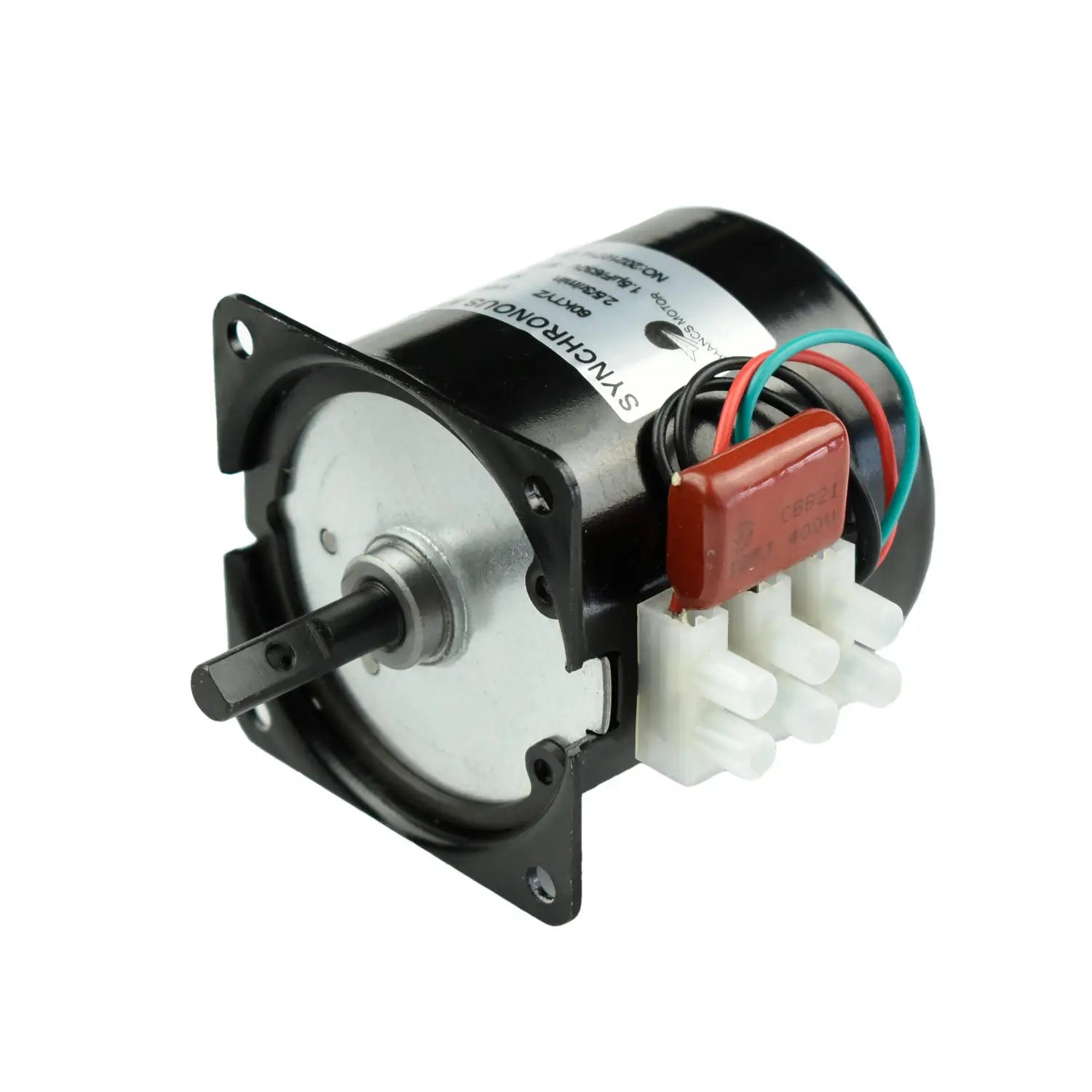

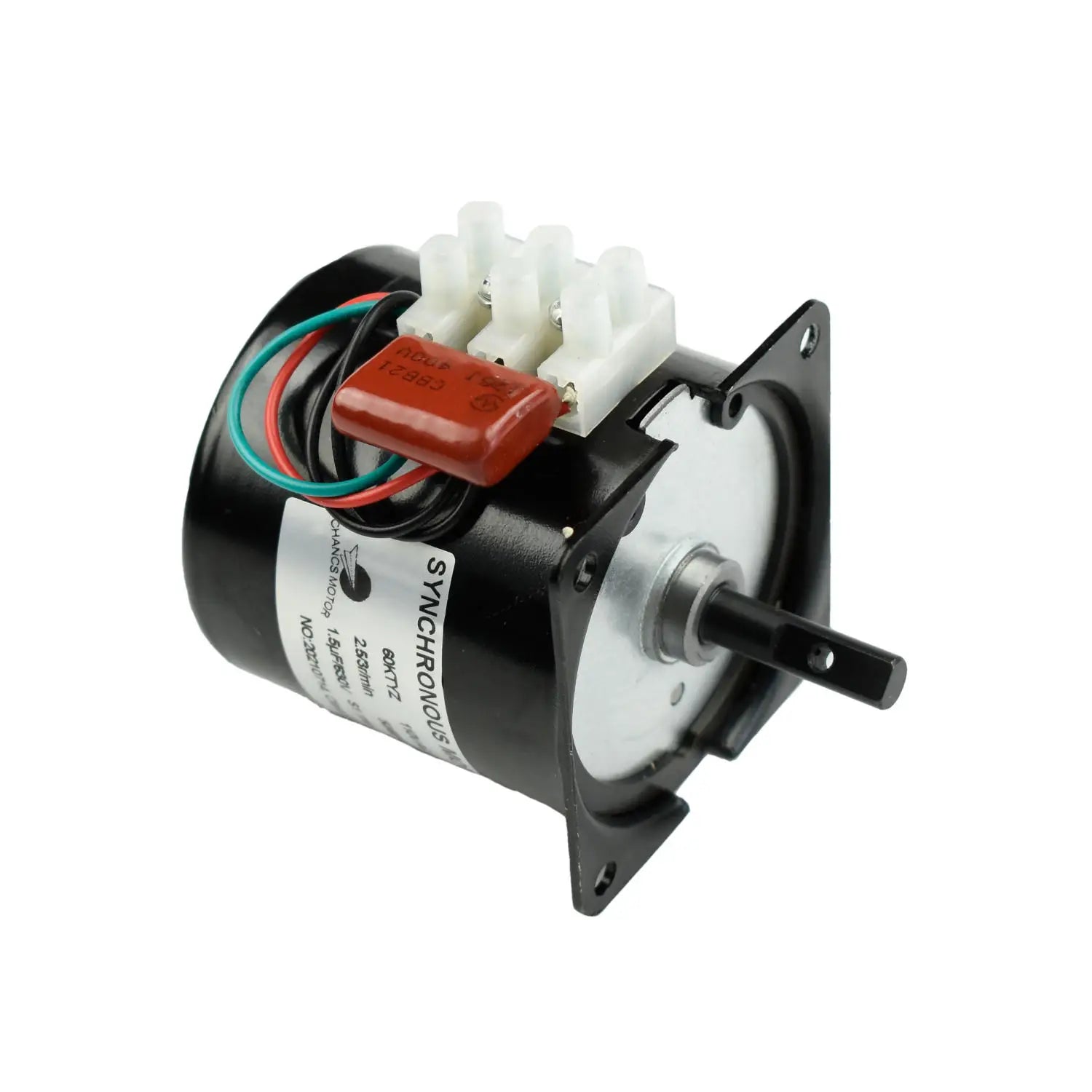

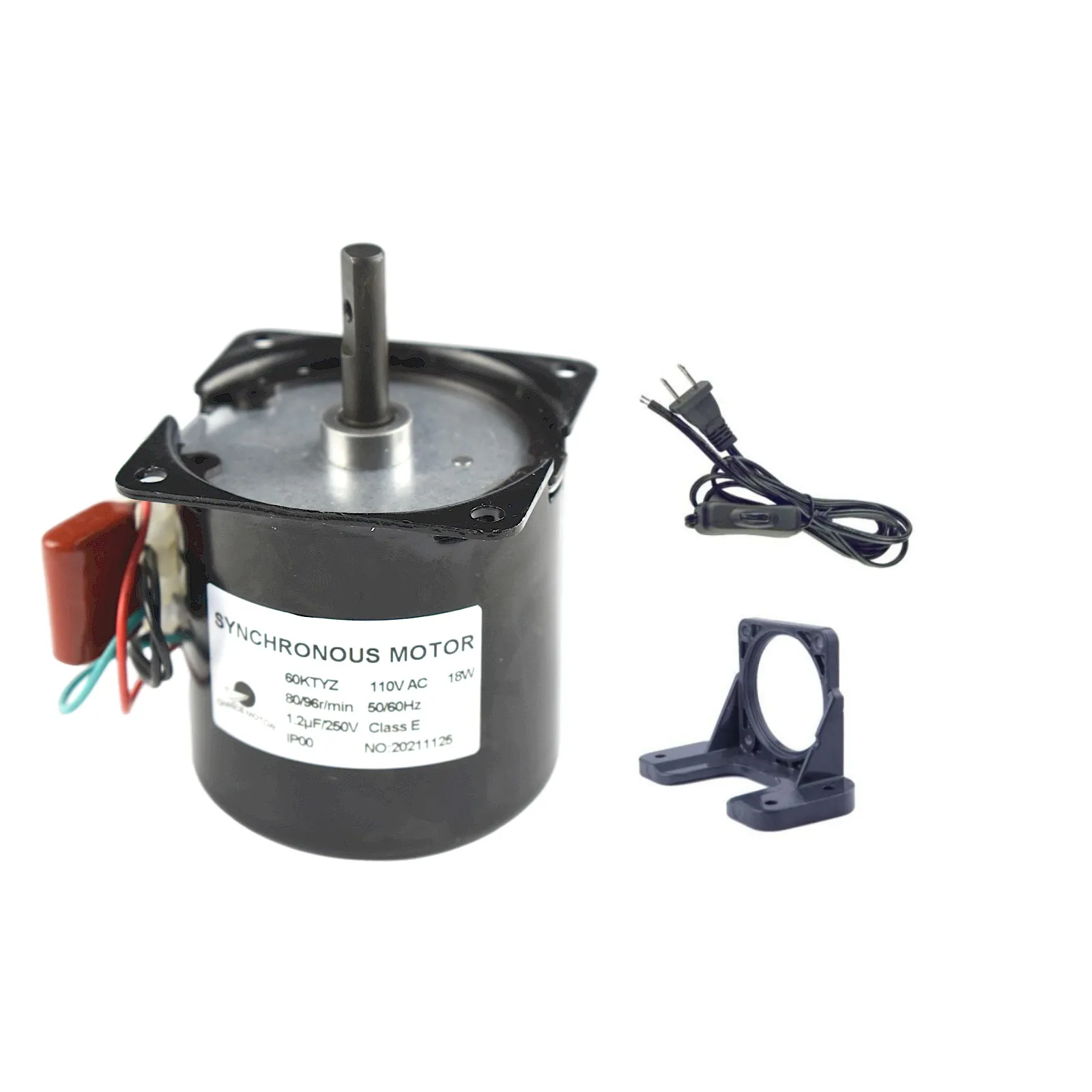

This is a 60KTYZ motor with power cable and bracket.
The 60KTYZ synchronous motor adopts high quality material for long lifespan, wear resistant and durable.
This motor has simple construction and compact size, easy to install and use.

The specification of motor:
Model Type: 60KTYZ;
Voltage: AC 110V;
Speed: 1.5RPM;2.5/3RPM;5/6RPM;8/10RPM;20/24RPM;30/36RPM;50/60RPM;60/72RPM;80/96RPM;

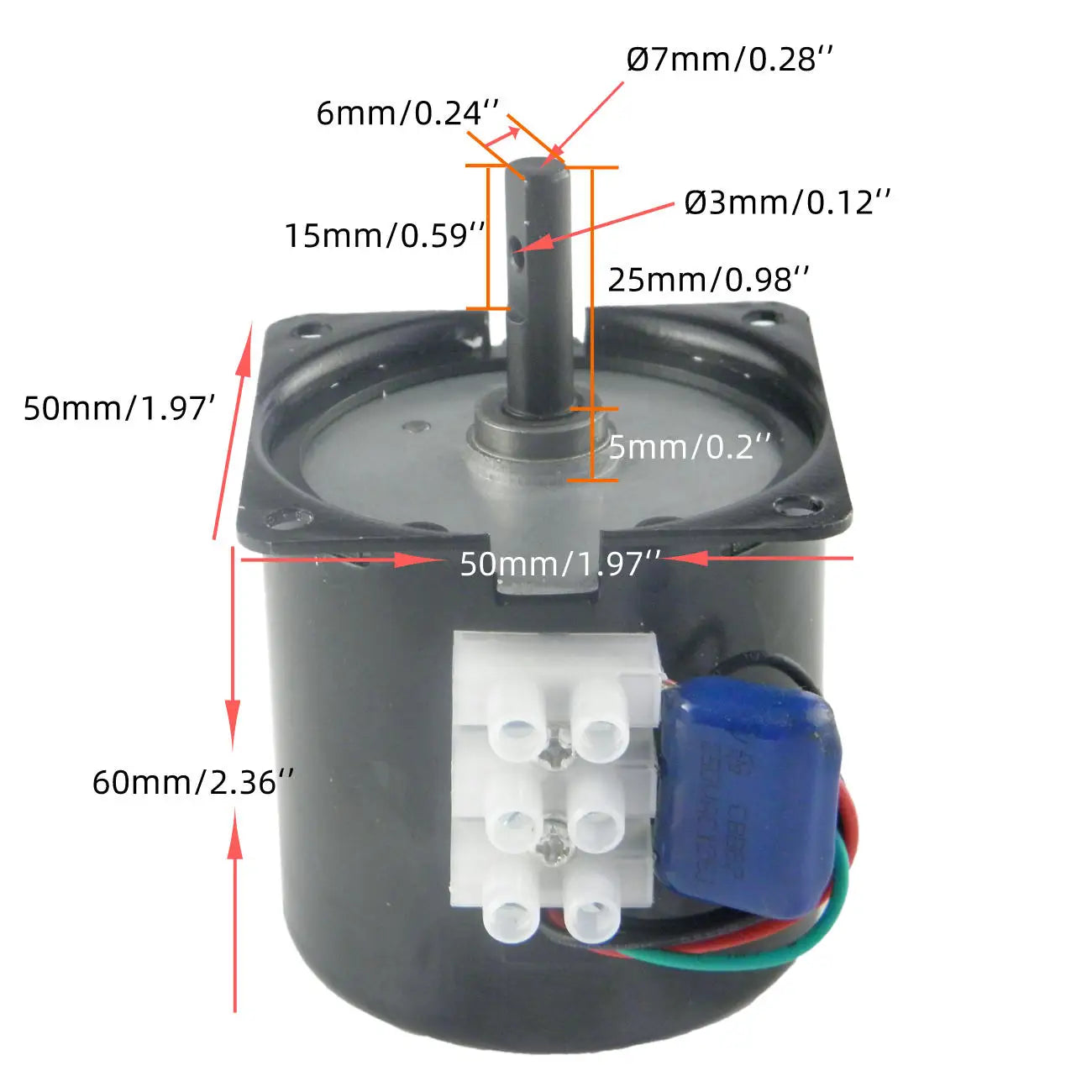

Shaft Style: in center;
Shaft Diameter: 7mm;
Shaft Length: 25mm;
CW/CCW (Controllable);
Power: 18W;
Frequency: ~50/60Hz

The size of bracket:
Base Width: 49mm,
Base Length:100mm,
Mounting hole distance: 50mm.

The specification of the power cable: Wire Length:1.5m,Voltage:110V.
