Raspberry Pi Case-LTRIG

5V 3A Type-C Power Adapter + X825 V2.0 2.5 inch SATA HDD/SSD Board for Raspberry Pi 4 Model B

5V 3A Type-C Power Adapter + X825 V2.0 2.5 inch SATA HDD/SSD Board for Raspberry Pi 4 Model B

Regular price $36.49 USD
Regular price $0.00 USD Sale price $36.49 USD
Sale Sold out
Color

Some new features of X825 V2.0(Updated on April 1st 2021):

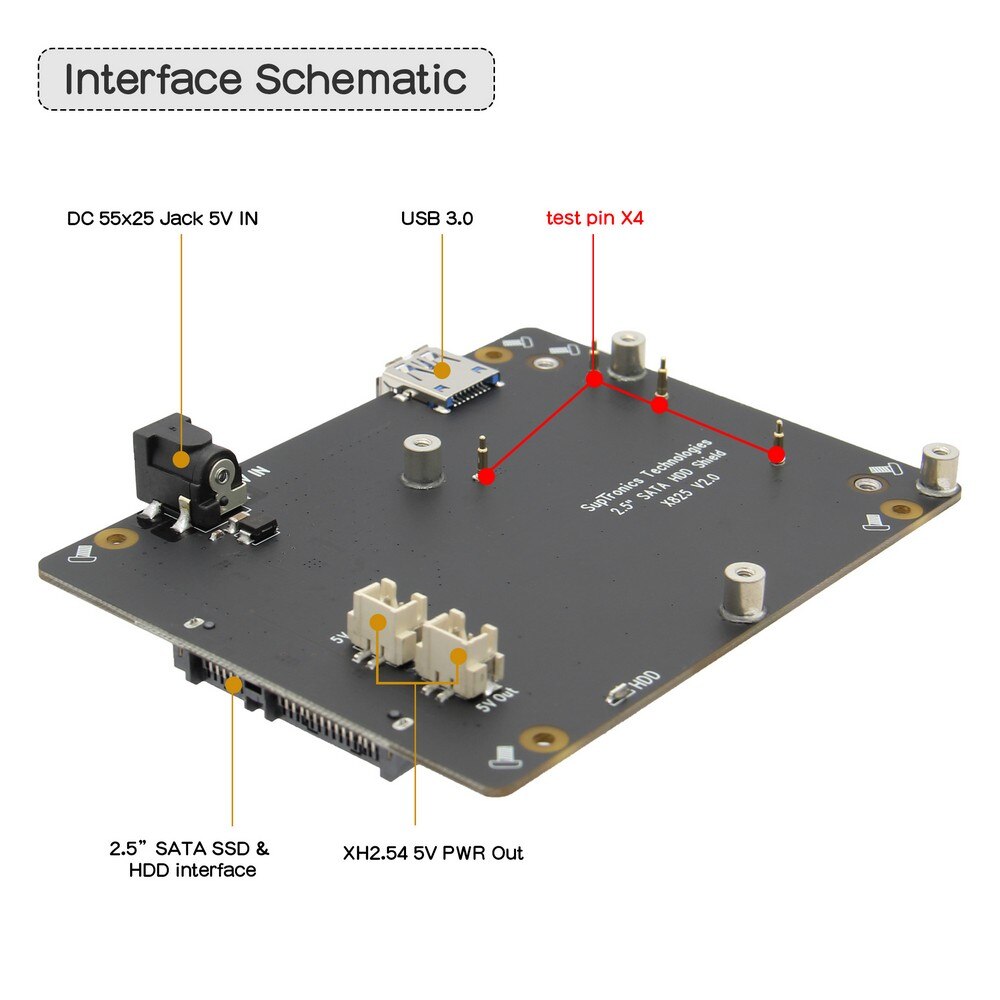

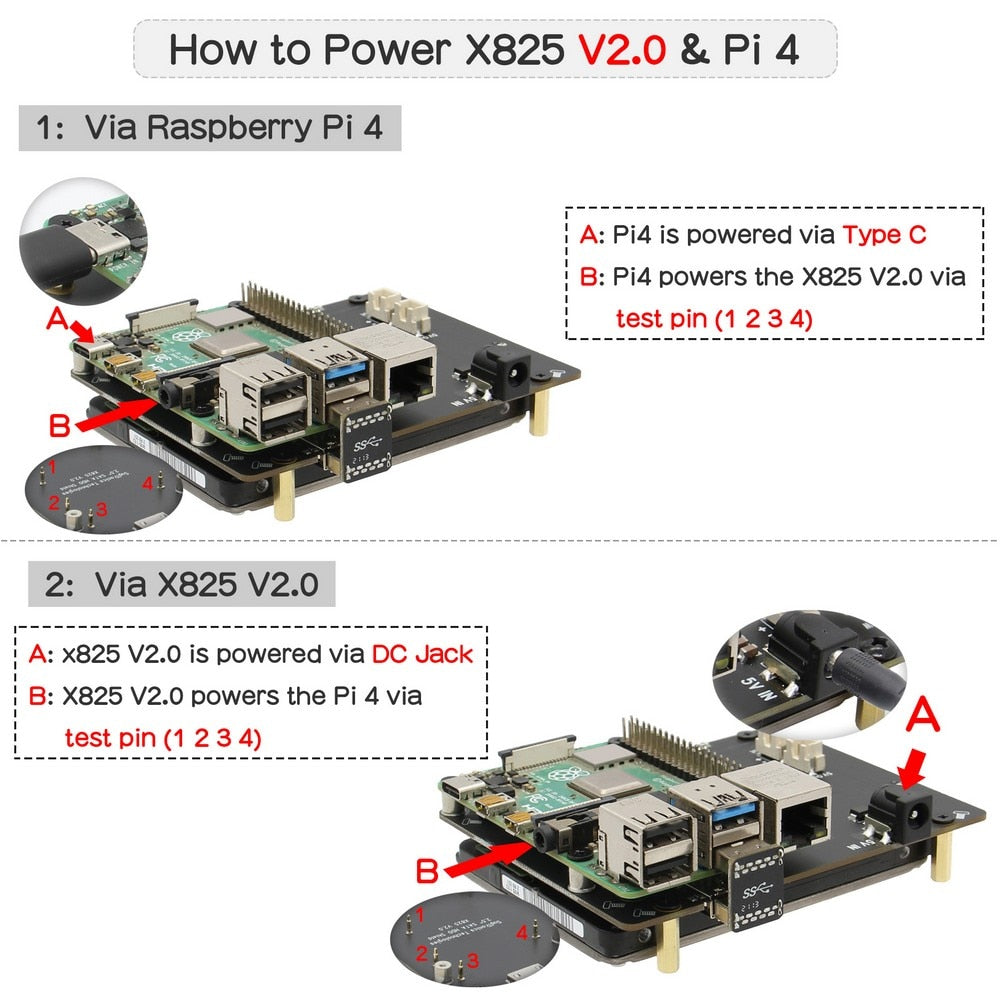

① Add 4 test pins to achieve powered between X825 V2.0 and Pi4 without additional cable. You can get power from the PI4's Type-C port or X825 V2.0 DC JACK power socket.

② Removed the on-board power button and 4-pin external switch interface. You can connect the X735 board for software safe shutdown & power management .

③ Use more shorter USB 3.0 jumper/connector, so the matching metal case is X825-C8 NOT X825-C6.



Overview

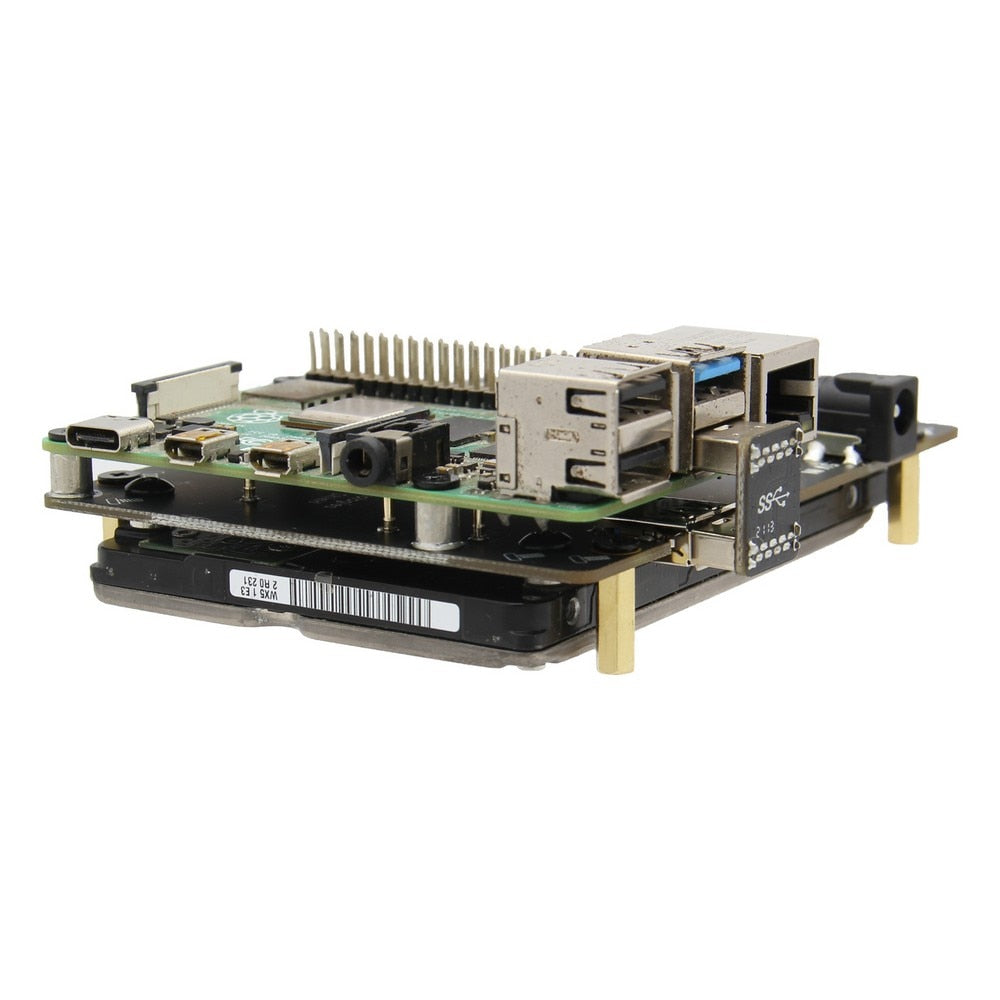

The X825 expansion board provides a complete storage solution for newest Raspberry Pi 4 Model B 8gb/4gb/2gb, it supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD). Only 2.5 inch SATA interface HDD/SDD hard disk is suitable for X825 Board;




X825 V2.0 Features

  • Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) (Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6tb or 8tb HDD, you can have a try.)

  • Ideal storage solution for Raspberry Pi 4 Model B

  • Powers the Raspberry Pi via Pi's 40-pin header

  • LED red indicator indicates powered status and blue indicator indicates drive status

  • USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller

  • Quick file transfer with high-speed USB 3.1 connectivity from a PC or a Mac

  • Powers the Raspberry Pi - no additional power supply for RPi 4


Packing List:

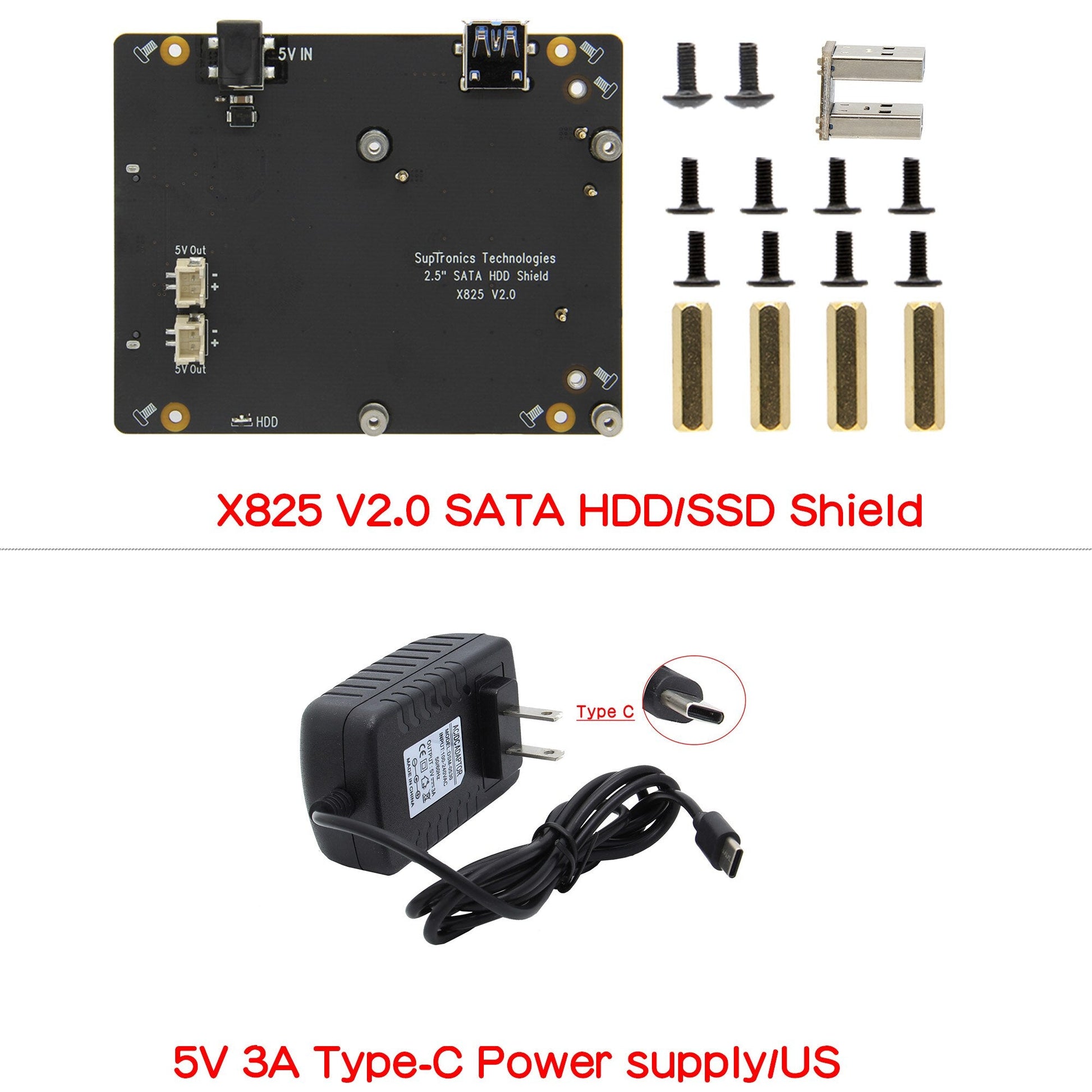

Bundle 1:

  • 1 x X825 V2.0 Expansion Board

  • 1 x USB connector

  • 1 x Mounting screw package

  • 1 x 5V 3A Type-CPower Plug(US)

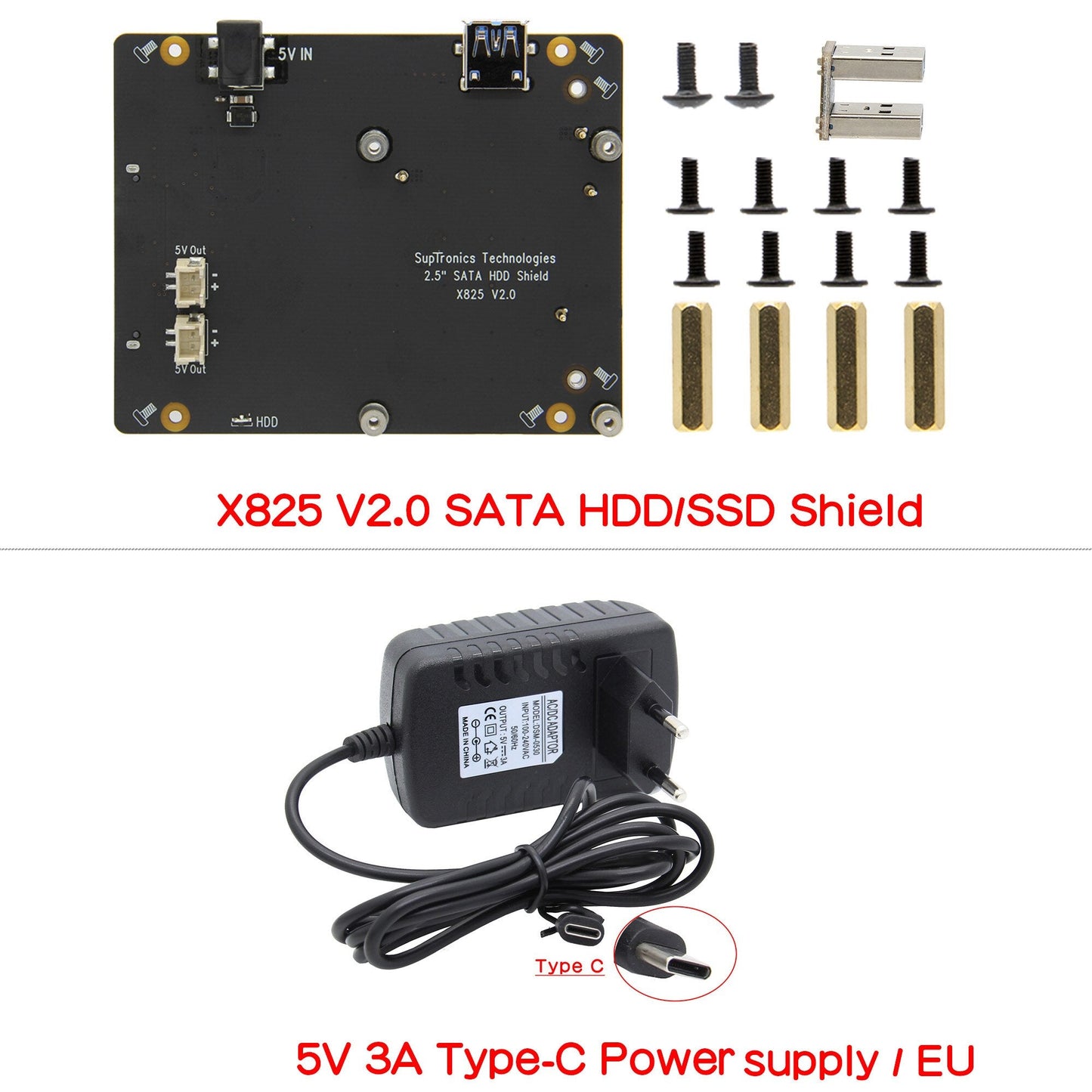

Bundle 2:

  • 1 x X825 V2.0 Expansion Board

  • 1 x USB connector

  • 1 x Mounting screw package

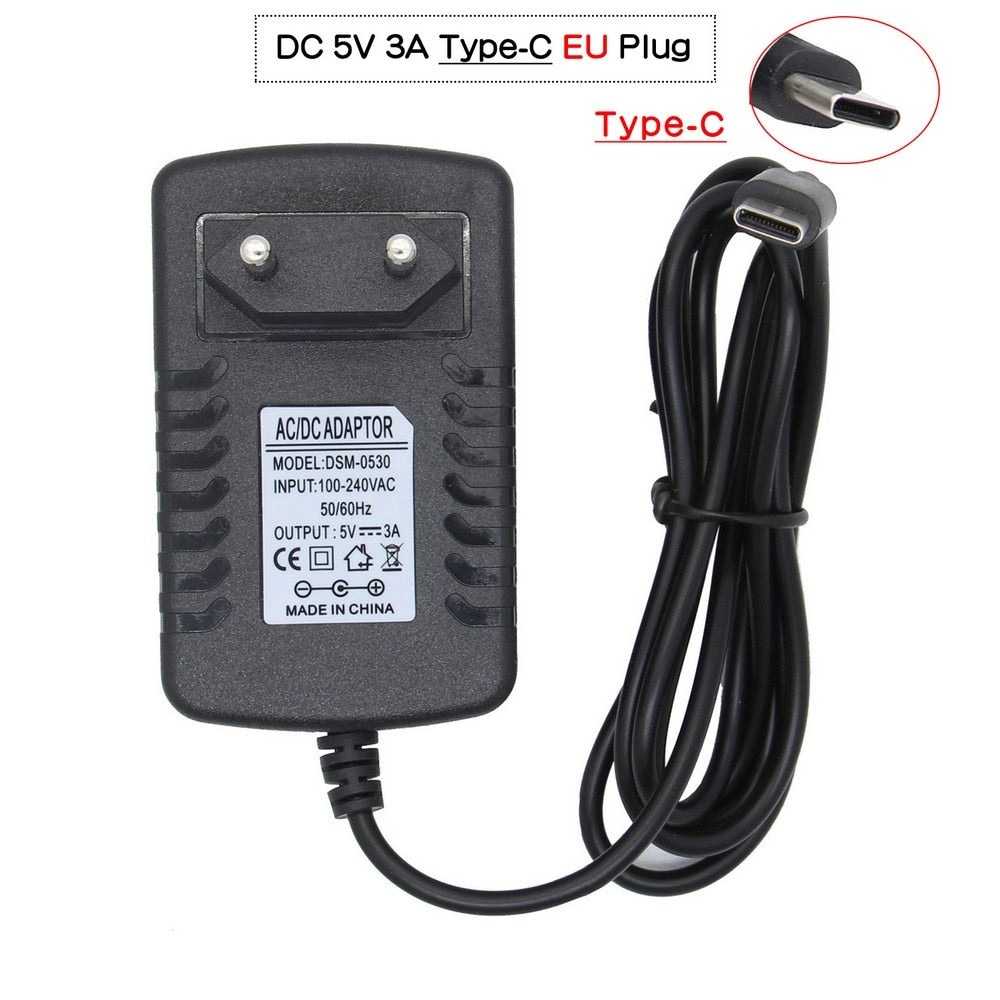

  • 1 x 5V 3A Type-CPower Plug(EU)

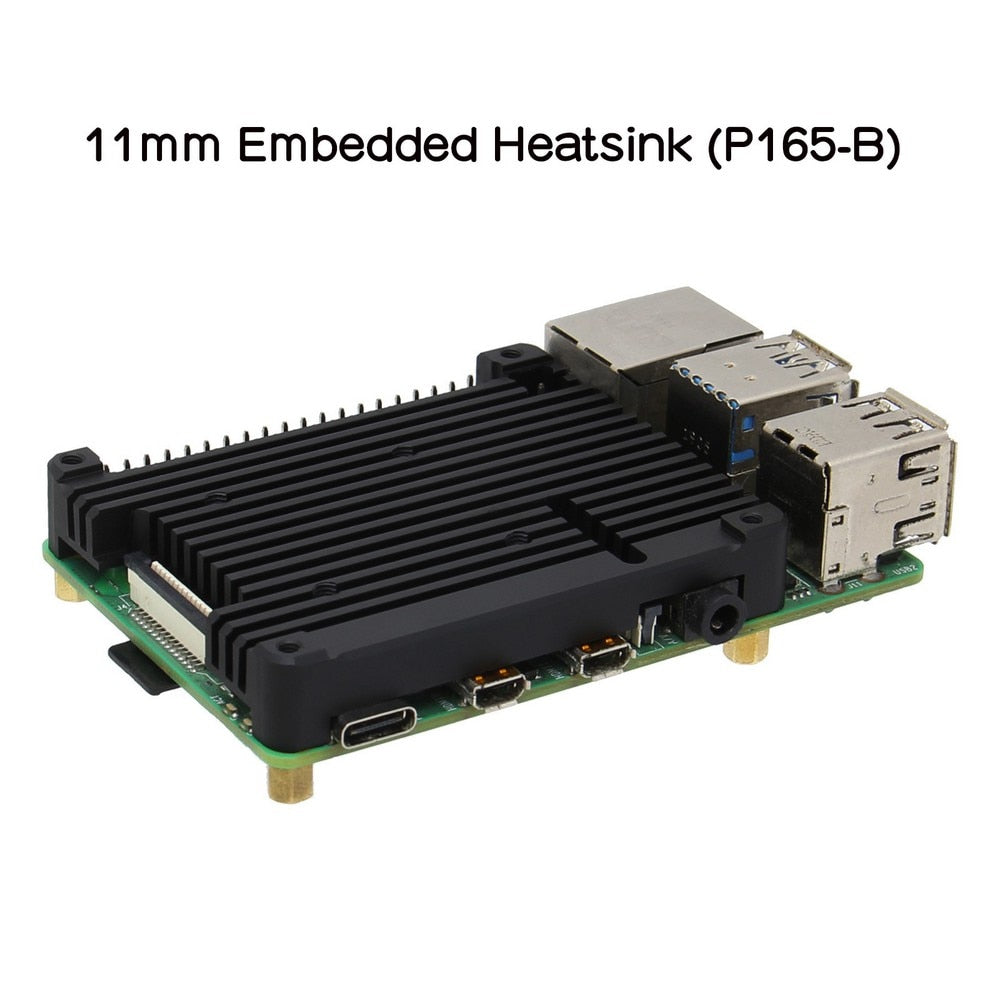

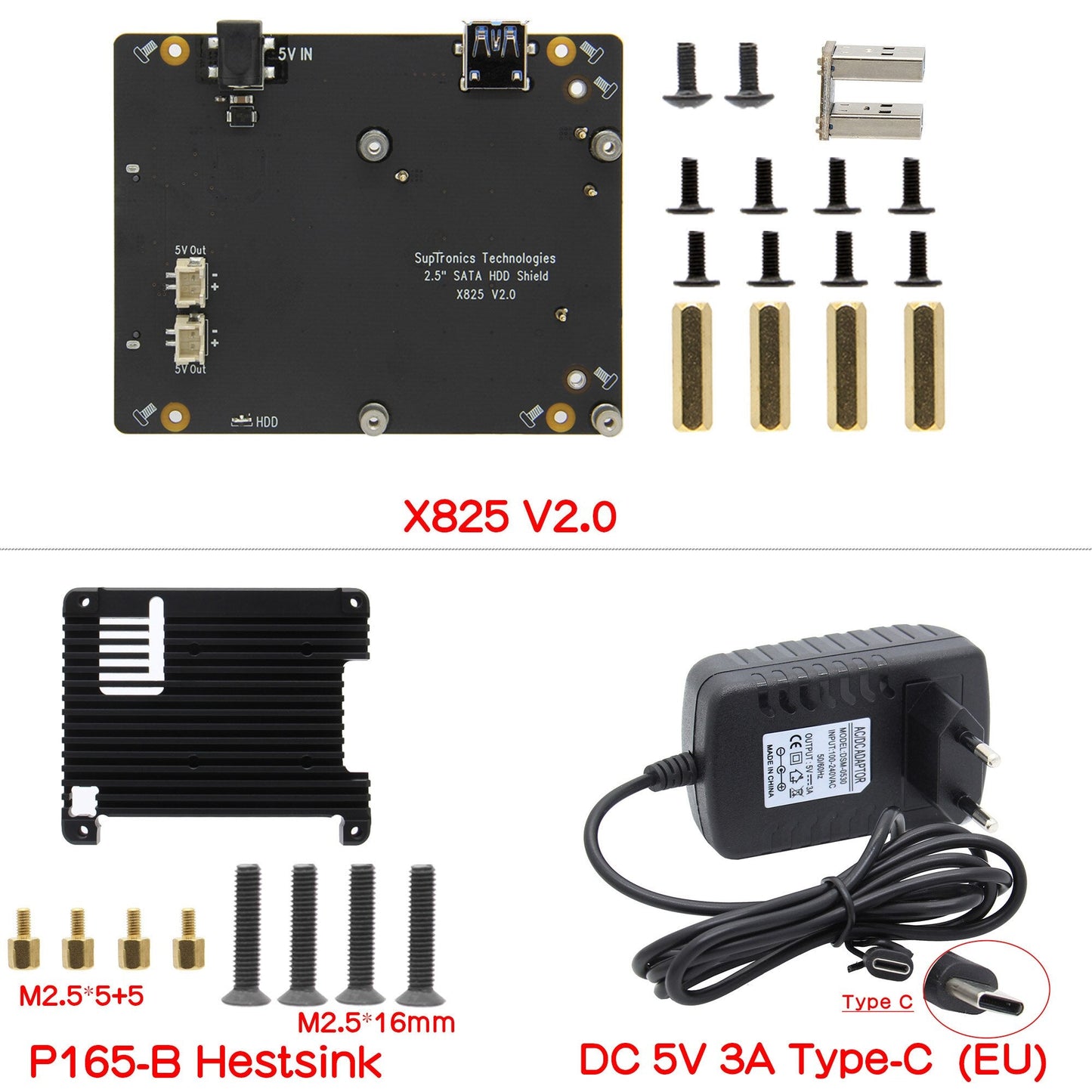

Bundle 3:Bundle 2 + P165-B Heatsink

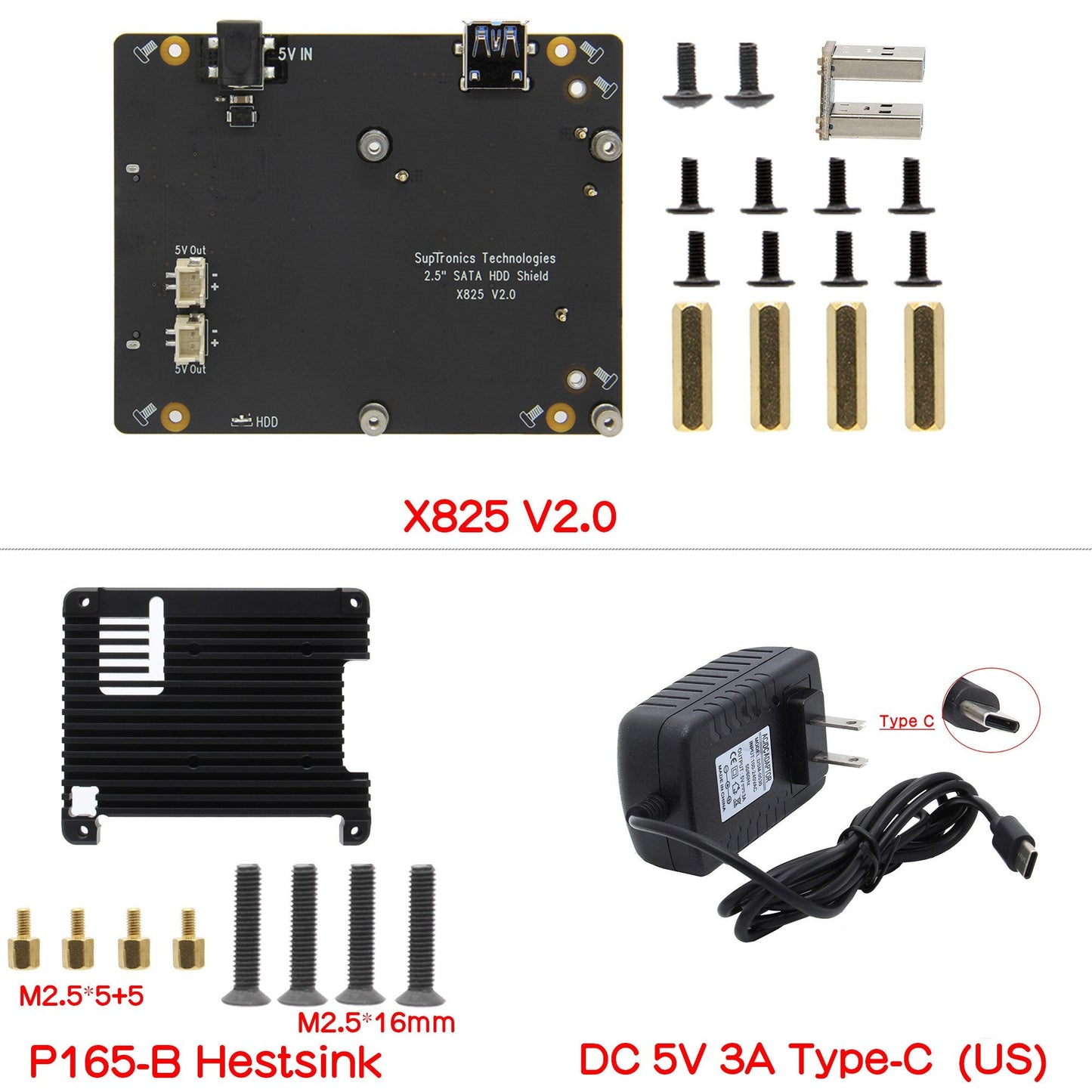

Bundle 4:Bundle 1 + P165-B Heatsink


What do you need to use Raspberry Pi X825 2.5 inch SATA Storage Board?

A Raspberry Pi 4 Model B Board

A X825 Board

A Power Supply (DC 5V 4A or Type-C 5V 3A ;Please use high quality power supply)

A 2.5 inch SATA hard disk drives (HDD) or solid-state drive (SSD) 【not recommend to use Samsung SSD because we found the EMC of Samsung SSD is serious】

A X735 Power Management Board for intelligent power management and cooling your Raspberry Pi(optional,When use the X735 board with momentary switch equipped with the X825 case, the 2 jumper caps on the X735 should be removed!)

A X825 Use Metal Case(optional, due to the raspberry pi USB 3.0 frequency interference, it is recommend to use 5G AP if use the case)
