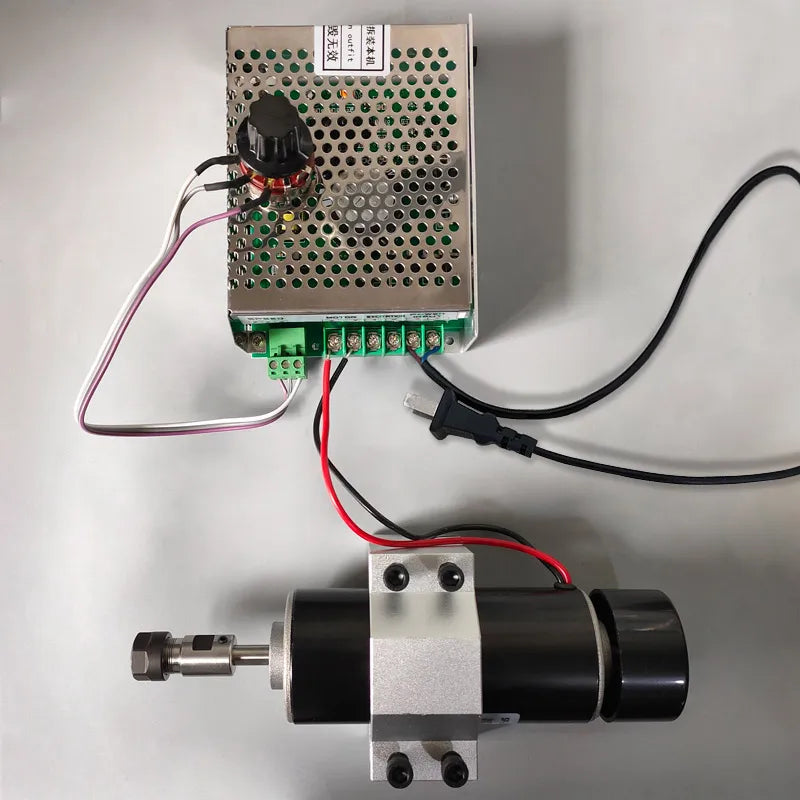

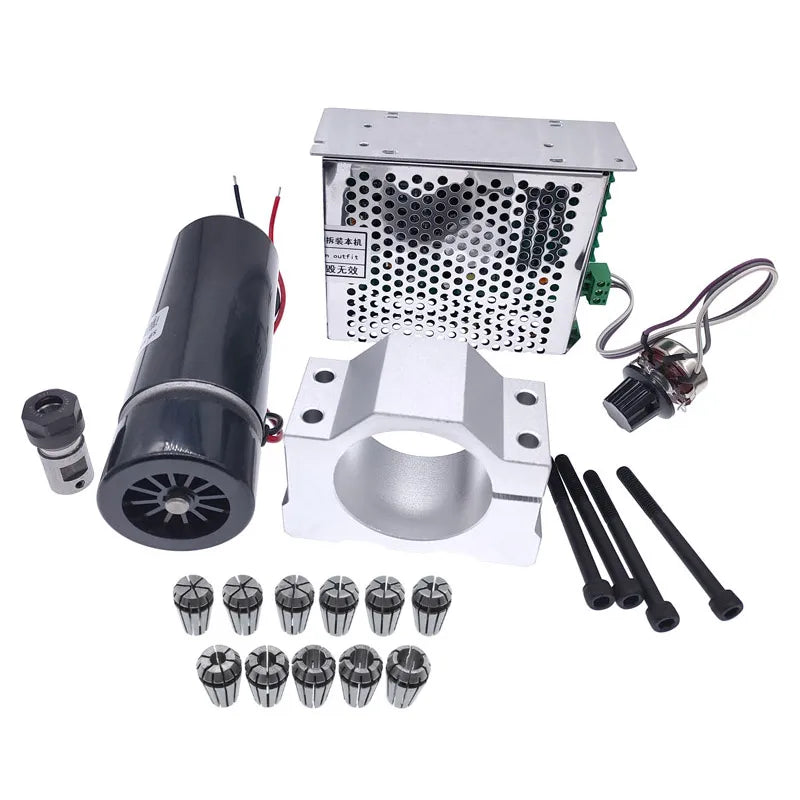

Custom 500W Air cooled Spindle Motor 100V+WK611 Power Supply speed governor ER11-8mm chuck CNC with 52mm Clamps Bracket Manufacturer

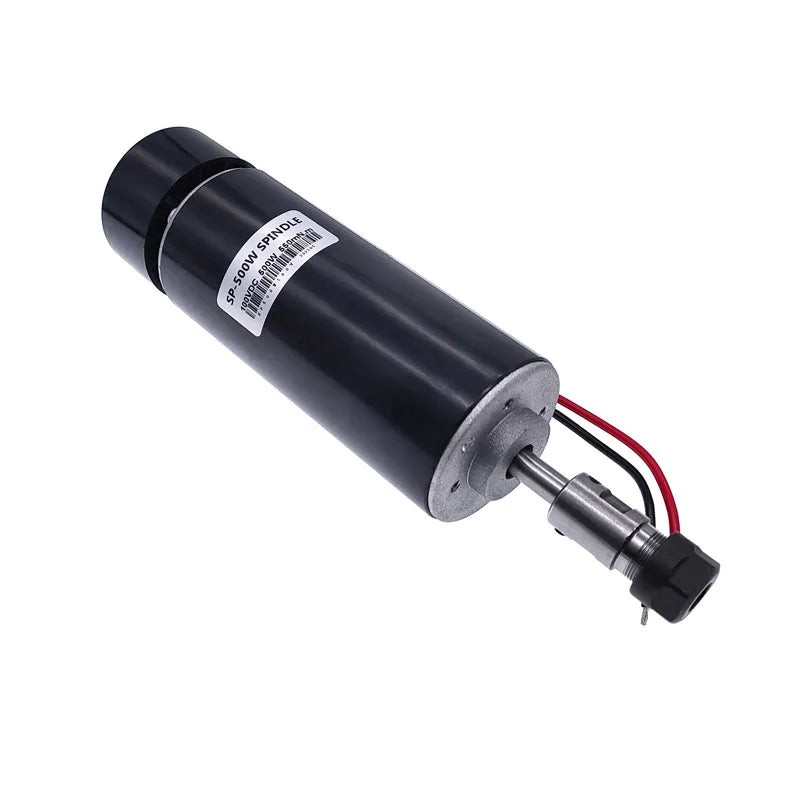

①DC SPINDLE MOTOR

Work Voltage:100VDC                  Starting Current: 5A               POWER: 500W

Toque: 550mN.m                          Speed: 12000rpm                     Diam: 52mm

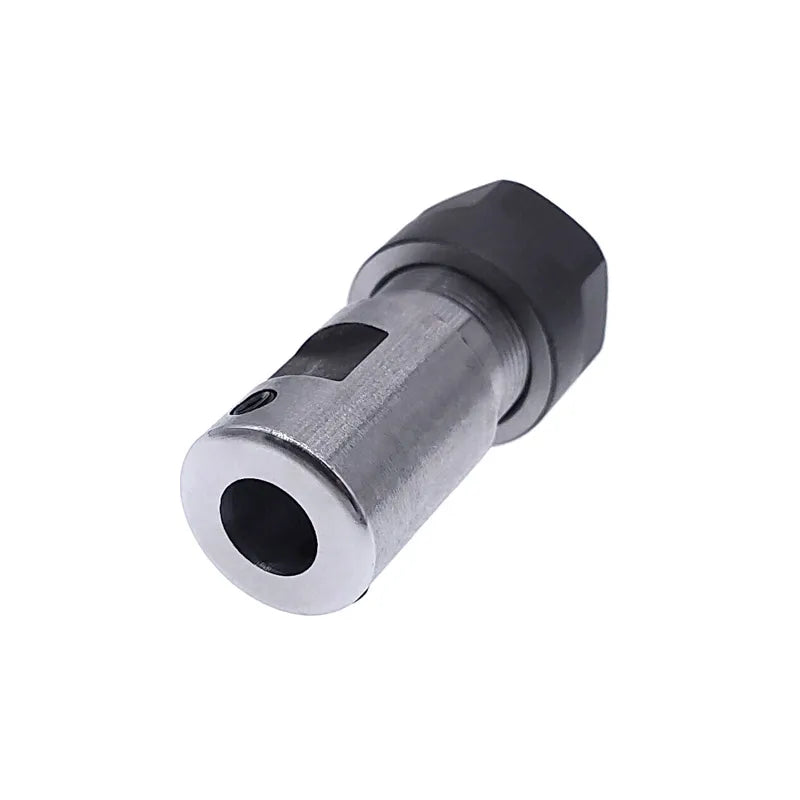

②ER11-8 CHUCK

ER11 chuck (fit for ER11 collet 1-7mm)

End aperture: 8mm (fit for φ8 motor shaft)

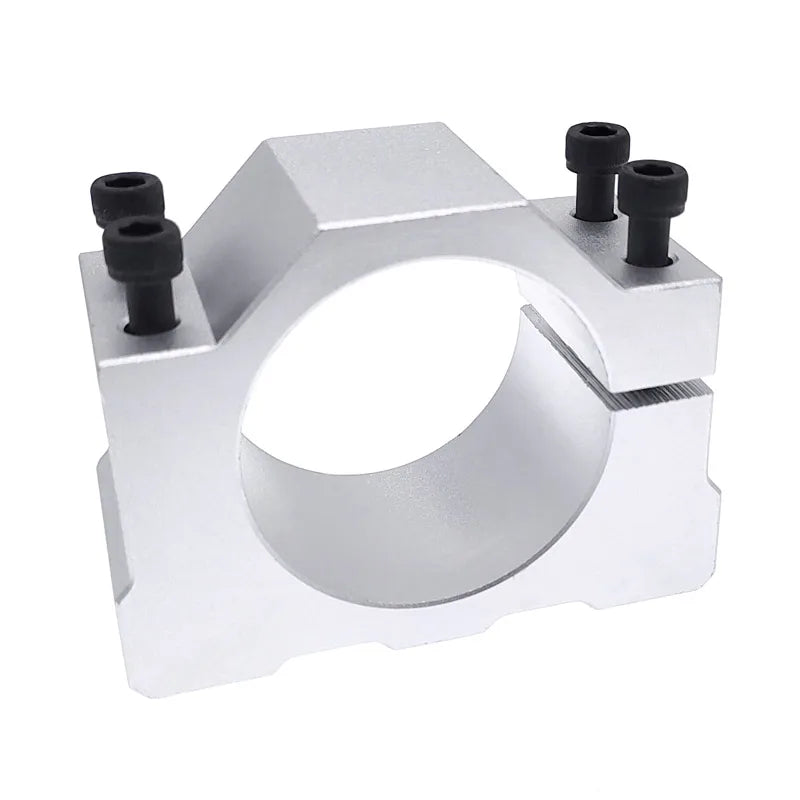

③52mm Spindle Fixed Mounting Base

Material: aluminum alloy

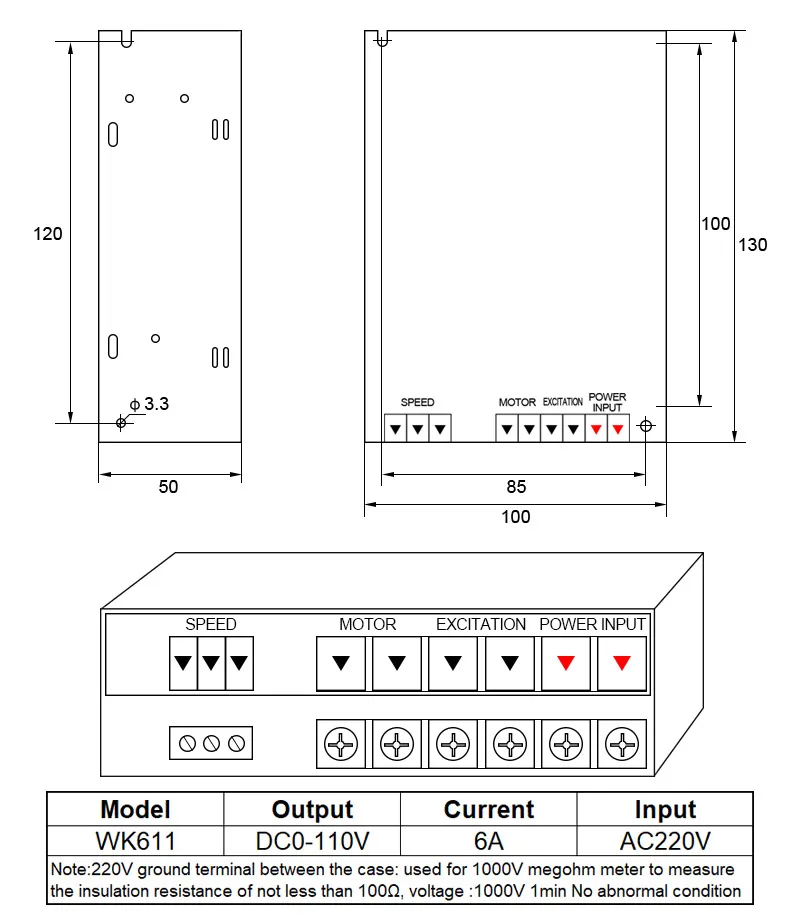

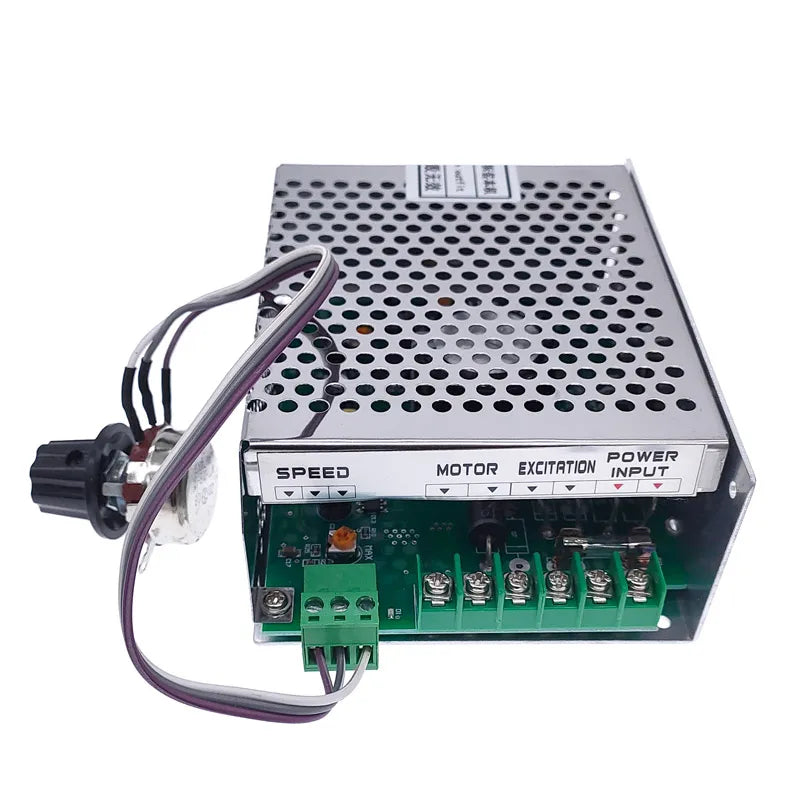

④600W Adjustable Speed Power Switch

Input voltage: 110-220VAC                       Output voltage: 0-100VDC

Current : 6A    Excitation：1A                    Max POWER: 600W

⑤ER11 Collet

ER11 collet set (1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/4mm/5mm/6mm/6.35mm/7mm)

tips:3.175=1/8                     6.35=1/4
