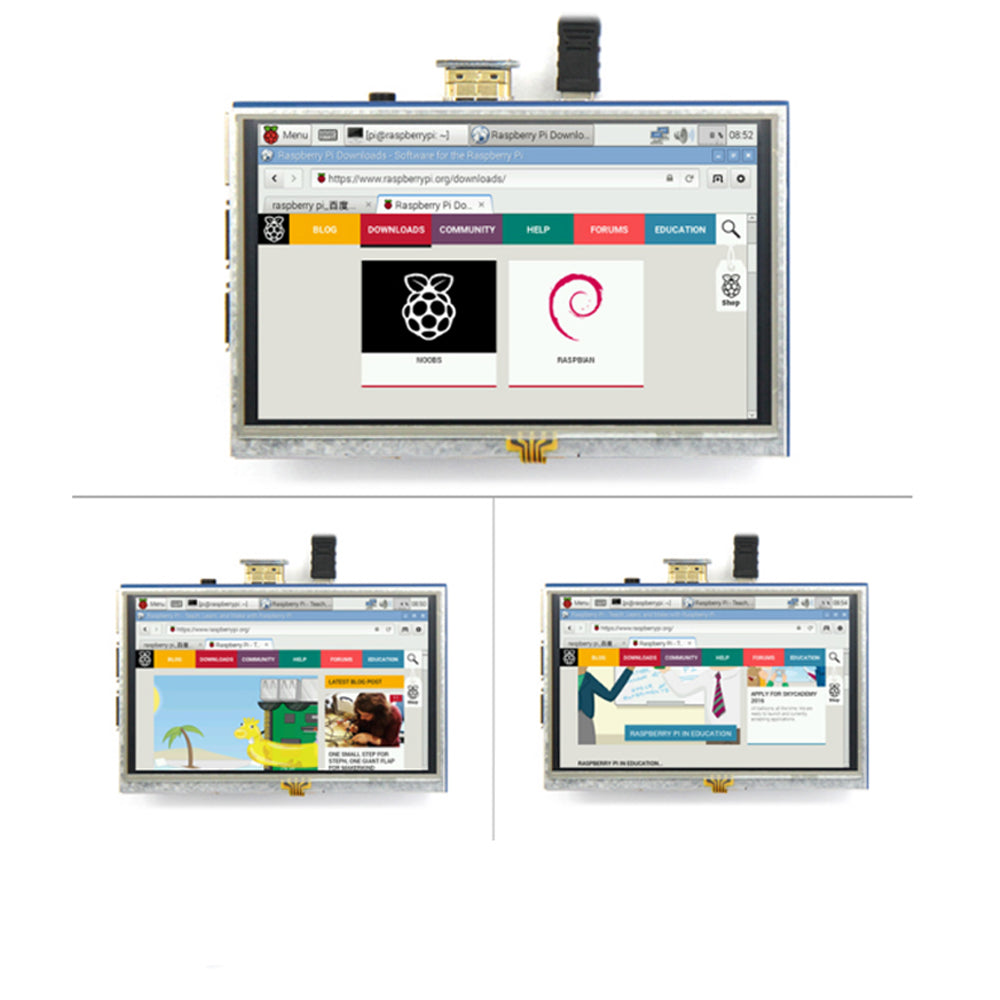

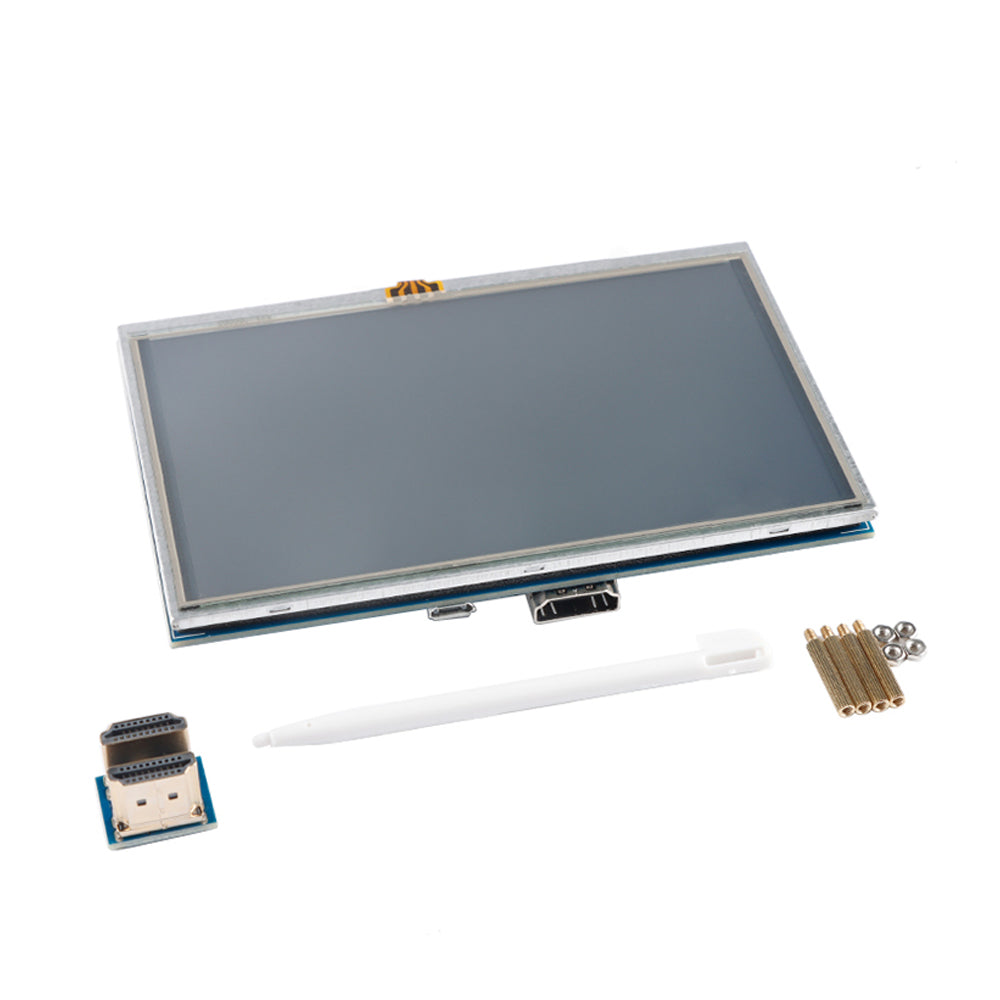

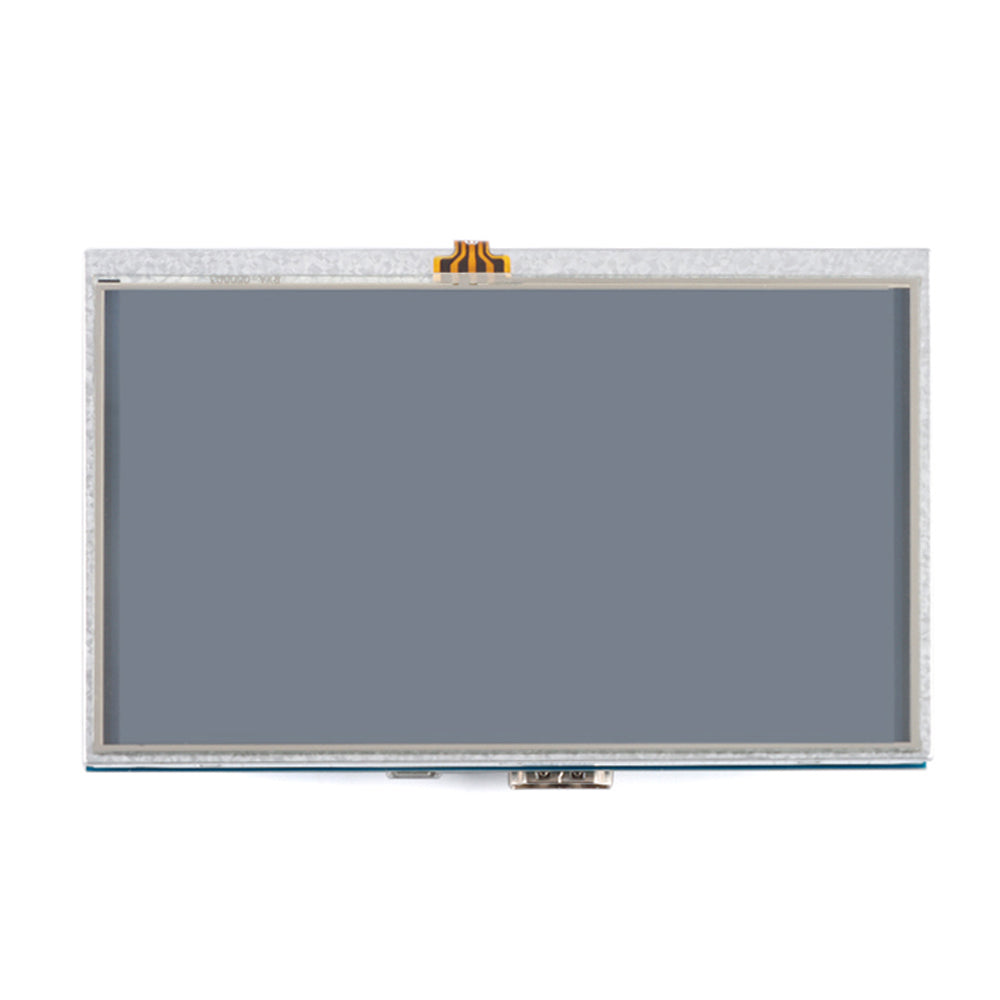

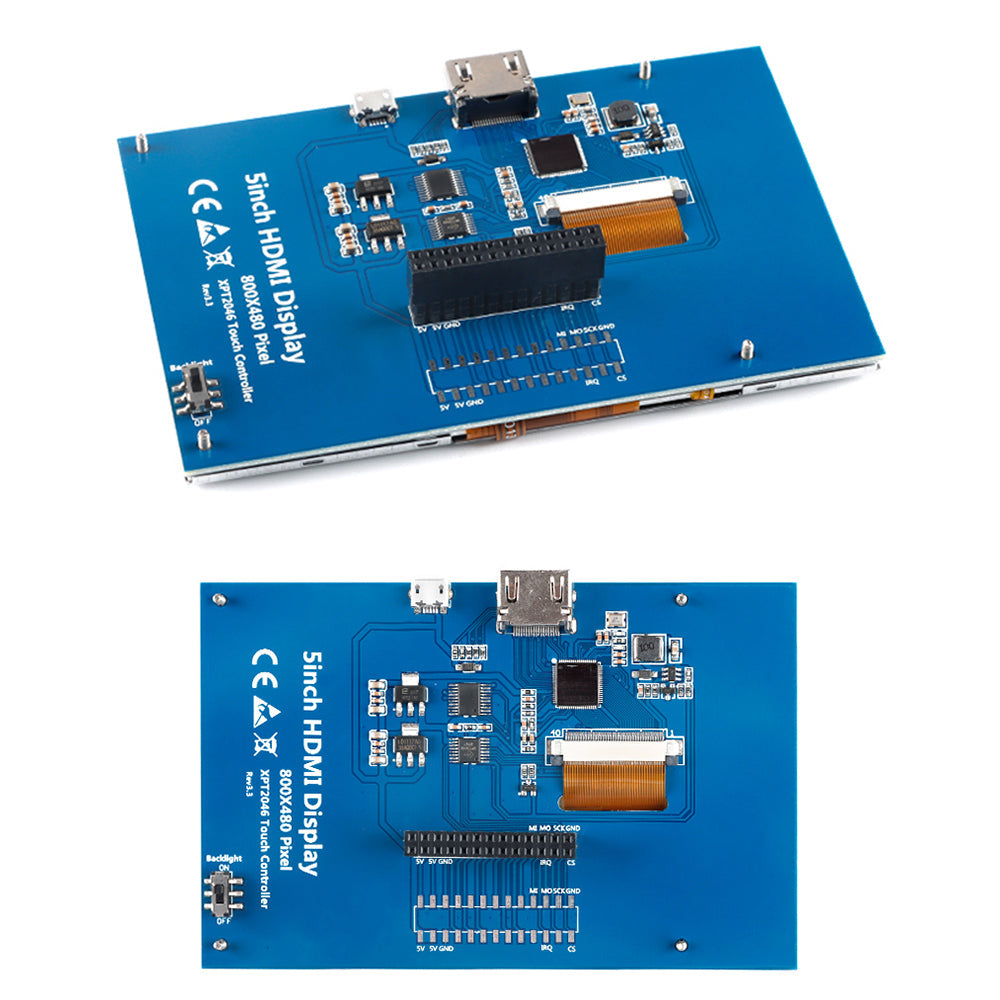

5 inch LCD screen display module 800*480 resistive touch for Raspberry Pi 3B screens Custom

5inch standard display,

800×480 HD resolution

With resistive touch screen, support touch control

Support individual backlight control, the backlight can be turned off to save power consumption

Support standard HD interface input, compatible and can be directly inserted into Raspberry Pi (3rd generation 2nd generation 1st generation)

Can be used as a general HD display, such as connecting to a computer HD as a secondary display (the resolution output should be adjusted to 800x480)

If it is only used for display, it does not need to occupy I0 resources (the Raspberry Pi needs to occupy l0 resources when using the touch function)

This product has passed CE, RoHS certification



Size: 5.0(inch)

Resolution: 800×480(dots)

Touch: 4-wire resistive touch

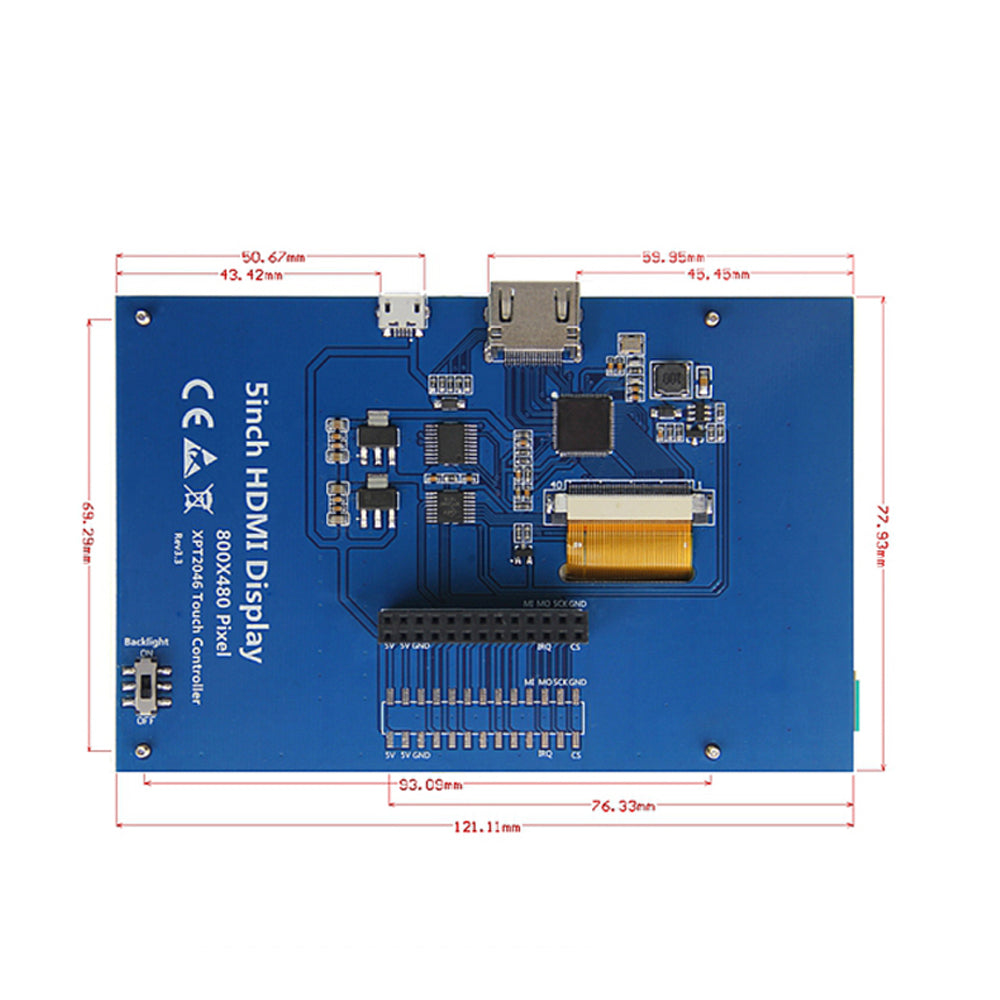

Dimensions: 121.11*77.93(mm)

Product weight: 175(g)
