240*240 General 1.54inch LCD Display Module IPS 65K RGB Custom PCB embedded charger pcba
240*240 General 1.54inch LCD Display Module IPS 65K RGB Custom PCB embedded charger pcba
Regular price
$187.00 USD
Regular price
$227.00 USD
Sale price
$187.00 USD
Unit price
per
Couldn't load pickup availability
DESCRIPTION

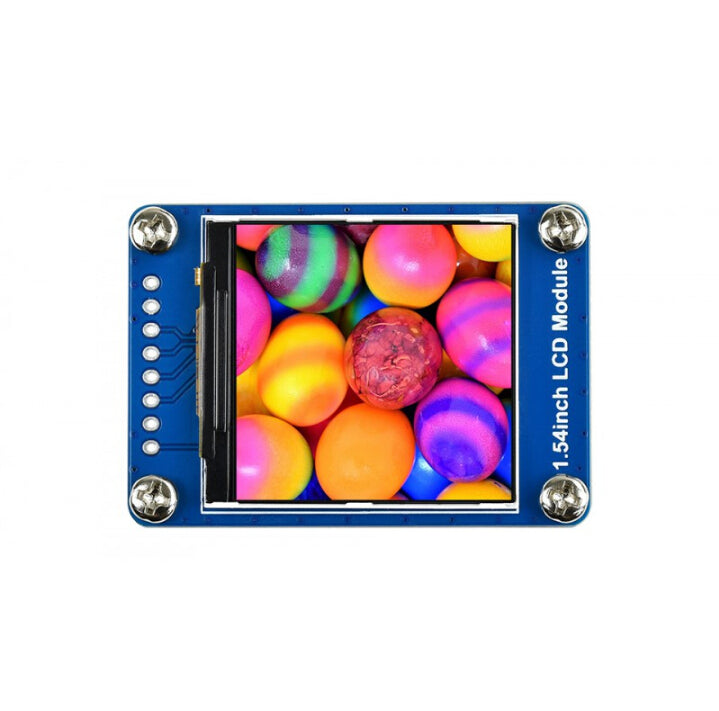

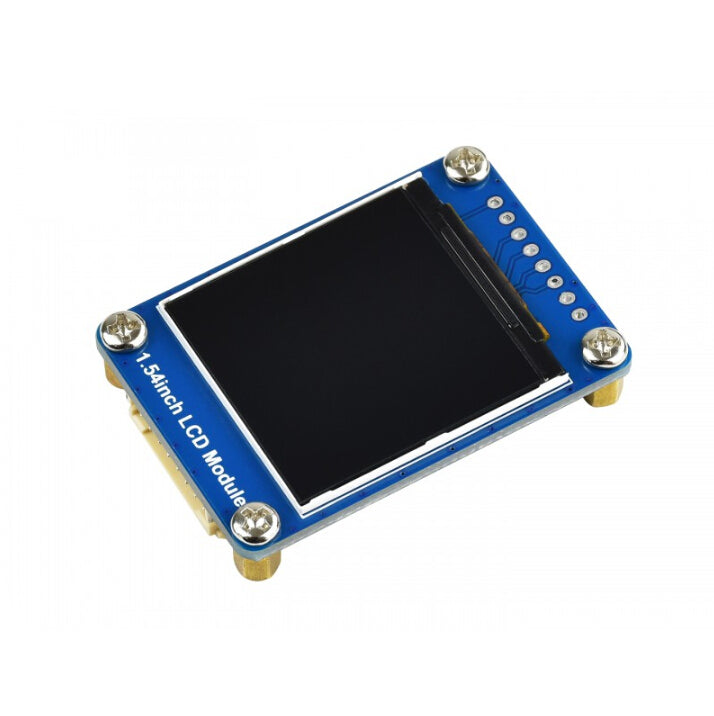

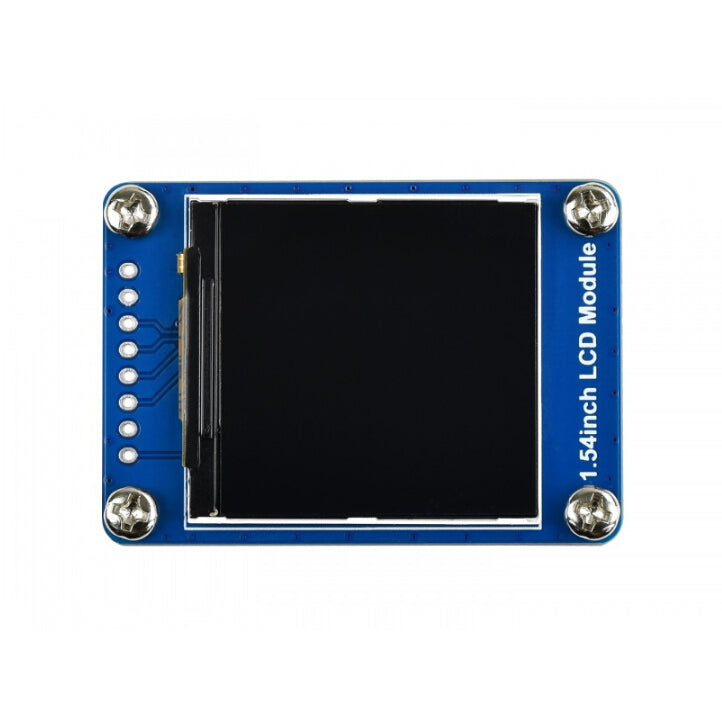

1.54inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×240 Resolution, SPI Interface
1.54" LCD DISPLAY MODULE
Embedded ST7789 Driver, Using SPI Bus
Comes with examples for Raspberry Pi, Ard, STM32, etc.
Features At A Glance
- 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Ard/STM32
- Comes with development resources (examples for Raspberry Pi/Ard/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V/5V | RESOLUTION | 240 × 240pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 27.72 × 27.72mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.1155 × 0.1155mm |
| DRIVER | ST7789 | DIMENSIONS | 50 × 35mm |
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Ard/STM32

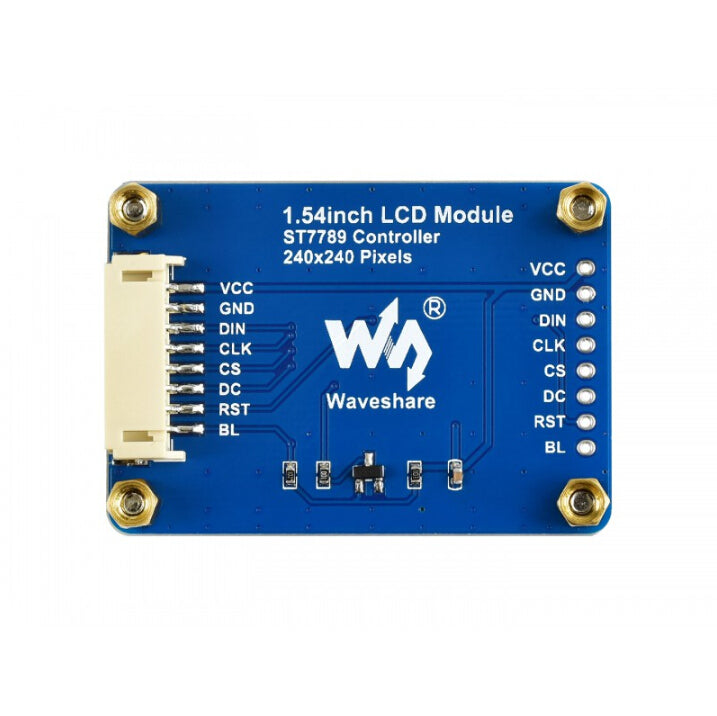

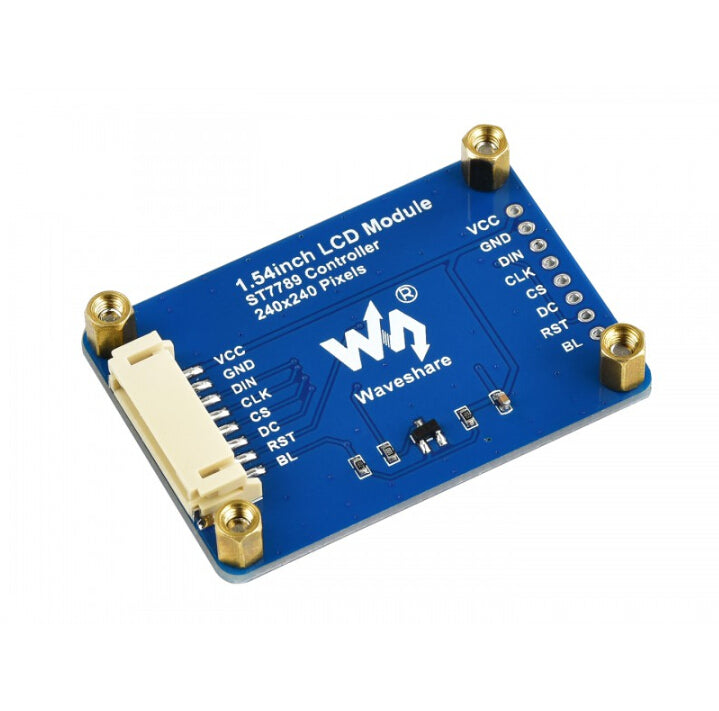

| VCC | Power (3.3V/5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |

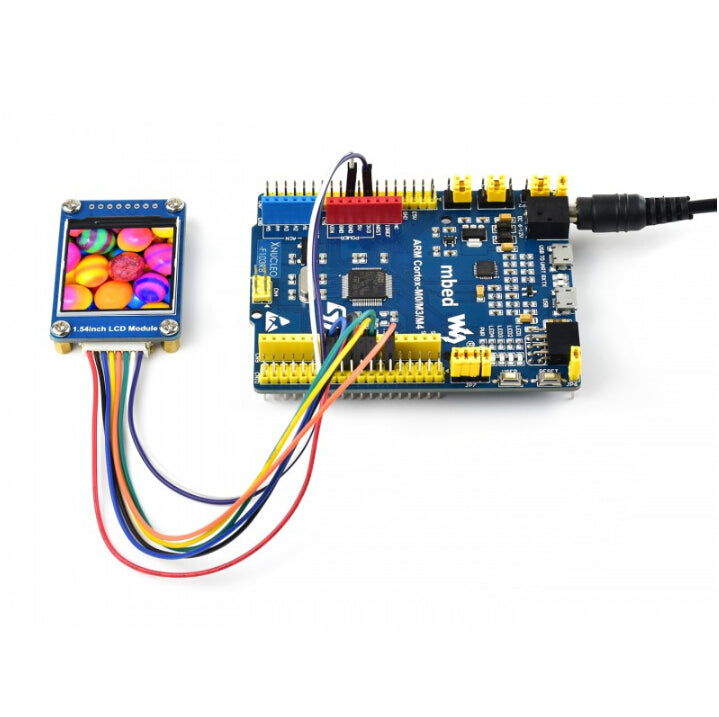

Hardware Connection
Connecting With Raspberry Pi
Connecting With Ard Board
Living Example
Outline Dimensions
Resources & Services
PACKAGE CONTENT
Weight: 0.021 kg
- 1.54inch LCD Module x1
- PH2.0 8PIN 20cm cable x1
